MainWindow Class Reference

Top level application window. More...

#include <MainWindow.h>

Inheritance diagram for MainWindow:

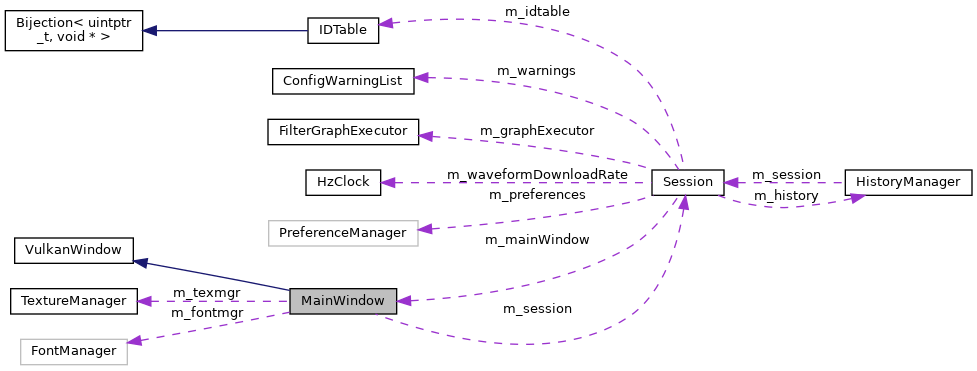

Collaboration diagram for MainWindow:

Public Member Functions
	MainWindow (std::shared_ptr< QueueHandle > queue)
bool	OnMemoryPressure (MemoryPressureLevel level, MemoryPressureType type, size_t requestedSize)
void	LogMemoryUsage ()
void	AddDialog (std::shared_ptr< Dialog > dlg)
void	RemoveFunctionGenerator (std::shared_ptr< SCPIFunctionGenerator > gen)
	Closes the function generator dialog, if we have one.
void	OnScopeAdded (std::shared_ptr< Oscilloscope > scope, bool createViews)
	Handles creation of a new oscilloscope. More...
void	QueueSplitGroup (std::shared_ptr< WaveformGroup > group, ImGuiDir direction, StreamDescriptor stream)
void	ShowChannelProperties (OscilloscopeChannel *channel)
void	ShowInstrumentProperties (std::shared_ptr< Instrument > instrumet)
void	ShowTimebaseProperties ()
void	ShowTriggerProperties ()
void	ShowManageInstruments ()
void	ShowSyncWizard (std::shared_ptr< TriggerGroup > group, std::shared_ptr< Oscilloscope > secondary)
void	OnCursorMoved (int64_t offset)
	Called when a cursor is moved, so protocol analyzers can move highlights as needed.
void	NavigateToTimestamp (int64_t stamp, int64_t duration=0, StreamDescriptor target=StreamDescriptor(nullptr, 0))
	Scrolls all waveform groups so that the specified timestamp is visible.
void	RefreshTimebasePropertiesDialog ()
	Update the timebase properties dialog.
void	RefreshTriggerPropertiesDialog ()
	Update the trigger properties dialog.
void	ToneMapAllWaveforms (vk::raii::CommandBuffer &cmdbuf)
	Run the tone-mapping shader on all of our waveforms. More...
void	RenderWaveformTextures (vk::raii::CommandBuffer &cmdbuf, std::vector< std::shared_ptr< DisplayedChannel > > &channels)
void	SetNeedRender ()
void	ClearPersistence ()
virtual void	Render ()
void	QueueCloseSession ()
Session &	GetSession ()
float	GetTraceAlpha ()
float	GetPersistDecay ()
void	SetPersistDecay (float f)
Filter *	CreateFilter (const std::string &name, WaveformArea *area, StreamDescriptor initialStream, bool showProperties=true, bool addToArea=true)
	Creates a filter optionally and adds all of its streams to the best waveform area. More...
void	FindAreaForStream (WaveformArea *area, StreamDescriptor stream)
	Given a stream and optionally a WaveformArea, adds the stream to some area. More...
void	OnFilterReconfigured (Filter *f)
	Handle a filter being reconfigured. More...
const std::vector< std::string > &	GetEyeGradients ()
std::string	GetEyeGradientFriendlyName (std::string internalName)
std::shared_ptr< MeasurementsDialog >	GetMeasurementsDialog (bool createIfNotExisting)
	Return the measurements dialog, if we have one.
void	AddAreaForStreamIfNotAlreadyVisible (StreamDescriptor stream)
	Makes sure we have at least one waveform area displaying a given stream.
std::map< uintptr_t, std::string >	GetGraphEditorGroups ()
	Returns the groups we have configured for our graph editor.
bool	LoadUIConfiguration (int version, const YAML::Node &node)
void	OnGraphEditorConfigModified (const std::string &blob)
const std::string &	GetGraphEditorConfigBlob ()
std::string	GetDataDir ()
void	AddToRecentInstrumentList (std::shared_ptr< SCPIInstrument > inst)
void	ShowErrorPopup (const std::string &title, const std::string &msg)
	Opens the error popup.
ImFont *	GetFontPref (const std::string &name)
	Returns a font, given the name of a preference setting.
ImU32	GetColorPref (const std::string &name)
ImTextureID	GetTexture (const std::string &name)
TextureManager *	GetTextureManager ()
std::string	GetIconForFilter (Filter *f)
	Gets the icon to use for a filter.
std::string	GetIconForWaveformShape (FunctionGenerator::WaveShape shape)
	Gets the icon to use for a given wave shape.
void	AddStatusHelp (const std::string &icon, const std::string &text)
int64_t	GetToneMapTime ()
Public Member Functions inherited from VulkanWindow
	VulkanWindow (const std::string &title, std::shared_ptr< QueueHandle > queue)
	Creates a new top level window with the specified title.
virtual	~VulkanWindow ()
	Destroys a VulkanWindow.
GLFWwindow *	GetWindow ()
float	GetContentScale ()
virtual void	Render ()
std::shared_ptr< QueueHandle >	GetRenderQueue ()
void	AddTextureUsedThisFrame (std::shared_ptr< Texture > tex)
bool	IsFullscreen ()

Static Public Member Functions
static bool	OnMemoryPressureStatic (MemoryPressureLevel level, MemoryPressureType type, size_t requestedSize)
	Static wrapper for calling OnMemoryPressure.

Protected Types
enum	{ BROWSE_OPEN_SESSION , BROWSE_SAVE_SESSION }

Protected Member Functions
virtual void	DoRender (vk::raii::CommandBuffer &cmdBuf)
void	CloseSession ()
void	InitializeDefaultSession ()
	Creates a new session initialized with some default windows.
virtual void	RenderUI ()
void	MainMenu ()
	Run the top level menu bar.
void	FileMenu ()
	Run the File menu.
void	FileRecentMenu ()
	Runs the File | Recent menu.
void	ViewMenu ()
	Run the View menu.
void	AddMenu ()
	Run the Add menu.
void	DoAddSubMenu (std::vector< time_t > &timestamps, std::map< time_t, std::vector< std::string > > &reverseMap, const std::string &typePretty, const std::string &defaultName, const std::string &typeInternal)
	Run the Add | (instrument type) submenu.
void	AddChannelsMenu ()
	Run the Add | Channels menu.
void	AddImportMenu ()
	Run the Add | Import menu.
void	AddGenerateMenu ()
	Run the Add | Generate menu.
void	SetupMenu ()
	Run the Setup menu.
void	WindowMenu ()
	Run the Window menu.
void	WindowAnalyzerMenu ()
	Run the Window | Analyzer menu. More...
void	WindowGeneratorMenu ()
	Run the Window | Generator menu. More...
void	WindowPSUMenu ()
	Run the Window | Power Supply menu. More...
void	WindowMultimeterMenu ()
	Run the Window | Multimeter menu.
void	DebugMenu ()
	Run the Debug menu.
void	DebugSCPIConsoleMenu ()
	Runs the Debug | SCPI Console menu.
void	HelpMenu ()
	Run the Help menu.
void	Toolbar ()
void	LoadToolbarIcons ()
	Load toolbar icons from disk if preferences changed.
void	ToolbarButtons ()
void	TriggerStartDropdown (float buttonsize)
void	TriggerSingleDropdown (float buttonsize)
void	TriggerForceDropdown (float buttonsize)
void	TriggerStopDropdown (float buttonsize)
void	DoTriggerDropdown (const char *action, std::shared_ptr< TriggerGroup > &group, bool &all)
void	DockingArea ()
void	StatusBar (float height)
void	LoadGradients ()
	Load gradient images.
void	LoadGradient (const std::string &friendlyName, const std::string &internalName)
	Load a single gradient.
void	LoadFilterIcons ()
	Load icons for the filter graph.
void	LoadStatusBarIcons ()
	Load icons for the status bar.
void	LoadWaveformShapeIcons ()
	Load icons for wave shape preview.
std::string	NameNewWaveformGroup ()
void	OnDialogClosed (const std::shared_ptr< Dialog > &dlg)
std::shared_ptr< WaveformGroup >	GetBestGroupForWaveform (StreamDescriptor stream)
	Figure out what group to use for a newly added stream, based on unit compatibility etc.
SCPITransport *	MakeTransport (const std::string &trans, const std::string &args)
	Helper function for creating a transport and printing an error if the connection is unsuccessful.
void	OnOpenFile (bool online)
	Handler for file | open menu. Spawns the browser dialog.
void	DoOpenFile (const std::string &sessionPath, bool online)
	Actually open a file (may be triggered by dialog, command line request, or recent file menu)
bool	PreLoadSessionFromYaml (const YAML::Node &node, const std::string &dataDir, bool online)
	Sanity check a YAML::Node (and associated data directory) to the current session without fully loading. More...
bool	LoadSessionFromYaml (const YAML::Node &node, const std::string &dataDir, bool online)
	Deserialize a YAML::Node (and associated data directory) to the current session. More...
void	OnSaveAs ()
	Handler for file | save as menu. Spawns the browser dialog.
void	DoSaveFile (std::string sessionPath)
	Actually save a file (may be triggered by file|save or file|save as)
bool	SaveSessionToYaml (YAML::Node &node, const std::string &dataDir)
	Serialize the current session to a YAML::Node. More...
void	SaveLabNotes (const std::string &dataDir)
	Saves the lab notes to Markdown files in the data directory.
void	LoadLabNotes (const std::string &dataDir)
	Loads the lab notes from Markdown files in the data directory.
bool	SetupDataDirectory (const std::string &dataDir)
	Make sure the data directory exists.
YAML::Node	SerializeUIConfiguration ()
	Serialize waveform areas etc to a YAML::Node.
YAML::Node	SerializeDialogs ()
	Serializes the list of open dialogs.
bool	LoadDialogs (const YAML::Node &node)
	Load dialog configuration.
void	RenderFileBrowser ()
	Runs the file browser dialog.
void	LoadRecentInstrumentList ()
void	SaveRecentInstrumentList ()
void	LoadRecentFileList ()
void	SaveRecentFileList ()
void	RenderErrorPopup ()
	Popup message when something big goes wrong.
void	RenderLoadWarningPopup ()
	Popup message when loading a file that might not match the current hardware setup.
bool	DropdownButton (const char *id, float height)
void	UpdateFonts ()
	Font.
Protected Member Functions inherited from VulkanWindow
bool	UpdateFramebuffer ()
	Updates the framebuffer.
void	SetFullscreen (bool fullscreen)
virtual void	DoRender (vk::raii::CommandBuffer &cmdBuf)
virtual void	RenderUI ()

Protected Attributes
std::map< std::string, std::string >	m_eyeGradientFriendlyNames
std::vector< std::string >	m_eyeGradients
bool	m_showDemo
	Enable flag for main imgui demo window.
ImVec2	m_workPos
	Start position of the viewport minus the menu and toolbar.
ImVec2	m_workSize
	Size position of the viewport minus the menu and toolbar.
std::set< std::shared_ptr< Workspace > >	m_workspaces
	Workspaces (can't be with other dialogs because they can contain other stuff)
std::set< std::shared_ptr< Dialog > >	m_dialogs
	All dialogs and other pop-up UI elements.
std::map< std::shared_ptr< SCPIMultimeter >, std::shared_ptr< Dialog > >	m_meterDialogs
	Map of multimeters to meter control dialogs.
std::map< std::shared_ptr< SCPIPowerSupply >, std::shared_ptr< Dialog > >	m_psuDialogs
	Map of PSUs to power supply control dialogs.
std::map< std::shared_ptr< SCPIFunctionGenerator >, std::shared_ptr< Dialog > >	m_generatorDialogs
	Map of generators to generator control dialogs.
std::map< std::shared_ptr< SCPIBERT >, std::shared_ptr< Dialog > >	m_bertDialogs
	Map of BERTs to BERT control dialogs.
std::map< std::shared_ptr< SCPIRFSignalGenerator >, std::shared_ptr< Dialog > >	m_rfgeneratorDialogs
	Map of RF generators to generator control dialogs.
std::map< std::shared_ptr< SCPILoad >, std::shared_ptr< Dialog > >	m_loadDialogs
	Map of loads to control dialogs.
std::map< std::shared_ptr< SCPIInstrument >, std::shared_ptr< Dialog > >	m_scpiConsoleDialogs
	Map of instruments to SCPI console dialogs.
std::map< InstrumentChannel *, std::shared_ptr< Dialog > >	m_channelPropertiesDialogs
	Map of channels to properties dialogs.
std::map< PacketDecoder *, std::shared_ptr< ProtocolAnalyzerDialog > >	m_protocolAnalyzerDialogs
	Map of filters to analyzer dialogs.
std::vector< std::shared_ptr< WaveformGroup > >	m_waveformGroups
	Waveform groups.
std::recursive_mutex	m_waveformGroupsMutex
	Mutex for controlling access to m_waveformGroups.
std::vector< std::shared_ptr< WaveformGroup > >	m_newWaveformGroups
	Set of newly created waveform groups that aren't yet docked.
int	m_nextWaveformGroup
	Name for next autogenerated waveform group.
std::shared_ptr< Dialog >	m_logViewerDialog
	Logfile viewer.
std::shared_ptr< Dialog >	m_metricsDialog
	Performance metrics.
std::shared_ptr< Dialog >	m_preferenceDialog
	Preferences.
std::shared_ptr< HistoryDialog >	m_historyDialog
	History.
std::shared_ptr< TimebasePropertiesDialog >	m_timebaseDialog
	Timebase properties.
std::shared_ptr< TriggerPropertiesDialog >	m_triggerDialog
	Trigger properties.
std::shared_ptr< ManageInstrumentsDialog >	m_manageInstrumentsDialog
	Manage instruments.
std::shared_ptr< Dialog >	m_persistenceDialog
	Persistence settings.
std::shared_ptr< Dialog >	m_notesDialog
	Lab notes.
std::shared_ptr< FilterGraphEditor >	m_graphEditor
	Filter graph editor.
std::shared_ptr< StreamBrowserDialog >	m_streamBrowser
	Stream browser.
std::shared_ptr< CreateFilterBrowser >	m_filterPalette
	Filter palette.
std::string	m_graphEditorConfigBlob
	Config blob for filter graph editor.
std::map< uintptr_t, std::string >	m_graphEditorGroups
	Group IDs and names for the graph editor.
std::shared_ptr< MeasurementsDialog >	m_measurementsDialog
	Measurements dialog.
std::vector< SplitGroupRequest >	m_splitRequests
	Pending requests to split waveform groups.
std::shared_ptr< Workspace >	m_initialWorkspaceDockRequest
	Pending requests to dock initial stuff.
std::vector< size_t >	m_groupsToClose
	Pending requests to close waveform groups.
int	m_toolbarIconSize
	Cached toolbar icon size.
float	m_traceAlpha
	Trace alpha.
float	m_persistenceDecay
	Persistence decay factor.
std::set< std::pair< OscilloscopeChannel *, WaveformArea * > >	m_pendingChannelDisplayRequests
	Pending requests to display a channel in a waveform area (from CreateFilter())
Session	m_session
	Our session object.
bool	m_sessionClosing
	True if a close-session request came in this frame.
enum MainWindow:: { ... }	m_fileBrowserMode
std::shared_ptr< FileBrowser >	m_fileBrowser
	Browser for pending file loads.
std::vector< YAML::Node >	m_fileBeingLoaded
	YAML structure for file we're currently loading.
bool	m_fileLoadInProgress
	True if we're actively loading a file.
std::string	m_sessionFileName
	Current session file path.
std::string	m_sessionDataDir
	Current session data directory.
bool	m_openOnline
	True if the pending file is to be opened online.
std::map< std::string, time_t >	m_recentInstruments
	List of recently used instruments.
std::map< std::string, time_t >	m_recentFiles
	List of recently used files.
std::string	m_errorPopupTitle
std::string	m_errorPopupMessage
bool	m_showingLoadWarnings
bool	m_loadConfirmationChecked
TextureManager	m_texmgr
bool	m_needRender
	True if a resize or other event this frame requires we re-rasterize waveforms. More...
std::atomic< bool >	m_clearPersistence
	True if we should clear persistence on the next render pass.
std::unique_ptr< vk::raii::CommandPool >	m_cmdPool
	Command pool for allocating our command buffers.
std::unique_ptr< vk::raii::CommandBuffer >	m_cmdBuffer
	Command buffer used during rendering operations.
FontManager	m_fontmgr
std::map< std::type_index, std::string >	m_filterIconMap
	Map of filter types to class names.
std::map< FunctionGenerator::WaveShape, std::string >	m_waveformShapeIconMap
	Map of Waveform Shapes to icons.
std::map< std::string, std::string >	m_statusHelp
int64_t	m_toneMapTime
Protected Attributes inherited from VulkanWindow
GLFWwindow *	m_window
	The underlying GLFW window object.
ImGuiContext *	m_context
	ImGui context for GUI objects.
std::shared_ptr< vk::raii::SurfaceKHR >	m_surface
	Surface for drawing onto.
std::shared_ptr< vk::raii::DescriptorPool >	m_imguiDescriptorPool
	Descriptor pool for ImGui.
std::shared_ptr< QueueHandle >	m_renderQueue
	Queue for rendering to.
bool	m_resizeEventPending
	Set true if we have to handle a resize event.
bool	m_softwareResizeRequested
	Set true if a resize was requested by software (i.e. we need to resize to m_pendingWidth / m_pendingHeight)
int	m_pendingWidth
	Requested width for software resize.
int	m_pendingHeight
	Requested height for software resize.
std::unique_ptr< vk::raii::CommandPool >	m_cmdPool
	Frame command pool.
std::vector< std::unique_ptr< vk::raii::CommandBuffer > >	m_cmdBuffers
	Frame command buffers.
std::vector< std::unique_ptr< vk::raii::Semaphore > >	m_imageAcquiredSemaphores
	Semaphore indicating framebuffer is ready.
std::vector< std::unique_ptr< vk::raii::Semaphore > >	m_renderCompleteSemaphores
	Semaphore indicating frame is complete.
uint32_t	m_semaphoreIndex
	Frame semaphore number for double buffering.
uint32_t	m_frameIndex
	Frame number for double buffering.
uint32_t	m_lastFrameIndex
	Frame number for double buffering.
std::vector< std::unique_ptr< vk::raii::Fence > >	m_fences
	Frame fences.
std::vector< std::unique_ptr< vk::raii::ImageView > >	m_backBufferViews
	Back buffer view.
std::vector< std::unique_ptr< vk::raii::Framebuffer > >	m_framebuffers
	Framebuffer.
std::unique_ptr< vk::raii::RenderPass >	m_renderPass
	Render pass for drawing everything.
std::unique_ptr< vk::raii::SwapchainKHR >	m_swapchain
	Swapchain for presenting to the screen.
std::vector< VkImage >	m_backBuffers
	Back buffer images. More...
int	m_minImageCount
	The minimum image count for the backbuffer allowed by this GPU.
int	m_width
	Current window width.
int	m_height
	Current window height.
bool	m_fullscreen
	Fullscreen flag.
int	m_windowedX
	Saved position before we went fullscreen.
int	m_windowedY
	Saved position before we went fullscreen.
int	m_windowedWidth
	Saved size before we went fullscreen.
int	m_windowedHeight
	Saved size before we went fullscreen.
std::vector< std::set< std::shared_ptr< Texture > > >	m_texturesUsedThisFrame
	Textures used this frame.

Detailed Description

Top level application window.

Member Function Documentation

CreateFilter()

Filter * MainWindow::CreateFilter	(	const std::string &	name,
		WaveformArea *	area,
		StreamDescriptor	initialStream,
		bool	showProperties = true,
		bool	addToArea = true
	)

Creates a filter optionally and adds all of its streams to the best waveform area.

Parameters

name	Name of the filter
area	Waveform area we launched the context menu from (if any)
initialStream	Stream we launched the context menu from (if any)
showProperties	True to show the properties dialog
addtoArea	True to add to a waveform area

DoRender()

void MainWindow::DoRender ( vk::raii::CommandBuffer &  cmdBuf )

protectedvirtual

Reimplemented from VulkanWindow.

FindAreaForStream()

void MainWindow::FindAreaForStream	(	WaveformArea *	area,
		StreamDescriptor	stream
	)

Given a stream and optionally a WaveformArea, adds the stream to some area.

The provided area is considered first; if it's not a good fit then another area is selected. If no compatible area can be found, a new one is created.

LoadSessionFromYaml()

bool MainWindow::LoadSessionFromYaml ( const YAML::Node &  node, const std::string &  dataDir, bool  online  )

protected

Deserialize a YAML::Node (and associated data directory) to the current session.

You must call PreLoadSessionFromYaml before calling this function.

Parameters

node	Root YAML node of the file
dataDir	Path to the _data directory associated with the session
online	True if we should reconnect to instruments

Returns

True if successful, false on error

OnFilterReconfigured()

void MainWindow::OnFilterReconfigured

(

Filter *

f

)

Handle a filter being reconfigured.

TODO: push this to a background thread to avoid hanging the UI thread

OnScopeAdded()

void MainWindow::OnScopeAdded	(	std::shared_ptr< Oscilloscope >	scope,
		bool	createViews
	)

Handles creation of a new oscilloscope.

Parameters

scope	The scope to add
createViews	True if we should add waveform areas for each enabled channel

PreLoadSessionFromYaml()

bool MainWindow::PreLoadSessionFromYaml ( const YAML::Node &  node, const std::string &  dataDir, bool  online  )

protected

Sanity check a YAML::Node (and associated data directory) to the current session without fully loading.

Parameters

node	Root YAML node of the file
dataDir	Path to the _data directory associated with the session
online	True if we should reconnect to instruments

Returns

True if successful, false on error

Render()

void MainWindow::Render ( )

virtual

Reimplemented from VulkanWindow.

RenderUI()

void MainWindow::RenderUI ( )

protectedvirtual

Reimplemented from VulkanWindow.

SaveSessionToYaml()

bool MainWindow::SaveSessionToYaml ( YAML::Node &  node, const std::string &  dataDir  )

protected

Serialize the current session to a YAML::Node.

Parameters

node	Node for the main .scopesession
dataDir	Path to the _data directory (may not have been created yet)

Returns

True if successful, false on error

ToneMapAllWaveforms()

void MainWindow::ToneMapAllWaveforms

(

vk::raii::CommandBuffer &

cmdbuf

)

Run the tone-mapping shader on all of our waveforms.

Called by Session::CheckForWaveforms() at the start of each frame if new data is ready to render

WindowAnalyzerMenu()

void MainWindow::WindowAnalyzerMenu ( )

protected

Run the Window | Analyzer menu.

This menu is used for displaying protocol analyzers

WindowGeneratorMenu()

void MainWindow::WindowGeneratorMenu ( )

protected

Run the Window | Generator menu.

This menu is used for connecting to a function generator that is part of an oscilloscope or other instrument.

WindowPSUMenu()

void MainWindow::WindowPSUMenu ( )

protected

Run the Window | Power Supply menu.

This menu is used for controlling a power supply that is already open in the session but has had the dialog closed.

Member Data Documentation

m_needRender

bool MainWindow::m_needRender

protected

True if a resize or other event this frame requires we re-rasterize waveforms.

(even if data has not changed)

---

The documentation for this class was generated from the following files:

• src/ngscopeclient/MainWindow.h
• src/ngscopeclient/MainWindow.cpp
• src/ngscopeclient/MainWindow_Icons.cpp
• src/ngscopeclient/MainWindow_Menus.cpp
