An SCPI-based multimeter. More...
#include <SCPIMultimeter.h>

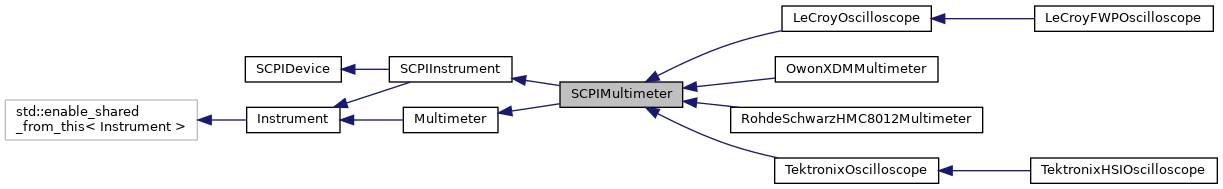

Inheritance diagram for SCPIMultimeter:

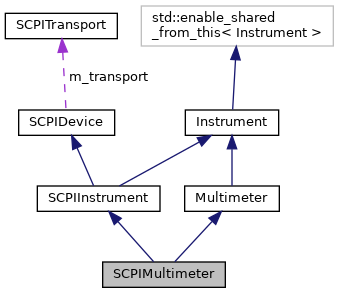

Collaboration diagram for SCPIMultimeter:
Public Types | |
| typedef std::shared_ptr< SCPIMultimeter >(* | MeterCreateProcType) (SCPITransport *) |
 Public Types inherited from Multimeter | |
| enum | MeasurementTypes { NONE = 0x000 , DC_VOLTAGE = 0x001 , DC_RMS_AMPLITUDE = 0x002 , AC_RMS_AMPLITUDE = 0x004 , FREQUENCY = 0x008 , DC_CURRENT = 0x010 , AC_CURRENT = 0x020 , TEMPERATURE = 0x040 , RESISTANCE = 0x080 , CAPACITANCE = 0x100 , CONTINUITY = 0x200 , DIODE = 0x400 } |
| Public Types inherited from Instrument | |
| enum | InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 } |
Static Public Member Functions | |
| static void | DoAddDriverClass (std::string name, MeterCreateProcType proc) |
| static void | EnumDrivers (std::vector< std::string > &names) |
| static std::shared_ptr< SCPIMultimeter > | CreateMultimeter (std::string driver, SCPITransport *transport) |
Protected Types | |
| typedef std::map< std::string, MeterCreateProcType > | MeterCreateMapType |
Static Protected Attributes | |
| static MeterCreateMapType | m_metercreateprocs |
Additional Inherited Members | |
| Public Member Functions inherited from Multimeter | |
| virtual unsigned int | GetMeasurementTypes ()=0 |
| virtual unsigned int | GetSecondaryMeasurementTypes () |
| Gets a bitmask of secondary measurement types currently available. More... | |
| virtual int | GetCurrentMeterChannel ()=0 |
| virtual void | SetCurrentMeterChannel (int chan)=0 |
| virtual MeasurementTypes | GetMeterMode ()=0 |
| virtual MeasurementTypes | GetSecondaryMeterMode () |
| Gets the active secondary mode. More... | |
| virtual std::string | ModeToText (MeasurementTypes type) |
| Converts a meter mode to human readable text. | |
| MeasurementTypes | TextToMode (const std::string &mode) |
| Converts a textual meter mode to a mode ID. | |
| virtual void | SetMeterMode (MeasurementTypes type)=0 |
| virtual void | SetSecondaryMeterMode (MeasurementTypes type) |
| Sets the active secondary mode. More... | |
| virtual void | SetMeterAutoRange (bool enable)=0 |
| virtual bool | GetMeterAutoRange ()=0 |
| virtual void | StartMeter ()=0 |
| virtual void | StopMeter ()=0 |
| virtual Unit | GetMeterUnit () |
| Get the current primary measurement unit. | |
| virtual Unit | GetSecondaryMeterUnit () |
| Get the current secondary measurement unit. | |
| virtual double | GetMeterValue ()=0 |
| Get the value of the primary measurement. More... | |
| virtual double | GetSecondaryMeterValue () |
| Get the value of the secondary measurement. More... | |
| virtual int | GetMeterDigits ()=0 |
| Returns the digit resolution of the meter. More... | |
| virtual bool | AcquireData () override |
| Pull meter readings from hardware. More... | |
| Public Member Functions inherited from Instrument | |
| virtual unsigned int | GetInstrumentTypes () const =0 |
| Returns a bitfield describing the set of instrument types that this instrument supports. More... | |
| virtual std::string | GetName () const =0 |
| virtual std::string | GetVendor () const =0 |
| virtual std::string | GetSerial () const =0 |
| virtual std::string | GetTransportConnectionString ()=0 |
| Gets the connection string for our transport. More... | |
| virtual std::string | GetTransportName ()=0 |
| Gets the name of our transport. More... | |
| virtual uint32_t | GetInstrumentTypesForChannel (size_t i) const =0 |
| Returns a bitfield describing the set of instrument types that a given channel supports. More... | |
| size_t | GetChannelCount () const |
| Gets the number of channels (of any type) this instrument has. | |
| InstrumentChannel * | GetChannel (size_t i) const |
| Gets a given channel on the instrument. More... | |
| virtual std::string | GetChannelDisplayName (size_t i) |
| Gets the hardware display name for a channel. This is an arbitrary user-selected string. More... | |
| virtual void | SetChannelDisplayName (size_t i, std::string name) |
| Sets the hardware display name for a channel. This is an arbitrary user-selected string. More... | |
| InstrumentChannel * | GetChannelByDisplayName (const std::string &name) |
| Gets a channel given the display name. | |
| InstrumentChannel * | GetChannelByHwName (const std::string &name) |
| Gets a channel given the hardware name. | |
| virtual bool | AcquireData ()=0 |
| Pull data from the instrument. More... | |
| virtual YAML::Node | SerializeConfiguration (IDTable &table) const |
| Serializes this instrument's configuration to a YAML node. More... | |
| virtual void | LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. More... | |
| virtual void | PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings) |
| Parse a limited subset of instrument configuration but do not apply it. More... | |
| Public Member Functions inherited from SCPIInstrument | |
| SCPIInstrument (SCPITransport *transport, bool identify=true) | |
| virtual std::string | GetTransportConnectionString () |
| Gets the connection string for our transport. More... | |
| virtual std::string | GetTransportName () |
| Gets the name of our transport. More... | |
| virtual std::string | GetName () const |
| virtual std::string | GetVendor () const |
| virtual std::string | GetSerial () const |
| virtual std::string | GetDriverName () const =0 |
| Public Member Functions inherited from SCPIDevice | |
| SCPIDevice (SCPITransport *transport, bool identify=true) | |
| SCPITransport * | GetTransport () const |
| Public Attributes inherited from Instrument | |
| std::string | m_nickname |
| Optional user-selected nickname of the instrument. More... | |
| Protected Member Functions inherited from Multimeter | |
| void | DoSerializeConfiguration (YAML::Node &node, IDTable &table) |
| Serializes this multimeter's configuration to a YAML node. | |
| void | DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. | |
| void | DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list) |
| Validate instrument and channel configuration from a save file. | |
| Protected Member Functions inherited from SCPIInstrument | |
| void | DoSerializeConfiguration (YAML::Node &node, IDTable &table) |
| Protected Attributes inherited from Instrument | |
| std::list< sigc::slot< void(YAML::Node &, IDTable &)> > | m_serializers |
| List of methods which need to be called to serialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> > | m_loaders |
| List of methods which need to be called to deserialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> > | m_preloaders |
| List of methods which need to be called to pre-load this node's configuration. | |
| std::vector< InstrumentChannel * > | m_channels |
| Set of all channels on this instrument. | |
| Protected Attributes inherited from SCPIDevice | |
| SCPITransport * | m_transport |
| std::string | m_vendor |
| std::string | m_model |
| std::string | m_serial |
| std::string | m_fwVersion |
Detailed Description
An SCPI-based multimeter.
The documentation for this class was generated from the following files:
- lib/scopehal/SCPIMultimeter.h
- lib/scopehal/SCPIMultimeter.cpp
