An arbitrary lab instrument. Oscilloscope, LA, PSU, DMM, etc. More...

#include <Instrument.h>

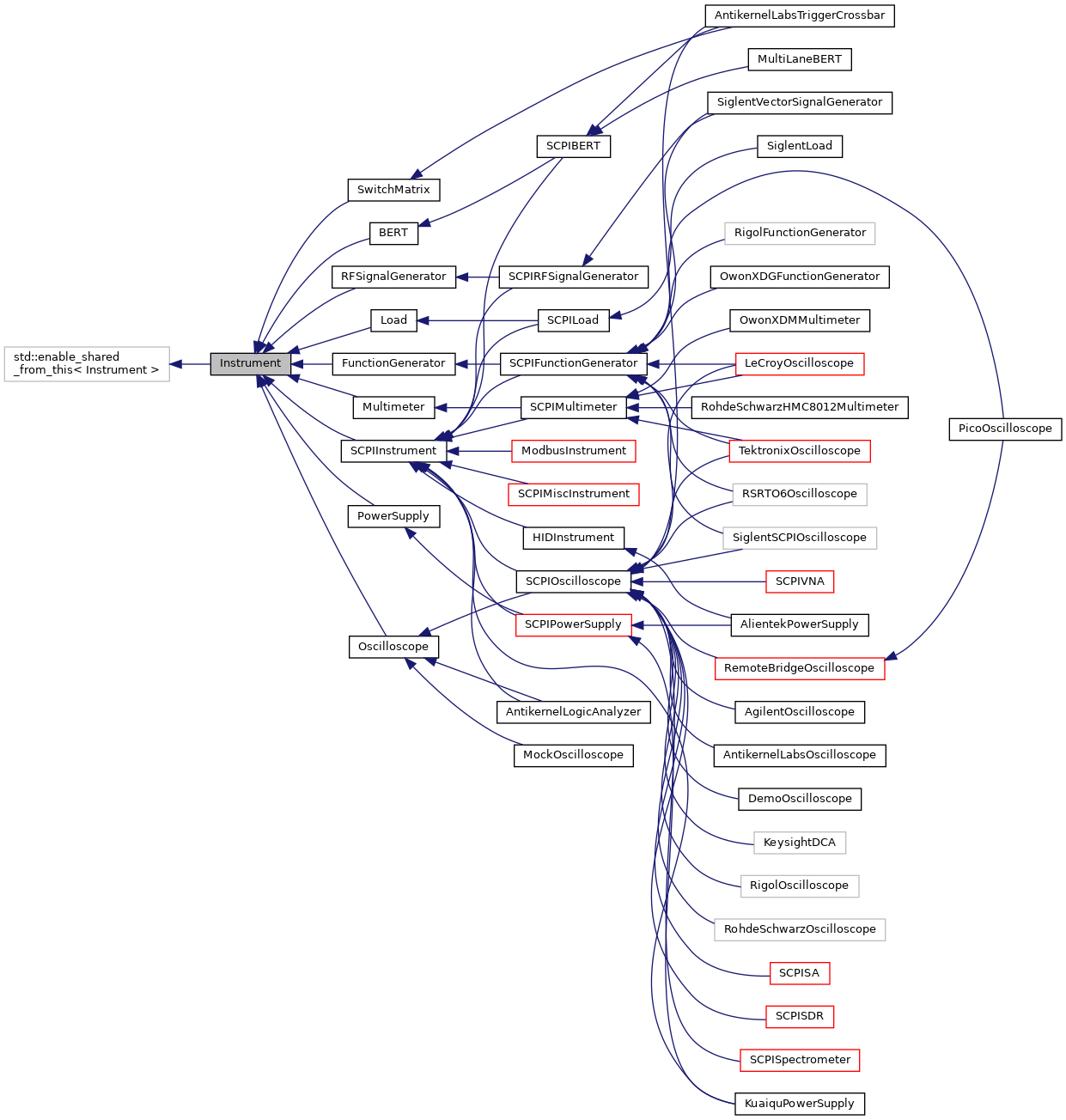

Inheritance diagram for Instrument:

[legend]

Collaboration diagram for Instrument:

Public Types
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Member Functions
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Public Attributes
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Protected Attributes
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Detailed Description

An arbitrary lab instrument. Oscilloscope, LA, PSU, DMM, etc.

An instrument has one or more channels (theoretically zero is allowed, but this would make little sense), each of which may have different capabilities. For example, an oscilloscope might have four oscilloscope channels which can also be used as multimeter inputs, and one function/arbitrary waveform generator output, for a total of five channels.

Math, memory, and other non-acquisition channels are generally not exposed in the API unless they provide features which are not possible to implement clientside.

All channels regardless of type occupy a single zero-based namespace.

Member Function Documentation

◆ AcquireData()

virtual bool Instrument::AcquireData ( )

pure virtual

Pull data from the instrument.

Returns: True if waveform was acquired, false if connection lost or other serious error

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, CSVStreamInstrument, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, FunctionGenerator, KeysightDCA, LeCroyFWPOscilloscope, LeCroyOscilloscope, Load, MockOscilloscope, MultiLaneBERT, Multimeter, NanoVNA, OwonXDGFunctionGenerator, PicoOscilloscope, PicoVNA, PowerSupply, RFSignalGenerator, RigolFunctionGenerator, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, TektronixHSIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, TinySA, and UHDBridgeSDR.

◆ GetChannel()

InstrumentChannel * Instrument::GetChannel ( size_t i ) const

inline

Gets a given channel on the instrument.

Derived classes typically implement a GetXChannel() helper function which casts the channel to the requested type.

Parameters

i	Channel index

◆ GetChannelDisplayName()

string Instrument::GetChannelDisplayName ( size_t i )

virtual

Gets the hardware display name for a channel. This is an arbitrary user-selected string.

Some instruments allow displaying channel names in the GUI or on probes. If this is supported, the driver should override this function.

This function does not implement any caching, so calling it directly in performance critical code is not advisable. Instead, call InstrumentChannel::GetDisplayName(), which caches clientside and calls this function only on a cache miss.

The default implementation is a no-op.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ GetInstrumentTypes()

virtual unsigned int Instrument::GetInstrumentTypes ( ) const

pure virtual

Returns a bitfield describing the set of instrument types that this instrument supports.

Not all types may be available on a given channel.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, BERT, CSVStreamInstrument, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, Load, MockOscilloscope, OwonXDGFunctionGenerator, OwonXDMMultimeter, PicoOscilloscope, PowerSupply, RigolFunctionGenerator, RigolOscilloscope, RohdeSchwarzHMC8012Multimeter, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentLoad, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, SwitchMatrix, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ GetInstrumentTypesForChannel()

virtual uint32_t Instrument::GetInstrumentTypesForChannel ( size_t i ) const

pure virtual

Returns a bitfield describing the set of instrument types that a given channel supports.

Parameters

i	Channel index

Implemented in AgilentOscilloscope, AlientekPowerSupply, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CSVStreamInstrument, DemoOscilloscope, DemoPowerSupply, DigilentOscilloscope, DSLabsOscilloscope, GWInstekGPDX303SPowerSupply, HP662xAPowerSupply, KeysightDCA, KuaiquPowerSupply, LeCroyOscilloscope, MockOscilloscope, MultiLaneBERT, OwonXDGFunctionGenerator, OwonXDMMultimeter, PicoOscilloscope, RidenPowerSupply, RigolDP8xxPowerSupply, RigolFunctionGenerator, RigolOscilloscope, RohdeSchwarzHMC8012Multimeter, RohdeSchwarzHMC804xPowerSupply, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentLoad, SiglentPowerSupply, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ GetTransportConnectionString()

virtual std::string Instrument::GetTransportConnectionString ( )

pure virtual

Gets the connection string for our transport.

Implemented in SCPIInstrument, AntikernelLogicAnalyzer, DemoOscilloscope, and MockOscilloscope.

◆ GetTransportName()

virtual std::string Instrument::GetTransportName ( )

pure virtual

Gets the name of our transport.

Implemented in SCPIInstrument, AntikernelLogicAnalyzer, DemoOscilloscope, and MockOscilloscope.

◆ LoadConfiguration()

void Instrument::LoadConfiguration	(	int	version,
		const YAML::Node &	node,
		IDTable &	idmap
	)

virtual

Load instrument and channel configuration from a save file.

Reimplemented in DemoOscilloscope.

◆ PreLoadConfiguration()

void Instrument::PreLoadConfiguration	(	int	version,
		const YAML::Node &	node,
		IDTable &	idmap,
		ConfigWarningList &	warnings
	)

virtual

Parse a limited subset of instrument configuration but do not apply it.

This is an optional method intended to be called prior to loading a file in order to identify potential problems with the setup being loaded (for example, attenuation or output voltage settings wildly different from the current configuration).

◆ SerializeConfiguration()

YAML::Node Instrument::SerializeConfiguration ( IDTable & table ) const

virtual

Serializes this instrument's configuration to a YAML node.

Returns: YAML block with this instrument's configuration

◆ SetChannelDisplayName()

void Instrument::SetChannelDisplayName	(	size_t	i,
		std::string	name
	)

virtual

Sets the hardware display name for a channel. This is an arbitrary user-selected string.

Some instruments allow displaying channel names in the GUI or on probes. If this is supported, the driver should override this function.

This function directly updates hardware without caching. In most cases, you should call InstrumentChannel::SetDisplayName(), which updates the clientside cache and then calls this function.

The default function returns the hardware name.

Parameters

i	Zero-based index of channel
name	Name of the channel

Reimplemented in AntikernelLabsTriggerCrossbar, LeCroyOscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

Member Data Documentation

◆ m_nickname

std::string Instrument::m_nickname

Optional user-selected nickname of the instrument.

(for display purposes if multiple similar devices are in use)

The documentation for this class was generated from the following files:

lib/scopehal/Instrument.h
lib/scopehal/Instrument.cpp
