A baseband waveform generator. More...

#include <FunctionGenerator.h>

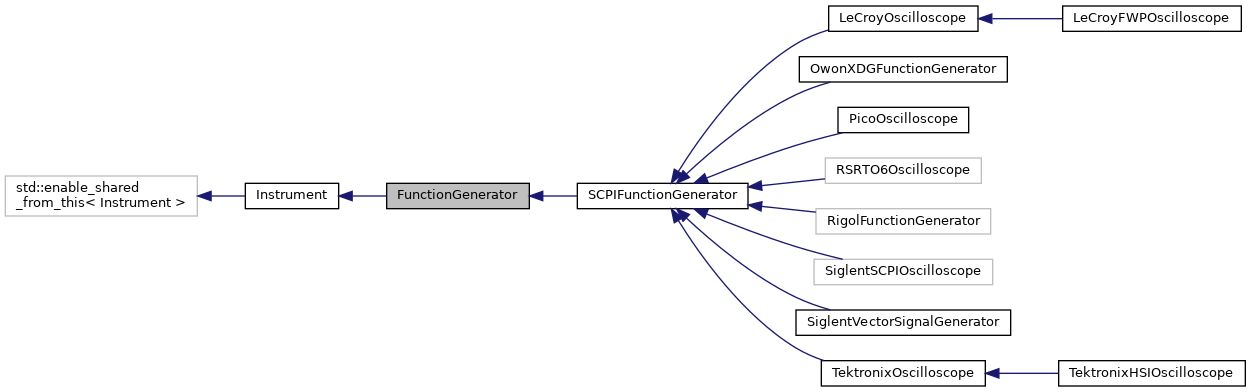

Inheritance diagram for FunctionGenerator:

[legend]

Collaboration diagram for FunctionGenerator:

[legend]

Public Types
enum	WaveShape { SHAPE_SINE , SHAPE_SQUARE , SHAPE_TRIANGLE , SHAPE_PULSE , SHAPE_DC , SHAPE_NOISE , SHAPE_SAWTOOTH_UP , SHAPE_SAWTOOTH_DOWN , SHAPE_SINC , SHAPE_GAUSSIAN , SHAPE_LORENTZ , SHAPE_HALF_SINE , SHAPE_PRBS_NONSTANDARD , SHAPE_EXPONENTIAL_RISE , SHAPE_EXPONENTIAL_DECAY , SHAPE_HAVERSINE , SHAPE_CARDIAC , SHAPE_STAIRCASE_UP , SHAPE_STAIRCASE_DOWN , SHAPE_STAIRCASE_UP_DOWN , SHAPE_NEGATIVE_PULSE , SHAPE_LOG_RISE , SHAPE_LOG_DECAY , SHAPE_SQUARE_ROOT , SHAPE_CUBE_ROOT , SHAPE_QUADRATIC , SHAPE_CUBIC , SHAPE_DLORENTZ , SHAPE_GAUSSIAN_PULSE , SHAPE_HAMMING , SHAPE_HANNING , SHAPE_KAISER , SHAPE_BLACKMAN , SHAPE_GAUSSIAN_WINDOW , SHAPE_HARRIS , SHAPE_BARTLETT , SHAPE_TAN , SHAPE_COT , SHAPE_SEC , SHAPE_CSC , SHAPE_ASIN , SHAPE_ACOS , SHAPE_ATAN , SHAPE_ACOT , SHAPE_ARB }
	Predefined waveform shapes.

enum	OutputImpedance { IMPEDANCE_HIGH_Z , IMPEDANCE_50_OHM }
	Nominal output impedance for a function generator channel. More...

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Member Functions
virtual bool	AcquireData () override
	Pull data from the instrument. More...

virtual bool	GetFunctionChannelActive (int chan)=0
	Returns true if the function generator channel's output is enabled. More...

virtual void	SetFunctionChannelActive (int chan, bool on)=0
	Turns a function generator channel on or off. More...

virtual bool	HasFunctionDutyCycleControls (int chan)
	Determines if the function generator allows control over duty cycles. More...

virtual float	GetFunctionChannelDutyCycle (int chan)
	Gets the duty cycle for a function generator output. More...

virtual void	SetFunctionChannelDutyCycle (int chan, float duty)
	Sets the duty cycle for a function generator output. More...

virtual float	GetFunctionChannelAmplitude (int chan)=0
	Gets the amplitude for a function generator output. More...

virtual void	SetFunctionChannelAmplitude (int chan, float amplitude)=0
	Sets the amplitude for a function generator output. More...

virtual float	GetFunctionChannelOffset (int chan)=0
	Gets the DC offset for a function generator output. More...

virtual void	SetFunctionChannelOffset (int chan, float offset)=0
	Sets the DC offset for a function generator output. More...

virtual float	GetFunctionChannelFrequency (int chan)=0
	Gets the frequency for a function generator output. More...

virtual void	SetFunctionChannelFrequency (int chan, float hz)=0
	Sets the frequency for a function generator output. More...

virtual WaveShape	GetFunctionChannelShape (int chan)=0
	Gets the waveform shape for a function generator output. More...

virtual void	SetFunctionChannelShape (int chan, WaveShape shape)=0
	Sets the waveform shape for a function generator output. More...

virtual float	GetFunctionChannelRiseTime (int chan)
	Gets the rise time for a function generator output (if supported) More...

virtual void	SetFunctionChannelRiseTime (int chan, float fs)
	Sets the rise time for a function generator output (if supported) More...

virtual float	GetFunctionChannelFallTime (int chan)
	Gets the fall time for a function generator output (if supported) More...

virtual void	SetFunctionChannelFallTime (int chan, float fs)
	Sets the fall time for a function generator output (if supported) More...

virtual bool	HasFunctionRiseFallTimeControls (int chan)=0
	Determines if the function generator allows control over rise/fall times. More...

virtual bool	HasFunctionImpedanceControls (int chan)
	Determines if the function generator allows control over rise/fall times. More...

virtual OutputImpedance	GetFunctionChannelOutputImpedance (int chan)
	Gets the currently selected output impedance for a function generator output (if supported) More...

virtual void	SetFunctionChannelOutputImpedance (int chan, OutputImpedance z)
	Sets the currently selected output impedance for a function generator output (if supported) More...

virtual std::vector< WaveShape >	GetAvailableWaveformShapes (int chan)=0
	Query the set of available pre-defined waveforms for this generator. More...

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual void	FlushConfigCache ()
	Instruments are allowed to cache configuration settings to reduce round trip queries to the device. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Static Public Member Functions
static std::string	GetNameOfShape (WaveShape shape)
	Converts a WaveShape enum to a human readable name. More...

static WaveShape	GetShapeOfName (const std::string &name)
	Converts a human readable name to a WaveShape. More...

static std::string	GetNameOfImpedance (OutputImpedance imp)
	Converts an OutputImpedance enum to a human readable name. More...

static OutputImpedance	GetImpedanceOfName (const std::string &name)
	Converts a human readable name to an OutputImpedance. More...

Protected Member Functions
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this instrument's configuration to a YAML node. More...

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file. More...

Additional Inherited Members
Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Detailed Description

A baseband waveform generator.

Member Enumeration Documentation

◆ OutputImpedance

enum FunctionGenerator::OutputImpedance

Nominal output impedance for a function generator channel.

Enumerator
IMPEDANCE_HIGH_Z	Channel expects to drive a high-impedance load.
IMPEDANCE_50_OHM	Channel expects to drive a 50-ohm load.

Member Function Documentation

◆ AcquireData()

bool FunctionGenerator::AcquireData ( )

overridevirtual

Pull data from the instrument.

Returns: True if waveform was acquired, false if connection lost or other serious error

Implements Instrument.

Reimplemented in LeCroyFWPOscilloscope, LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, TektronixHSIOscilloscope, and TektronixOscilloscope.

◆ DoLoadConfiguration()

void FunctionGenerator::DoLoadConfiguration	(	int	version,
		const YAML::Node &	node,
		IDTable &	idmap
	)

protected

Load instrument and channel configuration from a save file.

Parameters

version	File format version
node	YAML node for the instrument
idmap	Map of object IDs to objects

◆ DoPreLoadConfiguration()

void FunctionGenerator::DoPreLoadConfiguration	(	int	version,
		const YAML::Node &	node,
		IDTable &	idmap,
		ConfigWarningList &	list
	)

protected

Validate instrument and channel configuration from a save file.

This function is allowed to load low-risk settings that are unlikely to cause damage to an attached DUT, but not increase output amplitude or perform riskier configuration changes.

Parameters

version	File format version
node	YAML node for the instrument
idmap	Map of object IDs to objects
list	Warnings generated during the preload process

◆ DoSerializeConfiguration()

void FunctionGenerator::DoSerializeConfiguration	(	YAML::Node &	node,
		IDTable &	table
	)

protected

Serializes this instrument's configuration to a YAML node.

Parameters

node	Output YAML node for the instrument
idmap	Map of object IDs to objects

◆ GetAvailableWaveformShapes()

virtual std::vector< WaveShape > FunctionGenerator::GetAvailableWaveformShapes ( int chan )

pure virtual

Query the set of available pre-defined waveforms for this generator.

Parameters

chan	Channel index

Returns: Vector of supported WaveShape's

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ GetFunctionChannelActive()

virtual bool FunctionGenerator::GetFunctionChannelActive ( int chan )

pure virtual

Returns true if the function generator channel's output is enabled.

Parameters

chan	Channel index

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ GetFunctionChannelAmplitude()

virtual float FunctionGenerator::GetFunctionChannelAmplitude ( int chan )

pure virtual

Gets the amplitude for a function generator output.

Parameters

chan	Channel index

Returns: Amplitude, in Vpp

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ GetFunctionChannelDutyCycle()

float FunctionGenerator::GetFunctionChannelDutyCycle ( int chan )

virtual

Gets the duty cycle for a function generator output.

Parameters

chan	Channel index

Returns: Duty cycle, in range [0, 1]

Reimplemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ GetFunctionChannelFallTime()

float FunctionGenerator::GetFunctionChannelFallTime ( int chan )

virtual

Gets the fall time for a function generator output (if supported)

Parameters

chan	Channel index

Returns: Fall time, in fs

Reimplemented in LeCroyOscilloscope, and OwonXDGFunctionGenerator.

◆ GetFunctionChannelFrequency()

virtual float FunctionGenerator::GetFunctionChannelFrequency ( int chan )

pure virtual

Gets the frequency for a function generator output.

Parameters

chan	Channel index

Returns: Frequency, in Hz

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ GetFunctionChannelOffset()

virtual float FunctionGenerator::GetFunctionChannelOffset ( int chan )

pure virtual

Gets the DC offset for a function generator output.

Parameters

chan	Channel index

Returns: Offset, in volts

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ GetFunctionChannelOutputImpedance()

FunctionGenerator::OutputImpedance FunctionGenerator::GetFunctionChannelOutputImpedance ( int chan )

virtual

Gets the currently selected output impedance for a function generator output (if supported)

Parameters

chan	Channel index

Returns: Output impedance

Reimplemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ GetFunctionChannelRiseTime()

float FunctionGenerator::GetFunctionChannelRiseTime ( int chan )

virtual

Gets the rise time for a function generator output (if supported)

Parameters

chan	Channel index

Returns: Rise time, in fs

Reimplemented in LeCroyOscilloscope, and OwonXDGFunctionGenerator.

◆ GetFunctionChannelShape()

virtual WaveShape FunctionGenerator::GetFunctionChannelShape ( int chan )

pure virtual

Gets the waveform shape for a function generator output.

Parameters

chan	Channel index

Returns: Waveform shape

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ GetImpedanceOfName()

FunctionGenerator::OutputImpedance FunctionGenerator::GetImpedanceOfName ( const std::string & name )

static

Converts a human readable name to an OutputImpedance.

Parameters

name	Input name

Returns: The OutputImpedance corresponding to that name

◆ GetNameOfImpedance()

string FunctionGenerator::GetNameOfImpedance ( OutputImpedance imp )

static

Converts an OutputImpedance enum to a human readable name.

Parameters

shape OutputImpedance value

Returns: String name

◆ GetNameOfShape()

string FunctionGenerator::GetNameOfShape ( WaveShape shape )

static

Converts a WaveShape enum to a human readable name.

Parameters

shape Input WaveShape value

Returns: String name

◆ GetShapeOfName()

FunctionGenerator::WaveShape FunctionGenerator::GetShapeOfName ( const std::string & name )

static

Converts a human readable name to a WaveShape.

Parameters

name	Input name

Returns: The WaveShape corresponding to that name

◆ HasFunctionDutyCycleControls()

bool FunctionGenerator::HasFunctionDutyCycleControls ( int chan )

virtual

Determines if the function generator allows control over duty cycles.

If this function returns false, GetFunctionChannelDutyCycle() will always return 0.5, and SetFunctionChannelRiseTime() and SetFunctionChannelDutyCycle() is a no-op.

Parameters

chan	Channel index

Returns: True if duty cycle control is available, false if unavailable

Reimplemented in RSRTO6Oscilloscope, and SiglentVectorSignalGenerator.

◆ HasFunctionImpedanceControls()

bool FunctionGenerator::HasFunctionImpedanceControls ( int chan )

virtual

Determines if the function generator allows control over rise/fall times.

If this function returns false, GetFunctionChannelOutputImpedance() will always return IMPEDANCE_50_OHM and SetFunctionChannelOutputImpedance() is a no-op.

Reimplemented in SiglentVectorSignalGenerator.

◆ HasFunctionRiseFallTimeControls()

virtual bool FunctionGenerator::HasFunctionRiseFallTimeControls ( int chan )

pure virtual

Determines if the function generator allows control over rise/fall times.

If this function returns false, GetFunctionChannelRiseTime() and GetFunctionChannelFallTime() will always return 0, and SetFunctionChannelRiseTime() and SetFunctionChannelFallTime() are no-ops.

Parameters

chan	Channel index

Returns: True if rise/fall time control is available, false if unavailable

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ SetFunctionChannelActive()

virtual void FunctionGenerator::SetFunctionChannelActive	(	int	chan,
		bool	on
	)

pure virtual

Turns a function generator channel on or off.

Parameters

chan	Channel index
on	True to enable output, false to disable

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ SetFunctionChannelAmplitude()

virtual void FunctionGenerator::SetFunctionChannelAmplitude	(	int	chan,
		float	amplitude
	)

pure virtual

Sets the amplitude for a function generator output.

Parameters

chan	Channel index
amplitude	Output amplitude, in Vpp

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ SetFunctionChannelDutyCycle()

void FunctionGenerator::SetFunctionChannelDutyCycle	(	int	chan,
		float	duty
	)

virtual

Sets the duty cycle for a function generator output.

Parameters

chan	Channel index
duty	Duty cycle, in range [0, 1]

Reimplemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ SetFunctionChannelFallTime()

void FunctionGenerator::SetFunctionChannelFallTime	(	int	chan,
		float	fs
	)

virtual

Sets the fall time for a function generator output (if supported)

Parameters

chan	Channel index
fs	Fall time, in fs

Reimplemented in LeCroyOscilloscope, and OwonXDGFunctionGenerator.

◆ SetFunctionChannelFrequency()

virtual void FunctionGenerator::SetFunctionChannelFrequency	(	int	chan,
		float	hz
	)

pure virtual

Sets the frequency for a function generator output.

Parameters

chan	Channel index
hz	Frequency, in Hz

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ SetFunctionChannelOffset()

virtual void FunctionGenerator::SetFunctionChannelOffset	(	int	chan,
		float	offset
	)

pure virtual

Sets the DC offset for a function generator output.

Parameters

chan	Channel index
amplitude	Offset, in volts

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

◆ SetFunctionChannelOutputImpedance()

void FunctionGenerator::SetFunctionChannelOutputImpedance	(	int	chan,
		OutputImpedance	z
	)

virtual

Sets the currently selected output impedance for a function generator output (if supported)

Parameters

chan	Channel index
z	Output impedance

Reimplemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ SetFunctionChannelRiseTime()

void FunctionGenerator::SetFunctionChannelRiseTime	(	int	chan,
		float	fs
	)

virtual

Sets the rise time for a function generator output (if supported)

Parameters

chan	Channel index
fs	Rise time, in fs

Reimplemented in LeCroyOscilloscope, and OwonXDGFunctionGenerator.

◆ SetFunctionChannelShape()

virtual void FunctionGenerator::SetFunctionChannelShape	(	int	chan,
		WaveShape	shape
	)

pure virtual

Sets the waveform shape for a function generator output.

Parameters

chan	Channel index
shape	Desired output waveform

Implemented in LeCroyOscilloscope, OwonXDGFunctionGenerator, PicoOscilloscope, RigolFunctionGenerator, RSRTO6Oscilloscope, SiglentFunctionGenerator, SiglentSCPIOscilloscope, SiglentVectorSignalGenerator, and TektronixOscilloscope.

The documentation for this class was generated from the following files:

lib/scopehal/FunctionGenerator.h
lib/scopehal/FunctionGenerator.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ OutputImpedance

Member Function Documentation

◆ AcquireData()

◆ DoLoadConfiguration()

◆ DoPreLoadConfiguration()

◆ DoSerializeConfiguration()

◆ GetAvailableWaveformShapes()

◆ GetFunctionChannelActive()

◆ GetFunctionChannelAmplitude()

◆ GetFunctionChannelDutyCycle()

◆ GetFunctionChannelFallTime()

◆ GetFunctionChannelFrequency()

◆ GetFunctionChannelOffset()

◆ GetFunctionChannelOutputImpedance()

◆ GetFunctionChannelRiseTime()

◆ GetFunctionChannelShape()

◆ GetImpedanceOfName()

◆ GetNameOfImpedance()

◆ GetNameOfShape()

◆ GetShapeOfName()

◆ HasFunctionDutyCycleControls()

◆ HasFunctionImpedanceControls()

◆ HasFunctionRiseFallTimeControls()

◆ SetFunctionChannelActive()

◆ SetFunctionChannelAmplitude()

◆ SetFunctionChannelDutyCycle()

◆ SetFunctionChannelFallTime()

◆ SetFunctionChannelFrequency()

◆ SetFunctionChannelOffset()

◆ SetFunctionChannelOutputImpedance()

◆ SetFunctionChannelRiseTime()

◆ SetFunctionChannelShape()
