An SCPI-based electronic load. More...
#include <SCPILoad.h>

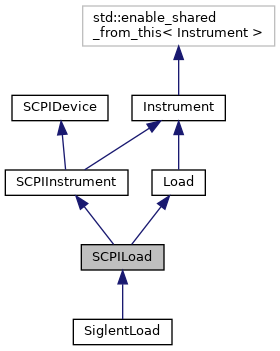

Inheritance diagram for SCPILoad:

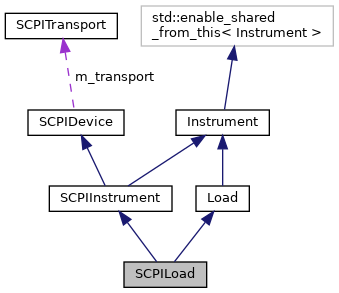

Collaboration diagram for SCPILoad:
Public Types | |
| typedef std::shared_ptr< SCPILoad >(* | LoadCreateProcType) (SCPITransport *) |
 Public Types inherited from Load | |
| enum | LoadMode { MODE_CONSTANT_CURRENT , MODE_CONSTANT_VOLTAGE , MODE_CONSTANT_RESISTANCE , MODE_CONSTANT_POWER } |
| Operating modes for the load. More... | |
| Public Types inherited from Instrument | |
| enum | InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 } |
Static Public Member Functions | |
| static void | DoAddDriverClass (std::string name, LoadCreateProcType proc) |
| static void | EnumDrivers (std::vector< std::string > &names) |
| static std::shared_ptr< SCPILoad > | CreateLoad (std::string driver, SCPITransport *transport) |
| Static Public Member Functions inherited from Load | |
| static std::string | GetNameOfLoadMode (LoadMode mode) |
| Convert a LoadMode to a printable string. More... | |
| static LoadMode | GetLoadModeOfName (const std::string &name) |
| Convert a printable string to a LoadMode. More... | |
Protected Types | |
| typedef std::map< std::string, LoadCreateProcType > | LoadCreateMapType |
Static Protected Attributes | |
| static LoadCreateMapType | m_loadcreateprocs |
Additional Inherited Members | |
| Public Member Functions inherited from Load | |
| virtual unsigned int | GetInstrumentTypes () const override |
| Returns a bitfield describing the set of instrument types that this instrument supports. More... | |
| virtual bool | AcquireData () override |
| Pulls data from hardware and updates our measurements. More... | |
| virtual LoadMode | GetLoadMode (size_t channel)=0 |
| Returns the operating mode of the load. More... | |
| virtual void | SetLoadMode (size_t channel, LoadMode mode)=0 |
| Sets the operating mode of the load. More... | |
| virtual std::vector< float > | GetLoadCurrentRanges (size_t channel)=0 |
| Returns a sorted list of operating ranges for the load's current scale, in amps. More... | |
| virtual size_t | GetLoadCurrentRange (size_t channel)=0 |
| Returns the index of the load's selected current range, as returned by GetLoadCurrentRanges() More... | |
| virtual std::vector< float > | GetLoadVoltageRanges (size_t channel)=0 |
| Returns a sorted list of operating ranges for the load's voltage scale, in volts. More... | |
| virtual size_t | GetLoadVoltageRange (size_t channel)=0 |
| Returns the index of the load's selected voltage range, as returned by GetLoadVoltageRanges() More... | |
| virtual void | SetLoadVoltageRange (size_t channel, size_t rangeIndex)=0 |
| Select the voltage range to use. More... | |
| virtual void | SetLoadCurrentRange (size_t channel, size_t rangeIndex)=0 |
| Select the current range to use. More... | |
| virtual bool | GetLoadActive (size_t channel)=0 |
| Returns true if the load is enabled (sinking power) and false if disabled (no load) More... | |
| virtual void | SetLoadActive (size_t channel, bool active)=0 |
| Turns the load on or off. More... | |
| virtual float | GetLoadSetPoint (size_t channel)=0 |
| Gets the set point for the channel. More... | |
| virtual void | SetLoadSetPoint (size_t channel, float target)=0 |
| Sets the set point for the channel. More... | |
| Public Member Functions inherited from Instrument | |
| virtual unsigned int | GetInstrumentTypes () const =0 |
| Returns a bitfield describing the set of instrument types that this instrument supports. More... | |
| virtual std::string | GetName () const =0 |
| virtual std::string | GetVendor () const =0 |
| virtual std::string | GetSerial () const =0 |
| virtual std::string | GetTransportConnectionString ()=0 |
| Gets the connection string for our transport. More... | |
| virtual std::string | GetTransportName ()=0 |
| Gets the name of our transport. More... | |
| virtual uint32_t | GetInstrumentTypesForChannel (size_t i) const =0 |
| Returns a bitfield describing the set of instrument types that a given channel supports. More... | |
| size_t | GetChannelCount () const |
| Gets the number of channels (of any type) this instrument has. | |
| InstrumentChannel * | GetChannel (size_t i) const |
| Gets a given channel on the instrument. More... | |
| virtual std::string | GetChannelDisplayName (size_t i) |
| Gets the hardware display name for a channel. This is an arbitrary user-selected string. More... | |
| virtual void | SetChannelDisplayName (size_t i, std::string name) |
| Sets the hardware display name for a channel. This is an arbitrary user-selected string. More... | |
| InstrumentChannel * | GetChannelByDisplayName (const std::string &name) |
| Gets a channel given the display name. | |
| InstrumentChannel * | GetChannelByHwName (const std::string &name) |
| Gets a channel given the hardware name. | |
| virtual bool | AcquireData ()=0 |
| Pull data from the instrument. More... | |
| virtual void | FlushConfigCache () |
| Instruments are allowed to cache configuration settings to reduce round trip queries to the device. More... | |
| virtual YAML::Node | SerializeConfiguration (IDTable &table) const |
| Serializes this instrument's configuration to a YAML node. More... | |
| virtual void | LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. More... | |
| virtual void | PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings) |
| Parse a limited subset of instrument configuration but do not apply it. More... | |
| Public Member Functions inherited from SCPIInstrument | |
| SCPIInstrument (SCPITransport *transport, bool identify=true) | |
| virtual std::string | GetTransportConnectionString () |
| Gets the connection string for our transport. More... | |
| virtual std::string | GetTransportName () |
| Gets the name of our transport. More... | |
| virtual std::string | GetName () const |
| virtual std::string | GetVendor () const |
| virtual std::string | GetSerial () const |
| virtual std::string | GetDriverName () const =0 |
| Public Member Functions inherited from SCPIDevice | |
| SCPIDevice (SCPITransport *transport, bool identify=true) | |
| SCPITransport * | GetTransport () const |
| Public Attributes inherited from Instrument | |
| std::string | m_nickname |
| Optional user-selected nickname of the instrument. More... | |
| Protected Member Functions inherited from Load | |
| virtual float | GetLoadVoltageActual (size_t channel)=0 |
| Get the measured voltage of the load (uncached instantaneous measurement) More... | |
| virtual float | GetLoadCurrentActual (size_t channel)=0 |
| Get the measured current of the load (uncached instantaneous measurement) More... | |
| void | DoSerializeConfiguration (YAML::Node &node, IDTable &table) |
| Serializes this multimeter's configuration to a YAML node. | |
| void | DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. | |
| void | DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list) |
| Validate instrument and channel configuration from a save file. | |
| Protected Member Functions inherited from SCPIInstrument | |
| void | DoSerializeConfiguration (YAML::Node &node, IDTable &table) |
| Protected Attributes inherited from Instrument | |
| std::list< sigc::slot< void(YAML::Node &, IDTable &)> > | m_serializers |
| List of methods which need to be called to serialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> > | m_loaders |
| List of methods which need to be called to deserialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> > | m_preloaders |
| List of methods which need to be called to pre-load this node's configuration. | |
| std::vector< InstrumentChannel * > | m_channels |
| Set of all channels on this instrument. | |
| Protected Attributes inherited from SCPIDevice | |
| SCPITransport * | m_transport |
| std::string | m_vendor |
| std::string | m_model |
| std::string | m_serial |
| std::string | m_fwVersion |
Detailed Description
An SCPI-based electronic load.
The documentation for this class was generated from the following files:
- lib/scopehal/SCPILoad.h
- lib/scopehal/SCPILoad.cpp
