Abstract base class for all filter graph blocks which are not physical instrument channels. More...

#include <Filter.h>

Inherited by ACCoupleFilter, ACRMSMeasurement, ADL5205Decoder, AddFilter, AreaMeasurement, AutocorrelationFilter, AverageFilter, BandwidthMeasurement, BaseMeasurement, BurstWidthMeasurement, BusHeatmapFilter, CANBitmaskFilter, ClipFilter, ClockRecoveryFilter, ConstantFilter, ConstellationFilter, CouplerDeEmbedFilter, CurrentShuntFilter, DCDMeasurement, DDJMeasurement, DPhyDataDecoder, DPhyHSClockRecoveryFilter, DPhySymbolDecoder, DeEmbedFilter, DeskewFilter, DivideFilter, DownconvertFilter, DownsampleFilter, DramClockFilter, DramRefreshActivateMeasurement, DramRowColumnLatencyMeasurement, DutyCycleMeasurement, EmphasisFilter, EmphasisRemovalFilter, EnvelopeFilter, Ethernet100BaseT1LinkTrainingDecoder, Ethernet64b66bDecoder, EthernetAutonegotiationDecoder, ExponentialMovingAverageFilter, ExportFilter, EyeBitRateMeasurement, EyeHeightMeasurement, EyeJitterMeasurement, EyePattern, EyePeriodMeasurement, EyeWidthMeasurement, FIRFilter, FSKDecoder, FallMeasurement, FrequencyMeasurement, FullWidthHalfMax, GateFilter, GlitchRemovalFilter, GroupDelayFilter, HistogramFilter, HorizontalBathtub, HyperRAMDecoder, IBISDriverFilter, IBM8b10bDecoder, IPv4Decoder, IQDemuxFilter, IQSquelchFilter, ISIMeasurement, ImportFilter, InvertFilter, J1939AnalogDecoder, J1939BitmaskDecoder, JitterFilter, MagnitudeFilter, MaximumFilter, MemoryFilter, MinimumFilter, MovingAverageFilter, MultiplyFilter, NCOFilter, NoiseFilter, OneWireDecoder, OvershootMeasurement, PAM4DemodulatorFilter, PAMEdgeDetectorFilter, PCIe128b130bDecoder, PCIeGen2LogicalDecoder, PRBSCheckerFilter, PRBSGeneratorFilter, PacketDecoder, ParallelBus, PausableFilter, PeakDetectionFilter, PeriodMeasurement, PhaseMeasurement, PhaseNonlinearityFilter, PkPkMeasurement, PulseWidthMeasurement, QSGMIIDecoder, QuadratureDecoder, RISFilter, RMSMeasurement, RiseMeasurement, RjBUjFilter, SDRAMDecoderBase, SNRFilter, SPIDecoder, SParameterSourceFilter, SWDDecoder, SawtoothGeneratorFilter, ScalarPulseDelayFilter, ScalarStairstepFilter, SetupHoldMeasurement, SpectrogramFilter, SquelchFilter, StepGeneratorFilter, SubtractFilter, TCPDecoder, TDRFilter, TIEMeasurement, TMDSDecoder, TachometerFilter, TappedDelayLineFilter, ThermalDiodeFilter, ThresholdFilter, TimeOutsideLevelMeasurement, ToneGeneratorFilter, TopMeasurement, TwoPortShuntThroughFilter, USB2ActivityDecoder, USB2PCSDecoder, USB2PMADecoder, UartClockRecoveryFilter, UndershootMeasurement, UnwrappedPhaseFilter, UpsampleFilter, VectorFrequencyFilter, VectorPhaseFilter, VerticalBathtub, Waterfall, WaveformGenerationFilter, WindowFilter, WindowedAutocorrelationFilter, and XYSweepFilter.

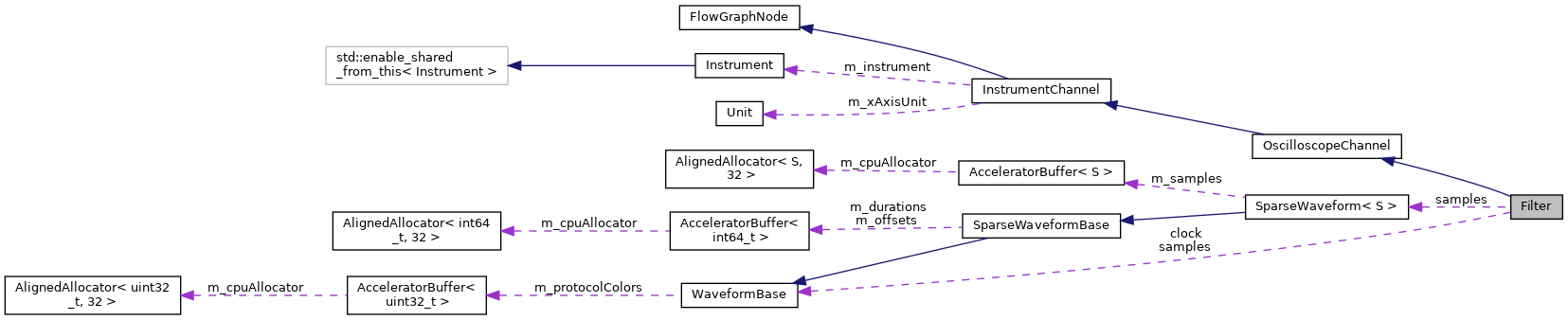

Collaboration diagram for Filter:

[legend]

Public Types
enum	Category { CAT_ANALYSIS , CAT_BUS , CAT_CLOCK , CAT_MATH , CAT_MEASUREMENT , CAT_MEMORY , CAT_SERIAL , CAT_MISC , CAT_POWER , CAT_RF , CAT_GENERATION , CAT_EXPORT , CAT_OPTICAL , CAT_COUNT }
	Category the filter should be displayed under in the GUI. More...

typedef Filter (	CreateProcType) (const std::string &)

Public Types inherited from OscilloscopeChannel
enum	CouplingType { COUPLE_DC_1M , COUPLE_AC_1M , COUPLE_DC_50 , COUPLE_AC_50 , COUPLE_GND , COUPLE_SYNTHETIC }

Public Types inherited from InstrumentChannel
enum	PhysicalConnector { CONNECTOR_BANANA_DUAL , CONNECTOR_BMA , CONNECTOR_BNC , CONNECTOR_K , CONNECTOR_K_DUAL , CONNECTOR_N , CONNECTOR_SMA }

enum	VisibilityMode { VIS_HIDE , VIS_AUTO , VIS_SHOW }
	Selects how the channel should be displayed in e.g. the ngscopeclient filter graph editor.

enum	DownloadState { DOWNLOAD_UNKNOWN , DOWNLOAD_NONE , DOWNLOAD_WAITING , DOWNLOAD_IN_PROGRESS , DOWNLOAD_FINISHED }
	Enum values to be mapped to GetDownloadState() int result value for specific channel download states. More...

Public Types inherited from FlowGraphNode
enum	DataLocation { LOC_CPU , LOC_GPU , LOC_DONTCARE }

typedef std::map< std::string, FilterParameter >	ParameterMapType
	Short name for a map of strings to parameters.

Public Member Functions
	Filter (const std::string &color, Category cat, Unit xunit=Unit::UNIT_FS)

void	HideFromList ()
	Removes this filter from the global list. More...

virtual void	ClearStreams () override
	Clears out any existing streams. More...

virtual size_t	AddStream (Unit yunit, const std::string &name, Stream::StreamType stype, uint8_t flags=0) override
	Adds a new data stream to the channel. More...

void	AddProtocolStream (const std::string &name)
	Helper method for constructors that adds a new STREAM_TYPE_PROTOCOL output stream. More...

void	AddDigitalStream (const std::string &name)
	Helper method for constructors that adds a new STREAM_TYPE_DIGITAL output stream. More...

virtual void	SetDefaultName ()
	Sets the name of a filter based on its inputs. More...

void	UseDefaultName (bool use)
	Specifies whether we're using an auto-generated name or not. More...

bool	IsUsingDefaultName ()
	Return true if we're using an autogenerated name, false if customized.

virtual void	AddRef () override

virtual void	Release () override

size_t	GetRefCount ()
	Returns the current reference count.

Category	GetCategory ()
	Returns the category for displaying this filter in the browser.

virtual bool	NeedsConfig ()
	Determines if we need to display the configuration / setup dialog. More...

virtual std::string	GetProtocolDisplayName ()=0
	Gets the display name of this protocol (for use in menus, save files, etc). Must be unique.

virtual void	ClearSweeps ()
	Clears any integrated data from past triggers (e.g. eye patterns). More...

virtual void	Refresh () override
	Evaluates a filter graph node. More...

virtual void	Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) override

virtual void	AutoscaleVertical (size_t stream)
	Adjusts gain and offset such that the active waveform occupies the entire vertical area of the plot.

virtual float	GetVoltageRange (size_t stream) override

virtual void	SetVoltageRange (float range, size_t stream) override

virtual float	GetOffset (size_t stream) override

virtual void	SetOffset (float offset, size_t stream) override

virtual YAML::Node	SerializeConfiguration (IDTable &table) override
	Serializes this trigger's configuration to a YAML string. More...

virtual void	LoadParameters (const YAML::Node &node, IDTable &table) override
	Load configuration from a save file. More...

virtual void	LoadInputs (const YAML::Node &node, IDTable &table) override

virtual bool	ShouldPersistWaveform () override
	Determine whether the channel's waveform(s) should be persisted to a session file. More...

template<class T >
	__attribute__ ((noinline)) static float InterpolateTime(T *cap
	Interpolates the actual time of a threshold crossing between two samples. More...

	if ((ag &&bg)\|\|(!ag &&!bg)) return 0

template<class T >
	__attribute__ ((noinline)) static void GetMinMaxVoltage(T *cap
	Gets the lowest and highest voltage of a waveform.

	for (float f :cap->m_samples)

template<class T >
	__attribute__ ((noinline)) static float GetMinVoltage(T *cap)
	Gets the lowest voltage of a waveform.

template<class T >
	__attribute__ ((noinline)) static float GetMaxVoltage(T *cap)
	Gets the highest voltage of a waveform.

template<class T >
	__attribute__ ((noinline)) static float GetBaseVoltage(T *cap)
	Gets the most probable "0" level for a digital waveform.

template<class T >
	__attribute__ ((noinline)) static float GetTopVoltage(T *cap)
	Gets the most probable "1" level for a digital waveform.

template<class T >
	__attribute__ ((noinline)) static float GetAvgVoltage(T *cap)
	Gets the average voltage of a waveform.

template<class T >
	__attribute__ ((noinline)) static std
	Makes a histogram from a waveform with the specified number of bins. More...

template<class T >
	__attribute__ ((noinline)) static std
	Makes a histogram from a waveform with the specified number of bins. More...

template<class T , class R , class S >
	__attribute__ ((noinline)) static void SampleOnAnyEdges(T *data
	Samples a waveform on all edges of a clock. More...

	AssertSampleTypesAreSame (data, &samples)

samples	clear ()

samples	SetGpuAccessHint (AcceleratorBuffer< S >::HINT_NEVER)

samples	PrepareForCpuAccess ()

	for (size_t i=1;i< len;i++)

	FillDurationsGeneric (samples)

samples	MarkModifiedFromCpu ()

template<class T >
	__attribute__ ((noinline)) static void SampleOnAnyEdgesBase(WaveformBase *data
	Samples a waveform on all edges of a clock. More...

clock	PrepareForCpuAccess ()

samples	PrepareForCpuAccess ()

	if (udata &&uclock) SampleOnAnyEdges(udata

else	if (udata &&sclock) SampleOnAnyEdges(udata

else	if (sdata &&sclock) SampleOnAnyEdges(sdata

else	if (sdata &&uclock) SampleOnAnyEdges(sdata

template<class T , class R , class S >
	__attribute__ ((noinline)) static void SampleOnRisingEdges(T *data
	Samples a waveform on the rising edges of a clock. More...

	AssertSampleTypesAreSame (data, &samples)

samples	clear ()

samples	SetGpuAccessHint (AcceleratorBuffer< S >::HINT_NEVER)

	for (size_t i=1;i< len;i++)

	FillDurationsGeneric (samples)

samples	MarkModifiedFromCpu ()

template<class T >
	__attribute__ ((noinline)) static void SampleOnRisingEdgesBase(WaveformBase *data
	Samples a waveform on rising edges of a clock. More...

clock	PrepareForCpuAccess ()

samples	PrepareForCpuAccess ()

	if (udata &&uclock) SampleOnRisingEdges(udata

else	if (udata &&sclock) SampleOnRisingEdges(udata

else	if (sdata &&sclock) SampleOnRisingEdges(sdata

else	if (sdata &&uclock) SampleOnRisingEdges(sdata

template<class T , class R , class S >
	__attribute__ ((noinline)) static void SampleOnFallingEdges(T *data
	Samples a waveform on the falling edges of a clock. More...

	AssertSampleTypesAreSame (data, &samples)

samples	clear ()

samples	SetGpuAccessHint (AcceleratorBuffer< S >::HINT_NEVER)

	for (size_t i=1;i< len;i++)

	FillDurationsGeneric (samples)

samples	MarkModifiedFromCpu ()

template<class T , class R >
	__attribute__ ((noinline)) static void SampleOnAnyEdgesWithInterpolation(T *data
	Samples an analog waveform on all edges of a clock, interpolating linearly to get sub-sample accuracy. More...

	AssertTypeIsDigitalWaveform (clock)

samples	clear ()

samples	SetGpuAccessHint (AcceleratorBuffer< float >::HINT_NEVER)

	for (size_t i=1;i< len;i++)

	FillDurationsGeneric (samples)

samples	MarkModifiedFromCpu ()

template<class T >
	__attribute__ ((noinline)) static void SampleOnAnyEdgesBaseWithInterpolation(WaveformBase *data
	Samples an analog waveform on all edges of a clock, interpolating linearly to get sub-sample accuracy. More...

clock	PrepareForCpuAccess ()

samples	PrepareForCpuAccess ()

	if (udata &&uclock) SampleOnAnyEdgesWithInterpolation(udata

else	if (udata &&sclock) SampleOnAnyEdgesWithInterpolation(udata

else	if (sdata &&sclock) SampleOnAnyEdgesWithInterpolation(sdata

else	if (sdata &&uclock) SampleOnAnyEdgesWithInterpolation(sdata

sigc::signal< void()>	signal_outputsChanged ()

Public Member Functions inherited from OscilloscopeChannel
	OscilloscopeChannel (Oscilloscope *scope, const std::string &hwname, const std::string &color, Unit xunit=Unit(Unit::UNIT_FS), size_t index=0)

	OscilloscopeChannel (Oscilloscope *scope, const std::string &hwname, const std::string &color, Unit xunit=Unit(Unit::UNIT_FS), Unit yunit=Unit(Unit::UNIT_VOLTS), Stream::StreamType stype=Stream::STREAM_TYPE_ANALOG, size_t index=0)

Oscilloscope *	GetScope ()

size_t	GetRefCount ()

virtual void	SetDisplayName (std::string name) override
	Sets the human-readable nickname for this channel, as displayed in the GUI. More...

virtual std::string	GetDisplayName () override
	Gets the human-readable nickname for this channel, as displayed in the GUI. More...

bool	IsEnabled ()

void	Enable ()

void	Disable ()

virtual void	AddRef ()

virtual void	Release ()

virtual CouplingType	GetCoupling ()

virtual void	SetCoupling (CouplingType type)

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings ()

virtual double	GetAttenuation ()

virtual void	SetAttenuation (double atten)

virtual int	GetBandwidthLimit ()

virtual void	SetBandwidthLimit (int mhz)

virtual void	SetDeskew (int64_t skew)

virtual int64_t	GetDeskew ()

bool	IsPhysicalChannel ()

virtual float	GetVoltageRange (size_t stream)

virtual void	SetVoltageRange (float range, size_t stream)

virtual float	GetOffset (size_t stream)

virtual void	SetOffset (float offset, size_t stream)

void	SetDigitalHysteresis (float level)

void	SetDigitalThreshold (float level)

void	SetCenterFrequency (int64_t freq)

bool	CanAutoZero ()

void	AutoZero ()

bool	CanDegauss ()

void	Degauss ()

std::string	GetProbeName ()

virtual bool	CanInvert ()

virtual void	Invert (bool invert)

virtual bool	IsInverted ()

virtual bool	HasInputMux ()

virtual size_t	GetInputMuxSetting ()

virtual void	SetInputMux (size_t select)

void	SetDefaultDisplayName ()
	Gives a channel a default display name if there's not one already. More...

virtual DownloadState	GetDownloadState () override
	Returns the current download state of this channel. More...

virtual float	GetDownloadProgress () override
	returns the current completion of the download (on the range [0, 1]), if not DOWNLOAD_UNKNOWN More...

virtual double	GetDownloadStartTime () override
	returns the start time of a download, if we are DOWNLOAD_IN_PROGRESS; undefined, otherwise More...

Public Member Functions inherited from InstrumentChannel
	InstrumentChannel (Instrument *inst, const std::string &hwname, const std::string &color="#808080", Unit xunit=Unit(Unit::UNIT_FS), size_t index=0)

	InstrumentChannel (Instrument *inst, const std::string &hwname, const std::string &color="#808080", Unit xunit=Unit(Unit::UNIT_FS), Unit yunit=Unit(Unit::UNIT_VOLTS), Stream::StreamType stype=Stream::STREAM_TYPE_ANALOG, size_t index=0)

virtual void	SetDisplayName (std::string name)
	Sets the human-readable nickname for this channel, as displayed in the GUI. More...

virtual std::string	GetDisplayName ()
	Gets the human-readable nickname for this channel, as displayed in the GUI. More...

std::string	GetHwname ()
	Gets the hardware name of the channel (m_hwname)

size_t	GetIndex ()
	Gets the (zero based) index of the channel.

Instrument *	GetInstrument ()
	Gets the instrument this channel is part of (if any)

void	ClearCachedDisplayName ()
	Sets the display name to an empty string, causing a fetch from hardware. More...

virtual PhysicalConnector	GetPhysicalConnector ()

void	SetData (WaveformBase *pNew, size_t stream)
	Sets the waveform data for a given stream, replacing any previous waveform. More...

virtual Unit	GetXAxisUnits ()
	Returns the X axis unit for this channel.

virtual Unit	GetYAxisUnits (size_t stream)
	Returns the Y axis unit for a specified stream.

virtual void	SetXAxisUnits (const Unit &rhs)
	Changes the X axis unit for this channel. More...

virtual void	SetYAxisUnits (const Unit &rhs, size_t stream)
	Changes the X axis unit for a specified stream. More...

Stream::StreamType	GetType (size_t stream)
	Returns the type of a specified stream.

size_t	GetStreamCount ()
	Get the number of data streams.

std::string	GetStreamName (size_t stream)
	Gets the name of a stream (for display in the UI)

WaveformBase *	GetData (size_t stream)
	Get the contents of a data stream.

uint8_t	GetStreamFlags (size_t stream)
	Get the flags of a data stream.

float	GetScalarValue (size_t stream)
	Gets the value of a scalar data stream.

void	SetScalarValue (size_t stream, float value)
	Sets the value of a scalar data stream.

WaveformBase *	Detach (size_t stream)
	Detach the capture data from this channel. More...

virtual bool	ShouldPersistWaveform ()
	Determine whether the channel's waveform(s) should be persisted to a session file. More...

virtual DownloadState	GetDownloadState ()
	Returns the current download state of this channel. More...

virtual float	GetDownloadProgress ()
	returns the current completion of the download (on the range [0, 1]), if not DOWNLOAD_UNKNOWN More...

virtual double	GetDownloadStartTime ()
	returns the start time of a download, if we are DOWNLOAD_IN_PROGRESS; undefined, otherwise More...

Public Member Functions inherited from FlowGraphNode
void	DetachInputs ()
	Disconnects all inputs from the node without releasing them. More...

size_t	GetInputCount ()

std::string	GetInputName (size_t i)

void	SetInput (size_t i, StreamDescriptor stream, bool force=false)
	Connects a stream to the input of this node. More...

void	SetInput (const std::string &name, StreamDescriptor stream, bool force=false)

virtual bool	ValidateChannel (size_t i, StreamDescriptor stream)

StreamDescriptor	GetInput (size_t i)
	Gets the descriptor for one of our inputs.

FilterParameter &	GetParameter (std::string s)

bool	HasParameter (std::string s)
	Checks if we have a parameter with a given name. More...

ParameterMapType::iterator	GetParamBegin ()
	Returns an iterator to the beginning of our parameter map.

ParameterMapType::iterator	GetParamEnd ()
	Returns an iterator to the end of our parameter map.

size_t	GetParamCount ()
	Returns the number of parameter we have.

virtual YAML::Node	SerializeConfiguration (IDTable &table)
	Serializes this trigger's configuration to a YAML string. More...

virtual void	LoadParameters (const YAML::Node &node, IDTable &table)
	Load configuration from a save file. More...

virtual void	LoadInputs (const YAML::Node &node, IDTable &table)

bool	IsDownstreamOf (std::set< FlowGraphNode * > nodes)
	Determines if this node is downstream of any of the specified other nodes. More...

virtual DataLocation	GetInputLocation ()
	Gets the desired location of the nodes's input data. More...

virtual void	Refresh ()
	Evaluates a filter graph node. More...

virtual void	Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue)

sigc::signal< void()>	signal_parametersChanged ()

sigc::signal< void()>	signal_inputsChanged ()

Static Public Member Functions
static std::set< Filter * >	GetAllInstances ()
	Get all currently existing filters.

static size_t	GetNumInstances ()
	Get all currently existing filters.

static int64_t	GetNextEventTimestamp (SparseWaveformBase *wfm, size_t i, size_t len, int64_t timestamp)
	Gets the timestamp of the next event (if any) on a waveform. More...

static int64_t	GetNextEventTimestamp (UniformWaveformBase *wfm, size_t i, size_t len, int64_t timestamp)
	Gets the timestamp of the next event (if any) on a waveform. More...

static int64_t	GetNextEventTimestamp (SparseWaveformBase swfm, UniformWaveformBase uwfm, size_t i, size_t len, int64_t timestamp)
	Gets the timestamp of the next sample in a waveform, which may be sparse or uniform.

static void	AdvanceToTimestamp (SparseWaveformBase *wfm, size_t &i, size_t len, int64_t timestamp)
	Advance the waveform to a given timestamp. More...

static void	AdvanceToTimestamp (UniformWaveformBase *wfm, size_t &i, size_t len, int64_t timestamp)
	Advance the waveform to a given timestamp. More...

static void	AdvanceToTimestamp (SparseWaveformBase swfm, UniformWaveformBase uwfm, size_t &i, size_t len, int64_t timestamp)

static int64_t	GetNextEventTimestampScaled (SparseWaveformBase *wfm, size_t i, size_t len, int64_t timestamp)
	Gets the timestamp of the next event (if any) on a waveform. More...

static int64_t	GetNextEventTimestampScaled (UniformWaveformBase *wfm, size_t i, size_t len, int64_t timestamp)
	Gets the timestamp of the next event (if any) on a waveform. More...

static void	AdvanceToTimestampScaled (SparseWaveformBase *wfm, size_t &i, size_t len, int64_t timestamp)
	Advance the waveform to a given timestamp. More...

static void	AdvanceToTimestampScaled (UniformWaveformBase *wfm, size_t &i, size_t len, int64_t timestamp)
	Advance the waveform to a given timestamp. More...

static void	AdvanceToTimestampScaled (SparseWaveformBase swfm, UniformWaveformBase uwfm, size_t &i, size_t len, int64_t timestamp)

static int64_t	GetNextEventTimestampScaled (SparseWaveformBase swfm, UniformWaveformBase uwfm, size_t i, size_t len, int64_t timestamp)

static float	InterpolateTime (SparseAnalogWaveform s, UniformAnalogWaveform u, size_t a, float voltage)

static float	InterpolateTime (UniformAnalogWaveform p, UniformAnalogWaveform n, size_t a, float voltage)
	Interpolates the actual time of a differential threshold crossing between two samples. More...

static float	InterpolateTime (SparseAnalogWaveform p, SparseAnalogWaveform n, size_t a, float voltage)
	Interpolates the actual time of a differential threshold crossing between two samples. More...

static float	InterpolateTime (SparseAnalogWaveform sp, UniformAnalogWaveform up, SparseAnalogWaveform sn, UniformAnalogWaveform un, size_t a, float voltage)

static float	InterpolateValue (SparseAnalogWaveform *cap, size_t index, float frac_ticks)
	Interpolates the actual value of a point between two samples. More...

static float	InterpolateValue (UniformAnalogWaveform *cap, size_t index, float frac_ticks)
	Interpolates the actual value of a point between two samples. More...

static float	GetMinVoltage (SparseAnalogWaveform s, UniformAnalogWaveform u)
	Gets the lowest voltage of a waveform.

static float	GetMaxVoltage (SparseAnalogWaveform s, UniformAnalogWaveform u)
	Gets the lowest voltage of a waveform.

static float	GetBaseVoltage (SparseAnalogWaveform swfm, UniformAnalogWaveform uwfm)
	Gets the base voltage of a waveform which may be sparse or uniform.

static float	GetTopVoltage (SparseAnalogWaveform swfm, UniformAnalogWaveform uwfm)
	Gets the top voltage of a waveform which may be sparse or uniform.

static float	GetAvgVoltage (SparseAnalogWaveform swfm, UniformAnalogWaveform uwfm)
	Gets the average voltage of a waveform which may be sparse or uniform.

static std::vector< size_t >	MakeHistogram (SparseAnalogWaveform s, UniformAnalogWaveform u, float low, float high, size_t bins)
	Makes a histogram from a waveform with the specified number of bins. More...

template<class T >
static void	PrepareForCpuAccess (SparseWaveform< T > s, UniformWaveform< T > u)
	Prepares a sparse or uniform analog waveform for CPU access.

template<class T >
static void	PrepareForGpuAccess (SparseWaveform< T > s, UniformWaveform< T > u)
	Prepares a sparse or uniform analog waveform for GPU access.

static void	FindRisingEdges (UniformAnalogWaveform *data, float threshold, std::vector< int64_t > &edges)
	Find rising edges in a waveform, interpolating to sub-sample resolution as necessary.

static void	FindRisingEdges (SparseAnalogWaveform *data, float threshold, std::vector< int64_t > &edges)
	Find rising edges in a waveform, interpolating to sub-sample resolution as necessary.

static void	FindZeroCrossings (SparseAnalogWaveform *data, float threshold, std::vector< int64_t > &edges)
	Find zero crossings in a waveform, interpolating as necessary.

static void	FindZeroCrossings (UniformAnalogWaveform *data, float threshold, std::vector< int64_t > &edges)
	Find zero crossings in a waveform, interpolating as necessary.

static void	FindZeroCrossings (UniformDigitalWaveform *data, std::vector< int64_t > &edges)

static void	FindZeroCrossings (SparseDigitalWaveform *data, std::vector< int64_t > &edges)

static void	FindRisingEdges (UniformDigitalWaveform *data, std::vector< int64_t > &edges)

static void	FindRisingEdges (SparseDigitalWaveform *data, std::vector< int64_t > &edges)

static void	FindFallingEdges (UniformDigitalWaveform *data, std::vector< int64_t > &edges)

static void	FindFallingEdges (SparseDigitalWaveform *data, std::vector< int64_t > &edges)

static void	FindPeaks (UniformAnalogWaveform *data, float peak_threshold, std::vector< int64_t > &peak_indices)

static void	FindPeaks (SparseAnalogWaveform *data, float peak_threshold, std::vector< int64_t > &peak_indices)

static void	FindZeroCrossingsBase (WaveformBase *data, float threshold, std::vector< int64_t > &edges)

static void	FindRisingEdges (SparseDigitalWaveform sdata, UniformDigitalWaveform udata, std::vector< int64_t > &edges)

static void	FindFallingEdges (SparseDigitalWaveform sdata, UniformDigitalWaveform udata, std::vector< int64_t > &edges)

static void	FindPeaks (SparseAnalogWaveform sdata, UniformAnalogWaveform udata, float peak_threshold, std::vector< int64_t > &peak_indices)

static void	FindZeroCrossings (SparseAnalogWaveform sdata, UniformAnalogWaveform udata, float threshold, std::vector< int64_t > &edges)

static void	FindZeroCrossings (SparseDigitalWaveform sdata, UniformDigitalWaveform udata, std::vector< int64_t > &edges)

static void	ClearAnalysisCache ()

static void	DoAddDecoderClass (const std::string &name, CreateProcType proc)

static void	EnumProtocols (std::vector< std::string > &names)

static Filter *	CreateFilter (const std::string &protocol, const std::string &color="#ffffff")

Public Attributes
size_t	a

size_t float	voltage

float	fa = cap->m_samples[a]

float	fb = cap->m_samples[a+1]

bool	ag = (fa > voltage)

bool	bg = (fb > voltage)

float	slope = (fb - fa)

float	delta = voltage - fa

return delta	slope

float &	vmin

float float &	vmax

	vmin = FLT_MAX

	vmax = FLT_MIN

R *	clock

R SparseWaveform< S > &	samples

size_t	len = clock->size()

size_t	dlen = data->size()

size_t	ndata = 0

WaveformBase *	clock

WaveformBase SparseWaveform< T > &	samples

auto	udata = dynamic_cast<UniformWaveform<T>*>(data)

auto	sdata = dynamic_cast<SparseWaveform<T>*>(data)

auto	uclock = dynamic_cast<UniformDigitalWaveform*>(clock)

auto	sclock = dynamic_cast<SparseDigitalWaveform*>(clock)

	uclock

	samples

else	sclock

else	samples

else	uclock

AssertTypeIsSparseWaveform &	samples

R SparseAnalogWaveform &	samples

Public Attributes inherited from InstrumentChannel
std::string	m_displaycolor
	Display color (HTML hex notation with optional alpha channel: #RRGGBB or ##RRGGBBAA)

enum InstrumentChannel::VisibilityMode	m_visibilityMode

Protected Types
typedef std::map< std::string, CreateProcType >	CreateMapType

Protected Member Functions
bool	VerifyAllInputsOK (bool allowEmpty=false)
	Returns true if every input to the filter is non-NULL (and, optionally has a non-empty waveform present)

bool	VerifyInputOK (size_t i, bool allowEmpty=false)
	Returns true if a given input to the filter is non-NULL (and, optionally has a non-empty waveform present)

bool	VerifyAllInputsOKAndUniformAnalog ()
	Returns true if every input to the filter is non-NULL and has a non-empty, uniformly sampled analog waveform present.

bool	VerifyAllInputsOKAndSparseAnalog ()
	Returns true if every input to the filter is non-NULL and has a non-empty, sparsely sampled analog waveform present.

bool	VerifyAllInputsOKAndSparseDigital ()
	Returns true if every input to the filter is non-NULL and has a non-empty, sparsely sampled digital waveform present.

bool	VerifyAllInputsOKAndSparseOrUniformDigital ()
	Returns true if every input to the filter is non-NULL and has a non-empty, digital waveform present.

UniformAnalogWaveform *	SetupEmptyUniformAnalogOutputWaveform (WaveformBase *din, size_t stream, bool clear=true)
	Sets up an analog output waveform and copies basic metadata from the input. More...

SparseAnalogWaveform *	SetupEmptySparseAnalogOutputWaveform (WaveformBase *din, size_t stream, bool clear=true)
	Sets up an analog output waveform and copies basic metadata from the input. More...

UniformDigitalWaveform *	SetupEmptyUniformDigitalOutputWaveform (WaveformBase *din, size_t stream)
	Sets up an digital output waveform and copies basic metadata from the input. More...

SparseDigitalWaveform *	SetupEmptySparseDigitalOutputWaveform (WaveformBase *din, size_t stream)
	Sets up an digital output waveform and copies basic metadata from the input. More...

SparseAnalogWaveform *	SetupSparseOutputWaveform (SparseWaveformBase *din, size_t stream, size_t skipstart, size_t skipend)
	Sets up an analog output waveform and copies timebase configuration from the input. More...

SparseDigitalWaveform *	SetupSparseDigitalOutputWaveform (SparseWaveformBase *din, size_t stream, size_t skipstart, size_t skipend)
	Sets up a digital output waveform and copies timebase configuration from the input. More...

Protected Member Functions inherited from OscilloscopeChannel
void	SharedCtorInit (Unit unit)

virtual void	ClearStreams ()
	Clears out any existing streams. More...

virtual size_t	AddStream (Unit yunit, const std::string &name, Stream::StreamType stype, uint8_t flags=0)
	Adds a new data stream to the channel. More...

Protected Member Functions inherited from FlowGraphNode
virtual void	OnInputChanged (size_t i)
	Called when a new input is connected to the node. More...

WaveformBase *	GetInputWaveform (size_t i)
	Gets the waveform attached to the specified input. More...

SparseAnalogWaveform *	GetSparseAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

UniformAnalogWaveform *	GetUniformAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

SparseDigitalWaveform *	GetSparseDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

UniformDigitalWaveform *	GetUniformDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

SparseDigitalBusWaveform *	GetSparseDigitalBusInputWaveform (size_t i)
	Gets the digital bus waveform attached to the specified input.

void	CreateInput (const std::string &name)
	Creates and names an input signal.

std::string	GetInputDisplayName (size_t i)
	Gets the display name for one of our inputs. More...

Static Protected Member Functions
static void	FillDurationsGeneric (SparseWaveformBase &wfm)
	Computes durations of samples based on offsets, assuming the capture is gapless. More...

Protected Attributes
std::vector< float >	m_ranges
	Y axis range of each output stream.

std::vector< float >	m_offsets
	Y axis offset of each output stream.

Category	m_category
	Category this filter should be displayed under.

bool	m_usingDefault
	If true, we're using an auto-generated name.

sigc::signal< void()>	m_outputsChangedSignal
	Signal emitted when the set of output streams changes.

unsigned int	m_instanceNum
	Instance number (for auto naming) More...

Protected Attributes inherited from OscilloscopeChannel
size_t	m_refcount
	Number of references (channel is disabled when last ref is released)

Protected Attributes inherited from InstrumentChannel
Instrument *	m_instrument
	The instrument we're part of (may be null in the case of filters etc)

std::string	m_hwname
	Hardware name of the channel. More...

std::string	m_displayname
	Display name (user defined, defaults to m_hwname). More...

size_t	m_index
	Zero based index of the channel within the instrument.

Unit	m_xAxisUnit
	Unit of measurement for our horizontal axis (common to all streams)

std::vector< Stream >	m_streams
	Configuration data for each of our output streams.

Protected Attributes inherited from FlowGraphNode
std::vector< std::string >	m_signalNames
	Names of signals we take as input.

std::vector< StreamDescriptor >	m_inputs
	The channel (if any) connected to each of our inputs.

ParameterMapType	m_parameters

sigc::signal< void()>	m_parametersChangedSignal
	Signal emitted when the set of parameters changes.

sigc::signal< void()>	m_inputsChangedSignal
	Signal emitted when the set of inputs changes.

Static Protected Attributes
static CreateMapType	m_createprocs

static std::set< Filter * >	m_filters

static std::map< std::string, unsigned int >	m_instanceCount

static std::mutex	m_cacheMutex

static std::map< std::pair< WaveformBase *, float >, std::vector< int64_t > >	m_zeroCrossingCache

Detailed Description

Abstract base class for all filter graph blocks which are not physical instrument channels.

Member Enumeration Documentation

◆ Category

enum Filter::Category

Category the filter should be displayed under in the GUI.

Add new categories to the end of this list before CAT_COUNT to maintain ABI compatibility with existing plugins TODO: we should make this a bitmask or list of string tags or something

Member Function Documentation

◆ attribute() [1/10]

template<class T >

Filter::__attribute__ ( (noinline) )

Interpolates the actual time of a threshold crossing between two samples.

Simple linear interpolation for now (TODO sinc)

Returns: Interpolated crossing time. 0=a, 1=a+1, fractional values are in between.

TODO: validate that this works correctly for sparsely sampled waveforms?

◆ attribute() [2/10]

template<class T >

Filter::__attribute__ ( (noinline) )

inline

Makes a histogram from a waveform with the specified number of bins.

Any values outside the range are clamped (put in bin 0 or bins-1 as appropriate).

Parameters

low	Low endpoint of the histogram (volts)
high	High endpoint of the histogram (volts)
bins	Number of histogram bins

◆ attribute() [3/10]

template<class T >

Filter::__attribute__ ( (noinline) )

inline

Makes a histogram from a waveform with the specified number of bins.

Any values outside the range are discarded.

Parameters

low	Low endpoint of the histogram (volts)
high	High endpoint of the histogram (volts)
bins	Number of histogram bins

◆ attribute() [4/10]

template<class T , class R , class S >

Filter::__attribute__ ( (noinline) )

Samples a waveform on all edges of a clock.

The sampling rate of the data and clock signals need not be equal or uniform.

The sampled waveform is sparse and has a time scale in femtoseconds, regardless of the incoming waveform's time scale and sampling uniformity.

Parameters

data	The data signal to sample. Can be be sparse or uniform of any type.
clock	The clock signal to use. Must be sparse or uniform digital.
samples	Output waveform. Must be sparse and same data type as data.

◆ attribute() [5/10]

template<class T >

Filter::__attribute__ ( (noinline) )

Samples a waveform on all edges of a clock.

The sampling rate of the data and clock signals need not be equal or uniform.

The sampled waveform is sparse and has a time scale in femtoseconds, regardless of the incoming waveform's time scale and sampling uniformity.

Parameters

data	The data signal to sample. Can be be sparse or uniform of any type.
clock	The clock signal to use. Must be sparse or uniform digital.
samples	Output waveform. Must be sparse and same data type as data.

◆ attribute() [6/10]

template<class T >

Filter::__attribute__ ( (noinline) )

Samples an analog waveform on all edges of a clock, interpolating linearly to get sub-sample accuracy.

The sampling rate of the data and clock signals need not be equal or uniform.

The sampled waveform is sparse and has a time scale in femtoseconds, regardless of the incoming waveform's time scale and sampling uniformity.

Parameters

data	The data signal to sample. Can be be sparse or uniform of any type.
clock	The clock signal to use. Must be sparse or uniform digital.
samples	Output waveform. Must be sparse and same data type as data.

◆ attribute() [7/10]

template<class T , class R >

Filter::__attribute__ ( (noinline) )

Samples an analog waveform on all edges of a clock, interpolating linearly to get sub-sample accuracy.

The sampling rate of the data and clock signals need not be equal or uniform.

The sampled waveform has a time scale in femtoseconds regardless of the incoming waveform's time scale.

Parameters

data	The data signal to sample
clock	The clock signal to use
samples	Output waveform

◆ attribute() [8/10]

template<class T , class R , class S >

Filter::__attribute__ ( (noinline) )

Samples a waveform on the falling edges of a clock.

The sampling rate of the data and clock signals need not be equal or uniform.

The sampled waveform is sparse and has a time scale in femtoseconds, regardless of the incoming waveform's time scale and sampling uniformity.

Parameters

data	The data signal to sample. Can be be sparse or uniform of any type.
clock	The clock signal to use. Must be sparse or uniform digital.
samples	Output waveform. Must be sparse and same data type as data.

◆ attribute() [9/10]

template<class T , class R , class S >

Filter::__attribute__ ( (noinline) )

Samples a waveform on the rising edges of a clock.

The sampling rate of the data and clock signals need not be equal or uniform.

The sampled waveform is sparse and has a time scale in femtoseconds, regardless of the incoming waveform's time scale and sampling uniformity.

Parameters

data	The data signal to sample. Can be be sparse or uniform of any type.
clock	The clock signal to use. Must be sparse or uniform digital.
samples	Output waveform. Must be sparse and same data type as data.

◆ attribute() [10/10]

template<class T >

Filter::__attribute__ ( (noinline) )

Samples a waveform on rising edges of a clock.

The sampling rate of the data and clock signals need not be equal or uniform.

The sampled waveform is sparse and has a time scale in femtoseconds, regardless of the incoming waveform's time scale and sampling uniformity.

Parameters

data	The data signal to sample. Can be be sparse or uniform of any type.
clock	The clock signal to use. Must be sparse or uniform digital.
samples	Output waveform. Must be sparse and same data type as data.

◆ AddDigitalStream()

void Filter::AddDigitalStream ( const std::string & name )

inline

Helper method for constructors that adds a new STREAM_TYPE_DIGITAL output stream.

Parameters

name	Name of the stream

◆ AddProtocolStream()

void Filter::AddProtocolStream ( const std::string & name )

inline

Helper method for constructors that adds a new STREAM_TYPE_PROTOCOL output stream.

Parameters

name	Name of the stream

◆ AddRef()

void Filter::AddRef ( )

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ AddStream()

size_t Filter::AddStream	(	Unit	yunit,
		const std::string &	name,
		Stream::StreamType	stype,
		uint8_t	flags = `0`
	)

overridevirtual

Adds a new data stream to the channel.

Returns: Index of the new stream

Reimplemented from InstrumentChannel.

◆ AdvanceToTimestamp() [1/2]

void Filter::AdvanceToTimestamp	(	SparseWaveformBase *	wfm,
		size_t &	i,
		size_t	len,
		int64_t	timestamp
	)

static

Advance the waveform to a given timestamp.

Works in timescale units

◆ AdvanceToTimestamp() [2/2]

void Filter::AdvanceToTimestamp	(	UniformWaveformBase *	wfm,
		size_t &	i,
		size_t	len,
		int64_t	timestamp
	)

static

Advance the waveform to a given timestamp.

Works in timescale units

◆ AdvanceToTimestampScaled() [1/2]

void Filter::AdvanceToTimestampScaled	(	SparseWaveformBase *	wfm,
		size_t &	i,
		size_t	len,
		int64_t	timestamp
	)

static

Advance the waveform to a given timestamp.

Works in native X axis units

◆ AdvanceToTimestampScaled() [2/2]

void Filter::AdvanceToTimestampScaled	(	UniformWaveformBase *	wfm,
		size_t &	i,
		size_t	len,
		int64_t	timestamp
	)

static

Advance the waveform to a given timestamp.

Works in native X axis units

◆ ClearStreams()

void Filter::ClearStreams ( )

overridevirtual

Clears out any existing streams.

Reimplemented from InstrumentChannel.

◆ ClearSweeps()

void Filter::ClearSweeps ( )

virtual

Clears any integrated data from past triggers (e.g. eye patterns).

Most decoders shouldn't have to do anything for this.

Reimplemented in AverageFilter, ConstellationFilter, EnvelopeFilter, ExponentialMovingAverageFilter, EyePattern, HistogramFilter, MaximumFilter, MinimumFilter, PeakHoldFilter, RISFilter, TrendFilter, Waterfall, and XYSweepFilter.

◆ FillDurationsGeneric()

void Filter::FillDurationsGeneric ( SparseWaveformBase & wfm )

staticprotected

Computes durations of samples based on offsets, assuming the capture is gapless.

The last sample has a duration of 1 unit.

◆ GetNextEventTimestamp() [1/2]

int64_t Filter::GetNextEventTimestamp	(	SparseWaveformBase *	wfm,
		size_t	i,
		size_t	len,
		int64_t	timestamp
	)

static

Gets the timestamp of the next event (if any) on a waveform.

Works in timescale units

◆ GetNextEventTimestamp() [2/2]

int64_t Filter::GetNextEventTimestamp	(	UniformWaveformBase *	wfm,
		size_t	i,
		size_t	len,
		int64_t	timestamp
	)

static

Gets the timestamp of the next event (if any) on a waveform.

Works in timescale units

◆ GetNextEventTimestampScaled() [1/2]

int64_t Filter::GetNextEventTimestampScaled	(	SparseWaveformBase *	wfm,
		size_t	i,
		size_t	len,
		int64_t	timestamp
	)

static

Gets the timestamp of the next event (if any) on a waveform.

Works in native X axis units

◆ GetNextEventTimestampScaled() [2/2]

int64_t Filter::GetNextEventTimestampScaled	(	UniformWaveformBase *	wfm,
		size_t	i,
		size_t	len,
		int64_t	timestamp
	)

static

Gets the timestamp of the next event (if any) on a waveform.

Works in native X axis units

◆ GetOffset()

float Filter::GetOffset ( size_t stream )

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ GetVoltageRange()

float Filter::GetVoltageRange ( size_t stream )

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ HideFromList()

void Filter::HideFromList ( )

inline

Removes this filter from the global list.

This is typically used for background filters used in GUI code to query stream names etc, but not actually used in the real filter graph.

◆ InterpolateTime() [1/2]

float Filter::InterpolateTime	(	SparseAnalogWaveform *	p,
		SparseAnalogWaveform *	n,
		size_t	a,
		float	voltage
	)

static

Interpolates the actual time of a differential threshold crossing between two samples.

Simple linear interpolation for now (TODO sinc)

Returns: Interpolated crossing time. 0=a, 1=a+1, fractional values are in between.

◆ InterpolateTime() [2/2]

float Filter::InterpolateTime	(	UniformAnalogWaveform *	p,
		UniformAnalogWaveform *	n,
		size_t	a,
		float	voltage
	)

static

Interpolates the actual time of a differential threshold crossing between two samples.

Simple linear interpolation for now (TODO sinc)

Returns: Interpolated crossing time. 0=a, 1=a+1, fractional values are in between.

◆ InterpolateValue() [1/2]

float Filter::InterpolateValue	(	SparseAnalogWaveform *	cap,
		size_t	index,
		float	frac_ticks
	)

static

Interpolates the actual value of a point between two samples.

Parameters

cap	Waveform to work with
index	Starting position
frac_ticks	Fractional position of the sample. Note that this is in timebase ticks, so if some samples are >1 tick apart it's possible for this value to be outside [0, 1].

◆ InterpolateValue() [2/2]

float Filter::InterpolateValue	(	UniformAnalogWaveform *	cap,
		size_t	index,
		float	frac_ticks
	)

static

Interpolates the actual value of a point between two samples.

Parameters

cap	Waveform to work with
index	Starting position
frac_ticks	Fractional position of the sample. Note that this is in timebase ticks, so if some samples are >1 tick apart it's possible for this value to be outside [0, 1].

◆ LoadInputs()

void Filter::LoadInputs	(	const YAML::Node &	node,
		IDTable &	table
	)

overridevirtual

Reimplemented from FlowGraphNode.

◆ LoadParameters()

void Filter::LoadParameters	(	const YAML::Node &	node,
		IDTable &	table
	)

overridevirtual

Load configuration from a save file.

Reimplemented from FlowGraphNode.

Reimplemented in IBISDriverFilter, and ScalarStairstepFilter.

◆ MakeHistogram()

static std::vector< size_t > Filter::MakeHistogram	(	SparseAnalogWaveform *	s,
		UniformAnalogWaveform *	u,
		float	low,
		float	high,
		size_t	bins
	)

inlinestatic

Makes a histogram from a waveform with the specified number of bins.

Any values outside the range are clamped (put in bin 0 or bins-1 as appropriate).

Parameters

low	Low endpoint of the histogram (volts)
high	High endpoint of the histogram (volts)
bins	Number of histogram bins

◆ NeedsConfig()

bool Filter::NeedsConfig ( )

virtual

Determines if we need to display the configuration / setup dialog.

The default implementation returns true if we have more than one input or any parameters, and false otherwise.

Reimplemented in SParameterSourceFilter, and ImportFilter.

◆ Refresh() [1/2]

void Filter::Refresh ( )

overridevirtual

Evaluates a filter graph node.

This version does not support using Vulkan acceleration and should be considered deprecated. It will be removed in the indefinite future once all filters have been converted to the new API.

Reimplemented from FlowGraphNode.

Reimplemented in ImportFilter, ACCoupleFilter, ACRMSMeasurement, ADL5205Decoder, AreaMeasurement, AutocorrelationFilter, BandwidthMeasurement, BaseMeasurement, BurstWidthMeasurement, CANBitmaskFilter, CANDecoder, ClipFilter, ClockRecoveryFilter, CurrentShuntFilter, DCDMeasurement, DDJMeasurement, DDR1Decoder, DDR3Decoder, DeskewFilter, DownconvertFilter, DownsampleFilter, DPAuxChannelDecoder, DPhyDataDecoder, DPhyEscapeModeDecoder, DPhyHSClockRecoveryFilter, DPhySymbolDecoder, DramClockFilter, DramRefreshActivateMeasurement, DramRowColumnLatencyMeasurement, DSIFrameDecoder, DSIPacketDecoder, DutyCycleMeasurement, DVIDecoder, EmphasisFilter, EmphasisRemovalFilter, EnvelopeFilter, ESPIDecoder, Ethernet1000BaseXDecoder, Ethernet100BaseTXDecoder, Ethernet10BaseTDecoder, Ethernet10GBaseRDecoder, Ethernet64b66bDecoder, EthernetAutonegotiationDecoder, EthernetAutonegotiationPageDecoder, EthernetBaseXAutonegotiationDecoder, EthernetGMIIDecoder, EthernetRGMIIDecoder, EthernetRMIIDecoder, EthernetSGMIIDecoder, ExportFilter, EyeBitRateMeasurement, EyeHeightMeasurement, EyeJitterMeasurement, EyePeriodMeasurement, EyeWidthMeasurement, FallMeasurement, FrequencyMeasurement, FSKDecoder, FullWidthHalfMax, GlitchRemovalFilter, GroupDelayFilter, HistogramFilter, HorizontalBathtub, HyperRAMDecoder, I2CDecoder, I2CEepromDecoder, I2CRegisterDecoder, IBISDriverFilter, IBM8b10bDecoder, InvertFilter, IPv4Decoder, IQSquelchFilter, ISIMeasurement, J1939AnalogDecoder, J1939BitmaskDecoder, J1939PDUDecoder, J1939SourceMatchFilter, J1939TransportDecoder, JitterFilter, JtagDecoder, MagnitudeFilter, MDIODecoder, MemoryFilter, MilStd1553Decoder, MovingAverageFilter, MultiplyFilter, NCOFilter, NoiseFilter, OneWireDecoder, OvershootMeasurement, PAM4DemodulatorFilter, ParallelBus, PCIe128b130bDecoder, PCIeDataLinkDecoder, PCIeGen2LogicalDecoder, PCIeGen3LogicalDecoder, PCIeLinkTrainingDecoder, PCIeTransportDecoder, PeakHoldFilter, PeriodMeasurement, PhaseMeasurement, PhaseNonlinearityFilter, PkPkMeasurement, PRBSCheckerFilter, PRBSGeneratorFilter, PulseWidthMeasurement, QSGMIIDecoder, QSPIDecoder, QuadratureDecoder, ReferencePlaneExtensionFilter, RiseMeasurement, RjBUjFilter, RMSMeasurement, SawtoothGeneratorFilter, SDCmdDecoder, SDDataDecoder, SetupHoldMeasurement, SNRFilter, SParameterCascadeFilter, SParameterDeEmbedFilter, SPIDecoder, SPIFlashDecoder, SquelchFilter, StepGeneratorFilter, SWDDecoder, SWDMemAPDecoder, TachometerFilter, TappedDelayLineFilter, TCPDecoder, TDRFilter, ThresholdFilter, TIEMeasurement, TimeOutsideLevelMeasurement, TMDSDecoder, ToneGeneratorFilter, TopMeasurement, TouchstoneImportFilter, TwoPortShuntThroughFilter, UartClockRecoveryFilter, UARTDecoder, UndershootMeasurement, UnwrappedPhaseFilter, USB2ActivityDecoder, USB2PacketDecoder, USB2PCSDecoder, USB2PMADecoder, VectorFrequencyFilter, VectorPhaseFilter, VerticalBathtub, VICPDecoder, WaveformGenerationFilter, WindowedAutocorrelationFilter, and WindowFilter.

◆ Refresh() [2/2]

virtual void Filter::Refresh	(	vk::raii::CommandBuffer &	cmdBuf,
		std::shared_ptr< QueueHandle >	queue
	)

overridevirtual

Reimplemented from FlowGraphNode.

◆ Release()

void Filter::Release ( )

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ SerializeConfiguration()

YAML::Node Filter::SerializeConfiguration ( IDTable & table )

overridevirtual

Serializes this trigger's configuration to a YAML string.

Returns: YAML block with this trigger's configuration

Reimplemented from FlowGraphNode.

◆ SetDefaultName()

void Filter::SetDefaultName ( )

virtual

Sets the name of a filter based on its inputs.

This method may be overridden in derived classes for specialized applications, but there is no need to do so in typical filters.

Reimplemented in ImportFilter, CandumpImportFilter, EnhancedResolutionFilter, FIRFilter, HistogramFilter, InvertFilter, PcapngImportFilter, PRBSCheckerFilter, PRBSGeneratorFilter, RiseMeasurement, SetupHoldMeasurement, TDRFilter, and TouchstoneImportFilter.

◆ SetOffset()

void Filter::SetOffset	(	float	offset,
		size_t	stream
	)

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ SetupEmptySparseAnalogOutputWaveform()

SparseAnalogWaveform * Filter::SetupEmptySparseAnalogOutputWaveform	(	WaveformBase *	din,
		size_t	stream,
		bool	clear = `true`
	)

protected

Sets up an analog output waveform and copies basic metadata from the input.

A new output waveform is created if necessary, but when possible the existing one is reused.

Parameters

din	Input waveform
stream	Stream index
clear	True to clear an existing waveform, false to leave it as-is

Returns: The ready-to-use output waveform

◆ SetupEmptySparseDigitalOutputWaveform()

SparseDigitalWaveform * Filter::SetupEmptySparseDigitalOutputWaveform	(	WaveformBase *	din,
		size_t	stream
	)

protected

Sets up an digital output waveform and copies basic metadata from the input.

A new output waveform is created if necessary, but when possible the existing one is reused.

Parameters

din	Input waveform
stream	Stream index

Returns: The ready-to-use output waveform

◆ SetupEmptyUniformAnalogOutputWaveform()

UniformAnalogWaveform * Filter::SetupEmptyUniformAnalogOutputWaveform	(	WaveformBase *	din,
		size_t	stream,
		bool	clear = `true`
	)

protected

Sets up an analog output waveform and copies basic metadata from the input.

A new output waveform is created if necessary, but when possible the existing one is reused.

Parameters

din	Input waveform
stream	Stream index
clear	True to clear an existing waveform, false to leave it as-is

Returns: The ready-to-use output waveform

◆ SetupEmptyUniformDigitalOutputWaveform()

UniformDigitalWaveform * Filter::SetupEmptyUniformDigitalOutputWaveform	(	WaveformBase *	din,
		size_t	stream
	)

protected

Sets up an digital output waveform and copies basic metadata from the input.

A new output waveform is created if necessary, but when possible the existing one is reused.

Parameters

din	Input waveform
stream	Stream index

Returns: The ready-to-use output waveform

◆ SetupSparseDigitalOutputWaveform()

SparseDigitalWaveform * Filter::SetupSparseDigitalOutputWaveform	(	SparseWaveformBase *	din,
		size_t	stream,
		size_t	skipstart,
		size_t	skipend
	)

protected

Sets up a digital output waveform and copies timebase configuration from the input.

A new output waveform is created if necessary, but when possible the existing one is reused. Timestamps are copied from the input to the output.

Parameters

din	Input waveform
stream	Stream index
skipstart	Number of input samples to discard from the beginning of the waveform
skipend	Number of input samples to discard from the end of the waveform

Returns: The ready-to-use output waveform

◆ SetupSparseOutputWaveform()

SparseAnalogWaveform * Filter::SetupSparseOutputWaveform	(	SparseWaveformBase *	din,
		size_t	stream,
		size_t	skipstart,
		size_t	skipend
	)

protected

Sets up an analog output waveform and copies timebase configuration from the input.

A new output waveform is created if necessary, but when possible the existing one is reused. Timestamps are copied from the input to the output.

Parameters

din	Input waveform
stream	Stream index
skipstart	Number of input samples to discard from the beginning of the waveform
skipend	Number of input samples to discard from the end of the waveform

Returns: The ready-to-use output waveform

◆ SetVoltageRange()

void Filter::SetVoltageRange	(	float	range,
		size_t	stream
	)

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ ShouldPersistWaveform()

bool Filter::ShouldPersistWaveform ( )

overridevirtual

Determine whether the channel's waveform(s) should be persisted to a session file.

Reimplemented from InstrumentChannel.

Reimplemented in MemoryFilter, and TrendFilter.

◆ UseDefaultName()

void Filter::UseDefaultName ( bool use )

inline

Specifies whether we're using an auto-generated name or not.

Parameters

use	True to use the autogenerated name, false if we are customizing

Member Data Documentation

◆ m_instanceNum

unsigned int Filter::m_instanceNum

protected

Instance number (for auto naming)

Starts at 0 for the first filter of a given class type created, then increments

◆ samples [1/3]

else Filter::samples

Initial value:

{

        AssertTypeIsDigitalWaveform(clock)

◆ samples [2/3]

WaveformBase SparseWaveform<T>& Filter::samples

Initial value:

{

data->PrepareForCpuAccess()

◆ samples [3/3]

R SparseAnalogWaveform& Filter::samples

Initial value:

{

        AssertTypeIsAnalogWaveform(data)

◆ vmax

float float& Filter::vmax

Initial value:

{

AssertTypeIsAnalogWaveform(cap)

◆ voltage

size_t float Filter::voltage

Initial value:

{

AssertTypeIsAnalogWaveform(cap)

The documentation for this class was generated from the following files:

lib/scopehal/Filter.h
lib/scopehal/Filter.cpp
