SCPITransport Class Reference

Abstraction of a transport layer for moving SCPI data between endpoints. More...

#include <SCPITransport.h>

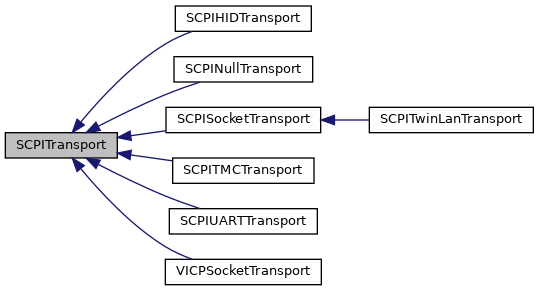

Inheritance diagram for SCPITransport:

Public Types
typedef SCPITransport *(*	CreateProcType) (const std::string &args)

Public Member Functions
virtual std::string	GetConnectionString ()=0
virtual std::string	GetName ()=0
void	SendCommandQueued (const std::string &cmd)
	Pushes a command into the transmit FIFO then returns immediately. More...
std::string	SendCommandQueuedWithReply (std::string cmd, bool endOnSemicolon=true)
	Sends a command (flushing any pending/queued commands first), then returns the response. More...
void	SendCommandImmediate (std::string cmd)
	Sends a command (jumping ahead of the queue) which does not require a response.
std::string	SendCommandImmediateWithReply (std::string cmd, bool endOnSemicolon=true)
	Sends a command (jumping ahead of the queue), then returns the response. More...
void *	SendCommandImmediateWithRawBlockReply (std::string cmd, size_t &len)
	Sends a command (jumping ahead of the queue) which reads a binary block response.
bool	FlushCommandQueue ()
	Pushes all pending commands from SendCommandQueued() calls and blocks until they are all sent.
std::recursive_mutex &	GetMutex ()
virtual void	FlushRXBuffer (void)
virtual bool	SendCommand (const std::string &cmd)=0
virtual std::string	ReadReply (bool endOnSemicolon=true, std::function< void(float)> progress=nullptr)=0
virtual size_t	ReadRawData (size_t len, unsigned char *buf, std::function< void(float)> progress=nullptr)=0
virtual void	SendRawData (size_t len, const unsigned char *buf)=0
virtual bool	IsCommandBatchingSupported ()=0
virtual bool	IsConnected ()=0
void	EnableRateLimiting (std::chrono::milliseconds interval)
	Enables rate limiting. Rate limiting is only applied to the queued command API. More...
void	DeduplicateCommand (const std::string &cmd)
	Adds a command to the set of commands which may be deduplicated in the queue. More...

Static Public Member Functions
static void	DoAddTransportClass (std::string name, CreateProcType proc)
static void	EnumTransports (std::vector< std::string > &names)
static SCPITransport *	CreateTransport (const std::string &transport, const std::string &args)

Protected Types
typedef std::map< std::string, CreateProcType >	CreateMapType

Protected Member Functions
void	RateLimitingWait ()
	Block until it's time to send the next command when rate limiting.

Protected Attributes
std::mutex	m_queueMutex
std::recursive_mutex	m_netMutex
std::list< std::string >	m_txQueue
std::set< std::string >	m_dedupCommands
bool	m_rateLimitingEnabled
std::chrono::system_clock::time_point	m_nextCommandReady
std::chrono::milliseconds	m_rateLimitingInterval

Static Protected Attributes
static CreateMapType	m_createprocs

Detailed Description

Abstraction of a transport layer for moving SCPI data between endpoints.

Member Function Documentation

DeduplicateCommand()

void SCPITransport::DeduplicateCommand ( const std::string &  cmd )

inline

Adds a command to the set of commands which may be deduplicated in the queue.

If SendCommandQueued() is called with a command in this list, and a second instance of the same command is already present in the queue, then the redundant instance will be removed.

The command subject, if present, must match. For example, if "OFFS" is in the deduplication set, then

C2:OFFS 1.1 C2:OFFS 1.2

will be deduplicated, while

C1:OFFS 1.1 C2:OFFS 1.2

will not be.

EnableRateLimiting()

void SCPITransport::EnableRateLimiting ( std::chrono::milliseconds  interval )

inline

Enables rate limiting. Rate limiting is only applied to the queued command API.

The rate limiting feature ensures a minimum delay between SCPI commands. This severely degrades performance and is intended to be used as a crutch to work around instrument firmware bugs. Other synchronization mechanisms should be used if at all possible.

Once rate limiting is enabled on a transport, it cannot be disabled.

SendCommandImmediateWithReply()

string SCPITransport::SendCommandImmediateWithReply	(	std::string	cmd,
		bool	endOnSemicolon = true
	)

Sends a command (jumping ahead of the queue), then returns the response.

This is an atomic operation requiring no mutexing at the caller side.

SendCommandQueued()

void SCPITransport::SendCommandQueued

(

const std::string &

cmd

)

Pushes a command into the transmit FIFO then returns immediately.

This command will actually be sent the next time FlushCommandQueue() is called.

SendCommandQueuedWithReply()

string SCPITransport::SendCommandQueuedWithReply	(	std::string	cmd,
		bool	endOnSemicolon = true
	)

Sends a command (flushing any pending/queued commands first), then returns the response.

This is an atomic operation requiring no mutexing at the caller side.

---

The documentation for this class was generated from the following files:

• lib/scopehal/SCPITransport.h
• lib/scopehal/SCPITransport.cpp
