Abstract base class for oscilloscope / logic analyzer trigger inputs. More...

#include <Trigger.h>

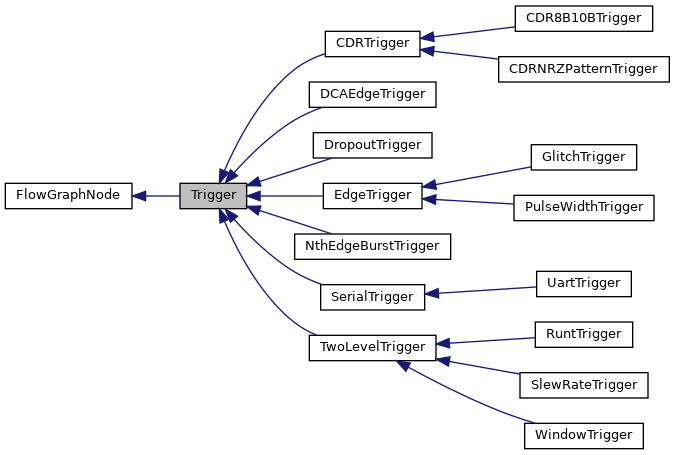

Inheritance diagram for Trigger:

[legend]

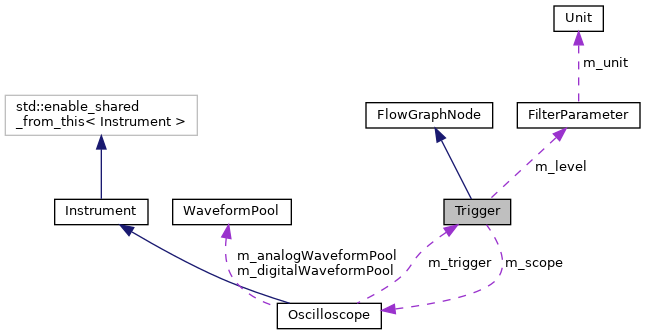

Collaboration diagram for Trigger:

[legend]

Public Types
enum	Condition { CONDITION_EQUAL , CONDITION_NOT_EQUAL , CONDITION_LESS , CONDITION_LESS_OR_EQUAL , CONDITION_GREATER , CONDITION_GREATER_OR_EQUAL , CONDITION_BETWEEN , CONDITION_NOT_BETWEEN , CONDITION_ANY }
	Conditions for triggers that perform logical comparisons of values. More...

typedef Trigger (	CreateProcType) (Oscilloscope *)

Public Types inherited from FlowGraphNode
enum class	ExecutionCapabilities { None = 0 , CommandBufferAppend = 1 , CommandBufferTailCall = 2 , VulkanOnly = 4 }

typedef std::map< std::string, FilterParameter >	ParameterMapType
	Short name for a map of strings to parameters.

Public Member Functions
	Trigger (Oscilloscope *scope)
	Initialize a new trigger.

virtual void	Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) override

float	GetLevel ()
	Get the trigger level.

float	GetUpperLevel ()

void	SetLevel (float level)
	Sets the trigger level.

void	SetUpperLevel (float level)

Oscilloscope *	GetScope ()
	Gets the scope this trigger is attached to.

virtual std::string	GetTriggerDisplayName ()=0

virtual YAML::Node	SerializeConfiguration (IDTable &table) override
	Serializes this trigger's configuration to a YAML string.

Public Member Functions inherited from FlowGraphNode
void	DetachInputs ()
	Disconnects all inputs from the node without releasing them.

size_t	GetInputCount ()
	Get the number of input ports.

std::string	GetInputName (size_t i)

void	SetInput (size_t i, StreamDescriptor stream, bool force=false)
	Connects a stream to the input of this node.

void	SetInput (const std::string &name, StreamDescriptor stream, bool force=false)

virtual bool	ValidateChannel (size_t i, StreamDescriptor stream)
	Check if a stream is allowed to be connected to the given input.

bool	HasInput (StreamDescriptor desc)
	Checks if the given stream is connected to at least one of our inputs.

StreamDescriptor	GetInput (size_t i)
	Gets the descriptor for one of our inputs.

std::shared_ptr< InputConstraint >	GetInputConstraints (size_t i)
	Get the constraints on one of our inputs.

FilterParameter &	GetParameter (std::string s)

bool	HasParameter (std::string s)
	Checks if we have a parameter with a given name.

ParameterMapType::iterator	GetParamBegin ()
	Returns an iterator to the beginning of our parameter map.

ParameterMapType::iterator	GetParamEnd ()
	Returns an iterator to the end of our parameter map.

size_t	GetParamCount ()
	Returns the number of parameter we have.

virtual void	LoadParameters (const YAML::Node &node, IDTable &table)
	Load configuration from a save file.

virtual void	LoadInputs (const YAML::Node &node, IDTable &table)

bool	IsDownstreamOf (std::set< FlowGraphNode * > nodes)
	Determines if this node is downstream of any of the specified other nodes.

virtual uint32_t	GetExecutionCapabilitiesMask ()
	Returns a bitmask of ExecutionCapabilities fields.

bool	HasMessages () const
	Checks if this graph has any messages.

const std::vector< FlowGraphNodeMessage > &	GetMessages () const
	Walking through any messages.

const FlowGraphNodeMessage *	GetMostSevereMessage () const

void	AddSink (size_t stream, FlowGraphNode *node)

void	RemoveSink (size_t stream, FlowGraphNode *node)

const std::set< FlowGraphNode * > &	GetSinks (size_t stream)

sigc::signal< void()>	signal_parametersChanged ()

sigc::signal< void()>	signal_inputsChanged ()

Static Public Member Functions
static void	DoAddTriggerClass (std::string name, CreateProcType proc)
	Register a new trigger class for dynamic creation.

static void	EnumTriggers (std::vector< std::string > &names)
	Gets a list of all registered trigger types.

static Trigger *	CreateTrigger (std::string name, Oscilloscope *scope)
	Creates a new trigger for an oscilloscope.

Protected Types
typedef std::map< std::string, CreateProcType >	CreateMapType
	Helper typedef for m_createprocs.

Protected Attributes
Oscilloscope *	m_scope
	The scope this trigger is part of.

FilterParameter &	m_level
	"Trigger level" parameter

FilterParameter &	m_triggerLevel

FilterParameter &	m_upperLevel

Protected Attributes inherited from FlowGraphNode
std::vector< std::shared_ptr< InputDescriptor > >	m_inputs
	Input ports.

std::vector< std::set< FlowGraphNode * > >	m_sinks
	The nodes (if any) that each of our streams drives.

ParameterMapType	m_parameters

sigc::signal< void()>	m_parametersChangedSignal
	Signal emitted when the set of parameters changes.

sigc::signal< void()>	m_inputsChangedSignal
	Signal emitted when the set of inputs changes.

std::vector< FlowGraphNodeMessage >	m_messages

Static Protected Attributes
static CreateMapType	m_createprocs
	Map of trigger type names to factory methods.

Additional Inherited Members
Protected Member Functions inherited from FlowGraphNode
virtual void	OnInputChanged (size_t i)
	Called when a new input is connected to the node.

WaveformBase *	GetInputWaveform (size_t i)
	Gets the waveform attached to the specified input.

SparseAnalogWaveform *	GetSparseAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

UniformAnalogWaveform *	GetUniformAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

SparseDigitalWaveform *	GetSparseDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

UniformDigitalWaveform *	GetUniformDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

virtual void	CreateInput (const std::string &name)
	Gets the digital bus waveform attached to the specified input.

template<class T , class... Args>
void	CreateInput (const std::string &name, Args &&... args)

std::string	GetInputDisplayName (size_t i)
	Gets the display name for one of our inputs.

void	ClearMessages ()
	Remove any messages left over from the last graph refresh.

void	AddMessage (const FlowGraphNodeMessage &msg)
	Attach a new message to the node.

void	AddMessage (Severity severity, const std::string &title, const std::string &message)
	Attach a new message to the node.

void	AddErrorMessage (const std::string &err)
	Add a new error message.

void	AddErrorMessage (const std::string &title, const std::string &err)
	Add a new error message with a title.

Detailed Description

Abstract base class for oscilloscope / logic analyzer trigger inputs.

Member Enumeration Documentation

◆ Condition

enum Trigger::Condition

Conditions for triggers that perform logical comparisons of values.

Enumerator
CONDITION_EQUAL	Match when value is equal to target.
CONDITION_NOT_EQUAL	Match when value is not equal to target.
CONDITION_LESS	Match when value is less than target.
CONDITION_LESS_OR_EQUAL	Match when value is less than or equal to target.
CONDITION_GREATER	Match when value is greater than target.
CONDITION_GREATER_OR_EQUAL	Match when value is greater than or equal to target.
CONDITION_BETWEEN	Match when value is greater than one target but less than another.
CONDITION_NOT_BETWEEN	Match when value is not between two targets.
CONDITION_ANY	Always match.

Constructor & Destructor Documentation

◆ Trigger()

Trigger::Trigger ( Oscilloscope * scope )

Initialize a new trigger.

Parameters

scope The scope this trigger is attached to

Member Function Documentation

◆ CreateTrigger()

Trigger * Trigger::CreateTrigger	(	std::string	name,
		Oscilloscope *	scope
	)

static

Creates a new trigger for an oscilloscope.

Parameters

name	Name of the desired trigger
scope	The scope to create the trigger for

Returns: The newly created trigger, or nullptr on failure

◆ DoAddTriggerClass()

void Trigger::DoAddTriggerClass	(	std::string	name,
		CreateProcType	proc
	)

static

Register a new trigger class for dynamic creation.

Do not call this function directly, use the AddTriggerClass macro

Parameters

name	Name of the trigger class
proc	Factory method

◆ EnumTriggers()

void Trigger::EnumTriggers ( std::vector< std::string > & names )

static

Gets a list of all registered trigger types.

Parameters

[out] names List of known triggers

◆ Refresh()

void Trigger::Refresh	(	vk::raii::CommandBuffer &	cmdBuf,
		std::shared_ptr< QueueHandle >	queue
	)

overridevirtual

Implements FlowGraphNode.

◆ SerializeConfiguration()

YAML::Node Trigger::SerializeConfiguration ( IDTable & table )

overridevirtual

Serializes this trigger's configuration to a YAML string.

Returns: YAML block with this trigger's configuration

Reimplemented from FlowGraphNode.

◆ SetLevel()

void Trigger::SetLevel ( float level )

inline

Sets the trigger level.

Parameters

level Trigger level

The documentation for this class was generated from the following files:

lib/scopehal/Trigger.h
lib/scopehal/Trigger.cpp
