Base class for bit error rate tester drivers. More...

#include <BERT.h>

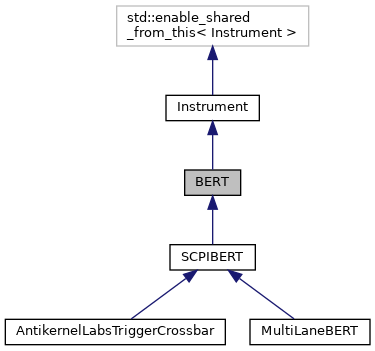

Inheritance diagram for BERT:

[legend]

Collaboration diagram for BERT:

Public Types
enum	Pattern { PATTERN_PRBS7 , PATTERN_PRBS9 , PATTERN_PRBS11 , PATTERN_PRBS15 , PATTERN_PRBS23 , PATTERN_PRBS31 , PATTERN_CUSTOM , PATTERN_CLOCK_DIV2 , PATTERN_CLOCK_DIV32 , PATTERN_AUTO }
	Set of patterns we can generate or accept. More...

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Member Functions
virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual Pattern	GetTxPattern (size_t i)=0
	Gets the currently selected transmit pattern for a channel. More...

virtual void	SetTxPattern (size_t i, Pattern pattern)=0
	Sets the transmit pattern for the selected channel. More...

virtual std::vector< Pattern >	GetAvailableTxPatterns (size_t i)=0
	Gets the list of available transmit patterns for a channel. More...

virtual bool	IsCustomPatternPerChannel ()=0
	Determines whether custom patterns are settable per channel, or shared by the whole device. More...

virtual size_t	GetCustomPatternLength ()=0
	Returns the number of bits in a custom pattern (may change with line rate) More...

virtual void	SetGlobalCustomPattern (uint64_t pattern)=0
	Sets the global custom pattern (only valid if IsCustomPatternPerChannel returns false) More...

virtual uint64_t	GetGlobalCustomPattern ()=0
	Gets the global custom pattern (only valid if IsCustomPatternPerChannel returns false) More...

virtual bool	GetTxInvert (size_t i)=0
	Gets the transmit invert flag for a channel. More...

virtual void	SetTxInvert (size_t i, bool invert)=0
	Sets the transmit invert flag for a channel. More...

virtual std::vector< float >	GetAvailableTxDriveStrengths (size_t i)=0
	Gets the list of available drive strengths (in volts) for a channel. More...

virtual float	GetTxDriveStrength (size_t i)=0
	Get the drive strength for a channel. More...

virtual void	SetTxDriveStrength (size_t i, float drive)=0
	Set the drive strength for a channel. More...

virtual void	SetTxEnable (size_t i, bool enable)=0
	Sets the transmit enable flag for a channel. More...

virtual bool	GetTxEnable (size_t i)=0
	Gets the transmit enable flag for a channel. More...

virtual float	GetTxPreCursor (size_t i)=0
	Get the pre-cursor equalizer tap for a channel. More...

virtual void	SetTxPreCursor (size_t i, float precursor)=0
	Set the pre-cursor equalizer tap for a channel. More...

virtual float	GetTxPostCursor (size_t i)=0
	Get the post-cursor equalizer tap for a channel. More...

virtual void	SetTxPostCursor (size_t i, float postcursor)=0
	Set the post-cursor equalizer tap for a channel. More...

virtual bool	GetRxInvert (size_t i)=0
	Gets the transmit invert flag for a channel. More...

virtual void	SetRxInvert (size_t i, bool invert)=0
	Sets the receive invert flag for a channel. More...

virtual bool	GetRxCdrLockState (size_t i)=0
	Gets the RX CDR lock state (true=lock, false=unlock) More...

virtual bool	HasRxCTLE ()=0
	Determines whether the input buffer has a continuous-time linear equalizer. More...

virtual std::vector< float >	GetRxCTLEGainSteps ()=0
	Get the list of available RX CTLE gain values (in dB) More...

virtual size_t	GetRxCTLEGainStep (size_t i)=0
	Gets the currently selected RX CTLE gain index. More...

virtual void	SetRxCTLEGainStep (size_t i, size_t step)=0
	Sets the RX CTLE gain index. More...

virtual Pattern	GetRxPattern (size_t i)=0
	Gets the currently selected receive pattern for a channel. More...

virtual void	SetRxPattern (size_t i, Pattern pattern)=0
	Sets the receive pattern for the selected channel. More...

virtual std::vector< Pattern >	GetAvailableRxPatterns (size_t i)=0
	Gets the list of available receive patterns for a channel. More...

virtual int64_t	GetExpectedBathtubCaptureTime (size_t i)
	Returns the expected time, in femtoseconds, to complete a bathtub scan with the current settings. More...

virtual int64_t	GetExpectedEyeCaptureTime (size_t i)
	Returns the expected time, in femtoseconds, to complete an eye scan with the current settings. More...

virtual void	MeasureHBathtub (size_t i)=0
	Acquires a bathtub curve. More...

virtual void	MeasureEye (size_t i)=0
	Acquires an eye pattern. More...

virtual void	SetBERIntegrationLength (int64_t uis)=0
	Set the integration period for BER measurements. More...

virtual int64_t	GetBERIntegrationLength ()=0
	Get the integration period for BER measurements. More...

virtual void	SetBERSamplingPoint (size_t i, int64_t dx, float dy)=0
	Set the sampling point for BER measurements. More...

virtual void	GetBERSamplingPoint (size_t i, int64_t &dx, float &dy)=0
	Get the sampling point for BER measurements. More...

virtual bool	IsHBathtubScanInProgress (size_t i)
	Returns true if a horizontal bathtub scan is in progress. More...

virtual bool	IsEyeScanInProgress (size_t i)
	Returns true if an eye scan is in progress. More...

virtual float	GetScanProgress (size_t i)
	Gets the estimated completion status (0-1) of the current scan. More...

virtual bool	HasConfigurableScanDepth ()
	Determines whether this instrument has configurable integration depth for eye / bathtub scans. More...

virtual std::vector< int64_t >	GetScanDepths (size_t i)
	Returns the list of integration depths for eye / bathtub scans. More...

virtual int64_t	GetScanDepth (size_t i)
	Get the configured scan depth for a channel, in UIs per sample/pixel. More...

virtual void	SetScanDepth (size_t i, int64_t depth)
	Set the configured scan depth for a channel. More...

virtual bool	HasRefclkIn ()=0
	Returns true if this instrument has a reference clock input port. More...

virtual bool	HasRefclkOut ()=0
	Returns true if this instrument has a reference clock output port. More...

virtual size_t	GetRefclkOutMux ()=0
	Gets the currently selected reference clock output mux setting. More...

virtual void	SetRefclkOutMux (size_t i)=0
	Sets the reference clock output mux. More...

virtual std::vector< std::string >	GetRefclkOutMuxNames ()=0
	Gets the list of available reference clock mux settings. More...

virtual int64_t	GetRefclkOutFrequency ()=0
	Gets the currently selected refclk out frequency, in Hz. More...

virtual int64_t	GetRefclkInFrequency ()=0
	Gets the refclk in frequency, in Hz, required to generate the currently selected data rate. More...

virtual bool	IsDataRatePerChannel ()=0
	Determines whether the TX/RX clock is a per-instrument or per-channel setting. More...

virtual int64_t	GetDataRate (size_t i)=0
	Gets the currently selected line rate (in symbols/sec) More...

virtual void	SetDataRate (size_t i, int64_t rate)=0
	Sets the data rate (in symbols/sec) More...

virtual std::vector< int64_t >	GetAvailableDataRates ()=0
	Gets the list of available data rates, in symbols/sec. More...

virtual void	SetUseExternalRefclk (bool external)=0
	Sets the reference clock source (internal or external) More...

virtual bool	GetUseExternalRefclk ()=0
	Sets the reference clock source. More...

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Static Public Member Functions
static std::string	GetPatternName (Pattern pat)
	Converts a Pattern enum into a strnig. More...

static Pattern	GetPatternOfName (std::string name)
	Converts a string name into a Pattern enum. More...

Protected Member Functions
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this BERT's configuration to a YAML node. More...

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file. More...

Additional Inherited Members
Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Detailed Description

Base class for bit error rate tester drivers.

Member Enumeration Documentation

◆ Pattern

enum BERT::Pattern

Set of patterns we can generate or accept.

Enumerator
PATTERN_PRBS7	Standard PRBS-7 x^7 + x^6 + 1.
PATTERN_PRBS9	Standard PRBS-9 x^9 + x^5 + 1.
PATTERN_PRBS11	Standard PRBS-11 x^11 + x^9 + 1.
PATTERN_PRBS15	Standard PRBS-15 x^15 + x^14 + 1.
PATTERN_PRBS23	Standard PRBS-23 x^23 + x^18 + 1.
PATTERN_PRBS31	Standard PRBS-31 x^31 + x^28 + 1.
PATTERN_CUSTOM	Custom output pattern (not valid for input)
PATTERN_CLOCK_DIV2	Clock at half the symbol rate (1-0-1-0 pattern)
PATTERN_CLOCK_DIV32	Clock at 1/32 the symbol rate (16 0s followed by 16 1s)
PATTERN_AUTO	Autodetect input pattern (not valid for output)

Member Function Documentation

◆ DoLoadConfiguration()

void BERT::DoLoadConfiguration	(	int	version,
		const YAML::Node &	node,
		IDTable &	idmap
	)

protected

Load instrument and channel configuration from a save file.

Parameters

version	File format version
node	Output node
table	Table of IDs

◆ DoPreLoadConfiguration()

void BERT::DoPreLoadConfiguration	(	int	version,
		const YAML::Node &	node,
		IDTable &	idmap,
		ConfigWarningList &	list
	)

protected

Validate instrument and channel configuration from a save file.

Parameters

version	File format version
node	Output node
table	Table of IDs
list	List of warnings generated by the pre-load process

◆ DoSerializeConfiguration()

void BERT::DoSerializeConfiguration	(	YAML::Node &	node,
		IDTable &	table
	)

protected

Serializes this BERT's configuration to a YAML node.

Parameters

node	Output node
table	Table of IDs

◆ GetAvailableDataRates()

virtual std::vector< int64_t > BERT::GetAvailableDataRates ( )

pure virtual

Gets the list of available data rates, in symbols/sec.

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetAvailableRxPatterns()

virtual std::vector< Pattern > BERT::GetAvailableRxPatterns ( size_t i )

pure virtual

Gets the list of available receive patterns for a channel.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetAvailableTxDriveStrengths()

virtual std::vector< float > BERT::GetAvailableTxDriveStrengths ( size_t i )

pure virtual

Gets the list of available drive strengths (in volts) for a channel.

Drive strength is nominal p-p swing with full main cursor tap and pre/post cursors at zero.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetAvailableTxPatterns()

virtual std::vector< Pattern > BERT::GetAvailableTxPatterns ( size_t i )

pure virtual

Gets the list of available transmit patterns for a channel.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetBERIntegrationLength()

virtual int64_t BERT::GetBERIntegrationLength ( )

pure virtual

Get the integration period for BER measurements.

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetBERSamplingPoint()

virtual void BERT::GetBERSamplingPoint	(	size_t	i,
		int64_t &	dx,
		float &	dy
	)

pure virtual

Get the sampling point for BER measurements.

Parameters

i	Channel index
dx	Horizontal offset of the sampling point from the center of the eye, in femtoseconds
dy	Vertical offset of the sampling point from the center of the eye, in volts

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetCustomPatternLength()

virtual size_t BERT::GetCustomPatternLength ( )

pure virtual

Returns the number of bits in a custom pattern (may change with line rate)

Returns: Length of the custom pattern

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetDataRate()

virtual int64_t BERT::GetDataRate ( size_t i )

pure virtual

Gets the currently selected line rate (in symbols/sec)

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetExpectedBathtubCaptureTime()

int64_t BERT::GetExpectedBathtubCaptureTime ( size_t i )

virtual

Returns the expected time, in femtoseconds, to complete a bathtub scan with the current settings.

The default implementation returns zero.

Parameters

i	Channel index

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ GetExpectedEyeCaptureTime()

int64_t BERT::GetExpectedEyeCaptureTime ( size_t i )

virtual

Returns the expected time, in femtoseconds, to complete an eye scan with the current settings.

The default implementation returns zero.

Parameters

i	Channel index

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ GetGlobalCustomPattern()

virtual uint64_t BERT::GetGlobalCustomPattern ( )

pure virtual

Gets the global custom pattern (only valid if IsCustomPatternPerChannel returns false)

Returns: The bit sequence

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetInstrumentTypes()

unsigned int BERT::GetInstrumentTypes ( ) const

overridevirtual

Returns a bitfield describing the set of instrument types that this instrument supports.

Not all types may be available on a given channel.

Implements Instrument.

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ GetPatternName()

string BERT::GetPatternName ( Pattern pat )

static

Converts a Pattern enum into a strnig.

Parameters

pat	The desired pattern

◆ GetPatternOfName()

BERT::Pattern BERT::GetPatternOfName ( std::string name )

static

Converts a string name into a Pattern enum.

Parameters

name	Name of the pattern

◆ GetRefclkInFrequency()

virtual int64_t BERT::GetRefclkInFrequency ( )

pure virtual

Gets the refclk in frequency, in Hz, required to generate the currently selected data rate.

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetRefclkOutFrequency()

virtual int64_t BERT::GetRefclkOutFrequency ( )

pure virtual

Gets the currently selected refclk out frequency, in Hz.

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetRefclkOutMux()

virtual size_t BERT::GetRefclkOutMux ( )

pure virtual

Gets the currently selected reference clock output mux setting.

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetRefclkOutMuxNames()

virtual std::vector< std::string > BERT::GetRefclkOutMuxNames ( )

pure virtual

Gets the list of available reference clock mux settings.

Mux selector names are free-form text whose meaning is defined by the instrument.

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetRxCdrLockState()

virtual bool BERT::GetRxCdrLockState ( size_t i )

pure virtual

Gets the RX CDR lock state (true=lock, false=unlock)

NOTE: For some instruments this is just CDR lock, for others it indicates both CDR and pattern checker lock

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetRxCTLEGainStep()

virtual size_t BERT::GetRxCTLEGainStep ( size_t i )

pure virtual

Gets the currently selected RX CTLE gain index.

To get the actual gain in dB, use this value as the index into the table returned by GetRxCTLEGainSteps()

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetRxCTLEGainSteps()

virtual std::vector< float > BERT::GetRxCTLEGainSteps ( )

pure virtual

Get the list of available RX CTLE gain values (in dB)

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetRxInvert()

virtual bool BERT::GetRxInvert ( size_t i )

pure virtual

Gets the transmit invert flag for a channel.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetRxPattern()

virtual Pattern BERT::GetRxPattern ( size_t i )

pure virtual

Gets the currently selected receive pattern for a channel.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetScanDepth()

int64_t BERT::GetScanDepth ( size_t i )

virtual

Get the configured scan depth for a channel, in UIs per sample/pixel.

Parameters

i	Channel index

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ GetScanDepths()

vector< int64_t > BERT::GetScanDepths ( size_t i )

virtual

Returns the list of integration depths for eye / bathtub scans.

Higher depths will give better resolution at low BER values, but increase scan time.

Parameters

i	Channel index

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ GetScanProgress()

float BERT::GetScanProgress ( size_t i )

virtual

Gets the estimated completion status (0-1) of the current scan.

Parameters

i	Channel index

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ GetTxDriveStrength()

virtual float BERT::GetTxDriveStrength ( size_t i )

pure virtual

Get the drive strength for a channel.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetTxEnable()

virtual bool BERT::GetTxEnable ( size_t i )

pure virtual

Gets the transmit enable flag for a channel.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetTxInvert()

virtual bool BERT::GetTxInvert ( size_t i )

pure virtual

Gets the transmit invert flag for a channel.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetTxPattern()

virtual Pattern BERT::GetTxPattern ( size_t i )

pure virtual

Gets the currently selected transmit pattern for a channel.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetTxPostCursor()

virtual float BERT::GetTxPostCursor ( size_t i )

pure virtual

Get the post-cursor equalizer tap for a channel.

Equalizer coefficients are are normalized so that 0 is the lowest possible tap value and 1 is the highest possible tap value. Some instruments allow negative values (which invert the sign of the tap).

The exact mapping of normalized coefficients to FFE gain steps is instrument specific and may be nonlinear.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetTxPreCursor()

virtual float BERT::GetTxPreCursor ( size_t i )

pure virtual

Get the pre-cursor equalizer tap for a channel.

Equalizer coefficients are are normalized so that 0 is the lowest possible tap value and 1 is the highest possible tap value. Some instruments allow negative values (which invert the sign of the tap).

The exact mapping of normalized coefficients to FFE gain steps is instrument specific and may be nonlinear.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ GetUseExternalRefclk()

virtual bool BERT::GetUseExternalRefclk ( )

pure virtual

Sets the reference clock source.

Returns: True if external clock is in use, false if internal

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ HasConfigurableScanDepth()

bool BERT::HasConfigurableScanDepth ( )

virtual

Determines whether this instrument has configurable integration depth for eye / bathtub scans.

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ HasRefclkIn()

virtual bool BERT::HasRefclkIn ( )

pure virtual

Returns true if this instrument has a reference clock input port.

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ HasRefclkOut()

virtual bool BERT::HasRefclkOut ( )

pure virtual

Returns true if this instrument has a reference clock output port.

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ HasRxCTLE()

virtual bool BERT::HasRxCTLE ( )

pure virtual

Determines whether the input buffer has a continuous-time linear equalizer.

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ IsCustomPatternPerChannel()

virtual bool BERT::IsCustomPatternPerChannel ( )

pure virtual

Determines whether custom patterns are settable per channel, or shared by the whole device.

Returns: True = per channel, false = global

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ IsDataRatePerChannel()

virtual bool BERT::IsDataRatePerChannel ( )

pure virtual

Determines whether the TX/RX clock is a per-instrument or per-channel setting.

Returns: True if clock is a per-channel setting, false if global

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ IsEyeScanInProgress()

bool BERT::IsEyeScanInProgress ( size_t i )

virtual

Returns true if an eye scan is in progress.

Parameters

i	Channel index

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ IsHBathtubScanInProgress()

bool BERT::IsHBathtubScanInProgress ( size_t i )

virtual

Returns true if a horizontal bathtub scan is in progress.

Parameters

i	Channel index

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ MeasureEye()

virtual void BERT::MeasureEye ( size_t i )

pure virtual

Acquires an eye pattern.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ MeasureHBathtub()

virtual void BERT::MeasureHBathtub ( size_t i )

pure virtual

Acquires a bathtub curve.

Parameters

i	Channel index

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetBERIntegrationLength()

virtual void BERT::SetBERIntegrationLength ( int64_t uis )

pure virtual

Set the integration period for BER measurements.

Longer values give better resolution for low BERs but update more slowly

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetBERSamplingPoint()

virtual void BERT::SetBERSamplingPoint	(	size_t	i,
		int64_t	dx,
		float	dy
	)

pure virtual

Set the sampling point for BER measurements.

Parameters

i	Channel index
dx	Horizontal offset of the sampling point from the center of the eye, in femtoseconds
dy	Vertical offset of the sampling point from the center of the eye, in volts

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetDataRate()

virtual void BERT::SetDataRate	(	size_t	i,
		int64_t	rate
	)

pure virtual

Sets the data rate (in symbols/sec)

Parameters

i	Channel index
rate	Baud rate of the channel

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetGlobalCustomPattern()

virtual void BERT::SetGlobalCustomPattern ( uint64_t pattern )

pure virtual

Sets the global custom pattern (only valid if IsCustomPatternPerChannel returns false)

Parameters

pattern The bit sequence (up to 64 bits in length)

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetRefclkOutMux()

virtual void BERT::SetRefclkOutMux ( size_t i )

pure virtual

Sets the reference clock output mux.

Parameters

i	Index of the mux within the table returned by GetRefclkOutMuxNames()

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetRxCTLEGainStep()

virtual void BERT::SetRxCTLEGainStep	(	size_t	i,
		size_t	step
	)

pure virtual

Sets the RX CTLE gain index.

Parameters

i	Channel index
step	Index of the gain value within the GetRxCTLEGainSteps() table to use

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetRxInvert()

virtual void BERT::SetRxInvert	(	size_t	i,
		bool	invert
	)

pure virtual

Sets the receive invert flag for a channel.

Parameters

i	Channel index
invert	True = inverted, false = inverted

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetRxPattern()

virtual void BERT::SetRxPattern	(	size_t	i,
		Pattern	pattern
	)

pure virtual

Sets the receive pattern for the selected channel.

Parameters

i	Channel index
pattern	Desired input pattern

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetScanDepth()

void BERT::SetScanDepth	(	size_t	i,
		int64_t	depth
	)

virtual

Set the configured scan depth for a channel.

Parameters

i	Channel index
depth	Integration depth, in UIs

Reimplemented in AntikernelLabsTriggerCrossbar.

◆ SetTxDriveStrength()

virtual void BERT::SetTxDriveStrength	(	size_t	i,
		float	drive
	)

pure virtual

Set the drive strength for a channel.

Parameters

i	Channel index
drive	Nominal p-p swing

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetTxEnable()

virtual void BERT::SetTxEnable	(	size_t	i,
		bool	enable
	)

pure virtual

Sets the transmit enable flag for a channel.

Parameters

i	Channel index
enable	True = enabled, false = disabled

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetTxInvert()

virtual void BERT::SetTxInvert	(	size_t	i,
		bool	invert
	)

pure virtual

Sets the transmit invert flag for a channel.

Parameters

i	Channel index
invert	True = inverted, false = normal

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetTxPattern()

virtual void BERT::SetTxPattern	(	size_t	i,
		Pattern	pattern
	)

pure virtual

Sets the transmit pattern for the selected channel.

Parameters

i	Channel index
pattern	The selected pattern

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetTxPostCursor()

virtual void BERT::SetTxPostCursor	(	size_t	i,
		float	postcursor
	)

pure virtual

Set the post-cursor equalizer tap for a channel.

Equalizer coefficients are are normalized so that 0 is the lowest possible tap value and 1 is the highest possible tap value. Some instruments allow negative values (which invert the sign of the tap).

The exact mapping of normalized coefficients to FFE gain steps is instrument specific and may be nonlinear.

Parameters

i	Channel index
postcursor	Post-cursor tap

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetTxPreCursor()

virtual void BERT::SetTxPreCursor	(	size_t	i,
		float	precursor
	)

pure virtual

Set the pre-cursor equalizer tap for a channel.

Equalizer coefficients are are normalized so that 0 is the lowest possible tap value and 1 is the highest possible tap value. Some instruments allow negative values (which invert the sign of the tap).

The exact mapping of normalized coefficients to FFE gain steps is instrument specific and may be nonlinear.

Parameters

i	Channel index
precursor	Pre-cursor tap

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

◆ SetUseExternalRefclk()

virtual void BERT::SetUseExternalRefclk ( bool external )

pure virtual

Sets the reference clock source (internal or external)

Parameters

external True to select external clock, false to select internal

Implemented in AntikernelLabsTriggerCrossbar, and MultiLaneBERT.

The documentation for this class was generated from the following files:

lib/scopehal/BERT.h
lib/scopehal/BERT.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Pattern

Member Function Documentation

◆ DoLoadConfiguration()

◆ DoPreLoadConfiguration()

◆ DoSerializeConfiguration()

◆ GetAvailableDataRates()

◆ GetAvailableRxPatterns()

◆ GetAvailableTxDriveStrengths()

◆ GetAvailableTxPatterns()

◆ GetBERIntegrationLength()

◆ GetBERSamplingPoint()

◆ GetCustomPatternLength()

◆ GetDataRate()

◆ GetExpectedBathtubCaptureTime()

◆ GetExpectedEyeCaptureTime()

◆ GetGlobalCustomPattern()

◆ GetInstrumentTypes()

◆ GetPatternName()

◆ GetPatternOfName()

◆ GetRefclkInFrequency()

◆ GetRefclkOutFrequency()

◆ GetRefclkOutMux()

◆ GetRefclkOutMuxNames()

◆ GetRxCdrLockState()

◆ GetRxCTLEGainStep()

◆ GetRxCTLEGainSteps()

◆ GetRxInvert()

◆ GetRxPattern()

◆ GetScanDepth()

◆ GetScanDepths()

◆ GetScanProgress()

◆ GetTxDriveStrength()

◆ GetTxEnable()

◆ GetTxInvert()

◆ GetTxPattern()

◆ GetTxPostCursor()

◆ GetTxPreCursor()

◆ GetUseExternalRefclk()

◆ HasConfigurableScanDepth()

◆ HasRefclkIn()

◆ HasRefclkOut()

◆ HasRxCTLE()

◆ IsCustomPatternPerChannel()

◆ IsDataRatePerChannel()

◆ IsEyeScanInProgress()

◆ IsHBathtubScanInProgress()

◆ MeasureEye()

◆ MeasureHBathtub()

◆ SetBERIntegrationLength()

◆ SetBERSamplingPoint()

◆ SetDataRate()

◆ SetGlobalCustomPattern()

◆ SetRefclkOutMux()

◆ SetRxCTLEGainStep()

◆ SetRxInvert()

◆ SetRxPattern()

◆ SetScanDepth()

◆ SetTxDriveStrength()

◆ SetTxEnable()

◆ SetTxInvert()

◆ SetTxPattern()

◆ SetTxPostCursor()

◆ SetTxPreCursor()

◆ SetUseExternalRefclk()
