Inheritance diagram for FilterGraphEditor:

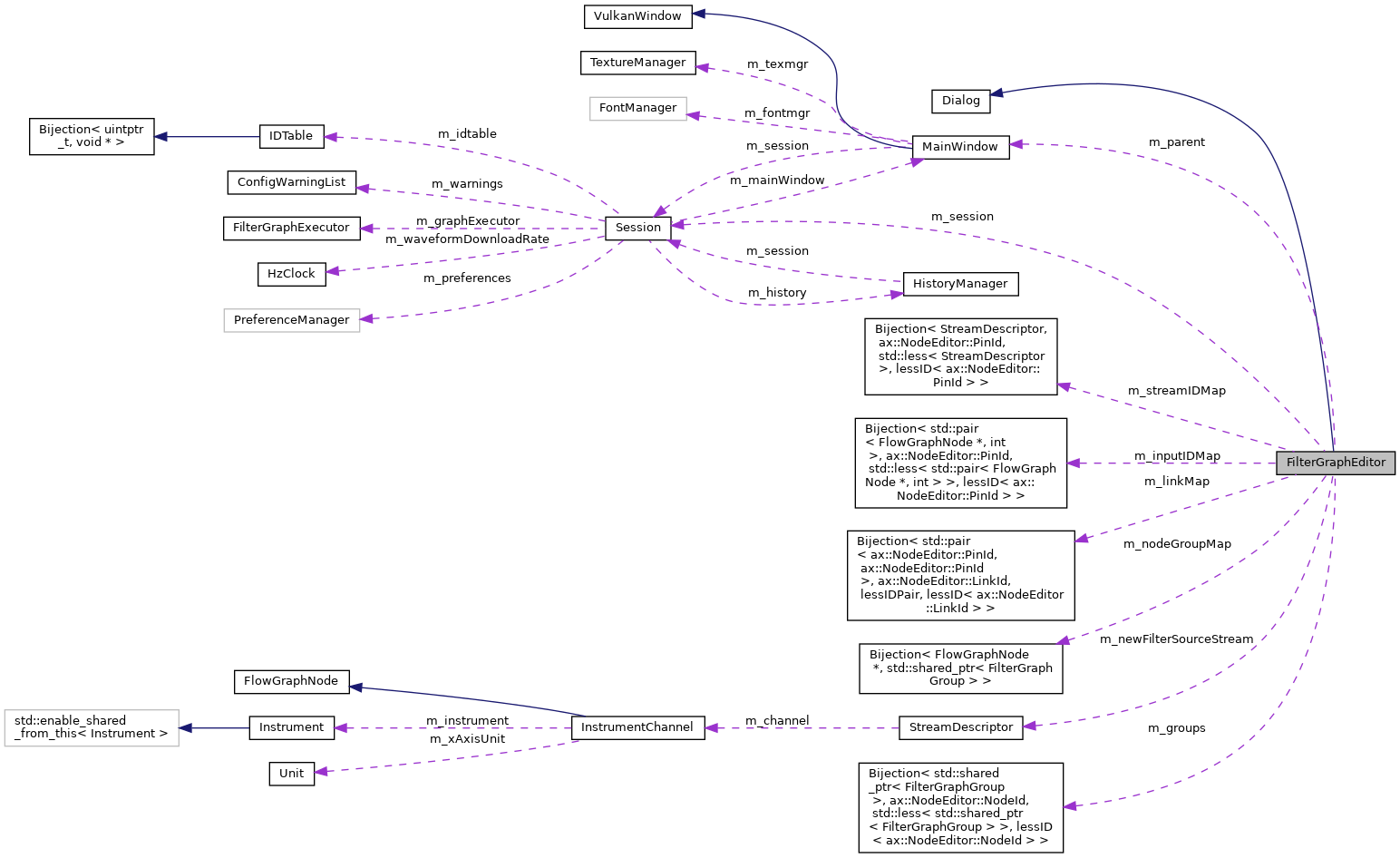

Collaboration diagram for FilterGraphEditor:

[legend]

Public Member Functions
	FilterGraphEditor (Session &session, MainWindow *parent)

virtual bool	Render ()
	Renders the dialog and handles UI events.

virtual bool	DoRender ()
	Renders the dialog and handles UI events.

std::map< uintptr_t, std::string >	GetGroupIDs ()
	Return a list of group IDs and names.

FilterGraphErrorWindow &	GetErrorWindow ()

Public Member Functions inherited from Dialog
	Dialog (const std::string &title, const std::string &id, ImVec2 defaultSize=ImVec2(300, 100), Session session=nullptr, MainWindow parent=nullptr)

void	RenderAsChild ()
	Runs the dialog's contents directly into a parent window.

const std::string &	GetID ()

std::string	GetTitleAndID ()

template<typename T >
bool	renderEditableProperty (float width, const string &label, string &currentValue, T &committedValue, Unit unit, const char *tooltip, optional< ImVec4 > optcolor, bool allow7SegmentDisplay, bool explicitApply)
	Render an editable numeric value.

Static Public Member Functions
static bool	IsBackEdge (FlowGraphNode src, FlowGraphNode dst)
	Determine if a proposed edge in the filter graph is a back edge (one whose creation would lead to a cycle)

Static Public Member Functions inherited from Dialog
static bool	Combo (const std::string &label, const std::vector< std::string > &items, int &selection, bool *open=nullptr)
	Displays a combo box from a vector<string>

static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit.

static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, double &committedValue, Unit unit)
	Input box for a double precision floating point value with an associated unit.

static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, int64_t &committedValue, Unit unit)
	Input box for an integer value with an associated unit.

static bool	TextInputWithImplicitApply (const std::string &label, std::string &currentValue, std::string &committedValue)

static void	Tooltip (const std::string &str, bool allowDisabled=false)
	Helper based on imgui demo for displaying tooltip text over the previously rendered widget.

static void	HelpMarker (const std::string &str)

static void	HelpMarker (const std::string &header, const std::vector< std::string > &bullets)

Protected Member Functions
std::map< std::shared_ptr< Instrument >, std::vector< InstrumentChannel * > >	GetAllVisibleChannels ()
	Get a list of all channels that we are displaying nodes for.

std::vector< FlowGraphNode * >	GetAllNodes ()
	Get a list of all objects we're displaying nodes for (channels, filters, triggers, etc)

void	RefreshGroupPorts ()
	Figure out which source/sink ports are within each group.

ax::NodeEditor::PinId	CanonicalizePin (ax::NodeEditor::PinId port)
	Gets the actual source/sink pin given a pin which might be a hierarchical port.

void	InputPortTooltip (FlowGraphNode *node, size_t idx)
	Display tooltips when mousing over an input port.

void	OutputPortTooltip (StreamDescriptor stream)
	Display tooltips when mousing over an output port.

void	DoNodeForGroup (std::shared_ptr< FilterGraphGroup > group)

void	DoInternalLinksForGroup (std::shared_ptr< FilterGraphGroup > group)
	Handle links between nodes in a group and the hierarchical ports.

void	DoNodeForGroupOutputs (std::shared_ptr< FilterGraphGroup > group)

void	DoNodeForGroupInputs (std::shared_ptr< FilterGraphGroup > group)

void	DoNodeForChannel (InstrumentChannel *channel, std::shared_ptr< Instrument > inst, bool multiInst, int64_t runtime)
	Make a node for a single channel, of any type.

void	DoNodeForTrigger (Trigger *trig)
	Make a node for a trigger.

bool	HandleNodeProperties ()
	Open the properties window when a node is right clicked.

void	HandleDoubleClicks ()
	Opens a persistent properties window when a node is double clicked.

void	HandleLinkCreationRequests (Filter *&fReconfigure)
	Handle requests to create a new link.

void	HandleDeletionRequests (Filter *&fReconfigure)
	Handle requests to delete a link or node.

bool	OnNodeDeleted (FlowGraphNode *node)
	Handle node deletion requests.

bool	OnFilterDeleted (Filter *node)
	Handle deletion requests for filters in particular.

void	HandleBackgroundContextMenu ()
	Show add menu when background is right clicked.

void	DoAddMenu ()
	Implement the add menu.

void	HandleOverlaps ()
	Find nodes that are intersecting, and apply forces to resolve collisions.

void	CalculateNodeForces (const std::vector< ax::NodeEditor::NodeId > &nodes, const std::vector< bool > &isgroup, const std::vector< bool > &dragging, const std::vector< bool > &nocollide, const std::vector< ImVec2 > &positions, const std::vector< ImVec2 > &sizes, std::vector< ImVec2 > &forces)
	Calculates the forces applied to each node in the graph based on interaction physics.

void	ApplyNodeForces (const std::vector< ax::NodeEditor::NodeId > &nodes, const std::vector< bool > &isgroup, const std::vector< bool > &dragging, const std::vector< ImVec2 > &positions, std::vector< ImVec2 > &forces)
	Once forces are calculated, actually move the nodes (unless being dragged)

void	SetCanvasManagedDPI ()
	Use 1.0 as the DPI since the canvas scales independently.

void	SetImGuiManagedDPI ()
	Use the ImGui viewport scale as the DPI scale.

void	ClearOldPropertiesDialogs ()
	Delete old properties dialogs for no-longer-extant nodes.

void	NodeIcon (InstrumentChannel chan, ImVec2 iconpos, ImVec2 iconsize, ImDrawList list)
	Draws an icon showing the function of a node.

void	FilterMenu (StreamDescriptor src)
	Runs the "create filter" menu.

void	FilterSubmenu (StreamDescriptor src, const std::string &name, Filter::Category cat)
	Run the submenu for a single filter category.

void	CreateChannelMenu ()
	Runs the "add input" menu.

ax::NodeEditor::NodeId	GetID (FlowGraphNode *node)
	Gets the ID for an arbitrary node.

ax::NodeEditor::NodeId	GetID (InstrumentChannel *chan)

ax::NodeEditor::NodeId	GetID (Trigger *trig)

ax::NodeEditor::NodeId	GetID (std::shared_ptr< FilterGraphGroup > group)

uintptr_t	AllocateID ()
	Allocate an ID, avoiding collisions with the session IDTable.

ax::NodeEditor::PinId	GetID (StreamDescriptor stream)

ax::NodeEditor::PinId	GetID (std::pair< FlowGraphNode *, size_t > input)

ax::NodeEditor::LinkId	GetID (std::pair< ax::NodeEditor::PinId, ax::NodeEditor::PinId > link)

ax::NodeEditor::PinId	GetSourcePinForLink (StreamDescriptor source, FlowGraphNode *sink)
	Gets the source pin we should use for drawing a connection.

ax::NodeEditor::PinId	GetSinkPinForLink (StreamDescriptor source, std::pair< FlowGraphNode *, int > sink)
	Gets the sink pin we should use for drawing a connection.

void	RenderForceVector (ImDrawList *list, ImVec2 pos, ImVec2 size, ImVec2 vec)

Protected Member Functions inherited from Dialog
bool	TextInputWithExplicitApply (const std::string &label, std::string &currentValue, std::string &committedValue)

bool	IntInputWithImplicitApply (const std::string &label, int &currentValue, int &committedValue)

bool	UnitInputWithExplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit and an "apply" button.

void	renderNumericValue (const std::string &value, bool &clicked, bool &hovered, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false, float digitHeight=0, bool clickable=true)
	Render a numeric value.

void	renderReadOnlyProperty (float width, const std::string &label, const std::string &value, const char *tooltip=nullptr)
	Render a read-only instrument property value.

template<typename T >
bool	renderEditableProperty (float width, const std::string &label, std::string &currentValue, T &committedValue, Unit unit, const char *tooltip=nullptr, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false, bool explicitApply=false)

template<typename T >
bool	renderEditablePropertyWithExplicitApply (float width, const std::string &label, std::string &currentValue, T &committedValue, Unit unit, const char *tooltip=nullptr, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false)
	Render an editable numeric value with explicit apply (if the input value needs to explicitly be applied by clicking the apply button)

void	renderBadge (float width, ImVec4 color, const std::string &label)
	Render a badge with text inside.

void	RenderErrorPopup ()
	Popup message when we fail to connect.

void	ShowErrorPopup (const std::string &title, const std::string &msg)
	Opens the error popup.

void	Render7SegmentDigit (ImDrawList *drawList, uint8_t digit, ImVec2 size, ImVec2 position, float thikness, ImU32 colorOn, ImU32 colorOff)
	Render a single digit in 7 segment display style.

void	Render7SegmentValue (const std::string &value, ImVec4 color, float digitHeight)
	Render a numeric value with a 7 segment display style.

void	Render7SegmentValue (const std::string &value, ImVec4 color, float digitHeight, bool &clicked, bool &hovered, bool clickable=true)
	Render a numeric value with a 7 segment display style.

Static Protected Member Functions
static bool	SaveSettingsCallback (const char data, size_t size, ax::NodeEditor::SaveReasonFlags flags, void pThis)

static size_t	LoadSettingsCallback (char data, void pThis)

Protected Attributes
ax::NodeEditor::Config	m_config
	Graph editor setup.

ax::NodeEditor::EditorContext *	m_context
	Context containing current state of the graph editor.

Bijection< StreamDescriptor, ax::NodeEditor::PinId, std::less< StreamDescriptor >, lessID< ax::NodeEditor::PinId > >	m_streamIDMap
	Map of streams to output port IDs.

Bijection< std::pair< FlowGraphNode , int >, ax::NodeEditor::PinId, std::less< std::pair< FlowGraphNode , int > >, lessID< ax::NodeEditor::PinId > >	m_inputIDMap
	Map of (channel, input number) to input port IDs.

Bijection< std::pair< ax::NodeEditor::PinId, ax::NodeEditor::PinId >, ax::NodeEditor::LinkId, lessIDPair, lessID< ax::NodeEditor::LinkId > >	m_linkMap
	Map of (ID, ID) to link IDs.

Bijection< FlowGraphNode *, std::shared_ptr< FilterGraphGroup > >	m_nodeGroupMap
	Map of signal sources to the group the source node is in (if there is one)

uintptr_t	m_nextID
	Next link/port ID to be allocated.

StreamDescriptor	m_newFilterSourceStream
	Source stream of the newly created filter.

std::map< ax::NodeEditor::NodeId, std::shared_ptr< EmbeddableDialog >, lessID< ax::NodeEditor::NodeId > >	m_propertiesDialogs
	Properties dialogs for channels to be displayed inside nodes.

ax::NodeEditor::NodeId	m_selectedProperties
	Node whose properties we're currently interacting with.

ImVec2	m_createMousePos

std::pair< FlowGraphNode *, int >	m_createInput
	Input we're considering hooking a new channel up to.

Bijection< std::shared_ptr< FilterGraphGroup >, ax::NodeEditor::NodeId, std::less< std::shared_ptr< FilterGraphGroup > >, lessID< ax::NodeEditor::NodeId > >	m_groups
	Groups.

std::map< ax::NodeEditor::NodeId, ImVec2, lessID< ax::NodeEditor::NodeId > >	m_nodeForces

FilterGraphErrorWindow	m_errorWindow

Protected Attributes inherited from Dialog
bool	m_open

std::string	m_id

std::string	m_title

ImVec2	m_defaultSize

std::string	m_errorPopupTitle

std::string	m_errorPopupMessage

Session *	m_session
	optional reference to session

MainWindow *	m_parent
	optional reference to parent MainWindow

ImGuiID	m_editedItemId = 0
	Id of the item currently beeing edited.

ImGuiID	m_lastEditedItemId = 0
	Id of the last edited item.

Friends
class	FilterGraphGroup

Member Function Documentation

◆ DoNodeForChannel()

void FilterGraphEditor::DoNodeForChannel	(	InstrumentChannel *	channel,
		std::shared_ptr< Instrument >	inst,
		bool	multiInst,
		int64_t	runtime
	)

protected

Make a node for a single channel, of any type.

TODO: this seems to fail hard if we do not have at least one input OR output on the node. Why?

◆ DoRender()

bool FilterGraphEditor::DoRender ( )

virtual

Renders the dialog and handles UI events.

Returns: True if we should continue showing the dialog False if it's been closed

Implements Dialog.

◆ GetSinkPinForLink()

ax::NodeEditor::PinId FilterGraphEditor::GetSinkPinForLink	(	StreamDescriptor	source,
		std::pair< FlowGraphNode *, int >	sink
	)

protected

Gets the sink pin we should use for drawing a connection.

Note that this may not be the literal sink if we're sinking to a hierarchical port

◆ GetSourcePinForLink()

ax::NodeEditor::PinId FilterGraphEditor::GetSourcePinForLink	(	StreamDescriptor	source,
		FlowGraphNode *	sink
	)

protected

Gets the source pin we should use for drawing a connection.

Note that this may not be the literal source if we're sourcing from a hierarchical port

◆ HandleNodeProperties()

bool FilterGraphEditor::HandleNodeProperties ( )

protected

Open the properties window when a node is right clicked.

Returns: True if a node type changed (for now, only triggers)

◆ IsBackEdge()

bool FilterGraphEditor::IsBackEdge	(	FlowGraphNode *	src,
		FlowGraphNode *	dst
	)

static

Determine if a proposed edge in the filter graph is a back edge (one whose creation would lead to a cycle)

Parameters

src	Source node
dst	Destination node

Returns: True if dst is equal to src, or if dst is directly or indirectly used as an input by src.

◆ LoadSettingsCallback()

size_t FilterGraphEditor::LoadSettingsCallback	(	char *	data,
		void *	pThis
	)

staticprotected

Parameters

data	Buffer to write data into
pThis	Pointer to the FilterGraphEditor object

This function is called twice, once with a null data argument to get the required size, then again with a valid pointer to store the data. The size must not change between the two invocations.

Returns: Number of bytes required for data

◆ OnFilterDeleted()

bool FilterGraphEditor::OnFilterDeleted ( Filter * node )

protected

Handle deletion requests for filters in particular.

Returns: True if successfully deleted, false if not

◆ OnNodeDeleted()

bool FilterGraphEditor::OnNodeDeleted ( FlowGraphNode * node )

protected

Handle node deletion requests.

Returns: True if successfully deleted, false if not

◆ Render()

bool FilterGraphEditor::Render ( )

virtual

Renders the dialog and handles UI events.

Returns: True if we should continue showing the dialog False if it's been closed

Reimplemented from Dialog.

The documentation for this class was generated from the following files:

src/ngscopeclient/FilterGraphEditor.h
src/ngscopeclient/FilterGraphEditor.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Member Function Documentation

◆ DoNodeForChannel()

◆ DoRender()

◆ GetSinkPinForLink()

◆ GetSourcePinForLink()

◆ HandleNodeProperties()

◆ IsBackEdge()

◆ LoadSettingsCallback()

◆ OnFilterDeleted()

◆ OnNodeDeleted()

◆ Render()
