An SCPI-based power supply. More...
#include <SCPIPowerSupply.h>

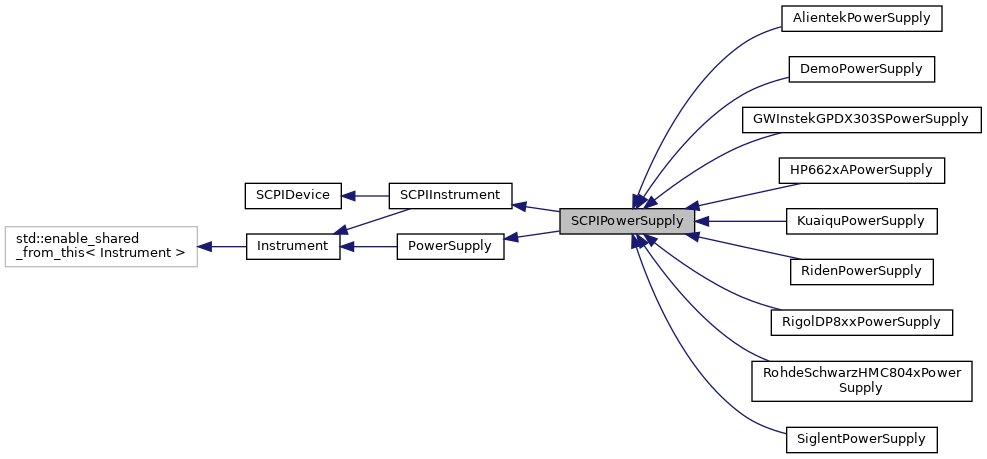

Inheritance diagram for SCPIPowerSupply:

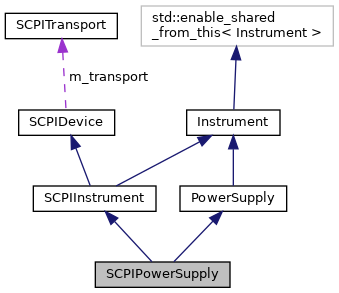

Collaboration diagram for SCPIPowerSupply:
Public Types | |
| typedef std::shared_ptr< SCPIPowerSupply >(* | PowerCreateProcType) (SCPITransport *) |
 Public Types inherited from Instrument | |
| enum | InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 } |
| Public Types inherited from SCPIInstrument | |
| typedef std::vector< SCPIInstrumentModel >(* | GetTransportsProcType) () |
Static Public Member Functions | |
| static void | DoAddDriverClass (const std::string &name, PowerCreateProcType proc) |
| static void | EnumDrivers (std::vector< std::string > &names) |
| static std::shared_ptr< SCPIPowerSupply > | CreatePowerSupply (const std::string &driver, SCPITransport *transport) |
| Static Public Member Functions inherited from SCPIInstrument | |
| static void | DoAddDriverClass (const std::string &name, GetTransportsProcType proc) |
| static std::vector< SCPIInstrumentModel > | GetSupportedModels (const std::string &driver) |
| static std::vector< SCPIInstrumentModel > | GetDriverSupportedModels () |
Protected Types | |
| typedef std::map< std::string, PowerCreateProcType > | PowerCreateMapType |
| Protected Types inherited from SCPIInstrument | |
| typedef std::map< std::string, GetTransportsProcType > | GetTransportMapType |
Static Protected Attributes | |
| static PowerCreateMapType | m_powercreateprocs |
| Static Protected Attributes inherited from SCPIInstrument | |
| static GetTransportMapType | m_getTransportProcs |
Additional Inherited Members | |
| Public Member Functions inherited from PowerSupply | |
| virtual unsigned int | GetInstrumentTypes () const override |
| Returns a bitfield describing the set of instrument types that this instrument supports. | |
| virtual bool | SupportsSoftStart () |
| Determines if the power supply supports soft start. | |
| virtual bool | SupportsIndividualOutputSwitching () |
| Determines if the power supply supports switching individual output channels. | |
| virtual bool | SupportsMasterOutputSwitching () |
| Determines if the power supply supports ganged master switching of all outputs. | |
| virtual bool | SupportsOvercurrentShutdown () |
| Determines if the power supply supports shutdown rather than constant-current mode on overcurrent. | |
| virtual bool | SupportsVoltageCurrentControl (int chan) |
| Determines if the power supply supports voltage/current control for the given channel. | |
| virtual bool | AcquireData () override |
| Pulls data from hardware and updates our measurements. | |
| virtual double | GetPowerVoltageActual (int chan)=0 |
| virtual double | GetPowerVoltageNominal (int chan)=0 |
| virtual double | GetPowerCurrentActual (int chan)=0 |
| virtual double | GetPowerCurrentNominal (int chan)=0 |
| virtual bool | GetPowerChannelActive (int chan) |
| virtual bool | GetPowerOvercurrentShutdownEnabled (int chan) |
| virtual void | SetPowerOvercurrentShutdownEnabled (int chan, bool enable) |
| virtual bool | GetPowerOvercurrentShutdownTripped (int chan) |
| virtual void | SetPowerVoltage (int chan, double volts)=0 |
| virtual void | SetPowerCurrent (int chan, double amps)=0 |
| virtual void | SetPowerChannelActive (int chan, bool on) |
| virtual bool | IsPowerConstantCurrent (int chan)=0 |
| virtual bool | GetMasterPowerEnable () |
| virtual void | SetMasterPowerEnable (bool enable) |
| virtual bool | IsSoftStartEnabled (int chan) |
| virtual void | SetSoftStartEnabled (int chan, bool enable) |
| virtual int64_t | GetSoftStartRampTime (int chan) |
| Gets the ramp time for use with soft-start mode. | |
| virtual void | SetSoftStartRampTime (int chan, int64_t time) |
| Sets the ramp time for use with soft-start mode. | |
| Public Member Functions inherited from Instrument | |
| virtual bool | IsOffline () |
| Checks if the instrument is currently online. | |
| virtual uint32_t | GetInstrumentTypesForChannel (size_t i) const =0 |
| Returns a bitfield describing the set of instrument types that a given channel supports. | |
| size_t | GetChannelCount () const |
| Gets the number of channels (of any type) this instrument has. | |
| InstrumentChannel * | GetChannel (size_t i) const |
| Gets a given channel on the instrument. | |
| virtual std::string | GetChannelDisplayName (size_t i) |
| Gets the hardware display name for a channel. This is an arbitrary user-selected string. | |
| virtual void | SetChannelDisplayName (size_t i, std::string name) |
| Sets the hardware display name for a channel. This is an arbitrary user-selected string. | |
| InstrumentChannel * | GetChannelByDisplayName (const std::string &name) |
| Gets a channel given the display name. | |
| InstrumentChannel * | GetChannelByHwName (const std::string &name) |
| Gets a channel given the hardware name. | |
| virtual void | FlushConfigCache () |
| Instruments are allowed to cache configuration settings to reduce round trip queries to the device. | |
| virtual YAML::Node | SerializeConfiguration (IDTable &table) const |
| Serializes this instrument's configuration to a YAML node. | |
| virtual void | LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. | |
| virtual void | PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings) |
| Parse a limited subset of instrument configuration but do not apply it. | |
| Public Member Functions inherited from SCPIInstrument | |
| SCPIInstrument (SCPITransport *transport, bool identify=true) | |
| virtual std::string | GetTransportConnectionString () override |
| Gets the connection string for our transport. | |
| virtual std::string | GetTransportName () override |
| Gets the name of our transport. | |
| virtual std::string | GetName () const override |
| virtual std::string | GetVendor () const override |
| virtual std::string | GetSerial () const override |
| virtual std::string | GetDriverName () const =0 |
| virtual void | BackgroundProcessing () override |
| Run various background processing typically done by a second thread (e.g. InstrumentThread) | |
| Public Member Functions inherited from SCPIDevice | |
| SCPIDevice (SCPITransport *transport, bool identify=true, unsigned int identify_timeout_us=5000000) | |
| SCPIDevice (const SCPIDevice &rhs)=delete | |
| SCPIDevice & | operator= (const SCPIDevice &rhs)=delete |
| SCPITransport * | GetTransport () const |
| Public Attributes inherited from Instrument | |
| std::string | m_nickname |
| Optional user-selected nickname of the instrument. | |
| Protected Member Functions inherited from PowerSupply | |
| void | DoSerializeConfiguration (YAML::Node &node, IDTable &table) |
| Serializes this oscilloscope's configuration to a YAML node. | |
| void | DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. | |
| void | DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list) |
| Validate instrument and channel configuration from a save file. | |
| Protected Member Functions inherited from SCPIInstrument | |
| void | DoSerializeConfiguration (YAML::Node &node, IDTable &table) |
| Protected Attributes inherited from Instrument | |
| std::list< sigc::slot< void(YAML::Node &, IDTable &)> > | m_serializers |
| List of methods which need to be called to serialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> > | m_loaders |
| List of methods which need to be called to deserialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> > | m_preloaders |
| List of methods which need to be called to pre-load this node's configuration. | |
| std::vector< InstrumentChannel * > | m_channels |
| Set of all channels on this instrument. | |
| Protected Attributes inherited from SCPIDevice | |
| SCPITransport * | m_transport |
| std::string | m_vendor |
| std::string | m_model |
| std::string | m_serial |
| std::string | m_fwVersion |
Detailed Description
An SCPI-based power supply.
The documentation for this class was generated from the following files:
- lib/scopehal/SCPIPowerSupply.h
- lib/scopehal/SCPIPowerSupply.cpp
