A multimeter. More...
#include <Multimeter.h>

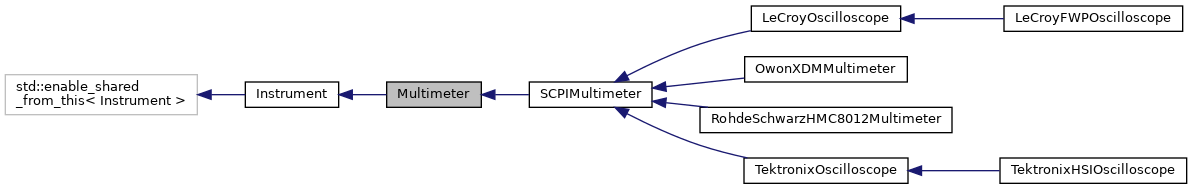

Public Types | |
| enum | MeasurementTypes { NONE = 0x000 , DC_VOLTAGE = 0x001 , DC_RMS_AMPLITUDE = 0x002 , AC_RMS_AMPLITUDE = 0x004 , FREQUENCY = 0x008 , DC_CURRENT = 0x010 , AC_CURRENT = 0x020 , TEMPERATURE = 0x040 , RESISTANCE = 0x080 , CAPACITANCE = 0x100 , CONTINUITY = 0x200 , DIODE = 0x400 } |
 Public Types inherited from Instrument | |
| enum | InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 } |
Public Member Functions | |
| virtual unsigned int | GetMeasurementTypes ()=0 |
| virtual unsigned int | GetSecondaryMeasurementTypes () |
| Gets a bitmask of secondary measurement types currently available. | |
| virtual int | GetCurrentMeterChannel ()=0 |
| virtual void | SetCurrentMeterChannel (int chan)=0 |
| virtual MeasurementTypes | GetMeterMode ()=0 |
| virtual MeasurementTypes | GetSecondaryMeterMode () |
| Gets the active secondary mode. | |
| virtual std::string | ModeToText (MeasurementTypes type) |
| Converts a meter mode to human readable text. | |
| MeasurementTypes | TextToMode (const std::string &mode) |
| Converts a textual meter mode to a mode ID. | |
| virtual void | SetMeterMode (MeasurementTypes type)=0 |
| virtual void | SetSecondaryMeterMode (MeasurementTypes type) |
| Sets the active secondary mode. | |
| virtual void | SetMeterAutoRange (bool enable)=0 |
| virtual bool | GetMeterAutoRange ()=0 |
| virtual void | StartMeter ()=0 |
| virtual void | StopMeter ()=0 |
| virtual Unit | GetMeterUnit () |
| Get the current primary measurement unit. | |
| virtual Unit | GetSecondaryMeterUnit () |
| Get the current secondary measurement unit. | |
| virtual double | GetMeterValue ()=0 |
| Get the value of the primary measurement. | |
| virtual double | GetSecondaryMeterValue () |
| Get the value of the secondary measurement. | |
| virtual int | GetMeterDigits ()=0 |
| Returns the digit resolution of the meter. | |
| virtual bool | AcquireData () override |
| Pull meter readings from hardware. | |
| Public Member Functions inherited from Instrument | |
| virtual unsigned int | GetInstrumentTypes () const =0 |
| Returns a bitfield describing the set of instrument types that this instrument supports. | |
| virtual std::string | GetName () const =0 |
| virtual std::string | GetVendor () const =0 |
| virtual std::string | GetSerial () const =0 |
| virtual std::string | GetTransportConnectionString ()=0 |
| Gets the connection string for our transport. | |
| virtual std::string | GetTransportName ()=0 |
| Gets the name of our transport. | |
| virtual bool | IsOffline () |
| Checks if the instrument is currently online. | |
| virtual uint32_t | GetInstrumentTypesForChannel (size_t i) const =0 |
| Returns a bitfield describing the set of instrument types that a given channel supports. | |
| size_t | GetChannelCount () const |
| Gets the number of channels (of any type) this instrument has. | |
| InstrumentChannel * | GetChannel (size_t i) const |
| Gets a given channel on the instrument. | |
| virtual std::string | GetChannelDisplayName (size_t i) |
| Gets the hardware display name for a channel. This is an arbitrary user-selected string. | |
| virtual void | SetChannelDisplayName (size_t i, std::string name) |
| Sets the hardware display name for a channel. This is an arbitrary user-selected string. | |
| InstrumentChannel * | GetChannelByDisplayName (const std::string &name) |
| Gets a channel given the display name. | |
| InstrumentChannel * | GetChannelByHwName (const std::string &name) |
| Gets a channel given the hardware name. | |
| virtual void | BackgroundProcessing () |
| Run various background processing typically done by a second thread (e.g. InstrumentThread) | |
| virtual void | FlushConfigCache () |
| Instruments are allowed to cache configuration settings to reduce round trip queries to the device. | |
| virtual YAML::Node | SerializeConfiguration (IDTable &table) const |
| Serializes this instrument's configuration to a YAML node. | |
| virtual void | LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. | |
| virtual void | PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings) |
| Parse a limited subset of instrument configuration but do not apply it. | |
Protected Member Functions | |
| void | DoSerializeConfiguration (YAML::Node &node, IDTable &table) |
| Serializes this multimeter's configuration to a YAML node. | |
| void | DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. | |
| void | DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list) |
| Validate instrument and channel configuration from a save file. | |
Additional Inherited Members | |
| Public Attributes inherited from Instrument | |
| std::string | m_nickname |
| Optional user-selected nickname of the instrument. | |
| Protected Attributes inherited from Instrument | |
| std::list< sigc::slot< void(YAML::Node &, IDTable &)> > | m_serializers |
| List of methods which need to be called to serialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> > | m_loaders |
| List of methods which need to be called to deserialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> > | m_preloaders |
| List of methods which need to be called to pre-load this node's configuration. | |
| std::vector< InstrumentChannel * > | m_channels |
| Set of all channels on this instrument. | |
Detailed Description
A multimeter.
The distinction between multimeters and oscilloscopes can be blurry at times. For the moment, libscopehal considers an instrument a meter if it outputs a scalar, and an oscilloscope if it outputs a vector, regardless of sample rate or resolution.
Member Function Documentation
◆ AcquireData()
|
overridevirtual |
Pull meter readings from hardware.
Implements Instrument.
Reimplemented in LeCroyFWPOscilloscope, LeCroyOscilloscope, TektronixHSIOscilloscope, and TektronixOscilloscope.
◆ GetMeasurementTypes()
Implemented in LeCroyOscilloscope.
◆ GetMeterDigits()
Returns the digit resolution of the meter.
Values are rounded up for display, for example a 5 3/4 digit meter should return 6 here.
Implemented in AgilentMultimeter, LeCroyOscilloscope, OwonXDMMultimeter, RohdeSchwarzHMC8012Multimeter, and TektronixOscilloscope.
◆ GetMeterValue()
Get the value of the primary measurement.
Implemented in AgilentMultimeter, LeCroyOscilloscope, OwonXDMMultimeter, RohdeSchwarzHMC8012Multimeter, and TektronixOscilloscope.
◆ GetSecondaryMeasurementTypes()
Gets a bitmask of secondary measurement types currently available.
The return value may change depending on the current primary measurement type.
Reimplemented in AgilentMultimeter, OwonXDMMultimeter, and RohdeSchwarzHMC8012Multimeter.
◆ GetSecondaryMeterMode()
|
virtual |
Gets the active secondary mode.
Reimplemented in AgilentMultimeter, OwonXDMMultimeter, and RohdeSchwarzHMC8012Multimeter.
◆ GetSecondaryMeterValue()
|
virtual |
Get the value of the secondary measurement.
Reimplemented in AgilentMultimeter, OwonXDMMultimeter, and RohdeSchwarzHMC8012Multimeter.
◆ SetSecondaryMeterMode()
|
virtual |
Sets the active secondary mode.
Reimplemented in AgilentMultimeter, OwonXDMMultimeter, and RohdeSchwarzHMC8012Multimeter.
The documentation for this class was generated from the following files:
- lib/scopehal/Multimeter.h
- lib/scopehal/Multimeter.cpp
