Generic representation of an oscilloscope, logic analyzer, or spectrum analyzer. More...

#include <Oscilloscope.h>

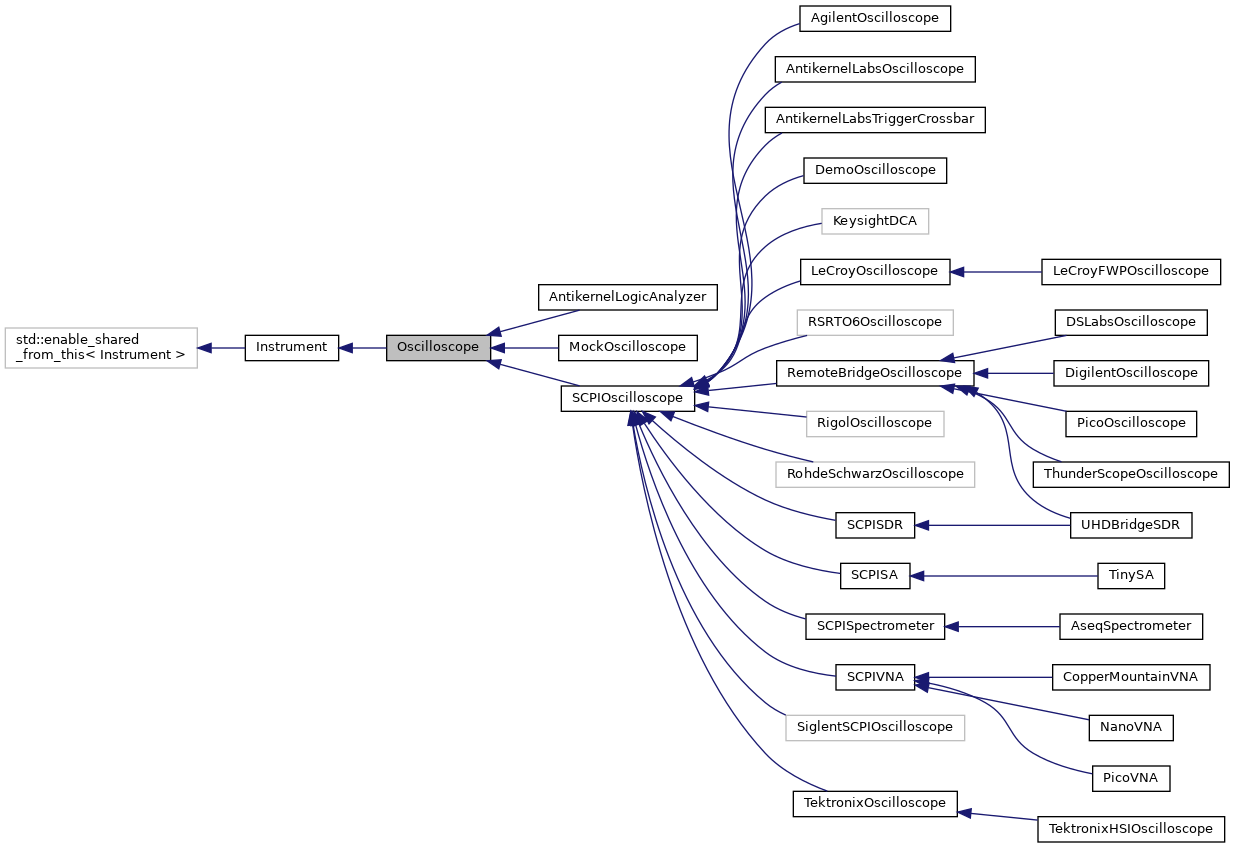

Inheritance diagram for Oscilloscope:

[legend]

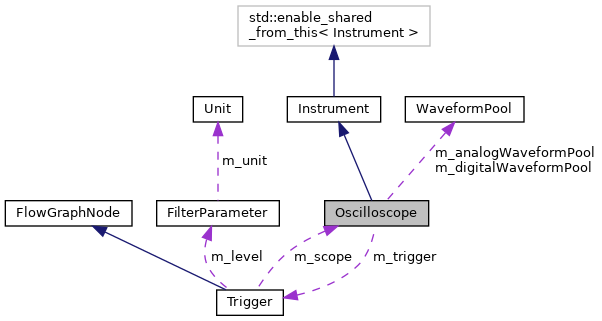

Collaboration diagram for Oscilloscope:

[legend]

Public Types
enum	TriggerMode { TRIGGER_MODE_RUN , TRIGGER_MODE_STOP , TRIGGER_MODE_TRIGGERED , TRIGGER_MODE_WAIT , TRIGGER_MODE_AUTO , TRIGGER_MODE_COUNT }

enum	SamplingMode { REAL_TIME , EQUIVALENT_TIME }

typedef std::pair< OscilloscopeChannel , OscilloscopeChannel >	InterleaveConflict
	Get the set of conflicting channels. More...

typedef std::vector< OscilloscopeChannel * >	AnalogBank

typedef std::vector< OscilloscopeChannel * >	DigitalBank

typedef std::shared_ptr< Oscilloscope >(*	CreateProcType) (SCPITransport *)

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Member Functions
virtual std::string	IDPing ()=0
	Returns the instrument's identification string. More...

virtual void	FlushConfigCache ()
	Instruments are allowed to cache configuration settings to reduce round trip queries to the device. More...

virtual bool	IsOffline ()
	Checks if the instrument is currently online. More...

OscilloscopeChannel *	GetOscilloscopeChannel (size_t i)
	Gets a channel by index. More...

virtual bool	IsChannelEnabled (size_t i)=0
	Checks if a channel is enabled in hardware. More...

virtual void	EnableChannel (size_t i)=0
	Turn a channel on, given the index. More...

virtual bool	CanEnableChannel (size_t i)
	Determines if a channel can be enabled. More...

virtual void	DisableChannel (size_t i)=0
	Turn a channel off, given the index. More...

int	GetEnabledChannelCount ()
	Returns the number of enabled channels for this oscilloscope. More...

OscilloscopeChannel *	GetOscilloscopeChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual OscilloscopeChannel::CouplingType	GetChannelCoupling (size_t i)=0
	Gets the coupling used for an input channel. More...

virtual void	SetChannelCoupling (size_t i, OscilloscopeChannel::CouplingType type)=0
	Sets the coupling used for an input channel. More...

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings (size_t i)=0
	Gets the set of legal coupling values for an input channel. More...

virtual double	GetChannelAttenuation (size_t i)=0
	Gets the probe attenuation for an input channel. More...

virtual void	SetChannelAttenuation (size_t i, double atten)=0
	Sets the probe attenuation used for an input channel. More...

virtual std::vector< unsigned int >	GetChannelBandwidthLimiters (size_t i)
	Gets the set of available bandwidth limiters for an input channel. More...

virtual unsigned int	GetChannelBandwidthLimit (size_t i)=0
	Gets the bandwidth limit for an input channel. More...

virtual void	SetChannelBandwidthLimit (size_t i, unsigned int limit_mhz)=0
	Sets the bandwidth limit for an input channel. More...

virtual OscilloscopeChannel *	GetExternalTrigger ()=0
	Returns the external trigger input channel, if we have one. More...

virtual float	GetChannelVoltageRange (size_t i, size_t stream)=0
	Gets the range of the current channel configuration. More...

virtual void	SetChannelVoltageRange (size_t i, size_t stream, float range)=0
	Sets the range of the current channel configuration. More...

virtual bool	CanAutoZero (size_t i)
	Determines if a channel has a probe connected which supports the "auto zero" feature. More...

virtual void	AutoZero (size_t i)
	Performs an "auto zero" cycle on the attached active probe, if supported by the hardware. More...

virtual bool	CanDegauss (size_t i)
	Determines if a channel has a probe connected which supports the "degauss" feature. More...

virtual bool	ShouldDegauss (size_t i)
	Determines if a channel requires a degauss cycle (if supported) More...

virtual void	Degauss (size_t i)
	Performs an "degauss" cycle on the attached active probe, if supported by the hardware. More...

virtual bool	CanAverage (size_t i)
	Determines if the channel supports hardware averaging. More...

virtual size_t	GetNumAverages (size_t i)
	Returns the number of averages the channel is configured for. More...

virtual void	SetNumAverages (size_t i, size_t navg)
	Sets the number of hardware averages to use. More...

virtual std::string	GetProbeName (size_t i)
	Returns the name of the probe connected to the scope, if possible. More...

virtual bool	HasInputMux (size_t i)
	Checks if a channel has an input multiplexer. More...

virtual size_t	GetInputMuxSetting (size_t i)
	Gets the setting for a channel's input mux (if it has one) More...

virtual std::vector< std::string >	GetInputMuxNames (size_t i)
	Gets names for the input mux ports of a channel. More...

virtual void	SetInputMux (size_t i, size_t select)
	Sets the input mux for a channel. More...

virtual float	GetChannelOffset (size_t i, size_t stream)=0
	Gets the offset, in volts, for a given channel. More...

virtual void	SetChannelOffset (size_t i, size_t stream, float offset)=0
	Sets the offset for a given channel. More...

virtual bool	CanInvert (size_t i)
	Checks if a channel is capable of hardware polarity inversion. More...

virtual void	Invert (size_t i, bool invert)
	Enables hardware polarity inversion for a channel, if supported. More...

virtual bool	IsInverted (size_t i)
	Checks if hardware polarity inversion is enabled for a channel. More...

virtual Oscilloscope::TriggerMode	PollTrigger ()=0
	Checks the curent trigger status. More...

virtual bool	PeekTriggerArmed ()
	Checks if the trigger is armed directly on the instrument, without altering internal state or touching caches. More...

bool	WaitForTrigger (int timeout)
	Block until a trigger happens or a timeout elapses. More...

void	SetTrigger (Trigger *trigger)
	Sets a new trigger on the instrument and pushes changes. More...

virtual void	PushTrigger ()=0
	Pushes changes made to m_trigger to the instrument. More...

Trigger *	GetTrigger (bool sync=false)
	Gets the current trigger. More...

virtual std::vector< std::string >	GetTriggerTypes ()
	Gets a list of triggers this instrument supports. More...

virtual void	PullTrigger ()=0
	Updates m_trigger with any changes made from the instrument side. More...

virtual void	Start ()=0
	Starts the instrument in continuous trigger mode. More...

virtual void	StartSingleTrigger ()=0
	Arms the trigger for a single acquistion. More...

virtual void	Stop ()=0
	Stops triggering. More...

virtual void	ForceTrigger ()=0
	Forces a single acquisition as soon as possible. More...

virtual bool	IsTriggerArmed ()=0
	Checks if the trigger is currently armed. More...

virtual void	EnableTriggerOutput ()
	Enables the trigger output, configuring a shared auxiliary port for this purpose if needed. More...

virtual std::vector< uint64_t >	GetSampleRatesNonInterleaved ()=0
	Get the legal sampling rates (in Hz) for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleRatesInterleaved ()=0
	Get the legal sampling rates (in Hz) for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleRate ()=0
	Gets the current sampling rate (in Hz) of this scope. More...

virtual bool	IsInterleaving ()=0
	Checks if the scope is currently combining channels. More...

virtual bool	SetInterleaving (bool combine)=0
	Configures the scope to combine channels. More...

virtual bool	CanInterleave ()
	Returns true if we have no interleave conflicts, false if we have conflicts. More...

virtual std::set< InterleaveConflict >	GetInterleaveConflicts ()=0

virtual std::vector< uint64_t >	GetSampleDepthsNonInterleaved ()=0
	Get the legal memory depths for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleDepthsInterleaved ()=0
	Get the legal memory depths for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleDepth ()=0
	Gets the current sample depth of this scope. More...

virtual void	SetSampleDepth (uint64_t depth)=0
	Sets the sample depth of the scope. More...

virtual void	SetSampleRate (uint64_t rate)=0
	Sets the sample rate of the scope, in Hz. More...

virtual bool	IsSamplingModeAvailable (SamplingMode mode)
	Returns true if the requested sampling mode is available with the current instrument configuration. More...

virtual SamplingMode	GetSamplingMode ()
	Gets the current sampling mode of the instrument. More...

virtual void	SetSamplingMode (SamplingMode mode)
	Sets the current sampling mode of the instrument. More...

virtual void	SetUseExternalRefclk (bool external)
	Configures the instrument's clock source. More...

virtual void	SetTriggerOffset (int64_t offset)=0
	Sets the trigger offset. More...

virtual int64_t	GetTriggerOffset ()=0
	Gets the trigger offset. More...

virtual void	SetDeskewForChannel (size_t channel, int64_t skew)
	Sets the deskew setting for a channel. More...

virtual int64_t	GetDeskewForChannel (size_t channel)
	Gets the deskew setting for a channel. More...

virtual std::vector< AnalogBank >	GetAnalogBanks ()
	Gets the analog banks for this instrument. More...

virtual AnalogBank	GetAnalogBank (size_t channel)
	Gets the bank containing a given channel. More...

virtual bool	IsADCModeConfigurable ()
	Returns true if the ADC is configurable, false if it can only run in one mode. More...

virtual std::vector< std::string >	GetADCModeNames (size_t channel)
	Gets the names of the ADC modes for the bank a given channel is located in. More...

virtual size_t	GetADCMode (size_t channel)
	Gets the ADC mode for a channel. More...

virtual void	SetADCMode (size_t channel, size_t mode)
	Sets the ADC mode for a channel. More...

virtual std::vector< DigitalBank >	GetDigitalBanks ()
	Gets the digital channel banks for this instrument. More...

virtual DigitalBank	GetDigitalBank (size_t channel)
	Gets the bank containing a given channel. More...

virtual bool	IsDigitalHysteresisConfigurable ()
	Checks if digital input hysteresis is configurable or fixed. More...

virtual bool	IsDigitalThresholdConfigurable ()
	Checks if digital input threshold is configurable or fixed. More...

virtual float	GetDigitalHysteresis (size_t channel)
	Gets the hysteresis for a digital input. More...

virtual float	GetDigitalThreshold (size_t channel)
	Gets the threshold for a digital input. More...

virtual void	SetDigitalHysteresis (size_t channel, float level)
	Sets the hysteresis for a digital input. More...

virtual void	SetDigitalThreshold (size_t channel, float level)
	Gets the threshold for a digital input. More...

virtual void	SetSpan (int64_t span)
	Sets the span for frequency-domain channels. More...

virtual int64_t	GetSpan ()
	Gets the span for frequency-domain channels. More...

virtual void	SetCenterFrequency (size_t channel, int64_t freq)
	Sets the center frequency for frequency-domain channels. More...

virtual int64_t	GetCenterFrequency (size_t channel)
	Gets the center frequency for a frequency-domain channel. More...

virtual void	SetResolutionBandwidth (int64_t rbw)
	Gets the resolution bandwidth for frequency-domain channels. More...

virtual int64_t	GetResolutionBandwidth ()
	Gets the resolution bandwidth for frequency-domain channels. More...

virtual bool	HasFrequencyControls ()
	Returns true if the instrument has at least one frequency-domain channel. More...

virtual bool	HasResolutionBandwidth ()
	Returns true if the instrument has a resolution bandwidth setting. More...

virtual bool	HasTimebaseControls ()
	Returns true if the instrument has at least one time-domain channel. More...

bool	HasPendingWaveforms ()

void	ClearPendingWaveforms ()
	Discard any pending waveforms that haven't yet been processed.

size_t	GetPendingWaveformCount ()

virtual bool	PopPendingWaveform ()
	Pops the queue of pending waveforms and updates each channel with a new waveform.

virtual bool	IsAppendingToWaveform ()
	Checks if we are appending to the existing waveform or creating a new one.

bool	HasPendingDiagnosticLogMessages ()

std::string	PopPendingDiagnosticLogMessage ()

std::map< std::string, FilterParameter * > &	GetDiagnosticsValues ()

bool	FreeWaveformPools ()
	Free all waveforms in our pool to reclaim memory. More...

void	AddWaveformToAnalogPool (WaveformBase *w)

void	AddWaveformToDigitalPool (WaveformBase *w)

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Static Public Member Functions
static void	Convert8BitSamples (float pout, const int8_t pin, float gain, float offset, size_t count)
	Converts 8-bit ADC samples to floating point.

static void	Convert8BitSamplesGeneric (float pout, const int8_t pin, float gain, float offset, size_t count)
	Generic backend for Convert8BitSamples()

static void	ConvertUnsigned8BitSamples (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Converts Unsigned 8-bit ADC samples to floating point.

static void	ConvertUnsigned8BitSamplesGeneric (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Generic backend for ConvertUnsigned8BitSamples()

static void	Convert16BitSamples (float pout, const int16_t pin, float gain, float offset, size_t count)
	Converts 16-bit ADC samples to floating point.

static void	Convert16BitSamplesGeneric (float pout, const int16_t pin, float gain, float offset, size_t count)
	Converts raw ADC samples to floating point.

static void	DoAddDriverClass (std::string name, CreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< Oscilloscope >	CreateOscilloscope (std::string driver, SCPITransport *transport)

Protected Types
typedef std::map< StreamDescriptor, WaveformBase * >	SequenceSet

typedef std::map< std::string, CreateProcType >	CreateMapType

Protected Member Functions
void	ChannelsDownloadStarted ()
	Helper method called by drivers to reset all channels to "waiting to download" state.

void	ChannelsDownloadStatusUpdate (size_t ch, InstrumentChannel::DownloadState state, float progress)
	Helper method called by drivers to set one channel's download status and update its download progress. Be aware that there is a measurement on ngscopeclient UI of the time spent between the download start and the progress of the last enabled channel. This measurement is used to decide whether to display a progress bar or not. This download speed evaluation method only works if enabled channels are download sequencially in increasing numeric order or if all channels are downloaded at the same speed. More...

void	ChannelsDownloadFinished ()
	Helper method called by drivers when waveform download is finished to reset all channels to "no download" state.

void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this oscilloscope's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

void	AddDiagnosticLog (std::string message)

UniformAnalogWaveform *	AllocateAnalogWaveform (const std::string &name)

SparseDigitalWaveform *	AllocateDigitalWaveform (const std::string &name)

Protected Attributes
std::list< SequenceSet >	m_pendingWaveforms

std::mutex	m_pendingWaveformsMutex

std::recursive_mutex	m_mutex

std::deque< std::string >	m_diagnosticLogMessages

std::map< std::string, FilterParameter * >	m_diagnosticValues

Trigger *	m_trigger

WaveformPool	m_analogWaveformPool

WaveformPool	m_digitalWaveformPool

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Static Protected Attributes
static CreateMapType	m_createprocs

Additional Inherited Members
Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Detailed Description

Generic representation of an oscilloscope, logic analyzer, or spectrum analyzer.

An Oscilloscope contains triggering logic and one or more OscilloscopeChannel objects.

Member Typedef Documentation

◆ InterleaveConflict

typedef std::pair<OscilloscopeChannel*, OscilloscopeChannel* > Oscilloscope::InterleaveConflict

Get the set of conflicting channels.

If any pair of channels in this list is enabled, channel interleaving is not possible.

Member Enumeration Documentation

◆ TriggerMode

enum Oscilloscope::TriggerMode

Enumerator
TRIGGER_MODE_RUN	Active, waiting for a trigger event.
TRIGGER_MODE_STOP	Triggered once, but not recently.
TRIGGER_MODE_TRIGGERED	Just got triggered, data is ready to read.
TRIGGER_MODE_WAIT	WAIT - not yet fully armed.
TRIGGER_MODE_AUTO	Auto trigger - waiting for auto-trigger.
TRIGGER_MODE_COUNT	Placeholder.

Member Function Documentation

◆ AutoZero()

void Oscilloscope::AutoZero ( size_t i )

virtual

Performs an "auto zero" cycle on the attached active probe, if supported by the hardware.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope.

◆ CanAutoZero()

bool Oscilloscope::CanAutoZero ( size_t i )

virtual

Determines if a channel has a probe connected which supports the "auto zero" feature.

This is typically true for power rail and differential probes and false for most others.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope.

◆ CanAverage()

bool Oscilloscope::CanAverage ( size_t i )

virtual

Determines if the channel supports hardware averaging.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope.

◆ CanDegauss()

bool Oscilloscope::CanDegauss ( size_t i )

virtual

Determines if a channel has a probe connected which supports the "degauss" feature.

This is typically true for current probes and false for most others.

Parameters

i	Zero-based index of channel

Reimplemented in TektronixOscilloscope.

◆ CanEnableChannel()

bool Oscilloscope::CanEnableChannel ( size_t i )

virtual

Determines if a channel can be enabled.

Returns: False if the channel cannot currently be used (due to interleave conflicts or other hardware limitations).

True if the channel is available or is already enabled.

Parameters

i	Zero-based index of channel

The default implementation always returns true.

Reimplemented in DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, SiglentSCPIOscilloscope, TektronixOscilloscope, and ThunderScopeOscilloscope.

◆ CanInterleave()

bool Oscilloscope::CanInterleave ( )

virtual

Returns true if we have no interleave conflicts, false if we have conflicts.

Reimplemented in AntikernelLabsTriggerCrossbar, PicoOscilloscope, and UHDBridgeSDR.

◆ CanInvert()

bool Oscilloscope::CanInvert ( size_t i )

virtual

Checks if a channel is capable of hardware polarity inversion.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope, and SiglentSCPIOscilloscope.

◆ ChannelsDownloadStatusUpdate()

void Oscilloscope::ChannelsDownloadStatusUpdate	(	size_t	ch,
		InstrumentChannel::DownloadState	state,
		float	progress
	)

protected

Helper method called by drivers to set one channel's download status and update its download progress. Be aware that there is a measurement on ngscopeclient UI of the time spent between the download start and the progress of the last enabled channel. This measurement is used to decide whether to display a progress bar or not. This download speed evaluation method only works if enabled channels are download sequencially in increasing numeric order or if all channels are downloaded at the same speed.

Parameters

ch	Zero-based index of channel
state	The new InstrumentChannel::DownloadState for this channel
progress	A float value ranging from 0 to 1 to represent the download progress

◆ Degauss()

void Oscilloscope::Degauss ( size_t i )

virtual

Performs an "degauss" cycle on the attached active probe, if supported by the hardware.

Parameters

i	Zero-based index of channel

Reimplemented in TektronixOscilloscope.

◆ DisableChannel()

virtual void Oscilloscope::DisableChannel ( size_t i )

pure virtual

Turn a channel off, given the index.

This function may optionally configure channel interleaving, if supported in hardware.

Parameters

i	Zero-based index of channel

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyFWPOscilloscope, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ EnableChannel()

virtual void Oscilloscope::EnableChannel ( size_t i )

pure virtual

Turn a channel on, given the index.

Parameters

i	Zero-based index of channel

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyFWPOscilloscope, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ EnableTriggerOutput()

void Oscilloscope::EnableTriggerOutput ( )

virtual

Enables the trigger output, configuring a shared auxiliary port for this purpose if needed.

The default implementation does nothing, and is intended for instruments where the trigger output is always enabled.

Reimplemented in LeCroyOscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ FlushConfigCache()

void Oscilloscope::FlushConfigCache ( )

virtual

Instruments are allowed to cache configuration settings to reduce round trip queries to the device.

In order to see updates made by the user at the front panel, the cache must be flushed.

Cache flushing is recommended to be manually triggered during interactive operation if there is no way to push updates from the scope to the driver.

In scripted/ATE environments where nobody should be touching the instrument, flushing is typically not needed.

The default implementation of this function does nothing since the base class provides no caching. If a derived class caches configuration, it should override this function to clear any cached data.

Reimplemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AseqSpectrometer, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, PicoOscilloscope, PicoVNA, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ ForceTrigger()

virtual void Oscilloscope::ForceTrigger ( )

pure virtual

Forces a single acquisition as soon as possible.

Note that PollTrigger() may not return 'triggered' immediately, due to command processing latency.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoVNA, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, TektronixOscilloscope, and ThunderScopeOscilloscope.

◆ FreeWaveformPools()

bool Oscilloscope::FreeWaveformPools ( )

inline

Free all waveforms in our pool to reclaim memory.

Returns: True if memory was freed, false if pools were already empty

◆ GetADCMode()

size_t Oscilloscope::GetADCMode ( size_t channel )

virtual

Gets the ADC mode for a channel.

Reimplemented in DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, and SiglentSCPIOscilloscope.

◆ GetADCModeNames()

vector< string > Oscilloscope::GetADCModeNames ( size_t channel )

virtual

Gets the names of the ADC modes for the bank a given channel is located in.

ADC mode names are usually descriptive, like "12 bit, 640 Msps max" or "8 bit, 1 Gsps max"; but some instruments may use more generic

Parameters

channel Index of the channel to query modes for

Reimplemented in DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, and SiglentSCPIOscilloscope.

◆ GetAnalogBank()

Oscilloscope::AnalogBank Oscilloscope::GetAnalogBank ( size_t channel )

virtual

Gets the bank containing a given channel.

Reimplemented in DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, and PicoOscilloscope.

◆ GetAnalogBanks()

vector< Oscilloscope::AnalogBank > Oscilloscope::GetAnalogBanks ( )

virtual

Gets the analog banks for this instrument.

A bank is a set of one or more channels all sharing a common ADC configuration.

Reimplemented in DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, and PicoOscilloscope.

◆ GetAvailableCouplings()

virtual std::vector< OscilloscopeChannel::CouplingType > Oscilloscope::GetAvailableCouplings ( size_t i )

pure virtual

Gets the set of legal coupling values for an input channel.

Parameters

i	Zero-based index of channel

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ GetCenterFrequency()

int64_t Oscilloscope::GetCenterFrequency ( size_t channel )

virtual

Gets the center frequency for a frequency-domain channel.

Parameters

channel Channel number

Reimplemented in CopperMountainVNA, NanoVNA, PicoVNA, TektronixOscilloscope, TinySA, and UHDBridgeSDR.

◆ GetChannelAttenuation()

virtual double Oscilloscope::GetChannelAttenuation ( size_t i )

pure virtual

Gets the probe attenuation for an input channel.

Note that this function returns attenuation, not gain. For example, a 10x probe would return 10 and not 0.1.

Parameters

i	Zero-based index of channel

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ GetChannelBandwidthLimit()

virtual unsigned int Oscilloscope::GetChannelBandwidthLimit ( size_t i )

pure virtual

Gets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel

Returns: Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ GetChannelBandwidthLimiters()

vector< unsigned int > Oscilloscope::GetChannelBandwidthLimiters ( size_t i )

virtual

Gets the set of available bandwidth limiters for an input channel.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope, RigolOscilloscope, RSRTO6Oscilloscope, SiglentSCPIOscilloscope, TektronixOscilloscope, and ThunderScopeOscilloscope.

◆ GetChannelCoupling()

virtual OscilloscopeChannel::CouplingType Oscilloscope::GetChannelCoupling ( size_t i )

pure virtual

Gets the coupling used for an input channel.

Parameters

i	Zero-based index of channel

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ GetChannelOffset()

virtual float Oscilloscope::GetChannelOffset	(	size_t	i,
		size_t	stream
	)

pure virtual

Gets the offset, in volts, for a given channel.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ GetChannelVoltageRange()

virtual float Oscilloscope::GetChannelVoltageRange	(	size_t	i,
		size_t	stream
	)

pure virtual

Gets the range of the current channel configuration.

The range is the distance, in volts, between the most negative/smallest and most positive/largest voltage which the ADC can represent using the current vertical gain configuration. This can be calculated as the number of vertical divisions times the number of volts per division.

The range does not depend on the offset.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ GetDeskewForChannel()

int64_t Oscilloscope::GetDeskewForChannel ( size_t channel )

virtual

Gets the deskew setting for a channel.

The default implementation returns zero, and is suitable for lower-end instruments that do not support deskew.

Reimplemented in LeCroyOscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ GetDigitalBank()

Oscilloscope::DigitalBank Oscilloscope::GetDigitalBank ( size_t channel )

virtual

Gets the bank containing a given channel.

Reimplemented in DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, RSRTO6Oscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ GetDigitalBanks()

vector< Oscilloscope::DigitalBank > Oscilloscope::GetDigitalBanks ( )

virtual

Gets the digital channel banks for this instrument.

A bank is a set of one or more channels all sharing a common threshold and hysteresis setting.

Reimplemented in DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, RSRTO6Oscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ GetDigitalHysteresis()

float Oscilloscope::GetDigitalHysteresis ( size_t channel )

virtual

Gets the hysteresis for a digital input.

Reimplemented in DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ GetDigitalThreshold()

float Oscilloscope::GetDigitalThreshold ( size_t channel )

virtual

Gets the threshold for a digital input.

Reimplemented in DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, RSRTO6Oscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ GetEnabledChannelCount()

int Oscilloscope::GetEnabledChannelCount ( )

Returns the number of enabled channels for this oscilloscope.

Returns: the number of enabled channels for this oscilloscope.

◆ GetExternalTrigger()

virtual OscilloscopeChannel * Oscilloscope::GetExternalTrigger ( )

pure virtual

Returns the external trigger input channel, if we have one.

Note that some very high end oscilloscopes have multiple external trigger inputs. We do not currently support this.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoOscilloscope, PicoVNA, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ GetInputMuxNames()

vector< string > Oscilloscope::GetInputMuxNames ( size_t i )

virtual

Gets names for the input mux ports of a channel.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope.

◆ GetInputMuxSetting()

size_t Oscilloscope::GetInputMuxSetting ( size_t i )

virtual

Gets the setting for a channel's input mux (if it has one)

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope.

◆ GetNumAverages()

size_t Oscilloscope::GetNumAverages ( size_t i )

virtual

Returns the number of averages the channel is configured for.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope.

◆ GetOscilloscopeChannel()

OscilloscopeChannel * Oscilloscope::GetOscilloscopeChannel ( size_t i )

inline

Gets a channel by index.

Parameters

i	Zero-based index of channel

◆ GetProbeName()

string Oscilloscope::GetProbeName ( size_t i )

virtual

Returns the name of the probe connected to the scope, if possible.

If a passive or no probe is connected, or the instrument driver does not support probe identification, an empty string may be returned.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope, RSRTO6Oscilloscope, and TektronixOscilloscope.

◆ GetResolutionBandwidth()

int64_t Oscilloscope::GetResolutionBandwidth ( )

virtual

Gets the resolution bandwidth for frequency-domain channels.

Reimplemented in CopperMountainVNA, NanoVNA, PicoVNA, SCPISA, and TektronixOscilloscope.

◆ GetSampleDepth()

virtual uint64_t Oscilloscope::GetSampleDepth ( )

pure virtual

Gets the current sample depth of this scope.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoOscilloscope, PicoVNA, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ GetSampleDepthsInterleaved()

virtual std::vector< uint64_t > Oscilloscope::GetSampleDepthsInterleaved ( )

pure virtual

Get the legal memory depths for this scope in combined-channels mode.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyFWPOscilloscope, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and ThunderScopeOscilloscope.

◆ GetSampleDepthsNonInterleaved()

virtual std::vector< uint64_t > Oscilloscope::GetSampleDepthsNonInterleaved ( )

pure virtual

Get the legal memory depths for this scope in all-channels mode.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyFWPOscilloscope, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoOscilloscope, PicoVNA, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, TinySA, and UHDBridgeSDR.

◆ GetSampleRate()

virtual uint64_t Oscilloscope::GetSampleRate ( )

pure virtual

Gets the current sampling rate (in Hz) of this scope.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ GetSampleRatesInterleaved()

virtual std::vector< uint64_t > Oscilloscope::GetSampleRatesInterleaved ( )

pure virtual

Get the legal sampling rates (in Hz) for this scope in combined-channels mode.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and ThunderScopeOscilloscope.

◆ GetSampleRatesNonInterleaved()

virtual std::vector< uint64_t > Oscilloscope::GetSampleRatesNonInterleaved ( )

pure virtual

Get the legal sampling rates (in Hz) for this scope in all-channels mode.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ GetSamplingMode()

Oscilloscope::SamplingMode Oscilloscope::GetSamplingMode ( )

virtual

Gets the current sampling mode of the instrument.

The default implementation returns "real time"

Reimplemented in LeCroyOscilloscope.

◆ GetSpan()

int64_t Oscilloscope::GetSpan ( )

virtual

Gets the span for frequency-domain channels.

Reimplemented in CopperMountainVNA, NanoVNA, PicoVNA, TektronixOscilloscope, TinySA, and UHDBridgeSDR.

◆ GetTrigger()

Trigger * Oscilloscope::GetTrigger ( bool sync = false )

inline

Gets the current trigger.

Ownership of the trigger object is retained by the Oscilloscope. This pointer may be invalidated by any future call to GetTrigger() or PullTrigger().

◆ GetTriggerOffset()

virtual int64_t Oscilloscope::GetTriggerOffset ( )

pure virtual

◆ GetTriggerTypes()

vector< string > Oscilloscope::GetTriggerTypes ( )

virtual

Gets a list of triggers this instrument supports.

Reimplemented in AgilentOscilloscope, KeysightDCA, LeCroyOscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ HasFrequencyControls()

bool Oscilloscope::HasFrequencyControls ( )

virtual

Returns true if the instrument has at least one frequency-domain channel.

Reimplemented in SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, TektronixOscilloscope, and UHDBridgeSDR.

◆ HasInputMux()

bool Oscilloscope::HasInputMux ( size_t i )

virtual

Checks if a channel has an input multiplexer.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope.

◆ HasResolutionBandwidth()

bool Oscilloscope::HasResolutionBandwidth ( )

virtual

Returns true if the instrument has a resolution bandwidth setting.

Only valid if HasFrequencyControls() returns tre.

If false, GetResolutionBandwidth() always returns 1 and SetResolutionBandwidth() does nothing.

Reimplemented in UHDBridgeSDR.

◆ HasTimebaseControls()

bool Oscilloscope::HasTimebaseControls ( )

virtual

Returns true if the instrument has at least one time-domain channel.

Reimplemented in SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, and UHDBridgeSDR.

◆ IDPing()

virtual std::string Oscilloscope::IDPing ( )

pure virtual

Returns the instrument's identification string.

This function MUST NOT CACHE the return value and is safe to use as a barrier synchronization to ensure that the instrument has received and processed all previous commands.

Implemented in SCPIOscilloscope, AntikernelLogicAnalyzer, DemoOscilloscope, and MockOscilloscope.

◆ Invert()

void Oscilloscope::Invert	(	size_t	i,
		bool	invert
	)

virtual

Enables hardware polarity inversion for a channel, if supported.

Parameters

i	Zero-based index of channel
invert	True to invert, false for normal operation

Reimplemented in LeCroyOscilloscope, and SiglentSCPIOscilloscope.

◆ IsADCModeConfigurable()

bool Oscilloscope::IsADCModeConfigurable ( )

virtual

Returns true if the ADC is configurable, false if it can only run in one mode.

Reimplemented in DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, and SiglentSCPIOscilloscope.

◆ IsChannelEnabled()

virtual bool Oscilloscope::IsChannelEnabled ( size_t i )

pure virtual

Checks if a channel is enabled in hardware.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ IsDigitalHysteresisConfigurable()

bool Oscilloscope::IsDigitalHysteresisConfigurable ( )

virtual

Checks if digital input hysteresis is configurable or fixed.

Returns: true if configurable, false if fixed

Reimplemented in DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, RSRTO6Oscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ IsDigitalThresholdConfigurable()

bool Oscilloscope::IsDigitalThresholdConfigurable ( )

virtual

Checks if digital input threshold is configurable or fixed.

Returns: true if configurable, false if fixed

Reimplemented in DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, RSRTO6Oscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ IsInterleaving()

virtual bool Oscilloscope::IsInterleaving ( )

pure virtual

Checks if the scope is currently combining channels.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and ThunderScopeOscilloscope.

◆ IsInverted()

bool Oscilloscope::IsInverted ( size_t i )

virtual

Checks if hardware polarity inversion is enabled for a channel.

Parameters

i	Zero-based index of channel

Reimplemented in LeCroyOscilloscope, and SiglentSCPIOscilloscope.

◆ IsOffline()

bool Oscilloscope::IsOffline ( )

virtual

Checks if the instrument is currently online.

Returns: True if the Oscilloscope object is actively connected to a physical scope. False if working offline, a file import, etc.

Reimplemented in MockOscilloscope.

◆ IsSamplingModeAvailable()

bool Oscilloscope::IsSamplingModeAvailable ( SamplingMode mode )

virtual

Returns true if the requested sampling mode is available with the current instrument configuration.

The default implementation returns true for real-time only.

Reimplemented in LeCroyOscilloscope.

◆ IsTriggerArmed()

virtual bool Oscilloscope::IsTriggerArmed ( )

pure virtual

Checks if the trigger is currently armed.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoOscilloscope, PicoVNA, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ PeekTriggerArmed()

bool Oscilloscope::PeekTriggerArmed ( )

virtual

Checks if the trigger is armed directly on the instrument, without altering internal state or touching caches.

The default implementation of this function simply calls PollTrigger(). This function should be overridden by the driver class if PollTrigger() changes any internal driver state or accesses cached state (including a clientside "trigger armed" flag).

In particular, the multi-scope synchronization feature requires that this function not return true until the instment has confirmed the arm command has completely executed. Otherwise we risk losing trigger events by arming the primary before the secondary is ready to accept a trigger.

Reimplemented in LeCroyOscilloscope, RemoteBridgeOscilloscope, and TektronixOscilloscope.

◆ PollTrigger()

virtual Oscilloscope::TriggerMode Oscilloscope::PollTrigger ( )

pure virtual

◆ PullTrigger()

virtual void Oscilloscope::PullTrigger ( )

pure virtual

Updates m_trigger with any changes made from the instrument side.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoVNA, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ PushTrigger()

virtual void Oscilloscope::PushTrigger ( )

pure virtual

Pushes changes made to m_trigger to the instrument.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, DigilentOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoOscilloscope, PicoVNA, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ SetADCMode()

void Oscilloscope::SetADCMode	(	size_t	channel,
		size_t	mode
	)

virtual

Sets the ADC mode for a channel.

Reimplemented in DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, and SiglentSCPIOscilloscope.

◆ SetCenterFrequency()

void Oscilloscope::SetCenterFrequency	(	size_t	channel,
		int64_t	freq
	)

virtual

Sets the center frequency for frequency-domain channels.

Parameters

channel	Channel number
freq	Center frequency, in Hz

Reimplemented in CopperMountainVNA, NanoVNA, PicoVNA, TektronixOscilloscope, TinySA, and UHDBridgeSDR.

◆ SetChannelAttenuation()

virtual void Oscilloscope::SetChannelAttenuation	(	size_t	i,
		double	atten
	)

pure virtual

Sets the probe attenuation used for an input channel.

Parameters

i	Zero-based index of channel
atten	Attenuation factor

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ SetChannelBandwidthLimit()

virtual void Oscilloscope::SetChannelBandwidthLimit	(	size_t	i,
		unsigned int	limit_mhz
	)

pure virtual

Sets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel
limit_mhz	Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ SetChannelCoupling()

virtual void Oscilloscope::SetChannelCoupling	(	size_t	i,
		OscilloscopeChannel::CouplingType	type
	)

pure virtual

Sets the coupling used for an input channel.

Parameters

i	Zero-based index of channel

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, ThunderScopeOscilloscope, and UHDBridgeSDR.

◆ SetChannelOffset()

virtual void Oscilloscope::SetChannelOffset	(	size_t	i,
		size_t	stream,
		float	offset
	)

pure virtual

Sets the offset for a given channel.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)
offset	Offset, in volts

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ SetChannelVoltageRange()

virtual void Oscilloscope::SetChannelVoltageRange	(	size_t	i,
		size_t	stream,
		float	range
	)

pure virtual

Sets the range of the current channel configuration.

The range is the distance, in volts, between the most negative/smallest and most positive/largest voltage which the ADC can represent using the current vertical gain configuration. This can be calculated as the number of vertical divisions times the number of volts per division.

The range does not depend on the offset.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)
range	Voltage range

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ SetDeskewForChannel()

void Oscilloscope::SetDeskewForChannel	(	size_t	channel,
		int64_t	skew
	)

virtual

Sets the deskew setting for a channel.

Parameters

channel	The channel to deskew
skew	Skew value, in femtoseconds. Negative values move the channel earlier relative to the zero point. Positive values move the channel later.

The default implementation does nothing, and is suitable for lower-end instruments that do not support deskew.

Reimplemented in LeCroyOscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ SetDigitalHysteresis()

void Oscilloscope::SetDigitalHysteresis	(	size_t	channel,
		float	level
	)

virtual

Sets the hysteresis for a digital input.

Reimplemented in DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ SetDigitalThreshold()

void Oscilloscope::SetDigitalThreshold	(	size_t	channel,
		float	level
	)

virtual

Gets the threshold for a digital input.

Reimplemented in DigilentOscilloscope, DSLabsOscilloscope, LeCroyOscilloscope, PicoOscilloscope, RSRTO6Oscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ SetInputMux()

void Oscilloscope::SetInputMux	(	size_t	i,
		size_t	select
	)

virtual

Sets the input mux for a channel.

Parameters

i	Zero-based index of channel
select	Selector for the mux

Reimplemented in LeCroyOscilloscope.

◆ SetInterleaving()

virtual bool Oscilloscope::SetInterleaving ( bool combine )

pure virtual

Configures the scope to combine channels.

This function may fail to enable channel combining if conflicts are present, check the return value!

Returns: True if channel combining is enabled, false if not

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, DigilentOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and ThunderScopeOscilloscope.

◆ SetNumAverages()

void Oscilloscope::SetNumAverages	(	size_t	i,
		size_t	navg
	)

virtual

Sets the number of hardware averages to use.

Parameters

i	Zero-based index of channel
navg	Number of averages to use

Reimplemented in LeCroyOscilloscope.

◆ SetResolutionBandwidth()

void Oscilloscope::SetResolutionBandwidth ( int64_t rbw )

virtual

Gets the resolution bandwidth for frequency-domain channels.

Reimplemented in NanoVNA, SCPISA, TektronixOscilloscope, and TinySA.

◆ SetSampleDepth()

virtual void Oscilloscope::SetSampleDepth ( uint64_t depth )

pure virtual

Sets the sample depth of the scope.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoOscilloscope, PicoVNA, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ SetSampleRate()

virtual void Oscilloscope::SetSampleRate ( uint64_t rate )

pure virtual

Sets the sample rate of the scope, in Hz.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ SetSamplingMode()

void Oscilloscope::SetSamplingMode ( SamplingMode mode )

virtual

Sets the current sampling mode of the instrument.

The default implementation is a no-op.

Reimplemented in LeCroyOscilloscope.

◆ SetSpan()

void Oscilloscope::SetSpan ( int64_t span )

virtual

Sets the span for frequency-domain channels.

Parameters

span	Span, in Hz

Reimplemented in CopperMountainVNA, NanoVNA, PicoVNA, TektronixOscilloscope, TinySA, and UHDBridgeSDR.

◆ SetTrigger()

void Oscilloscope::SetTrigger ( Trigger * trigger )

inline

Sets a new trigger on the instrument and pushes changes.

Calling SetTrigger() with the currently selected trigger is legal and is equivalent to calling PushTrigger().

Ownership of the trigger object is transferred to the Oscilloscope.

◆ SetTriggerOffset()

virtual void Oscilloscope::SetTriggerOffset ( int64_t offset )

pure virtual

Sets the trigger offset.

Parameters

offset Femtoseconds from the start of the capture to the trigger point. Positive values mean the trigger is within the waveform. Negative values mean there is a delay from the trigger point to the start of the waveform.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, DemoOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, PicoOscilloscope, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SCPISDR, SCPISpectrometer, SCPIVNA, SiglentSCPIOscilloscope, TektronixOscilloscope, and UHDBridgeSDR.

◆ SetUseExternalRefclk()

void Oscilloscope::SetUseExternalRefclk ( bool external )

virtual

Configures the instrument's clock source.

Parameters

external True to use external reference False to use internal clock

The default implementation prints an "unsupported operation" warning, and is suitable for lower-end instruments that do not support external clock inputs.

Reimplemented in AntikernelLabsTriggerCrossbar, LeCroyOscilloscope, SiglentSCPIOscilloscope, and TektronixOscilloscope.

◆ ShouldDegauss()

bool Oscilloscope::ShouldDegauss ( size_t i )

virtual

Determines if a channel requires a degauss cycle (if supported)

Parameters

i	Zero-based index of channel

Reimplemented in TektronixOscilloscope.

◆ Start()

virtual void Oscilloscope::Start ( )

pure virtual

Starts the instrument in continuous trigger mode.

Most drivers will implement this as repeated calls to the "single trigger" function to avoid race conditions when the instrument triggers halfway through downloading captured waveforms.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyFWPOscilloscope, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoVNA, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, TektronixHSIOscilloscope, TektronixOscilloscope, and ThunderScopeOscilloscope.

◆ StartSingleTrigger()

virtual void Oscilloscope::StartSingleTrigger ( )

pure virtual

Arms the trigger for a single acquistion.

Implemented in AgilentOscilloscope, AntikernelLabsOscilloscope, AntikernelLabsTriggerCrossbar, AntikernelLogicAnalyzer, AseqSpectrometer, CopperMountainVNA, DemoOscilloscope, DSLabsOscilloscope, KeysightDCA, LeCroyOscilloscope, MockOscilloscope, NanoVNA, PicoVNA, RemoteBridgeOscilloscope, RigolOscilloscope, RohdeSchwarzOscilloscope, RSRTO6Oscilloscope, SCPISA, SiglentSCPIOscilloscope, TektronixHSIOscilloscope, TektronixOscilloscope, and ThunderScopeOscilloscope.

◆ Stop()

virtual void Oscilloscope::Stop ( )

pure virtual

◆ WaitForTrigger()

bool Oscilloscope::WaitForTrigger ( int timeout )

Block until a trigger happens or a timeout elapses.

Note that this function has no provision to dispatch any UI events etc. It's intended as a convenience helper for non-interactive ATE applications only.

Parameters

timeout Timeout value, in milliseconds

Returns: True if triggered, false if timeout

The documentation for this class was generated from the following files:

lib/scopehal/Oscilloscope.h
lib/scopehal/Oscilloscope.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ InterleaveConflict

Member Enumeration Documentation

◆ TriggerMode

Member Function Documentation

◆ AutoZero()

◆ CanAutoZero()

◆ CanAverage()

◆ CanDegauss()

◆ CanEnableChannel()

◆ CanInterleave()

◆ CanInvert()

◆ ChannelsDownloadStatusUpdate()

◆ Degauss()

◆ DisableChannel()

◆ EnableChannel()

◆ EnableTriggerOutput()

◆ FlushConfigCache()

◆ ForceTrigger()

◆ FreeWaveformPools()

◆ GetADCMode()

◆ GetADCModeNames()

◆ GetAnalogBank()

◆ GetAnalogBanks()

◆ GetAvailableCouplings()

◆ GetCenterFrequency()

◆ GetChannelAttenuation()

◆ GetChannelBandwidthLimit()

◆ GetChannelBandwidthLimiters()

◆ GetChannelCoupling()

◆ GetChannelOffset()

◆ GetChannelVoltageRange()

◆ GetDeskewForChannel()

◆ GetDigitalBank()

◆ GetDigitalBanks()

◆ GetDigitalHysteresis()

◆ GetDigitalThreshold()

◆ GetEnabledChannelCount()

◆ GetExternalTrigger()

◆ GetInputMuxNames()

◆ GetInputMuxSetting()

◆ GetNumAverages()

◆ GetOscilloscopeChannel()

◆ GetProbeName()

◆ GetResolutionBandwidth()

◆ GetSampleDepth()

◆ GetSampleDepthsInterleaved()

◆ GetSampleDepthsNonInterleaved()

◆ GetSampleRate()

◆ GetSampleRatesInterleaved()

◆ GetSampleRatesNonInterleaved()

◆ GetSamplingMode()

◆ GetSpan()

◆ GetTrigger()

◆ GetTriggerOffset()

◆ GetTriggerTypes()

◆ HasFrequencyControls()

◆ HasInputMux()

◆ HasResolutionBandwidth()

◆ HasTimebaseControls()

◆ IDPing()

◆ Invert()

◆ IsADCModeConfigurable()

◆ IsChannelEnabled()

◆ IsDigitalHysteresisConfigurable()

◆ IsDigitalThresholdConfigurable()

◆ IsInterleaving()

◆ IsInverted()

◆ IsOffline()

◆ IsSamplingModeAvailable()

◆ IsTriggerArmed()
