An SCPI-based RF signal generator. More...
#include <SCPIRFSignalGenerator.h>

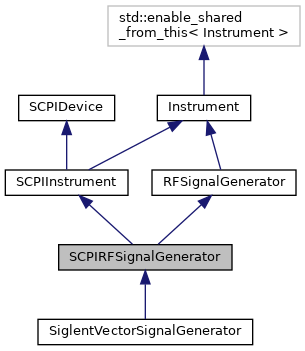

Inheritance diagram for SCPIRFSignalGenerator:

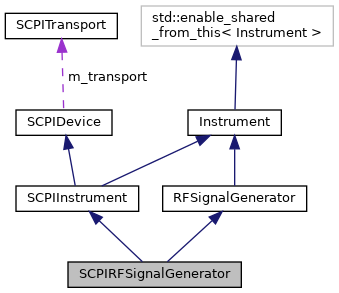

Collaboration diagram for SCPIRFSignalGenerator:
Public Types | |
| typedef std::shared_ptr< SCPIRFSignalGenerator >(* | VSGCreateProcType) (SCPITransport *) |
 Public Types inherited from RFSignalGenerator | |
| enum | SweepType { SWEEP_TYPE_NONE , SWEEP_TYPE_FREQ , SWEEP_TYPE_LEVEL , SWEEP_TYPE_FREQ_LEVEL } |
| enum | SweepShape { SWEEP_SHAPE_TRIANGLE , SWEEP_SHAPE_SAWTOOTH } |
| enum | SweepSpacing { SWEEP_SPACING_LINEAR , SWEEP_SPACING_LOG } |
| enum | SweepDirection { SWEEP_DIR_FWD , SWEEP_DIR_REV } |
| Public Types inherited from Instrument | |
| enum | InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 } |
Static Public Member Functions | |
| static void | DoAddDriverClass (std::string name, VSGCreateProcType proc) |
| static void | EnumDrivers (std::vector< std::string > &names) |
| static std::shared_ptr< SCPIRFSignalGenerator > | CreateRFSignalGenerator (std::string driver, SCPITransport *transport) |
| Static Public Member Functions inherited from RFSignalGenerator | |
| static std::string | GetNameOfSweepType (SweepType type) |
| Converts a SweepType to a human-readable name. | |
| static SweepType | GetSweepTypeOfName (const std::string &name) |
| Converts a human-readable name to a SweepType. | |
| static std::string | GetNameOfSweepShape (SweepShape shape) |
| Converts a SweepShape to a human-readable name. | |
| static SweepShape | GetSweepShapeOfName (const std::string &name) |
| Converts a human-readable name to a SweepShape. | |
| static std::string | GetNameOfSweepSpacing (SweepSpacing spacing) |
| Converts a SweepSpacing to a human-readable name. | |
| static SweepSpacing | GetSweepSpacingOfName (const std::string &name) |
| Converts a human-readable name to a SweepSpacing. | |
| static std::string | GetNameOfSweepDirection (SweepDirection dir) |
| Converts a SweepDirection to a human-readable name. | |
| static SweepDirection | GetSweepDirectionOfName (const std::string &name) |
| Converts a human-readable name to a SweepDirection. | |
Protected Types | |
| typedef std::map< std::string, VSGCreateProcType > | VSGCreateMapType |
Static Protected Attributes | |
| static VSGCreateMapType | m_vsgcreateprocs |
Additional Inherited Members | |
| Public Member Functions inherited from RFSignalGenerator | |
| virtual bool | GetChannelOutputEnable (int chan)=0 |
| Check if a channel is currently enabled. More... | |
| virtual void | SetChannelOutputEnable (int chan, bool on)=0 |
| Enable or disable a channel output. More... | |
| virtual float | GetChannelOutputPower (int chan)=0 |
| Gets the power level of a channel. More... | |
| virtual void | SetChannelOutputPower (int chan, float power)=0 |
| Sets the power level of a channel. More... | |
| virtual double | GetChannelCenterFrequency (int chan)=0 |
| Gets the center frequency of a channel. More... | |
| virtual void | SetChannelCenterFrequency (int chan, double freq)=0 |
| Sets the power level of a channel. More... | |
| virtual bool | IsAnalogModulationAvailable (int chan)=0 |
| Checks if an instrument is analog modulation capable. More... | |
| virtual void | SetAnalogModulationEnable (int chan, bool on)=0 |
| Enable or disable analog modulation. More... | |
| virtual bool | GetAnalogModulationEnable (int chan)=0 |
| Enable or disable analog modulation. More... | |
| virtual void | SetAnalogFMEnable (int chan, bool on)=0 |
| Enable or disable analog frequency modulation (also requires modulation to be turned on) More... | |
| virtual bool | GetAnalogFMEnable (int chan)=0 |
| Enable or disable analog frequency modulation. More... | |
| virtual std::vector< FunctionGenerator::WaveShape > | GetAnalogFMWaveShapes ()=0 |
| Get the set of waveforms available for analog FM. More... | |
| virtual FunctionGenerator::WaveShape | GetAnalogFMWaveShape (int chan)=0 |
| Get the current waveform selected for analog FM. More... | |
| virtual void | SetAnalogFMWaveShape (int chan, FunctionGenerator::WaveShape shape)=0 |
| Sets the analog FM modulation shape for a channel. More... | |
| virtual void | SetAnalogFMDeviation (int chan, int64_t deviation)=0 |
| Sets the analog FM deviation for a channel (in Hz) More... | |
| virtual int64_t | GetAnalogFMDeviation (int chan)=0 |
| Gets the analog FM deviation for a channel. More... | |
| virtual void | SetAnalogFMFrequency (int chan, int64_t frequency)=0 |
| Sets the analog FM frequency for a channel (in Hz) More... | |
| virtual int64_t | GetAnalogFMFrequency (int chan)=0 |
| Gets the analog FM frequency for a channel. More... | |
| virtual bool | IsVectorModulationAvailable (int chan)=0 |
| Checks if an instrument is vector modulation capable. More... | |
| virtual bool | IsSweepAvailable (int chan)=0 |
| Checks if an instrument supports sweeping the center frequency. More... | |
| virtual SweepType | GetSweepType (int chan) |
| Gets the type of a sweep. More... | |
| virtual void | SetSweepType (int chan, SweepType type) |
| Sets the type of a sweep. More... | |
| virtual float | GetSweepStartFrequency (int chan) |
| Gets the start of a frequency sweep, in Hz. More... | |
| virtual float | GetSweepStopFrequency (int chan) |
| Gets the end of a frequency sweep, in Hz. More... | |
| virtual void | SetSweepStartFrequency (int chan, float freq) |
| Sets the start of a frequency sweep. More... | |
| virtual void | SetSweepStopFrequency (int chan, float freq) |
| Sets the stop of a frequency sweep. More... | |
| virtual float | GetSweepStartLevel (int chan) |
| Gets the start of a power sweep, in dBm. More... | |
| virtual float | GetSweepStopLevel (int chan) |
| Gets the end of a power sweep, in dBm. More... | |
| virtual void | SetSweepStartLevel (int chan, float level) |
| Sets the start of a power sweep. More... | |
| virtual void | SetSweepStopLevel (int chan, float level) |
| Sets the stop of a power sweep. More... | |
| virtual void | SetSweepDwellTime (int chan, float fs) |
| Sets the dwell time for each step in a sweep. More... | |
| virtual float | GetSweepDwellTime (int chan) |
| Gets the dwell time for each step in a sweep, in femtoseconds. More... | |
| virtual void | SetSweepPoints (int chan, int npoints) |
| Sets the number of frequency points in a sweep. More... | |
| virtual int | GetSweepPoints (int chan) |
| Gets the number of frequency points in a sweep. More... | |
| virtual SweepShape | GetSweepShape (int chan) |
| Gets the shape of a sweep. More... | |
| virtual void | SetSweepShape (int chan, SweepShape shape) |
| Sets the shape of a sweep. More... | |
| virtual SweepSpacing | GetSweepSpacing (int chan) |
| Gets the spacing of a sweep (log or linear) More... | |
| virtual void | SetSweepSpacing (int chan, SweepSpacing shape) |
| Sets the spacing of a sweep (log or linear) More... | |
| virtual SweepDirection | GetSweepDirection (int chan) |
| Gets the direction of a sweep. More... | |
| virtual void | SetSweepDirection (int chan, SweepDirection dir) |
| Sets the direction of a sweep. More... | |
| virtual bool | AcquireData () override |
| Pull data from the instrument. More... | |
| Public Member Functions inherited from Instrument | |
| virtual unsigned int | GetInstrumentTypes () const =0 |
| Returns a bitfield describing the set of instrument types that this instrument supports. More... | |
| virtual std::string | GetName () const =0 |
| virtual std::string | GetVendor () const =0 |
| virtual std::string | GetSerial () const =0 |
| virtual std::string | GetTransportConnectionString ()=0 |
| Gets the connection string for our transport. More... | |
| virtual std::string | GetTransportName ()=0 |
| Gets the name of our transport. More... | |
| virtual uint32_t | GetInstrumentTypesForChannel (size_t i) const =0 |
| Returns a bitfield describing the set of instrument types that a given channel supports. More... | |
| size_t | GetChannelCount () const |
| Gets the number of channels (of any type) this instrument has. | |
| InstrumentChannel * | GetChannel (size_t i) const |
| Gets a given channel on the instrument. More... | |
| virtual std::string | GetChannelDisplayName (size_t i) |
| Gets the hardware display name for a channel. This is an arbitrary user-selected string. More... | |
| virtual void | SetChannelDisplayName (size_t i, std::string name) |
| Sets the hardware display name for a channel. This is an arbitrary user-selected string. More... | |
| InstrumentChannel * | GetChannelByDisplayName (const std::string &name) |
| Gets a channel given the display name. | |
| InstrumentChannel * | GetChannelByHwName (const std::string &name) |
| Gets a channel given the hardware name. | |
| virtual bool | AcquireData ()=0 |
| Pull data from the instrument. More... | |
| virtual YAML::Node | SerializeConfiguration (IDTable &table) const |
| Serializes this instrument's configuration to a YAML node. More... | |
| virtual void | LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. More... | |
| virtual void | PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings) |
| Parse a limited subset of instrument configuration but do not apply it. More... | |
| Public Member Functions inherited from SCPIInstrument | |
| SCPIInstrument (SCPITransport *transport, bool identify=true) | |
| virtual std::string | GetTransportConnectionString () |
| Gets the connection string for our transport. More... | |
| virtual std::string | GetTransportName () |
| Gets the name of our transport. More... | |
| virtual std::string | GetName () const |
| virtual std::string | GetVendor () const |
| virtual std::string | GetSerial () const |
| virtual std::string | GetDriverName () const =0 |
| Public Member Functions inherited from SCPIDevice | |
| SCPIDevice (SCPITransport *transport, bool identify=true) | |
| SCPITransport * | GetTransport () const |
| Public Attributes inherited from Instrument | |
| std::string | m_nickname |
| Optional user-selected nickname of the instrument. More... | |
| Protected Member Functions inherited from RFSignalGenerator | |
| void | DoSerializeConfiguration (YAML::Node &node, IDTable &table) |
| Serializes this oscilloscope's configuration to a YAML node. | |
| void | DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap) |
| Load instrument and channel configuration from a save file. | |
| void | DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list) |
| Validate instrument and channel configuration from a save file. | |
| Protected Member Functions inherited from SCPIInstrument | |
| void | DoSerializeConfiguration (YAML::Node &node, IDTable &table) |
| Protected Attributes inherited from Instrument | |
| std::list< sigc::slot< void(YAML::Node &, IDTable &)> > | m_serializers |
| List of methods which need to be called to serialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> > | m_loaders |
| List of methods which need to be called to deserialize this node's configuration. | |
| std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> > | m_preloaders |
| List of methods which need to be called to pre-load this node's configuration. | |
| std::vector< InstrumentChannel * > | m_channels |
| Set of all channels on this instrument. | |
| Protected Attributes inherited from SCPIDevice | |
| SCPITransport * | m_transport |
| std::string | m_vendor |
| std::string | m_model |
| std::string | m_serial |
| std::string | m_fwVersion |
Detailed Description
An SCPI-based RF signal generator.
The documentation for this class was generated from the following files:
- lib/scopehal/SCPIRFSignalGenerator.h
- lib/scopehal/SCPIRFSignalGenerator.cpp
