A WaveformArea is a plot that displays one or more OscilloscopeChannel's worth of data. More...

#include <WaveformArea.h>

Inheritance diagram for WaveformArea:

[legend]

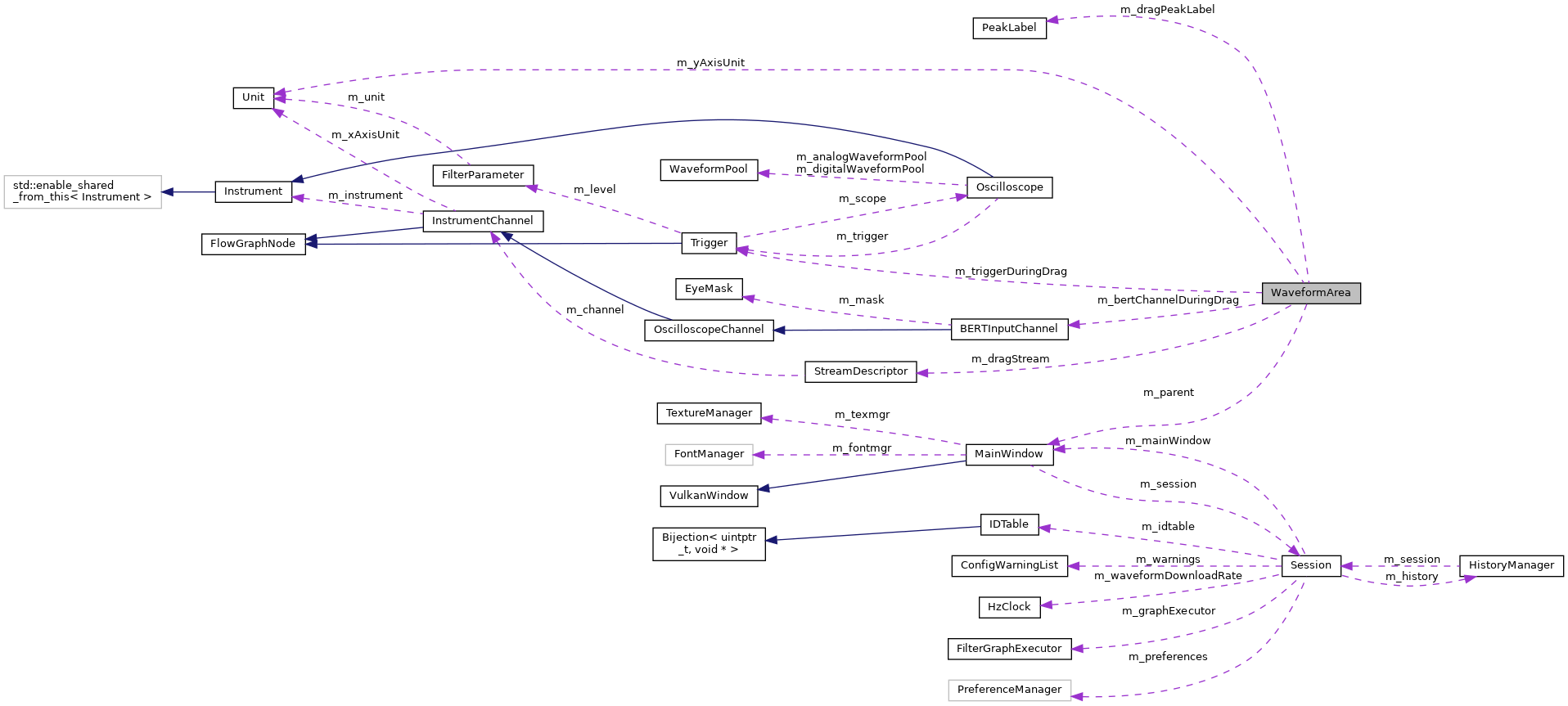

Collaboration diagram for WaveformArea:

[legend]

Public Member Functions
	WaveformArea (StreamDescriptor stream, std::shared_ptr< WaveformGroup > group, MainWindow *parent)

bool	Render (int iArea, int numAreas, ImVec2 clientArea)
	Renders a waveform area.

void	RenderWaveformTextures (vk::raii::CommandBuffer &cmdbuf, std::vector< std::shared_ptr< InputDescriptor > > &channels, bool clearPersistence)
	Runs the rendering shader on all of our waveforms.

void	ReferenceWaveformTextures ()
	Marks all of our waveform textures as being used this frame.

void	ToneMapAllWaveforms (vk::raii::CommandBuffer &cmdbuf, std::vector< vk::ImageMemoryBarrier > &barriers)
	Tone map our waveforms.

size_t	GetStreamCount ()

StreamDescriptor	GetStream (size_t i)

std::shared_ptr< DisplayedChannel >	GetDisplayedChannel (size_t i)

bool	IsStreamBeingDisplayed (StreamDescriptor target)
	Checks if this area is currently displaying a provided stream.

void	AddStream (StreamDescriptor desc, bool persistence=false, const std::string &ramp="eye-gradient-viridis")

void	AddStream (StreamDescriptor desc, size_t position, bool persistence=false, const std::string &ramp="eye-gradient-viridis")

bool	IsCompatible (StreamDescriptor desc)
	Checks if this area is compatible with a provided stream.

bool	IsShowing (StreamDescriptor desc)
	Checks if provided stream descriptor is already present in this waveform area.

virtual void	RemoveStream (size_t i) override
	Removes the stream at a specified index.

void	ClearPersistence ()

void	ClearPersistenceOfChannel (OscilloscopeChannel *chan)
	Clear persistence iff we are displaying the specified channel.

bool	IsChannelBeingDragged ()
	Returns true if a channel is currently being dragged.

StreamDescriptor	GetChannelBeingDragged ()
	Returns the channel being dragged, if one exists.

void	AutofitVertical ()

std::shared_ptr< WaveformGroup >	GetGroup ()
	Gets the WaveformGroup for this area.

TimePoint	GetWaveformTimestamp ()
	Gets the timestamp of our current waveform (if we have one)

void	SerializeConfiguration (YAML::Node &node)

virtual YAML::Node	SerializeConfiguration (IDTable &table) override
	SerializeConfiguration method called by filter graph, not yet used for anything.

void	LoadConfiguration (YAML::Node &node)

bool	IsMouseOverYCursor (int iCursor, bool ignoreCursorsPlacedThisFrame)

bool	IsMouseOverAnyYCursor (bool ignoreCursorsPlacedThisFrame)

StreamDescriptor	GetFirstAnalogStream ()
	Returns the first analog stream displayed in this area.

StreamDescriptor	GetFirstEyeStream ()
	Returns the first eye pattern displayed in this area.

StreamDescriptor	GetFirstConstellationStream ()
	Returns the first constellation diagram displayed in this area.

StreamDescriptor	GetFirstDensityFunctionStream ()
	Returns the first density plot displayed in this area.

StreamDescriptor	GetFirstAnalogOrDensityStream ()
	Returns the first analog, spectrogram or eye pattern stream displayed in this area.

Unit	GetYAxisUnit ()

bool	IsMouseOverButtonAtEndOfRender ()
	Returns true if the mouse is over a button, rather than the plot area.

template<class T >
void	RenderUniformDigitalBusWaveform (shared_ptr< DisplayedChannel > channel, T *data, ImVec2 start, ImVec2 size)

Public Member Functions inherited from SinkNode
virtual void	Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) override

Public Member Functions inherited from FlowGraphNode
void	DetachInputs ()
	Disconnects all inputs from the node without releasing them.

size_t	GetInputCount ()
	Get the number of input ports.

std::string	GetInputName (size_t i)

void	SetInput (size_t i, StreamDescriptor stream, bool force=false)
	Connects a stream to the input of this node.

void	SetInput (const std::string &name, StreamDescriptor stream, bool force=false)

virtual bool	ValidateChannel (size_t i, StreamDescriptor stream)
	Check if a stream is allowed to be connected to the given input.

bool	HasInput (StreamDescriptor desc)
	Checks if the given stream is connected to at least one of our inputs.

StreamDescriptor	GetInput (size_t i)
	Gets the descriptor for one of our inputs.

std::shared_ptr< InputConstraint >	GetInputConstraints (size_t i)
	Get the constraints on one of our inputs.

FilterParameter &	GetParameter (std::string s)

bool	HasParameter (std::string s)
	Checks if we have a parameter with a given name.

ParameterMapType::iterator	GetParamBegin ()
	Returns an iterator to the beginning of our parameter map.

ParameterMapType::iterator	GetParamEnd ()
	Returns an iterator to the end of our parameter map.

size_t	GetParamCount ()
	Returns the number of parameter we have.

virtual void	LoadParameters (const YAML::Node &node, IDTable &table)
	Load configuration from a save file.

virtual void	LoadInputs (const YAML::Node &node, IDTable &table)

bool	IsDownstreamOf (std::set< FlowGraphNode * > nodes)
	Determines if this node is downstream of any of the specified other nodes.

virtual uint32_t	GetExecutionCapabilitiesMask ()
	Returns a bitmask of ExecutionCapabilities fields.

bool	HasMessages () const
	Checks if this graph has any messages.

const std::vector< FlowGraphNodeMessage > &	GetMessages () const
	Walking through any messages.

const FlowGraphNodeMessage *	GetMostSevereMessage () const

void	AddSink (size_t stream, FlowGraphNode *node)

void	RemoveSink (size_t stream, FlowGraphNode *node)

const std::set< FlowGraphNode * > &	GetSinks (size_t stream)

sigc::signal< void()>	signal_parametersChanged ()

sigc::signal< void()>	signal_inputsChanged ()

Protected Types
enum	DragState { DRAG_STATE_NONE , DRAG_STATE_CHANNEL , DRAG_STATE_CHANNEL_LAST , DRAG_STATE_Y_AXIS , DRAG_STATE_TRIGGER_LEVEL , DRAG_STATE_TRIGGER_SECONDARY_LEVEL , DRAG_STATE_BER_LEVEL , DRAG_STATE_BER_BOTH , DRAG_STATE_PEAK_MARKER , DRAG_STATE_Y_CURSOR0 , DRAG_STATE_Y_CURSOR1 }
	Drag and drop of UI elements.

enum	YAxisCursorMode { Y_CURSOR_NONE , Y_CURSOR_SINGLE , Y_CURSOR_DUAL }
	Horizontal cursor configuration.

Protected Member Functions
void	OnStreamAdded (StreamDescriptor desc)
	When a stream is added, autoscale it.

virtual void	CreateInput (const std::string &name) override
	Gets the digital bus waveform attached to the specified input.

virtual std::shared_ptr< DisplayedChannel >	CreateInput (StreamDescriptor stream, Session &session)

void	ChannelButton (std::shared_ptr< DisplayedChannel > chan, size_t index)
	Handles a button for a channel.

void	RenderBackgroundGradient (ImVec2 start, ImVec2 size)
	Renders the background of the main plot area.

void	RenderGrid (ImVec2 start, ImVec2 size, std::map< float, float > &gridmap, float &vbot, float &vtop)
	Renders grid lines.

void	RenderYAxis (ImVec2 size, std::map< float, float > &gridmap, float vbot, float vtop)
	Renders the Y axis scale.

void	RenderTriggerLevelArrows (ImVec2 start, ImVec2 size)
	Arrows pointing to trigger levels.

void	RenderBERLevelArrows (ImVec2 start, ImVec2 size)
	Arrows pointing to BERT sampling level.

void	RenderCursors (ImVec2 start, ImVec2 size)
	Cursors and related stuff.

void	RenderYAxisCursors (ImVec2 pos, ImVec2 size, float yAxisWidth)
	Render horizontal cursors over the plot.

void	RenderBERSamplingPoint (ImVec2 start, ImVec2 size)
	Sampling point for BER.

void	CheckForScaleMismatch (ImVec2 start, ImVec2 size)
	Look for mismatched vertical scales and display warning message.

void	RenderEyePatternTooltip (ImVec2 start, ImVec2 size)
	Draw the tooltip on an eye pattern.

void	RenderWaveforms (ImVec2 start, ImVec2 size)
	Renders our waveforms.

void	RenderAnalogWaveform (std::shared_ptr< DisplayedChannel > channel, ImVec2 start, ImVec2 size)
	Renders a single analog waveform.

void	RenderEyeWaveform (std::shared_ptr< DisplayedChannel > channel, ImVec2 start, ImVec2 size)
	Renders a single eye pattern.

void	RenderConstellationWaveform (std::shared_ptr< DisplayedChannel > channel, ImVec2 start, ImVec2 size)
	Renders a single constellation diagram.

void	RenderWaterfallWaveform (std::shared_ptr< DisplayedChannel > channel, ImVec2 start, ImVec2 size)
	Renders a single waterfall.

void	RenderSpectrogramWaveform (std::shared_ptr< DisplayedChannel > channel, ImVec2 start, ImVec2 size)
	Renders a single spectrogram (same as waterfall for now)

void	RenderSpectrumPeaks (ImDrawList *list, std::shared_ptr< DisplayedChannel > channel)
	Draw peaks from a FFT or similar waveform.

void	RenderDigitalWaveform (std::shared_ptr< DisplayedChannel > channel, ImVec2 start, ImVec2 size)
	Renders a single digital waveform.

void	RenderProtocolWaveform (std::shared_ptr< DisplayedChannel > channel, ImVec2 start, ImVec2 size)
	Renders a single protocol waveform (assume it's sparse)

void	RenderDigitalBusWaveform (std::shared_ptr< DisplayedChannel > channel, ImVec2 start, ImVec2 size)
	Renders a single digital vector waveform.

template<class T >
void	RenderUniformDigitalBusWaveform (std::shared_ptr< DisplayedChannel > channel, T *data, ImVec2 start, ImVec2 size)

void	RenderComplexSignal (ImDrawList *list, int visleft, int visright, float xstart, float xend, float xoff, float ybot, float ymid, float ytop, std::string str, ImU32 color)

void	MakePathSignalBody (ImDrawList *list, float xstart, float xend, float ybot, float ymid, float ytop)

void	ToneMapAnalogOrDigitalWaveform (std::shared_ptr< DisplayedChannel > channel, vk::raii::CommandBuffer &cmdbuf, std::vector< vk::ImageMemoryBarrier > &barriers)
	Tone maps an analog or digital waveform by converting the internal fp32 buffer to RGBA.

void	ToneMapEyeWaveform (std::shared_ptr< DisplayedChannel > channel, vk::raii::CommandBuffer &cmdbuf, std::vector< vk::ImageMemoryBarrier > &barriers)
	Tone maps an eye waveform by converting the internal fp32 buffer to RGBA.

void	ToneMapConstellationWaveform (std::shared_ptr< DisplayedChannel > channel, vk::raii::CommandBuffer &cmdbuf, std::vector< vk::ImageMemoryBarrier > &barriers)
	Tone maps a constellation waveform by converting the internal fp32 buffer to RGBA.

void	ToneMapWaterfallWaveform (std::shared_ptr< DisplayedChannel > channel, vk::raii::CommandBuffer &cmdbuf, std::vector< vk::ImageMemoryBarrier > &barriers)
	Tone maps a waterfall waveform by converting the internal fp32 buffer to RGBA and cropping/scaling.

void	ToneMapSpectrogramWaveform (std::shared_ptr< DisplayedChannel > channel, vk::raii::CommandBuffer &cmdbuf, std::vector< vk::ImageMemoryBarrier > &barriers)
	Tone maps a spectrogram waveform by converting the internal fp32 buffer to RGBA and cropping/scaling.

void	RasterizeAnalogOrDigitalWaveform (std::shared_ptr< DisplayedChannel > channel, vk::raii::CommandBuffer &cmdbuf, bool clearPersistence)

void	PlotContextMenu ()
	Run the context menu for the main plot area.

void	DrawDropRangeMismatchMessage (ImDrawList *list, ImVec2 center, StreamDescriptor ourStream, StreamDescriptor theirStream)
	Display a warning message about mismatched vertical scale.

void	DrawDropScalarMessage (ImDrawList *list, ImVec2 center)

void	DragDropOverlays (ImVec2 start, ImVec2 size, int iArea, int numAreas)
	Drag-and-drop overlay areas.

bool	CenterRightDropArea (ImVec2 start, ImVec2 size, ImGuiDir direction)
	Drop area for the middle of the plot.

bool	EdgeDropArea (const std::string &name, ImVec2 start, ImVec2 size, ImGuiDir splitDir)
	Drop area for edge of the plot.

void	CenterDropArea (ImVec2 start, ImVec2 size)
	Main drop area used to drop a stream in this waveform area at a given position.

void	FilterMenu (std::shared_ptr< DisplayedChannel > chan)

void	FilterSubmenu (std::shared_ptr< DisplayedChannel > chan, const std::string &name, Filter::Category cat)
	Run the submenu for a single filter category.

float	PixelsToYAxisUnits (float pix)

float	YAxisUnitsToPixels (float volt)

float	YAxisUnitsToYPosition (float volt)

float	YPositionToYAxisUnits (float y)

float	PickStepSize (float volts_per_half_span, int min_steps=2, int max_steps=5)

void	OnMouseWheelPlotArea (float delta, float delta_h)
	Handles a mouse wheel scroll step on the plot area.

void	OnMouseWheelYAxis (float delta)
	Handles a mouse wheel scroll step on the Y axis.

void	OnMouseUp ()

void	OnDragUpdate ()

ImVec2	ClosestPointOnLineSegment (ImVec2 lineA, ImVec2 lineB, ImVec2 pt)
	Computes the closest point on a line segment (given the endpoints) to a given point.

void	DoCursor (int iCursor, DragState state)
	Run interaction processing for dragging a Y axis cursor.

Protected Member Functions inherited from SinkNode
void	RefreshInputNames ()
	Regenerate the list of inputs so that each port has a unique, monotonic name.

void	ClearEmptyInputs ()
	Removes any empty spaces from m_inputs.

size_t	GetStreamPosition (StreamDescriptor desc)
	Get the position of the provided Stream in this SinkNode.

void	MoveStream (StreamDescriptor desc, size_t newPosition)
	Move a stream to another position in this plot.

Protected Member Functions inherited from FlowGraphNode
virtual void	OnInputChanged (size_t i)
	Called when a new input is connected to the node.

WaveformBase *	GetInputWaveform (size_t i)
	Gets the waveform attached to the specified input.

SparseAnalogWaveform *	GetSparseAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

UniformAnalogWaveform *	GetUniformAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

SparseDigitalWaveform *	GetSparseDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

UniformDigitalWaveform *	GetUniformDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

template<class T , class... Args>
void	CreateInput (const std::string &name, Args &&... args)

std::string	GetInputDisplayName (size_t i)
	Gets the display name for one of our inputs.

void	ClearMessages ()
	Remove any messages left over from the last graph refresh.

void	AddMessage (const FlowGraphNodeMessage &msg)
	Attach a new message to the node.

void	AddMessage (Severity severity, const std::string &title, const std::string &message)
	Attach a new message to the node.

void	AddErrorMessage (const std::string &err)
	Add a new error message.

void	AddErrorMessage (const std::string &title, const std::string &err)
	Add a new error message with a title.

Protected Attributes
float	m_width
	Cached plot width (excluding Y axis)

float	m_height
	Cached plot height.

float	m_yAxisOffset
	Cached Y axis offset.

float	m_ymid
	Cached midpoint of the plot.

float	m_pixelsPerYAxisUnit
	Cached Y axis scale.

Unit	m_yAxisUnit
	Cached Y axis unit.

enum WaveformArea::DragState	m_dragState

StreamDescriptor	m_dragStream
	The stream currently being dragged (invalid if m_dragState != DRAG_STATE_CHANNEL)

std::shared_ptr< WaveformGroup >	m_group
	Waveform group containing us.

MainWindow *	m_parent
	Top level window object containing us.

double	m_tLastMouseMove
	Time of last mouse movement.

bool	m_mouseOverTriggerArrow
	True if mouse is over a trigger level arrow.

bool	m_mouseOverBERTarget
	True if mouse is over the BER sampling location.

float	m_triggerLevelDuringDrag
	Current trigger level, if dragging.

int64_t	m_xAxisPosDuringDrag
	Current X axis position during drag.

Trigger *	m_triggerDuringDrag
	The trigger we're configuring.

BERTInputChannel *	m_bertChannelDuringDrag
	The BERT channel we're configuring.

std::vector< std::shared_ptr< InputDescriptor > >	m_channelsToRemove
	Channels we're in the process of removing.

int64_t	m_lastRightClickOffset
	X axis position of the mouse at the most recent right click.

std::atomic< bool >	m_clearPersistence
	True if clearing persistence next render.

float	m_channelButtonHeight
	Height of a channel button.

PeakLabel *	m_dragPeakLabel
	Peak label being dragged, if any.

ImVec2	m_dragPeakAnchorOffset
	Offset, in pixels, from mouse to anchor point of peak being dragged.

bool	m_mouseOverButton
	True if the mouse cursor is over a channel button.

YAxisCursorMode	m_yAxisCursorMode
	Currently selected state of the Y axis cursor(s)

float	m_yAxisCursorPositions [2]
	Position of the Y axis cursor(s)

bool	m_cursorPlacedThisFrame
	True if the Y axis cursors were just placed in the current frame.

Protected Attributes inherited from FlowGraphNode
std::vector< std::shared_ptr< InputDescriptor > >	m_inputs
	Input ports.

std::vector< std::set< FlowGraphNode * > >	m_sinks
	The nodes (if any) that each of our streams drives.

ParameterMapType	m_parameters

sigc::signal< void()>	m_parametersChangedSignal
	Signal emitted when the set of parameters changes.

sigc::signal< void()>	m_inputsChangedSignal
	Signal emitted when the set of inputs changes.

std::vector< FlowGraphNodeMessage >	m_messages

Additional Inherited Members
Public Types inherited from FlowGraphNode
enum class	ExecutionCapabilities { None = 0 , CommandBufferAppend = 1 , CommandBufferTailCall = 2 , VulkanOnly = 4 , DynamicShader = 8 }

typedef std::map< std::string, FilterParameter >	ParameterMapType
	Short name for a map of strings to parameters.

Detailed Description

A WaveformArea is a plot that displays one or more OscilloscopeChannel's worth of data.

WaveformArea's auto resize, and will collectively fill the entire client area of their parent window.

Member Function Documentation

◆ CenterRightDropArea()

bool WaveformArea::CenterRightDropArea	(	ImVec2	start,
		ImVec2	size,
		ImGuiDir	direction
	)

protected

Drop area for the middle of the plot.

Dropping a waveform in here adds it to a new plot in the same group

◆ ClearPersistenceOfChannel()

void WaveformArea::ClearPersistenceOfChannel ( OscilloscopeChannel * chan )

Clear persistence iff we are displaying the specified channel.

TODO: can we clear only that channel and nothing else? TODO: clear if we have any dependency chain leading to the specified channel

◆ ClosestPointOnLineSegment()

ImVec2 WaveformArea::ClosestPointOnLineSegment	(	ImVec2	lineA,
		ImVec2	lineB,
		ImVec2	pt
	)

protected

Computes the closest point on a line segment (given the endpoints) to a given point.

Reference: https://en.wikibooks.org/wiki/Linear_Algebra/Orthogonal_Projection_Onto_a_Line

◆ CreateInput()

virtual void WaveformArea::CreateInput ( const std::string & name )

overrideprotectedvirtual

Gets the digital bus waveform attached to the specified input.

Reimplemented from FlowGraphNode.

◆ EdgeDropArea()

bool WaveformArea::EdgeDropArea	(	const std::string &	name,
		ImVec2	start,
		ImVec2	size,
		ImGuiDir	splitDir
	)

protected

Drop area for edge of the plot.

Dropping a waveform in here splits and forms a new group

◆ GetFirstAnalogOrDensityStream()

StreamDescriptor WaveformArea::GetFirstAnalogOrDensityStream ( )

Returns the first analog, spectrogram or eye pattern stream displayed in this area.

(this really means "has a useful Y axis")

If no suitable waveforms returns a null stream.

◆ GetFirstAnalogStream()

StreamDescriptor WaveformArea::GetFirstAnalogStream ( )

Returns the first analog stream displayed in this area.

If no analog waveforms are visible, returns a null stream.

◆ GetFirstConstellationStream()

StreamDescriptor WaveformArea::GetFirstConstellationStream ( )

Returns the first constellation diagram displayed in this area.

If no constellation diagrams are visible, returns a null stream.

◆ GetFirstDensityFunctionStream()

StreamDescriptor WaveformArea::GetFirstDensityFunctionStream ( )

Returns the first density plot displayed in this area.

If none are visible, returns a null stream.

◆ GetFirstEyeStream()

StreamDescriptor WaveformArea::GetFirstEyeStream ( )

Returns the first eye pattern displayed in this area.

If no eye patterns are visible, returns a null stream.

◆ IsMouseOverButtonAtEndOfRender()

bool WaveformArea::IsMouseOverButtonAtEndOfRender ( )

inline

Returns true if the mouse is over a button, rather than the plot area.

Only valid after rendering is complete before start of the next render cycle

◆ OnMouseWheelPlotArea()

void WaveformArea::OnMouseWheelPlotArea	(	float	delta,
		float	delta_h
	)

protected

Handles a mouse wheel scroll step on the plot area.

Parameters

delta	Vertical scroll steps
delta_h	Horizontal scroll steps

◆ RemoveStream()

void WaveformArea::RemoveStream ( size_t i )

overridevirtual

Removes the stream at a specified index.

Reimplemented from SinkNode.

◆ Render()

bool WaveformArea::Render	(	int	iArea,
		int	numAreas,
		ImVec2	clientArea
	)

Renders a waveform area.

Returns false if the area should be closed (no more waveforms visible in it)

◆ RenderBackgroundGradient()

void WaveformArea::RenderBackgroundGradient	(	ImVec2	start,
		ImVec2	size
	)

protected

Renders the background of the main plot area.

For now, simple gray gradient.

◆ RenderProtocolWaveform()

void WaveformArea::RenderProtocolWaveform	(	std::shared_ptr< DisplayedChannel >	channel,
		ImVec2	start,
		ImVec2	size
	)

protected

Renders a single protocol waveform (assume it's sparse)

TODO: should we ever support uniform protocol data? maybe coming off some kind of analyzer?

◆ RenderWaveformTextures()

void WaveformArea::RenderWaveformTextures	(	vk::raii::CommandBuffer &	cmdbuf,
		std::vector< std::shared_ptr< InputDescriptor > > &	channels,
		bool	clearPersistence
	)

Runs the rendering shader on all of our waveforms.

Called from WaveformThread

Parameters

cmdbuf	Command buffer to record rendering commands into
chans	Set of channels we rendered into Used to keep references active until rendering completes if we close them this frame
clearPersistence	True if persistence maps should be erased before rendering

◆ SerializeConfiguration()

YAML::Node WaveformArea::SerializeConfiguration ( IDTable & table )

overridevirtual

SerializeConfiguration method called by filter graph, not yet used for anything.

Long term we'll switch waveform area serialization to this method and retire the one that takes a reference

Reimplemented from FlowGraphNode.

The documentation for this class was generated from the following files:

src/ngscopeclient/WaveformArea.h
src/ngscopeclient/WaveformArea.cpp

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ CenterRightDropArea()

◆ ClearPersistenceOfChannel()

◆ ClosestPointOnLineSegment()

◆ CreateInput()

◆ EdgeDropArea()

◆ GetFirstAnalogOrDensityStream()

◆ GetFirstAnalogStream()

◆ GetFirstConstellationStream()

◆ GetFirstDensityFunctionStream()

◆ GetFirstEyeStream()

◆ IsMouseOverButtonAtEndOfRender()

◆ OnMouseWheelPlotArea()

◆ RemoveStream()

◆ Render()

◆ RenderBackgroundGradient()

◆ RenderProtocolWaveform()

◆ RenderWaveformTextures()

◆ SerializeConfiguration()
