Driver for Tektronix oscilloscopes. More...

#include <TektronixOscilloscope.h>

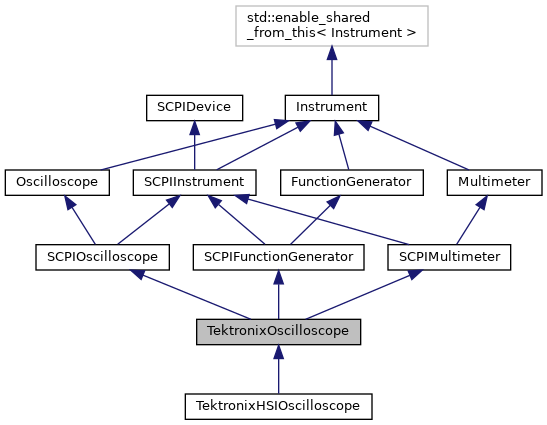

Inheritance diagram for TektronixOscilloscope:

[legend]

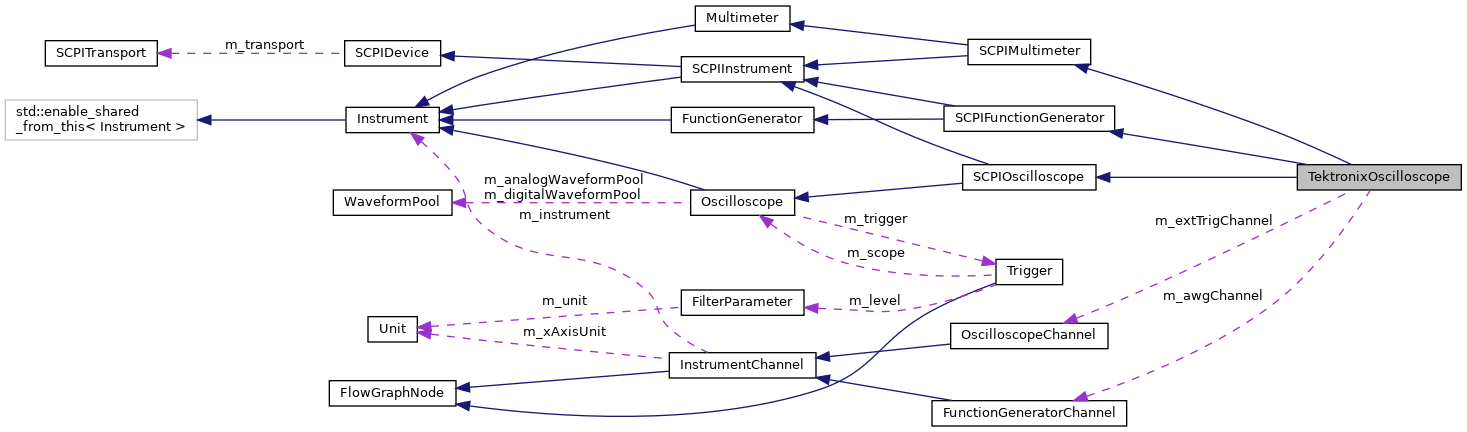

Collaboration diagram for TektronixOscilloscope:

[legend]

Classes
struct	mso56_preamble
	Binary waveform header. More...

Public Member Functions
	TektronixOscilloscope (SCPITransport *transport)
	Initialize the driver. More...

	TektronixOscilloscope (const TektronixOscilloscope &rhs)=delete

TektronixOscilloscope &	operator= (const TektronixOscilloscope &rhs)=delete

virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual void	FlushConfigCache () override
	Instruments are allowed to cache configuration settings to reduce round trip queries to the device. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const override
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

virtual bool	IsChannelEnabled (size_t i) override
	Checks if a channel is enabled in hardware. More...

virtual void	EnableChannel (size_t i) override
	Turn a channel on, given the index. More...

virtual bool	CanEnableChannel (size_t i) override
	Determines if a channel can be enabled. More...

virtual void	DisableChannel (size_t i) override
	Turn a channel off, given the index. More...

virtual OscilloscopeChannel::CouplingType	GetChannelCoupling (size_t i) override
	Gets the coupling used for an input channel. More...

virtual void	SetChannelCoupling (size_t i, OscilloscopeChannel::CouplingType type) override
	Sets the coupling used for an input channel. More...

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings (size_t i) override
	Gets the set of legal coupling values for an input channel. More...

virtual double	GetChannelAttenuation (size_t i) override
	Gets the probe attenuation for an input channel. More...

virtual void	SetChannelAttenuation (size_t i, double atten) override
	Sets the probe attenuation used for an input channel. More...

virtual unsigned int	GetChannelBandwidthLimit (size_t i) override
	Gets the bandwidth limit for an input channel. More...

virtual void	SetChannelBandwidthLimit (size_t i, unsigned int limit_mhz) override
	Sets the bandwidth limit for an input channel. More...

virtual float	GetChannelVoltageRange (size_t i, size_t stream) override
	Gets the range of the current channel configuration. More...

virtual void	SetChannelVoltageRange (size_t i, size_t stream, float range) override
	Sets the range of the current channel configuration. More...

virtual OscilloscopeChannel *	GetExternalTrigger () override
	Returns the external trigger input channel, if we have one. More...

virtual float	GetChannelOffset (size_t i, size_t stream) override
	Gets the offset, in volts, for a given channel. More...

virtual void	SetChannelOffset (size_t i, size_t stream, float offset) override
	Sets the offset for a given channel. More...

virtual std::string	GetChannelDisplayName (size_t i) override
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name) override
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual std::vector< unsigned int >	GetChannelBandwidthLimiters (size_t i) override
	Gets the set of available bandwidth limiters for an input channel. More...

Unit	GetYAxisUnit (size_t i)

virtual bool	CanDegauss (size_t i) override
	Determines if a channel has a probe connected which supports the "degauss" feature. More...

virtual bool	ShouldDegauss (size_t i) override
	Determines if a channel requires a degauss cycle (if supported) More...

virtual void	Degauss (size_t i) override
	Performs an "degauss" cycle on the attached active probe, if supported by the hardware. More...

virtual std::string	GetProbeName (size_t i) override
	Returns the name of the probe connected to the scope, if possible. More...

virtual Oscilloscope::TriggerMode	PollTrigger () override
	Checks the curent trigger status. More...

virtual bool	PeekTriggerArmed () override
	Checks if the trigger is armed directly on the instrument, without altering internal state or touching caches. More...

virtual bool	AcquireData () override
	Pull data from the instrument. More...

virtual void	Start () override
	Starts the instrument in continuous trigger mode. More...

virtual void	StartSingleTrigger () override
	Arms the trigger for a single acquistion. More...

virtual void	Stop () override
	Stops triggering. More...

virtual void	ForceTrigger () override
	Forces a single acquisition as soon as possible. More...

virtual bool	IsTriggerArmed () override
	Checks if the trigger is currently armed. More...

virtual void	PushTrigger () override
	Pushes changes made to m_trigger to the instrument. More...

virtual void	PullTrigger () override
	Updates m_trigger with any changes made from the instrument side. More...

std::vector< std::string >	GetTriggerTypes () override
	Gets a list of triggers this instrument supports. More...

virtual std::vector< uint64_t >	GetSampleRatesNonInterleaved () override
	Get the legal sampling rates (in Hz) for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleRatesInterleaved () override
	Get the legal sampling rates (in Hz) for this scope in combined-channels mode. More...

virtual std::set< InterleaveConflict >	GetInterleaveConflicts () override

virtual std::vector< uint64_t >	GetSampleDepthsNonInterleaved () override
	Get the legal memory depths for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleDepthsInterleaved () override
	Get the legal memory depths for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleRate () override
	Gets the current sampling rate (in Hz) of this scope. More...

virtual uint64_t	GetSampleDepth () override
	Gets the current sample depth of this scope. More...

virtual void	SetSampleDepth (uint64_t depth) override
	Sets the sample depth of the scope. More...

virtual void	SetSampleRate (uint64_t rate) override
	Sets the sample rate of the scope, in Hz. More...

virtual void	SetTriggerOffset (int64_t offset) override
	Sets the trigger offset. More...

virtual int64_t	GetTriggerOffset () override
	Gets the trigger offset. More...

virtual bool	IsInterleaving () override
	Checks if the scope is currently combining channels. More...

virtual bool	SetInterleaving (bool combine) override
	Configures the scope to combine channels. More...

virtual void	SetDeskewForChannel (size_t channel, int64_t skew) override
	Sets the deskew setting for a channel. More...

virtual int64_t	GetDeskewForChannel (size_t channel) override
	Gets the deskew setting for a channel. More...

virtual void	SetUseExternalRefclk (bool external) override
	Configures the instrument's clock source. More...

virtual void	EnableTriggerOutput () override
	Enables the trigger output, configuring a shared auxiliary port for this purpose if needed. More...

virtual std::vector< DigitalBank >	GetDigitalBanks () override
	Gets the digital channel banks for this instrument. More...

virtual DigitalBank	GetDigitalBank (size_t channel) override
	Gets the bank containing a given channel. More...

virtual bool	IsDigitalHysteresisConfigurable () override
	Checks if digital input hysteresis is configurable or fixed. More...

virtual bool	IsDigitalThresholdConfigurable () override
	Checks if digital input threshold is configurable or fixed. More...

virtual float	GetDigitalHysteresis (size_t channel) override
	Gets the hysteresis for a digital input. More...

virtual float	GetDigitalThreshold (size_t channel) override
	Gets the threshold for a digital input. More...

virtual void	SetDigitalHysteresis (size_t channel, float level) override
	Sets the hysteresis for a digital input. More...

virtual void	SetDigitalThreshold (size_t channel, float level) override
	Gets the threshold for a digital input. More...

virtual unsigned int	GetMeasurementTypes () override

virtual int	GetMeterChannelCount ()

virtual int	GetCurrentMeterChannel () override

virtual void	SetCurrentMeterChannel (int chan) override

virtual MeasurementTypes	GetMeterMode () override

virtual void	SetMeterMode (MeasurementTypes type) override

virtual void	SetMeterAutoRange (bool enable) override

virtual bool	GetMeterAutoRange () override

virtual void	StartMeter () override

virtual void	StopMeter () override

virtual double	GetMeterValue () override
	Get the value of the primary measurement. More...

virtual int	GetMeterDigits () override
	Returns the digit resolution of the meter. More...

virtual std::vector< WaveShape >	GetAvailableWaveformShapes (int chan) override
	Query the set of available pre-defined waveforms for this generator. More...

virtual bool	GetFunctionChannelActive (int chan) override
	Returns true if the function generator channel's output is enabled. More...

virtual void	SetFunctionChannelActive (int chan, bool on) override
	Turns a function generator channel on or off. More...

virtual float	GetFunctionChannelDutyCycle (int chan) override
	Gets the duty cycle for a function generator output. More...

virtual void	SetFunctionChannelDutyCycle (int chan, float duty) override
	Sets the duty cycle for a function generator output. More...

virtual float	GetFunctionChannelAmplitude (int chan) override
	Gets the amplitude for a function generator output. More...

virtual void	SetFunctionChannelAmplitude (int chan, float amplitude) override
	Sets the amplitude for a function generator output. More...

virtual float	GetFunctionChannelOffset (int chan) override
	Gets the DC offset for a function generator output. More...

virtual void	SetFunctionChannelOffset (int chan, float offset) override
	Sets the DC offset for a function generator output. More...

virtual float	GetFunctionChannelFrequency (int chan) override
	Gets the frequency for a function generator output. More...

virtual void	SetFunctionChannelFrequency (int chan, float hz) override
	Sets the frequency for a function generator output. More...

virtual WaveShape	GetFunctionChannelShape (int chan) override
	Gets the waveform shape for a function generator output. More...

virtual void	SetFunctionChannelShape (int chan, WaveShape shape) override
	Sets the waveform shape for a function generator output. More...

virtual bool	HasFunctionRiseFallTimeControls (int chan) override
	Determines if the function generator allows control over rise/fall times. More...

virtual OutputImpedance	GetFunctionChannelOutputImpedance (int chan) override
	Gets the currently selected output impedance for a function generator output (if supported) More...

virtual void	SetFunctionChannelOutputImpedance (int chan, OutputImpedance z) override
	Sets the currently selected output impedance for a function generator output (if supported) More...

virtual bool	HasFrequencyControls () override
	Returns true if the instrument has at least one frequency-domain channel. More...

virtual void	SetSpan (int64_t span) override
	Sets the span for frequency-domain channels. More...

virtual int64_t	GetSpan () override
	Gets the span for frequency-domain channels. More...

virtual void	SetCenterFrequency (size_t channel, int64_t freq) override
	Sets the center frequency for frequency-domain channels. More...

virtual int64_t	GetCenterFrequency (size_t channel) override
	Gets the center frequency for a frequency-domain channel. More...

virtual void	SetResolutionBandwidth (int64_t rbw) override
	Gets the resolution bandwidth for frequency-domain channels. More...

virtual int64_t	GetResolutionBandwidth () override
	Gets the resolution bandwidth for frequency-domain channels. More...

Public Member Functions inherited from SCPIOscilloscope
virtual std::string	IDPing ()
	Returns the instrument's identification string. More...

Public Member Functions inherited from Oscilloscope
virtual std::string	IDPing ()=0
	Returns the instrument's identification string. More...

virtual void	FlushConfigCache ()
	Instruments are allowed to cache configuration settings to reduce round trip queries to the device. More...

virtual bool	IsOffline ()
	Checks if the instrument is currently online. More...

OscilloscopeChannel *	GetOscilloscopeChannel (size_t i)
	Gets a channel by index. More...

virtual bool	IsChannelEnabled (size_t i)=0
	Checks if a channel is enabled in hardware. More...

virtual void	EnableChannel (size_t i)=0
	Turn a channel on, given the index. More...

virtual bool	CanEnableChannel (size_t i)
	Determines if a channel can be enabled. More...

virtual void	DisableChannel (size_t i)=0
	Turn a channel off, given the index. More...

int	GetEnabledChannelCount ()
	Returns the number of enabled channels for this oscilloscope. More...

OscilloscopeChannel *	GetOscilloscopeChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual OscilloscopeChannel::CouplingType	GetChannelCoupling (size_t i)=0
	Gets the coupling used for an input channel. More...

virtual void	SetChannelCoupling (size_t i, OscilloscopeChannel::CouplingType type)=0
	Sets the coupling used for an input channel. More...

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings (size_t i)=0
	Gets the set of legal coupling values for an input channel. More...

virtual double	GetChannelAttenuation (size_t i)=0
	Gets the probe attenuation for an input channel. More...

virtual void	SetChannelAttenuation (size_t i, double atten)=0
	Sets the probe attenuation used for an input channel. More...

virtual std::vector< unsigned int >	GetChannelBandwidthLimiters (size_t i)
	Gets the set of available bandwidth limiters for an input channel. More...

virtual unsigned int	GetChannelBandwidthLimit (size_t i)=0
	Gets the bandwidth limit for an input channel. More...

virtual void	SetChannelBandwidthLimit (size_t i, unsigned int limit_mhz)=0
	Sets the bandwidth limit for an input channel. More...

virtual OscilloscopeChannel *	GetExternalTrigger ()=0
	Returns the external trigger input channel, if we have one. More...

virtual float	GetChannelVoltageRange (size_t i, size_t stream)=0
	Gets the range of the current channel configuration. More...

virtual void	SetChannelVoltageRange (size_t i, size_t stream, float range)=0
	Sets the range of the current channel configuration. More...

virtual bool	CanAutoZero (size_t i)
	Determines if a channel has a probe connected which supports the "auto zero" feature. More...

virtual void	AutoZero (size_t i)
	Performs an "auto zero" cycle on the attached active probe, if supported by the hardware. More...

virtual bool	CanDegauss (size_t i)
	Determines if a channel has a probe connected which supports the "degauss" feature. More...

virtual bool	ShouldDegauss (size_t i)
	Determines if a channel requires a degauss cycle (if supported) More...

virtual void	Degauss (size_t i)
	Performs an "degauss" cycle on the attached active probe, if supported by the hardware. More...

virtual bool	CanAverage (size_t i)
	Determines if the channel supports hardware averaging. More...

virtual size_t	GetNumAverages (size_t i)
	Returns the number of averages the channel is configured for. More...

virtual void	SetNumAverages (size_t i, size_t navg)
	Sets the number of hardware averages to use. More...

virtual std::string	GetProbeName (size_t i)
	Returns the name of the probe connected to the scope, if possible. More...

virtual bool	HasInputMux (size_t i)
	Checks if a channel has an input multiplexer. More...

virtual size_t	GetInputMuxSetting (size_t i)
	Gets the setting for a channel's input mux (if it has one) More...

virtual std::vector< std::string >	GetInputMuxNames (size_t i)
	Gets names for the input mux ports of a channel. More...

virtual void	SetInputMux (size_t i, size_t select)
	Sets the input mux for a channel. More...

virtual float	GetChannelOffset (size_t i, size_t stream)=0
	Gets the offset, in volts, for a given channel. More...

virtual void	SetChannelOffset (size_t i, size_t stream, float offset)=0
	Sets the offset for a given channel. More...

virtual bool	CanInvert (size_t i)
	Checks if a channel is capable of hardware polarity inversion. More...

virtual void	Invert (size_t i, bool invert)
	Enables hardware polarity inversion for a channel, if supported. More...

virtual bool	IsInverted (size_t i)
	Checks if hardware polarity inversion is enabled for a channel. More...

virtual Oscilloscope::TriggerMode	PollTrigger ()=0
	Checks the curent trigger status. More...

virtual bool	PeekTriggerArmed ()
	Checks if the trigger is armed directly on the instrument, without altering internal state or touching caches. More...

bool	WaitForTrigger (int timeout)
	Block until a trigger happens or a timeout elapses. More...

void	SetTrigger (Trigger *trigger)
	Sets a new trigger on the instrument and pushes changes. More...

virtual void	PushTrigger ()=0
	Pushes changes made to m_trigger to the instrument. More...

Trigger *	GetTrigger (bool sync=false)
	Gets the current trigger. More...

virtual std::vector< std::string >	GetTriggerTypes ()
	Gets a list of triggers this instrument supports. More...

virtual void	PullTrigger ()=0
	Updates m_trigger with any changes made from the instrument side. More...

virtual void	Start ()=0
	Starts the instrument in continuous trigger mode. More...

virtual void	StartSingleTrigger ()=0
	Arms the trigger for a single acquistion. More...

virtual void	Stop ()=0
	Stops triggering. More...

virtual void	ForceTrigger ()=0
	Forces a single acquisition as soon as possible. More...

virtual bool	IsTriggerArmed ()=0
	Checks if the trigger is currently armed. More...

virtual void	EnableTriggerOutput ()
	Enables the trigger output, configuring a shared auxiliary port for this purpose if needed. More...

virtual std::vector< uint64_t >	GetSampleRatesNonInterleaved ()=0
	Get the legal sampling rates (in Hz) for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleRatesInterleaved ()=0
	Get the legal sampling rates (in Hz) for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleRate ()=0
	Gets the current sampling rate (in Hz) of this scope. More...

virtual bool	IsInterleaving ()=0
	Checks if the scope is currently combining channels. More...

virtual bool	SetInterleaving (bool combine)=0
	Configures the scope to combine channels. More...

virtual bool	CanInterleave ()
	Returns true if we have no interleave conflicts, false if we have conflicts. More...

virtual std::set< InterleaveConflict >	GetInterleaveConflicts ()=0

virtual std::vector< uint64_t >	GetSampleDepthsNonInterleaved ()=0
	Get the legal memory depths for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleDepthsInterleaved ()=0
	Get the legal memory depths for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleDepth ()=0
	Gets the current sample depth of this scope. More...

virtual void	SetSampleDepth (uint64_t depth)=0
	Sets the sample depth of the scope. More...

virtual void	SetSampleRate (uint64_t rate)=0
	Sets the sample rate of the scope, in Hz. More...

virtual bool	IsSamplingModeAvailable (SamplingMode mode)
	Returns true if the requested sampling mode is available with the current instrument configuration. More...

virtual SamplingMode	GetSamplingMode ()
	Gets the current sampling mode of the instrument. More...

virtual void	SetSamplingMode (SamplingMode mode)
	Sets the current sampling mode of the instrument. More...

virtual void	SetUseExternalRefclk (bool external)
	Configures the instrument's clock source. More...

virtual void	SetTriggerOffset (int64_t offset)=0
	Sets the trigger offset. More...

virtual int64_t	GetTriggerOffset ()=0
	Gets the trigger offset. More...

virtual void	SetDeskewForChannel (size_t channel, int64_t skew)
	Sets the deskew setting for a channel. More...

virtual int64_t	GetDeskewForChannel (size_t channel)
	Gets the deskew setting for a channel. More...

virtual std::vector< AnalogBank >	GetAnalogBanks ()
	Gets the analog banks for this instrument. More...

virtual AnalogBank	GetAnalogBank (size_t channel)
	Gets the bank containing a given channel. More...

virtual bool	IsADCModeConfigurable ()
	Returns true if the ADC is configurable, false if it can only run in one mode. More...

virtual std::vector< std::string >	GetADCModeNames (size_t channel)
	Gets the names of the ADC modes for the bank a given channel is located in. More...

virtual size_t	GetADCMode (size_t channel)
	Gets the ADC mode for a channel. More...

virtual void	SetADCMode (size_t channel, size_t mode)
	Sets the ADC mode for a channel. More...

virtual std::vector< DigitalBank >	GetDigitalBanks ()
	Gets the digital channel banks for this instrument. More...

virtual DigitalBank	GetDigitalBank (size_t channel)
	Gets the bank containing a given channel. More...

virtual bool	IsDigitalHysteresisConfigurable ()
	Checks if digital input hysteresis is configurable or fixed. More...

virtual bool	IsDigitalThresholdConfigurable ()
	Checks if digital input threshold is configurable or fixed. More...

virtual float	GetDigitalHysteresis (size_t channel)
	Gets the hysteresis for a digital input. More...

virtual float	GetDigitalThreshold (size_t channel)
	Gets the threshold for a digital input. More...

virtual void	SetDigitalHysteresis (size_t channel, float level)
	Sets the hysteresis for a digital input. More...

virtual void	SetDigitalThreshold (size_t channel, float level)
	Gets the threshold for a digital input. More...

virtual void	SetSpan (int64_t span)
	Sets the span for frequency-domain channels. More...

virtual int64_t	GetSpan ()
	Gets the span for frequency-domain channels. More...

virtual void	SetCenterFrequency (size_t channel, int64_t freq)
	Sets the center frequency for frequency-domain channels. More...

virtual int64_t	GetCenterFrequency (size_t channel)
	Gets the center frequency for a frequency-domain channel. More...

virtual void	SetResolutionBandwidth (int64_t rbw)
	Gets the resolution bandwidth for frequency-domain channels. More...

virtual int64_t	GetResolutionBandwidth ()
	Gets the resolution bandwidth for frequency-domain channels. More...

virtual bool	HasFrequencyControls ()
	Returns true if the instrument has at least one frequency-domain channel. More...

virtual bool	HasResolutionBandwidth ()
	Returns true if the instrument has a resolution bandwidth setting. More...

virtual bool	HasTimebaseControls ()
	Returns true if the instrument has at least one time-domain channel. More...

bool	HasPendingWaveforms ()

void	ClearPendingWaveforms ()
	Discard any pending waveforms that haven't yet been processed.

size_t	GetPendingWaveformCount ()

virtual bool	PopPendingWaveform ()
	Pops the queue of pending waveforms and updates each channel with a new waveform.

virtual bool	IsAppendingToWaveform ()
	Checks if we are appending to the existing waveform or creating a new one.

bool	HasPendingDiagnosticLogMessages ()

std::string	PopPendingDiagnosticLogMessage ()

std::map< std::string, FilterParameter * > &	GetDiagnosticsValues ()

bool	FreeWaveformPools ()
	Free all waveforms in our pool to reclaim memory. More...

void	AddWaveformToAnalogPool (WaveformBase *w)

void	AddWaveformToDigitalPool (WaveformBase *w)

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Public Member Functions inherited from SCPIInstrument
	SCPIInstrument (SCPITransport *transport, bool identify=true)

virtual std::string	GetTransportConnectionString ()
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()
	Gets the name of our transport. More...

virtual std::string	GetName () const

virtual std::string	GetVendor () const

virtual std::string	GetSerial () const

virtual std::string	GetDriverName () const =0

Public Member Functions inherited from SCPIDevice
	SCPIDevice (SCPITransport *transport, bool identify=true)

SCPITransport *	GetTransport () const

Public Member Functions inherited from FunctionGenerator
virtual bool	AcquireData () override
	Pull data from the instrument. More...

virtual bool	GetFunctionChannelActive (int chan)=0
	Returns true if the function generator channel's output is enabled. More...

virtual void	SetFunctionChannelActive (int chan, bool on)=0
	Turns a function generator channel on or off. More...

virtual bool	HasFunctionDutyCycleControls (int chan)
	Determines if the function generator allows control over duty cycles. More...

virtual float	GetFunctionChannelDutyCycle (int chan)
	Gets the duty cycle for a function generator output. More...

virtual void	SetFunctionChannelDutyCycle (int chan, float duty)
	Sets the duty cycle for a function generator output. More...

virtual float	GetFunctionChannelAmplitude (int chan)=0
	Gets the amplitude for a function generator output. More...

virtual void	SetFunctionChannelAmplitude (int chan, float amplitude)=0
	Sets the amplitude for a function generator output. More...

virtual float	GetFunctionChannelOffset (int chan)=0
	Gets the DC offset for a function generator output. More...

virtual void	SetFunctionChannelOffset (int chan, float offset)=0
	Sets the DC offset for a function generator output. More...

virtual float	GetFunctionChannelFrequency (int chan)=0
	Gets the frequency for a function generator output. More...

virtual void	SetFunctionChannelFrequency (int chan, float hz)=0
	Sets the frequency for a function generator output. More...

virtual WaveShape	GetFunctionChannelShape (int chan)=0
	Gets the waveform shape for a function generator output. More...

virtual void	SetFunctionChannelShape (int chan, WaveShape shape)=0
	Sets the waveform shape for a function generator output. More...

virtual float	GetFunctionChannelRiseTime (int chan)
	Gets the rise time for a function generator output (if supported) More...

virtual void	SetFunctionChannelRiseTime (int chan, float fs)
	Sets the rise time for a function generator output (if supported) More...

virtual float	GetFunctionChannelFallTime (int chan)
	Gets the fall time for a function generator output (if supported) More...

virtual void	SetFunctionChannelFallTime (int chan, float fs)
	Sets the fall time for a function generator output (if supported) More...

virtual bool	HasFunctionRiseFallTimeControls (int chan)=0
	Determines if the function generator allows control over rise/fall times. More...

virtual bool	HasFunctionImpedanceControls (int chan)
	Determines if the function generator allows control over rise/fall times. More...

virtual OutputImpedance	GetFunctionChannelOutputImpedance (int chan)
	Gets the currently selected output impedance for a function generator output (if supported) More...

virtual void	SetFunctionChannelOutputImpedance (int chan, OutputImpedance z)
	Sets the currently selected output impedance for a function generator output (if supported) More...

virtual std::vector< WaveShape >	GetAvailableWaveformShapes (int chan)=0
	Query the set of available pre-defined waveforms for this generator. More...

Public Member Functions inherited from Multimeter
virtual unsigned int	GetMeasurementTypes ()=0

virtual unsigned int	GetSecondaryMeasurementTypes ()
	Gets a bitmask of secondary measurement types currently available. More...

virtual int	GetCurrentMeterChannel ()=0

virtual void	SetCurrentMeterChannel (int chan)=0

virtual MeasurementTypes	GetMeterMode ()=0

virtual MeasurementTypes	GetSecondaryMeterMode ()
	Gets the active secondary mode. More...

virtual std::string	ModeToText (MeasurementTypes type)
	Converts a meter mode to human readable text.

MeasurementTypes	TextToMode (const std::string &mode)
	Converts a textual meter mode to a mode ID.

virtual void	SetMeterMode (MeasurementTypes type)=0

virtual void	SetSecondaryMeterMode (MeasurementTypes type)
	Sets the active secondary mode. More...

virtual void	SetMeterAutoRange (bool enable)=0

virtual bool	GetMeterAutoRange ()=0

virtual void	StartMeter ()=0

virtual void	StopMeter ()=0

virtual Unit	GetMeterUnit ()
	Get the current primary measurement unit.

virtual Unit	GetSecondaryMeterUnit ()
	Get the current secondary measurement unit.

virtual double	GetMeterValue ()=0
	Get the value of the primary measurement. More...

virtual double	GetSecondaryMeterValue ()
	Get the value of the secondary measurement. More...

virtual int	GetMeterDigits ()=0
	Returns the digit resolution of the meter. More...

virtual bool	AcquireData () override
	Pull meter readings from hardware. More...

Static Public Member Functions
static std::string	GetDriverNameInternal ()
	Return the constant driver name string "tektronix".

Static Public Member Functions inherited from Oscilloscope
static void	Convert8BitSamples (float pout, const int8_t pin, float gain, float offset, size_t count)
	Converts 8-bit ADC samples to floating point.

static void	Convert8BitSamplesGeneric (float pout, const int8_t pin, float gain, float offset, size_t count)
	Generic backend for Convert8BitSamples()

static void	ConvertUnsigned8BitSamples (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Converts Unsigned 8-bit ADC samples to floating point.

static void	ConvertUnsigned8BitSamplesGeneric (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Generic backend for ConvertUnsigned8BitSamples()

static void	Convert16BitSamples (float pout, const int16_t pin, float gain, float offset, size_t count)
	Converts 16-bit ADC samples to floating point.

static void	Convert16BitSamplesGeneric (float pout, const int16_t pin, float gain, float offset, size_t count)
	Converts raw ADC samples to floating point.

static void	DoAddDriverClass (std::string name, CreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< Oscilloscope >	CreateOscilloscope (std::string driver, SCPITransport *transport)

Static Public Member Functions inherited from SCPIFunctionGenerator
static void	DoAddDriverClass (std::string name, GeneratorCreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< SCPIFunctionGenerator >	CreateFunctionGenerator (std::string driver, SCPITransport *transport)

Static Public Member Functions inherited from FunctionGenerator
static std::string	GetNameOfShape (WaveShape shape)
	Converts a WaveShape enum to a human readable name. More...

static WaveShape	GetShapeOfName (const std::string &name)
	Converts a human readable name to a WaveShape. More...

static std::string	GetNameOfImpedance (OutputImpedance imp)
	Converts an OutputImpedance enum to a human readable name. More...

static OutputImpedance	GetImpedanceOfName (const std::string &name)
	Converts a human readable name to an OutputImpedance. More...

Static Public Member Functions inherited from SCPIMultimeter
static void	DoAddDriverClass (std::string name, MeterCreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< SCPIMultimeter >	CreateMultimeter (std::string driver, SCPITransport *transport)

Protected Types
enum	ProbeType { PROBE_TYPE_ANALOG , PROBE_TYPE_ANALOG_250K , PROBE_TYPE_ANALOG_CURRENT , PROBE_TYPE_DIGITAL_8BIT }
	Type of probe connected to a hardware channel. More...

enum	Family { FAMILY_MSO5 , FAMILY_MSO6 , FAMILY_UNKNOWN }
	Type of scope we're connected to. More...

Protected Types inherited from Oscilloscope
typedef std::map< StreamDescriptor, WaveformBase * >	SequenceSet

typedef std::map< std::string, CreateProcType >	CreateMapType

Protected Types inherited from SCPIFunctionGenerator
typedef std::map< std::string, GeneratorCreateProcType >	GeneratorCreateMapType

Protected Types inherited from SCPIMultimeter
typedef std::map< std::string, MeterCreateProcType >	MeterCreateMapType

Protected Member Functions
void	ResynchronizeSCPI ()
	Attempt to recover synchronization between ngscopeclient and the scope-side SCPI stack. More...

bool	ReadPreamble (std::string &preamble_in, mso56_preamble &preamble_out)
	Parses a waveform preamble. More...

bool	AcquireDataMSO56 (std::map< int, std::vector< WaveformBase * > > &pending_waveforms)
	Acquire data from a MSO5 or MSO6 scope. More...

void	DetectProbes ()
	Look at each input channel and determine what kind of probe, if any, is connected.

void	PullEdgeTrigger ()
	Reads settings for an edge trigger from the instrument.

void	PushEdgeTrigger (EdgeTrigger *trig)
	Pushes settings for an edge trigger to the instrument. More...

void	PullPulseWidthTrigger ()
	Reads settings for a pulse width trigger from the instrument.

void	PushPulseWidthTrigger (PulseWidthTrigger *trig)
	Pushes settings for a pulse width trigger to the instrument. More...

void	PullDropoutTrigger ()
	Reads settings for a dropout trigger from the instrument. More...

void	PushDropoutTrigger (DropoutTrigger *trig)
	Pushes settings for a dropout trigger to the instrument. More...

void	PullRuntTrigger ()
	Reads settings for a runt trigger from the instrument.

void	PushRuntTrigger (RuntTrigger *trig)
	Pushes settings for a runt trigger to the instrument. More...

void	PullSlewRateTrigger ()
	Reads settings for a slew rate trigger from the instrument.

void	PushSlewRateTrigger (SlewRateTrigger *trig)
	Pushes settings for a slew rate trigger to the instrument. More...

void	PullWindowTrigger ()
	Reads settings for a window trigger from the instrument.

void	PushWindowTrigger (WindowTrigger *trig)
	Pushes settings for a window trigger to the instrument. More...

float	ReadTriggerLevelMSO56 (OscilloscopeChannel *chan)
	Determine the current trigger level. More...

void	SetTriggerLevelMSO56 (Trigger *trig)
	Push the current trigger voltage level to hardware. More...

bool	IsAnalog (size_t index)
	Check if a channel is analog given the index. More...

bool	IsDigital (size_t index)
	Check if a channel is digital given the index. More...

bool	IsSpectrum (size_t index)
	Check if a channel is spectrum given the index. More...

bool	IsEnableStateDirty (size_t chan)
	Checks if the channel enable state of a channel is up to date. More...

void	FlushChannelEnableStates ()
	Flushes pending channel enable/disable commands.

Protected Member Functions inherited from Oscilloscope
void	ChannelsDownloadStarted ()
	Helper method called by drivers to reset all channels to "waiting to download" state.

void	ChannelsDownloadStatusUpdate (size_t ch, InstrumentChannel::DownloadState state, float progress)
	Helper method called by drivers to set one channel's download status and update its download progress. Be aware that there is a measurement on ngscopeclient UI of the time spent between the download start and the progress of the last enabled channel. This measurement is used to decide whether to display a progress bar or not. This download speed evaluation method only works if enabled channels are download sequencially in increasing numeric order or if all channels are downloaded at the same speed. More...

void	ChannelsDownloadFinished ()
	Helper method called by drivers when waveform download is finished to reset all channels to "no download" state.

void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this oscilloscope's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

void	AddDiagnosticLog (std::string message)

UniformAnalogWaveform *	AllocateAnalogWaveform (const std::string &name)

SparseDigitalWaveform *	AllocateDigitalWaveform (const std::string &name)

Protected Member Functions inherited from SCPIInstrument
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)

Protected Member Functions inherited from FunctionGenerator
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this instrument's configuration to a YAML node. More...

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file. More...

Protected Member Functions inherited from Multimeter
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this multimeter's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

Protected Attributes
OscilloscopeChannel *	m_extTrigChannel
	External trigger.

FunctionGeneratorChannel *	m_awgChannel
	Function generator output.

unsigned int	m_analogChannelCount
	Hardware analog channel count, independent of LA option etc.

std::map< size_t, float >	m_channelOffsets
	Cached map of <channel ID, offset>

std::map< size_t, float >	m_channelVoltageRanges
	Cached map of <channel ID, full scale range>

std::map< size_t, float >	m_channelDigitalThresholds
	Cached map of <channel ID, digital threshold>

std::map< size_t, OscilloscopeChannel::CouplingType >	m_channelCouplings
	Cached map of <channel ID, coupling>

std::map< size_t, double >	m_channelAttenuations
	Cached map of <channel ID, attenuation>

std::map< size_t, int >	m_channelBandwidthLimits
	Cached map of <channel ID, bandwidth limiter>

std::map< int, bool >	m_channelsEnabled
	Cached map of <channel ID, enable flag>

std::map< int, int64_t >	m_channelCenterFrequencies
	Cached map of <channel ID, center frequency>

bool	m_triggerChannelValid
	True if m_triggerChannel is valid, false if out of sync.

size_t	m_triggerChannel
	Index of the channel selected for triggering.

bool	m_sampleRateValid
	True if m_sampleRate is valid, false if out of sync.

uint64_t	m_sampleRate
	Acquisition sample rate, in samples/sec.

bool	m_sampleDepthValid
	True if m_sampleDepth is valid, false if out of sync.

uint64_t	m_sampleDepth
	Acquisition memory depth, in samples.

bool	m_triggerOffsetValid
	True if m_triggerOffset is valid, false if out of sync.

int64_t	m_triggerOffset
	Offset from start of wavefrom to trigger position.

bool	m_spanValid
	True if span is valid, false if out of sync.

int64_t	m_span
	Span value for frequency control.

std::map< size_t, int64_t >	m_channelDeskew

std::map< size_t, ProbeType >	m_probeTypes

std::map< size_t, std::string >	m_probeNames

bool	m_rbwValid

int64_t	m_rbw

bool	m_dmmAutorangeValid

bool	m_dmmAutorange

bool	m_dmmChannelValid

int	m_dmmChannel

bool	m_dmmModeValid

Multimeter::MeasurementTypes	m_dmmMode

std::map< size_t, Unit >	m_channelUnits

std::map< OscilloscopeChannel *, size_t >	m_flexChannelParents
	The analog channel for each flex channel.

std::map< OscilloscopeChannel *, size_t >	m_flexChannelLanes

size_t	m_digitalChannelBase
	Starting index for digital channels.

size_t	m_digitalChannelCount
	Nuber of digital channels.

size_t	m_spectrumChannelBase
	Starting index for spectrum channels.

bool	m_triggerArmed
	True if trigger is armed, false if idle.

bool	m_triggerOneShot
	True if trigger is single or forced, false if continuous.

unsigned int	m_maxBandwidth
	Maximum bandwidth we support, in MHz.

enum TektronixOscilloscope::Family	m_family

bool	m_hasDVM
	True if we have the DVM option installed.

std::set< size_t >	m_channelEnableStatusDirty
	True if this channel's status has changed (on/off) since the last time the trigger was armed. More...

bool	m_hasAFG
	True if we have the AFG option installed.

bool	m_afgEnabled
	True if the AFG is currently outputting a waveform.

float	m_afgAmplitude
	Amplitude of the AFG output, in volts.

float	m_afgOffset
	DC offset of the AFG output, in volts.

float	m_afgFrequency
	Frequency of the AFG output, in Hz.

float	m_afgDutyCycle
	Duty cycle of the AFG output (0-1)

FunctionGenerator::WaveShape	m_afgShape
	Waveform the AFG is outputting.

FunctionGenerator::OutputImpedance	m_afgImpedance
	Impedance selected for the AFG output.

Protected Attributes inherited from SCPIOscilloscope
bool	m_triggerArmed

bool	m_triggerOneShot

std::recursive_mutex	m_cacheMutex

Protected Attributes inherited from Oscilloscope
std::list< SequenceSet >	m_pendingWaveforms

std::mutex	m_pendingWaveformsMutex

std::recursive_mutex	m_mutex

std::deque< std::string >	m_diagnosticLogMessages

std::map< std::string, FilterParameter * >	m_diagnosticValues

Trigger *	m_trigger

WaveformPool	m_analogWaveformPool

WaveformPool	m_digitalWaveformPool

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Protected Attributes inherited from SCPIDevice
SCPITransport *	m_transport

std::string	m_vendor

std::string	m_model

std::string	m_serial

std::string	m_fwVersion

Additional Inherited Members
Public Types inherited from Oscilloscope
enum	TriggerMode { TRIGGER_MODE_RUN , TRIGGER_MODE_STOP , TRIGGER_MODE_TRIGGERED , TRIGGER_MODE_WAIT , TRIGGER_MODE_AUTO , TRIGGER_MODE_COUNT }

enum	SamplingMode { REAL_TIME , EQUIVALENT_TIME }

typedef std::pair< OscilloscopeChannel , OscilloscopeChannel >	InterleaveConflict
	Get the set of conflicting channels. More...

typedef std::vector< OscilloscopeChannel * >	AnalogBank

typedef std::vector< OscilloscopeChannel * >	DigitalBank

typedef std::shared_ptr< Oscilloscope >(*	CreateProcType) (SCPITransport *)

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Types inherited from SCPIFunctionGenerator
typedef std::shared_ptr< SCPIFunctionGenerator >(*	GeneratorCreateProcType) (SCPITransport *)

Public Types inherited from FunctionGenerator
enum	WaveShape { SHAPE_SINE , SHAPE_SQUARE , SHAPE_TRIANGLE , SHAPE_PULSE , SHAPE_DC , SHAPE_NOISE , SHAPE_SAWTOOTH_UP , SHAPE_SAWTOOTH_DOWN , SHAPE_SINC , SHAPE_GAUSSIAN , SHAPE_LORENTZ , SHAPE_HALF_SINE , SHAPE_PRBS_NONSTANDARD , SHAPE_EXPONENTIAL_RISE , SHAPE_EXPONENTIAL_DECAY , SHAPE_HAVERSINE , SHAPE_CARDIAC , SHAPE_STAIRCASE_UP , SHAPE_STAIRCASE_DOWN , SHAPE_STAIRCASE_UP_DOWN , SHAPE_NEGATIVE_PULSE , SHAPE_LOG_RISE , SHAPE_LOG_DECAY , SHAPE_SQUARE_ROOT , SHAPE_CUBE_ROOT , SHAPE_QUADRATIC , SHAPE_CUBIC , SHAPE_DLORENTZ , SHAPE_GAUSSIAN_PULSE , SHAPE_HAMMING , SHAPE_HANNING , SHAPE_KAISER , SHAPE_BLACKMAN , SHAPE_GAUSSIAN_WINDOW , SHAPE_HARRIS , SHAPE_BARTLETT , SHAPE_TAN , SHAPE_COT , SHAPE_SEC , SHAPE_CSC , SHAPE_ASIN , SHAPE_ACOS , SHAPE_ATAN , SHAPE_ACOT , SHAPE_ARB }
	Predefined waveform shapes.

enum	OutputImpedance { IMPEDANCE_HIGH_Z , IMPEDANCE_50_OHM }
	Nominal output impedance for a function generator channel. More...

Public Types inherited from SCPIMultimeter
typedef std::shared_ptr< SCPIMultimeter >(*	MeterCreateProcType) (SCPITransport *)

Public Types inherited from Multimeter
enum	MeasurementTypes { NONE = 0x000 , DC_VOLTAGE = 0x001 , DC_RMS_AMPLITUDE = 0x002 , AC_RMS_AMPLITUDE = 0x004 , FREQUENCY = 0x008 , DC_CURRENT = 0x010 , AC_CURRENT = 0x020 , TEMPERATURE = 0x040 , RESISTANCE = 0x080 , CAPACITANCE = 0x100 , CONTINUITY = 0x200 , DIODE = 0x400 }

Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Static Protected Attributes inherited from Oscilloscope
static CreateMapType	m_createprocs

Static Protected Attributes inherited from SCPIFunctionGenerator
static GeneratorCreateMapType	m_gencreateprocs

Static Protected Attributes inherited from SCPIMultimeter
static MeterCreateMapType	m_metercreateprocs

Detailed Description

Driver for Tektronix oscilloscopes.

Tek scopes appear to adhere strictly to the LXI-style request-response model. Sending a new command while another is currently executing will result in one or both commands aborting. Unfortunately, this poses significant problems getting good performance over a high-latency WAN.

Additionally, at least the 5/6 series appear to maintain state in the SCPI parser across connections. If a command is sent and the connection is immediately dropped, reconnecting may result in seeing the reply!!

To read the error log (helpful for driver development): ALLEV? Should print one of the following messages: 0,"No events to report - queue empty" 1,"No events to report - new events pending *ESR?" ESR? Prints a status register, not quite sure what this does ALLEV? Prints the error log in a somewhat confusing and not-human-readable format

Other gotchas to be aware of: if you send a command that is malformed or the scope is not in the correct state for (e.g. querying status of a MSO channel when there is no MSO probe connected to that channel), it will be dropped silently and the scope may hang for a few seconds before processing more commands. Resync after this is difficult.

Just don't do it.

Member Enumeration Documentation

◆ Family

enum TektronixOscilloscope::Family

protected

Type of scope we're connected to.

Enumerator
FAMILY_MSO5	MSO5 series.
FAMILY_MSO6	MSO6 series.
FAMILY_UNKNOWN	Other or unknown.

◆ ProbeType

enum TektronixOscilloscope::ProbeType

protected

Type of probe connected to a hardware channel.

Enumerator
PROBE_TYPE_ANALOG	Standard high impedance probe.
PROBE_TYPE_ANALOG_250K	250K ohm high bandwidth probe
PROBE_TYPE_ANALOG_CURRENT	Current probe.
PROBE_TYPE_DIGITAL_8BIT	8-bit logic pod

Constructor & Destructor Documentation

◆ TektronixOscilloscope()

TektronixOscilloscope::TektronixOscilloscope ( SCPITransport * transport )

Initialize the driver.

Parameters

transport SCPITransport connected to the scope

Member Function Documentation

◆ AcquireData()

bool TektronixOscilloscope::AcquireData ( )

overridevirtual

Pull data from the instrument.

Returns: True if waveform was acquired, false if connection lost or other serious error

Reimplemented from FunctionGenerator.

Reimplemented in TektronixHSIOscilloscope.

◆ AcquireDataMSO56()

bool TektronixOscilloscope::AcquireDataMSO56 ( std::map< int, std::vector< WaveformBase * > > & pending_waveforms )

protected

Acquire data from a MSO5 or MSO6 scope.

Parameters

[out] pending_waveforms Map of channel number -> waveform

Returns: True on success, false on failure

◆ CanDegauss()

bool TektronixOscilloscope::CanDegauss ( size_t i )

overridevirtual

Determines if a channel has a probe connected which supports the "degauss" feature.

This is typically true for current probes and false for most others.

Parameters

i	Zero-based index of channel

Reimplemented from Oscilloscope.

◆ CanEnableChannel()

bool TektronixOscilloscope::CanEnableChannel ( size_t i )

overridevirtual

Determines if a channel can be enabled.

Returns: False if the channel cannot currently be used (due to interleave conflicts or other hardware limitations).

True if the channel is available or is already enabled.

Parameters

i	Zero-based index of channel

The default implementation always returns true.

Reimplemented from Oscilloscope.

◆ Degauss()

void TektronixOscilloscope::Degauss ( size_t i )

overridevirtual

Performs an "degauss" cycle on the attached active probe, if supported by the hardware.

Parameters

i	Zero-based index of channel

Reimplemented from Oscilloscope.

◆ DisableChannel()

void TektronixOscilloscope::DisableChannel ( size_t i )

overridevirtual

Turn a channel off, given the index.

This function may optionally configure channel interleaving, if supported in hardware.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ EnableChannel()

void TektronixOscilloscope::EnableChannel ( size_t i )

overridevirtual

Turn a channel on, given the index.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ EnableTriggerOutput()

void TektronixOscilloscope::EnableTriggerOutput ( )

overridevirtual

Enables the trigger output, configuring a shared auxiliary port for this purpose if needed.

The default implementation does nothing, and is intended for instruments where the trigger output is always enabled.

Reimplemented from Oscilloscope.

◆ FlushConfigCache()

void TektronixOscilloscope::FlushConfigCache ( )

overridevirtual

Instruments are allowed to cache configuration settings to reduce round trip queries to the device.

In order to see updates made by the user at the front panel, the cache must be flushed.

Cache flushing is recommended to be manually triggered during interactive operation if there is no way to push updates from the scope to the driver.

In scripted/ATE environments where nobody should be touching the instrument, flushing is typically not needed.

The default implementation of this function does nothing since the base class provides no caching. If a derived class caches configuration, it should override this function to clear any cached data.

Reimplemented from Oscilloscope.

◆ ForceTrigger()

void TektronixOscilloscope::ForceTrigger ( )

overridevirtual

Forces a single acquisition as soon as possible.

Note that PollTrigger() may not return 'triggered' immediately, due to command processing latency.

Implements Oscilloscope.

◆ GetAvailableCouplings()

vector< OscilloscopeChannel::CouplingType > TektronixOscilloscope::GetAvailableCouplings ( size_t i )

overridevirtual

Gets the set of legal coupling values for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetAvailableWaveformShapes()

vector< FunctionGenerator::WaveShape > TektronixOscilloscope::GetAvailableWaveformShapes ( int chan )

overridevirtual

Query the set of available pre-defined waveforms for this generator.

Parameters

chan	Channel index

Returns: Vector of supported WaveShape's

Implements FunctionGenerator.

◆ GetCenterFrequency()

int64_t TektronixOscilloscope::GetCenterFrequency ( size_t channel )

overridevirtual

Gets the center frequency for a frequency-domain channel.

Parameters

channel Channel number

Reimplemented from Oscilloscope.

◆ GetChannelAttenuation()

double TektronixOscilloscope::GetChannelAttenuation ( size_t i )

overridevirtual

Gets the probe attenuation for an input channel.

Note that this function returns attenuation, not gain. For example, a 10x probe would return 10 and not 0.1.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetChannelBandwidthLimit()

unsigned int TektronixOscilloscope::GetChannelBandwidthLimit ( size_t i )

overridevirtual

Gets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel

Returns: Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implements Oscilloscope.

◆ GetChannelBandwidthLimiters()

vector< unsigned int > TektronixOscilloscope::GetChannelBandwidthLimiters ( size_t i )

overridevirtual

Gets the set of available bandwidth limiters for an input channel.

Parameters

i	Zero-based index of channel

Reimplemented from Oscilloscope.

◆ GetChannelCoupling()

OscilloscopeChannel::CouplingType TektronixOscilloscope::GetChannelCoupling ( size_t i )

overridevirtual

Gets the coupling used for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetChannelDisplayName()

string TektronixOscilloscope::GetChannelDisplayName ( size_t i )

overridevirtual

Gets the hardware display name for a channel. This is an arbitrary user-selected string.

Some instruments allow displaying channel names in the GUI or on probes. If this is supported, the driver should override this function.

This function does not implement any caching, so calling it directly in performance critical code is not advisable. Instead, call InstrumentChannel::GetDisplayName(), which caches clientside and calls this function only on a cache miss.

The default implementation is a no-op.

Parameters

i	Zero-based index of channel

Reimplemented from Instrument.

◆ GetChannelOffset()

float TektronixOscilloscope::GetChannelOffset	(	size_t	i,
		size_t	stream
	)

overridevirtual

Gets the offset, in volts, for a given channel.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)

Implements Oscilloscope.

◆ GetChannelVoltageRange()

float TektronixOscilloscope::GetChannelVoltageRange	(	size_t	i,
		size_t	stream
	)

overridevirtual

Gets the range of the current channel configuration.

The range is the distance, in volts, between the most negative/smallest and most positive/largest voltage which the ADC can represent using the current vertical gain configuration. This can be calculated as the number of vertical divisions times the number of volts per division.

The range does not depend on the offset.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)

Implements Oscilloscope.

◆ GetCurrentMeterChannel()

int TektronixOscilloscope::GetCurrentMeterChannel ( )

overridevirtual

Implements Multimeter.

◆ GetDeskewForChannel()

int64_t TektronixOscilloscope::GetDeskewForChannel ( size_t channel )

overridevirtual

Gets the deskew setting for a channel.

The default implementation returns zero, and is suitable for lower-end instruments that do not support deskew.

Reimplemented from Oscilloscope.

◆ GetDigitalBank()

Oscilloscope::DigitalBank TektronixOscilloscope::GetDigitalBank ( size_t channel )

overridevirtual

Gets the bank containing a given channel.

Reimplemented from Oscilloscope.

◆ GetDigitalBanks()

vector< Oscilloscope::DigitalBank > TektronixOscilloscope::GetDigitalBanks ( )

overridevirtual

Gets the digital channel banks for this instrument.

A bank is a set of one or more channels all sharing a common threshold and hysteresis setting.

Reimplemented from Oscilloscope.

◆ GetDigitalHysteresis()

float TektronixOscilloscope::GetDigitalHysteresis ( size_t channel )

overridevirtual

Gets the hysteresis for a digital input.

Reimplemented from Oscilloscope.

◆ GetDigitalThreshold()

float TektronixOscilloscope::GetDigitalThreshold ( size_t channel )

overridevirtual

Gets the threshold for a digital input.

Reimplemented from Oscilloscope.

◆ GetExternalTrigger()

OscilloscopeChannel * TektronixOscilloscope::GetExternalTrigger ( )

overridevirtual

Returns the external trigger input channel, if we have one.

Note that some very high end oscilloscopes have multiple external trigger inputs. We do not currently support this.

Implements Oscilloscope.

◆ GetFunctionChannelActive()

bool TektronixOscilloscope::GetFunctionChannelActive ( int chan )

overridevirtual

Returns true if the function generator channel's output is enabled.

Parameters

chan	Channel index

Implements FunctionGenerator.

◆ GetFunctionChannelAmplitude()

float TektronixOscilloscope::GetFunctionChannelAmplitude ( int chan )

overridevirtual

Gets the amplitude for a function generator output.

Parameters

chan	Channel index

Returns: Amplitude, in Vpp

Implements FunctionGenerator.

◆ GetFunctionChannelDutyCycle()

float TektronixOscilloscope::GetFunctionChannelDutyCycle ( int chan )

overridevirtual

Gets the duty cycle for a function generator output.

Parameters

chan	Channel index

Returns: Duty cycle, in range [0, 1]

Reimplemented from FunctionGenerator.

◆ GetFunctionChannelFrequency()

float TektronixOscilloscope::GetFunctionChannelFrequency ( int chan )

overridevirtual

Gets the frequency for a function generator output.

Parameters

chan	Channel index

Returns: Frequency, in Hz

Implements FunctionGenerator.

◆ GetFunctionChannelOffset()

float TektronixOscilloscope::GetFunctionChannelOffset ( int chan )

overridevirtual

Gets the DC offset for a function generator output.

Parameters

chan	Channel index

Returns: Offset, in volts

Implements FunctionGenerator.

◆ GetFunctionChannelOutputImpedance()

FunctionGenerator::OutputImpedance TektronixOscilloscope::GetFunctionChannelOutputImpedance ( int chan )

overridevirtual

Gets the currently selected output impedance for a function generator output (if supported)

Parameters

chan	Channel index

Returns: Output impedance

Reimplemented from FunctionGenerator.

◆ GetFunctionChannelShape()

FunctionGenerator::WaveShape TektronixOscilloscope::GetFunctionChannelShape ( int chan )

overridevirtual

Gets the waveform shape for a function generator output.

Parameters

chan	Channel index

Returns: Waveform shape

Implements FunctionGenerator.

◆ GetInstrumentTypes()

unsigned int TektronixOscilloscope::GetInstrumentTypes ( ) const

overridevirtual

Returns a bitfield describing the set of instrument types that this instrument supports.

Not all types may be available on a given channel.

Implements Instrument.

◆ GetInstrumentTypesForChannel()

uint32_t TektronixOscilloscope::GetInstrumentTypesForChannel ( size_t i ) const

overridevirtual

Returns a bitfield describing the set of instrument types that a given channel supports.

Parameters

i	Channel index

Implements Instrument.

◆ GetInterleaveConflicts()

set< Oscilloscope::InterleaveConflict > TektronixOscilloscope::GetInterleaveConflicts ( )

overridevirtual

Implements Oscilloscope.

◆ GetMeasurementTypes()

unsigned int TektronixOscilloscope::GetMeasurementTypes ( )

overridevirtual

Implements Multimeter.

◆ GetMeterAutoRange()

bool TektronixOscilloscope::GetMeterAutoRange ( )

overridevirtual

Implements Multimeter.

◆ GetMeterDigits()

int TektronixOscilloscope::GetMeterDigits ( )

overridevirtual

Returns the digit resolution of the meter.

Values are rounded up for display, for example a 5 3/4 digit meter should return 6 here.

Implements Multimeter.

◆ GetMeterMode()

Multimeter::MeasurementTypes TektronixOscilloscope::GetMeterMode ( )

overridevirtual

Implements Multimeter.

◆ GetMeterValue()

double TektronixOscilloscope::GetMeterValue ( )

overridevirtual

Get the value of the primary measurement.

Implements Multimeter.

◆ GetProbeName()

string TektronixOscilloscope::GetProbeName ( size_t i )

overridevirtual

Returns the name of the probe connected to the scope, if possible.

If a passive or no probe is connected, or the instrument driver does not support probe identification, an empty string may be returned.

Parameters

i	Zero-based index of channel

If this function returns false, GetFunctionChannelRiseTime() and GetFunctionChannelFallTime() will always return 0, and SetFunctionChannelRiseTime() and SetFunctionChannelFallTime() are no-ops.

Parameters

chan	Channel index

Returns: True if rise/fall time control is available, false if unavailable

Implements FunctionGenerator.

◆ IsAnalog()

bool TektronixOscilloscope::IsAnalog ( size_t index )

inlineprotected

Check if a channel is analog given the index.

Parameters

index Channel number

Returns: True if analog, false if spectrum or digital

◆ IsChannelEnabled()

bool TektronixOscilloscope::IsChannelEnabled ( size_t i )

overridevirtual

Checks if a channel is enabled in hardware.

Implements Oscilloscope.

◆ IsDigital()

bool TektronixOscilloscope::IsDigital ( size_t index )

inlineprotected

Check if a channel is digital given the index.

Parameters

index Channel number

Returns: True if digital, false if spectrum or analog

◆ IsDigitalHysteresisConfigurable()

bool TektronixOscilloscope::IsDigitalHysteresisConfigurable ( )

overridevirtual

Checks if digital input hysteresis is configurable or fixed.

Returns: true if configurable, false if fixed

Reimplemented from Oscilloscope.

◆ IsDigitalThresholdConfigurable()

bool TektronixOscilloscope::IsDigitalThresholdConfigurable ( )

overridevirtual

Checks if digital input threshold is configurable or fixed.

Returns: true if configurable, false if fixed

Reimplemented from Oscilloscope.

◆ IsEnableStateDirty()

bool TektronixOscilloscope::IsEnableStateDirty ( size_t chan )

protected

Checks if the channel enable state of a channel is up to date.

Parameters

chan	Channel index

Returns: True if up to date, false if not

◆ IsInterleaving()

bool TektronixOscilloscope::IsInterleaving ( )

overridevirtual

Checks if the scope is currently combining channels.

Implements Oscilloscope.

◆ IsSpectrum()

bool TektronixOscilloscope::IsSpectrum ( size_t index )

inlineprotected

Check if a channel is spectrum given the index.

Parameters

index Channel number

Returns: True if spectrum, false if analog or digital

◆ IsTriggerArmed()

bool TektronixOscilloscope::IsTriggerArmed ( )

overridevirtual

Checks if the trigger is currently armed.

Implements Oscilloscope.

◆ PeekTriggerArmed()

bool TektronixOscilloscope::PeekTriggerArmed ( )

overridevirtual

Checks if the trigger is armed directly on the instrument, without altering internal state or touching caches.

The default implementation of this function simply calls PollTrigger(). This function should be overridden by the driver class if PollTrigger() changes any internal driver state or accesses cached state (including a clientside "trigger armed" flag).

In particular, the multi-scope synchronization feature requires that this function not return true until the instment has confirmed the arm command has completely executed. Otherwise we risk losing trigger events by arming the primary before the secondary is ready to accept a trigger.

Reimplemented from Oscilloscope.

◆ PollTrigger()

Oscilloscope::TriggerMode TektronixOscilloscope::PollTrigger ( )

overridevirtual

Checks the curent trigger status.

Implements Oscilloscope.

Reimplemented in TektronixHSIOscilloscope.

◆ PullDropoutTrigger()

void TektronixOscilloscope::PullDropoutTrigger ( )

protected

Reads settings for a dropout trigger from the instrument.

Note that Tek's UI calls it "timeout" not "dropout" but the functionality is the same.

◆ PullTrigger()

void TektronixOscilloscope::PullTrigger ( )

overridevirtual

Updates m_trigger with any changes made from the instrument side.

Implements Oscilloscope.

◆ PushDropoutTrigger()

void TektronixOscilloscope::PushDropoutTrigger ( DropoutTrigger * trig )

protected

Pushes settings for a dropout trigger to the instrument.

Parameters

trig	The trigger to push

◆ PushEdgeTrigger()

void TektronixOscilloscope::PushEdgeTrigger ( EdgeTrigger * trig )

protected

Pushes settings for an edge trigger to the instrument.

Parameters

trig	The trigger to push

◆ PushPulseWidthTrigger()

void TektronixOscilloscope::PushPulseWidthTrigger ( PulseWidthTrigger * trig )

protected

Pushes settings for a pulse width trigger to the instrument.

Parameters

trig	The trigger to push

◆ PushRuntTrigger()

void TektronixOscilloscope::PushRuntTrigger ( RuntTrigger * trig )

protected

Pushes settings for a runt trigger to the instrument.

Parameters

trig	The trigger to push

◆ PushSlewRateTrigger()

void TektronixOscilloscope::PushSlewRateTrigger ( SlewRateTrigger * trig )

protected

Pushes settings for a slew rate trigger to the instrument.

Parameters

trig	The trigger to push

◆ PushTrigger()

void TektronixOscilloscope::PushTrigger ( )

overridevirtual

Pushes changes made to m_trigger to the instrument.

Implements Oscilloscope.

◆ PushWindowTrigger()

void TektronixOscilloscope::PushWindowTrigger ( WindowTrigger * trig )

protected

Pushes settings for a window trigger to the instrument.

Parameters

trig	The trigger to push

◆ ReadPreamble()

bool TektronixOscilloscope::ReadPreamble	(	std::string &	preamble_in,
		mso56_preamble &	preamble_out
	)

protected

Parses a waveform preamble.

Parameters

[in]	preamble_in	Raw string preamble
[out]	preamble_out	Parsed preamble data

◆ ReadTriggerLevelMSO56()

float TektronixOscilloscope::ReadTriggerLevelMSO56 ( OscilloscopeChannel * chan )

protected

Determine the current trigger level.

Parameters

chan	The channel selected as the trigger source

Returns: The current trigger level, in volts

◆ ResynchronizeSCPI()

void TektronixOscilloscope::ResynchronizeSCPI ( )

protected

Attempt to recover synchronization between ngscopeclient and the scope-side SCPI stack.

This involves a lot of ugly hacks while attempting to undo behavior the scope should never have had in the first place (keeping application layer protocol state across client disconnect/reconnect events).

We flush the receive buffer twice at the scope side, throw away anything in the socket RX buffer, then send a PRBS-3 of two different query commands with predictable output. By cross-correlating the replies with the sent commands, we can determine how many lines worth of garbage were in the instrument's TX buffer, discard them, and recover sync.

In theory. It doesn't always work and sometimes things are completely hosed until the scope reboots.

◆ SetCenterFrequency()

void TektronixOscilloscope::SetCenterFrequency	(	size_t	channel,
		int64_t	freq
	)

overridevirtual

Sets the center frequency for frequency-domain channels.

Parameters

channel	Channel number
freq	Center frequency, in Hz

Reimplemented from Oscilloscope.

◆ SetChannelAttenuation()

void TektronixOscilloscope::SetChannelAttenuation	(	size_t	i,
		double	atten
	)

overridevirtual

Sets the probe attenuation used for an input channel.

Parameters

i	Zero-based index of channel
atten	Attenuation factor

Implements Oscilloscope.

◆ SetChannelBandwidthLimit()

void TektronixOscilloscope::SetChannelBandwidthLimit	(	size_t	i,
		unsigned int	limit_mhz
	)

overridevirtual

Sets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel
limit_mhz	Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implements Oscilloscope.

◆ SetChannelCoupling()

void TektronixOscilloscope::SetChannelCoupling	(	size_t	i,
		OscilloscopeChannel::CouplingType	type
	)

overridevirtual

Sets the coupling used for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ SetChannelDisplayName()

void TektronixOscilloscope::SetChannelDisplayName	(	size_t	i,
		std::string	name
	)

overridevirtual

Sets the hardware display name for a channel. This is an arbitrary user-selected string.

Some instruments allow displaying channel names in the GUI or on probes. If this is supported, the driver should override this function.

This function directly updates hardware without caching. In most cases, you should call InstrumentChannel::SetDisplayName(), which updates the clientside cache and then calls this function.

The default function returns the hardware name.

Parameters

i	Zero-based index of channel
name	Name of the channel

Reimplemented from Instrument.

◆ SetChannelOffset()

void TektronixOscilloscope::SetChannelOffset	(	size_t	i,
		size_t	stream,
		float	offset
	)

overridevirtual

Sets the offset for a given channel.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)
offset	Offset, in volts

Implements Oscilloscope.

◆ SetChannelVoltageRange()

void TektronixOscilloscope::SetChannelVoltageRange	(	size_t	i,
		size_t	stream,
		float	range
	)

overridevirtual

Sets the range of the current channel configuration.

The range is the distance, in volts, between the most negative/smallest and most positive/largest voltage which the ADC can represent using the current vertical gain configuration. This can be calculated as the number of vertical divisions times the number of volts per division.

The range does not depend on the offset.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)
range	Voltage range

Implements Oscilloscope.

◆ SetCurrentMeterChannel()

void TektronixOscilloscope::SetCurrentMeterChannel ( int chan )

overridevirtual

Implements Multimeter.

◆ SetDeskewForChannel()

void TektronixOscilloscope::SetDeskewForChannel	(	size_t	channel,
		int64_t	skew
	)

overridevirtual

Sets the deskew setting for a channel.

Parameters

channel	The channel to deskew
skew	Skew value, in femtoseconds. Negative values move the channel earlier relative to the zero point. Positive values move the channel later.

The default implementation does nothing, and is suitable for lower-end instruments that do not support deskew.

Reimplemented from Oscilloscope.

◆ SetDigitalHysteresis()

void TektronixOscilloscope::SetDigitalHysteresis	(	size_t	channel,
		float	level
	)

overridevirtual

Sets the hysteresis for a digital input.

Reimplemented from Oscilloscope.

◆ SetDigitalThreshold()

void TektronixOscilloscope::SetDigitalThreshold	(	size_t	channel,
		float	level
	)

overridevirtual

Gets the threshold for a digital input.

Reimplemented from Oscilloscope.

◆ SetFunctionChannelActive()

void TektronixOscilloscope::SetFunctionChannelActive	(	int	chan,
		bool	on
	)

overridevirtual

Turns a function generator channel on or off.

Parameters

chan	Channel index
on	True to enable output, false to disable

Implements FunctionGenerator.

◆ SetFunctionChannelAmplitude()

void TektronixOscilloscope::SetFunctionChannelAmplitude	(	int	chan,
		float	amplitude
	)

overridevirtual

Sets the amplitude for a function generator output.

Parameters

chan	Channel index
amplitude	Output amplitude, in Vpp

Implements FunctionGenerator.

◆ SetFunctionChannelDutyCycle()

void TektronixOscilloscope::SetFunctionChannelDutyCycle	(	int	chan,
		float	duty
	)

overridevirtual

Sets the duty cycle for a function generator output.

Parameters

chan	Channel index
duty	Duty cycle, in range [0, 1]

Reimplemented from FunctionGenerator.

◆ SetFunctionChannelFrequency()

void TektronixOscilloscope::SetFunctionChannelFrequency	(	int	chan,
		float	hz
	)

overridevirtual

Sets the frequency for a function generator output.

Parameters

chan	Channel index
hz	Frequency, in Hz

Implements FunctionGenerator.

◆ SetFunctionChannelOffset()

void TektronixOscilloscope::SetFunctionChannelOffset	(	int	chan,
		float	offset
	)

overridevirtual

Sets the DC offset for a function generator output.

Parameters

chan	Channel index
amplitude	Offset, in volts

Implements FunctionGenerator.

◆ SetFunctionChannelOutputImpedance()

void TektronixOscilloscope::SetFunctionChannelOutputImpedance	(	int	chan,
		OutputImpedance	z
	)

overridevirtual

Sets the currently selected output impedance for a function generator output (if supported)

Parameters

chan	Channel index
z	Output impedance

Reimplemented from FunctionGenerator.

◆ SetFunctionChannelShape()

void TektronixOscilloscope::SetFunctionChannelShape	(	int	chan,
		WaveShape	shape
	)

overridevirtual

Sets the waveform shape for a function generator output.

Parameters

chan	Channel index
shape	Desired output waveform

Implements FunctionGenerator.

◆ SetInterleaving()

bool TektronixOscilloscope::SetInterleaving ( bool combine )

overridevirtual

Configures the scope to combine channels.

This function may fail to enable channel combining if conflicts are present, check the return value!

Returns: True if channel combining is enabled, false if not

Implements Oscilloscope.

◆ SetMeterAutoRange()

void TektronixOscilloscope::SetMeterAutoRange ( bool enable )

overridevirtual

Implements Multimeter.

void TektronixOscilloscope::SetSpan ( int64_t span )

overridevirtual

Sets the span for frequency-domain channels.

Parameters

span	Span, in Hz

Reimplemented from Oscilloscope.

◆ SetTriggerLevelMSO56()

void TektronixOscilloscope::SetTriggerLevelMSO56 ( Trigger * trig )

protected

Push the current trigger voltage level to hardware.

Parameters

trig	The trigger to push

◆ SetTriggerOffset()

void TektronixOscilloscope::SetTriggerOffset ( int64_t offset )

overridevirtual

Sets the trigger offset.

Parameters

offset Femtoseconds from the start of the capture to the trigger point. Positive values mean the trigger is within the waveform. Negative values mean there is a delay from the trigger point to the start of the waveform.

Implements Oscilloscope.

◆ SetUseExternalRefclk()

void TektronixOscilloscope::SetUseExternalRefclk ( bool external )

overridevirtual

Configures the instrument's clock source.

Parameters

external True to use external reference False to use internal clock

The default implementation prints an "unsupported operation" warning, and is suitable for lower-end instruments that do not support external clock inputs.

Reimplemented from Oscilloscope.

◆ ShouldDegauss()

bool TektronixOscilloscope::ShouldDegauss ( size_t i )

overridevirtual

Determines if a channel requires a degauss cycle (if supported)

Parameters

i	Zero-based index of channel

Reimplemented from Oscilloscope.

◆ Start()

void TektronixOscilloscope::Start ( )

overridevirtual

Starts the instrument in continuous trigger mode.

Most drivers will implement this as repeated calls to the "single trigger" function to avoid race conditions when the instrument triggers halfway through downloading captured waveforms.

Implements Oscilloscope.

void TektronixOscilloscope::StopMeter ( )

overridevirtual

Implements Multimeter.

Member Data Documentation

◆ m_channelEnableStatusDirty

std::set<size_t> TektronixOscilloscope::m_channelEnableStatusDirty

protected

True if this channel's status has changed (on/off) since the last time the trigger was armed.

This is needed to work around a bug in the MSO64 SCPI stack.

Per 5/6 series programmer manual for DAT:SOU:AVAIL?:

"This query returns a list of enumerations representing the source waveforms that currently available for
:CURVe? queries. This means that the waveforms have been acquired. If there are none, NONE is returned."

This is untrue. In reality it returns whether the channel is currently enabled. If a channel is enabled after the trigger event, DAT:SOU:AVAIL? will report the channel as available, however CURV? queries will silently fail and return no data.

The documentation for this class was generated from the following files:

lib/scopehal/TektronixOscilloscope.h
lib/scopehal/TektronixOscilloscope.cpp

Classes

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Family

◆ ProbeType

Constructor & Destructor Documentation

◆ TektronixOscilloscope()

Member Function Documentation

◆ AcquireData()

◆ AcquireDataMSO56()

◆ CanDegauss()

◆ CanEnableChannel()

◆ Degauss()

◆ DisableChannel()

◆ EnableChannel()

◆ EnableTriggerOutput()

◆ FlushConfigCache()

◆ ForceTrigger()

◆ GetAvailableCouplings()

◆ GetAvailableWaveformShapes()

◆ GetCenterFrequency()

◆ GetChannelAttenuation()

◆ GetChannelBandwidthLimit()

◆ GetChannelBandwidthLimiters()

◆ GetChannelCoupling()

◆ GetChannelDisplayName()

◆ GetChannelOffset()

◆ GetChannelVoltageRange()

◆ GetCurrentMeterChannel()

◆ GetDeskewForChannel()

◆ GetDigitalBank()

◆ GetDigitalBanks()

◆ GetDigitalHysteresis()

◆ GetDigitalThreshold()

◆ GetExternalTrigger()

◆ GetFunctionChannelActive()

◆ GetFunctionChannelAmplitude()

◆ GetFunctionChannelDutyCycle()

◆ GetFunctionChannelFrequency()

◆ GetFunctionChannelOffset()

◆ GetFunctionChannelOutputImpedance()

◆ GetFunctionChannelShape()

◆ GetInstrumentTypes()

◆ GetInstrumentTypesForChannel()

◆ GetInterleaveConflicts()

◆ GetMeasurementTypes()

◆ GetMeterAutoRange()

◆ GetMeterDigits()

◆ GetMeterMode()

◆ GetMeterValue()

◆ GetProbeName()

◆ GetResolutionBandwidth()

◆ GetSampleDepth()

◆ GetSampleDepthsInterleaved()

◆ GetSampleDepthsNonInterleaved()

◆ GetSampleRate()

◆ GetSampleRatesInterleaved()

◆ GetSampleRatesNonInterleaved()

◆ GetSpan()

◆ GetTriggerOffset()

◆ GetTriggerTypes()

◆ HasFrequencyControls()

◆ HasFunctionRiseFallTimeControls()

◆ IsAnalog()

◆ IsChannelEnabled()

◆ IsDigital()

◆ IsDigitalHysteresisConfigurable()

◆ IsDigitalThresholdConfigurable()

◆ IsEnableStateDirty()

◆ IsInterleaving()

◆ IsSpectrum()

◆ IsTriggerArmed()

◆ PeekTriggerArmed()

◆ PollTrigger()
