A waveform sampled at irregular intervals. More...

#include <Waveform.h>

Inheritance diagram for SparseWaveform< S >:

[legend]

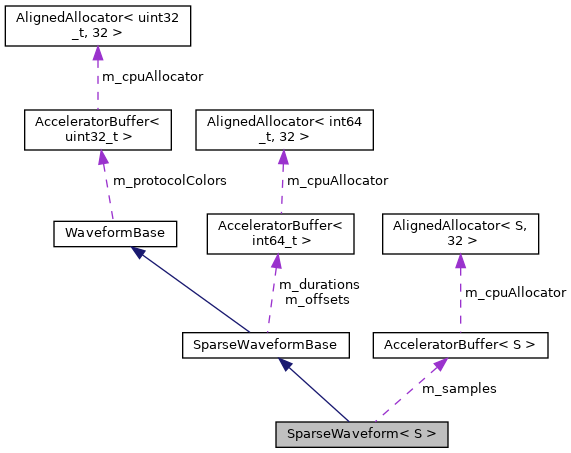

Collaboration diagram for SparseWaveform< S >:

[legend]

Public Member Functions
	SparseWaveform (const std::string &name="")
	Creates a new sparse waveform.

virtual void	Rename (const std::string &name="") override
	Assigns a human readable name to the waveform for debug purposes.

	SparseWaveform (UniformWaveform< S > &rhs)
	Constructs a sparse waveform as a copy of a uniform waveform, marking all samples as 1 timebase unit in length.

virtual void	SetCpuOnlyHint () override
	Helper function to indicate this waveform will only be used on the CPU.

virtual void	FreeGpuMemory () override
	Free GPU-side memory if we are short on VRAM or do not anticipate using this waveform for a while.

virtual bool	HasGpuBuffer () override
	Returns true if we have at least one buffer resident on the GPU.

virtual void	Resize (size_t size) override
	Reallocates buffers so the waveform contains the specified number of samples.

virtual void	Reserve (size_t size) override
	Preallocates buffers without changing the usable size of the waveform.

virtual size_t	size () const override
	Returns the number of samples in this waveform.

virtual size_t	GetMemoryBytes () const override
	Gets the amount of memory consumed by the waveform (may be CPU, GPU, or mirrored)

virtual size_t	capacity () const override
	Returns the number of samples allocated in this waveform.

virtual void	clear () override
	Remove all samples from this waveform.

virtual void	PrepareForCpuAccess () override
	Indicates that this waveform is going to be used by the CPU in the near future.

virtual void	PrepareForCpuAccessNonblocking (vk::raii::CommandBuffer &cmdBuf) override
	Indicates that this waveform is going to be used by the CPU in the near future.

virtual void	PrepareForGpuAccess () override
	Indicates that this waveform is going to be used by the GPU in the near future.

virtual void	PrepareForGpuAccessNonblocking (vk::raii::CommandBuffer &cmdBuf) override
	Indicates that this waveform is going to be used by the GPU in the near future.

virtual void	MarkSamplesModifiedFromCpu () override
	Indicates that this waveform's sample data has been modified on the CPU and the GPU-side copy is no longer coherent.

virtual void	MarkSamplesModifiedFromGpu () override
	Indicates that this waveform's sample data has been modified on the GPU and the CPU-side copy is no longer coherent.

void	SetGpuAccessHint (enum AcceleratorBuffer< S >::UsageHint hint)
	Passes a hint to the memory allocator about where our sample data is expected to be used.

Public Member Functions inherited from SparseWaveformBase
	SparseWaveformBase ()
	Constructs a new empty sparse waveform.

void	CopyTimestamps (const SparseWaveformBase *rhs)
	Copies offsets/durations from another waveform into this one.

void	MarkTimestampsModifiedFromCpu ()

void	MarkTimestampsModifiedFromGpu ()

virtual void	MarkModifiedFromCpu () override
	Indicates that this waveform's sample data and timestamps have been modified on the CPU and the GPU-side copy is no longer coherent.

virtual void	MarkModifiedFromGpu () override
	Indicates that this waveform's sample data and timestamps have been modified on the GPU and the CPU-side copy is no longer coherent.

Public Member Functions inherited from WaveformBase
	WaveformBase ()
	Creates an empty waveform.

	WaveformBase (const WaveformBase &rhs)
	Creates a waveform, copying metadata from another.

virtual bool	empty ()
	Returns true if this waveform contains no samples, false otherwise.

virtual std::string	GetText (size_t i)
	Returns the text representation of a given protocol sample.

virtual std::string	GetColor (size_t)
	Returns the displayed color (in HTML #rrggbb or #rrggbbaa notation) of a given protocol sample.

virtual uint32_t	GetColorCached (size_t i)
	Returns the packed RGBA32 color of a given protocol sample calculated by CacheColors()

virtual void	CacheColors ()
	Updates the cache of packed colors to avoid string parsing every frame.

Public Attributes
AcceleratorBuffer< S >	m_samples
	Sample data.

Public Attributes inherited from SparseWaveformBase
AcceleratorBuffer< int64_t >	m_offsets
	Start timestamps of each sample, in multiples of m_timescale.

AcceleratorBuffer< int64_t >	m_durations
	Durations of each sample, in multiples of m_timescale.

Public Attributes inherited from WaveformBase
int64_t	m_timescale
	The time scale, in X axis units (usually femtoseconds) per timestep, used by this channel.

time_t	m_startTimestamp
	Start time of the acquisition, integer part.

int64_t	m_startFemtoseconds
	Start time of the acquisition, fractional part (femtoseconds since since the UTC second)

int64_t	m_triggerPhase
	Offset, in X axis units (usually femtoseconds), from the trigger to the sampling clock.

uint8_t	m_flags
	Flags that apply to this waveform. Bitfield containing zero or more WaveformFlags_t values.

uint64_t	m_revision
	Revision number.

Additional Inherited Members
Public Types inherited from WaveformBase
enum	WaveformFlags_t { WAVEFORM_CLIPPING = 1 }
	Flags which may apply to m_flags. More...

Protected Attributes inherited from WaveformBase
AcceleratorBuffer< uint32_t >	m_protocolColors
	Cache of packed RGBA32 data with colors for each protocol decode event. Empty for non-protocol waveforms.

uint64_t	m_cachedColorRevision
	Revision we last cached colors of.

Detailed Description

template<class S>
class SparseWaveform< S >

A waveform sampled at irregular intervals.

Constructor & Destructor Documentation

◆ SparseWaveform()

template<class S >

SparseWaveform< S >::SparseWaveform ( const std::string & name = "" )

inline

Creates a new sparse waveform.

Parameters

name	Internal name for this waveform, to be displayed in debug log messages etc

Member Function Documentation

◆ capacity()

template<class S >

virtual size_t SparseWaveform< S >::capacity ( ) const

inlineoverridevirtual

Returns the number of samples allocated in this waveform.

Implements WaveformBase.

◆ clear()

template<class S >

virtual void SparseWaveform< S >::clear ( )

inlineoverridevirtual

Remove all samples from this waveform.

Implements WaveformBase.

◆ FreeGpuMemory()

template<class S >

virtual void SparseWaveform< S >::FreeGpuMemory ( )

inlineoverridevirtual

Free GPU-side memory if we are short on VRAM or do not anticipate using this waveform for a while.

Implements WaveformBase.

◆ GetMemoryBytes()

template<class S >

virtual size_t SparseWaveform< S >::GetMemoryBytes ( ) const

inlineoverridevirtual

Gets the amount of memory consumed by the waveform (may be CPU, GPU, or mirrored)

Implements WaveformBase.

◆ HasGpuBuffer()

template<class S >

virtual bool SparseWaveform< S >::HasGpuBuffer ( )

inlineoverridevirtual

Returns true if we have at least one buffer resident on the GPU.

Implements WaveformBase.

◆ MarkSamplesModifiedFromCpu()

template<class S >

virtual void SparseWaveform< S >::MarkSamplesModifiedFromCpu ( )

inlineoverridevirtual

Indicates that this waveform's sample data has been modified on the CPU and the GPU-side copy is no longer coherent.

Implements WaveformBase.

◆ MarkSamplesModifiedFromGpu()

template<class S >

virtual void SparseWaveform< S >::MarkSamplesModifiedFromGpu ( )

inlineoverridevirtual

Indicates that this waveform's sample data has been modified on the GPU and the CPU-side copy is no longer coherent.

Implements WaveformBase.

◆ PrepareForCpuAccess()

template<class S >

virtual void SparseWaveform< S >::PrepareForCpuAccess ( )

inlineoverridevirtual

Indicates that this waveform is going to be used by the CPU in the near future.

This ensures the CPU-side copy of the data is coherent with the most recently modified (CPU or GPU side) copy.

Implements WaveformBase.

◆ PrepareForCpuAccessNonblocking()

template<class S >

virtual void SparseWaveform< S >::PrepareForCpuAccessNonblocking ( vk::raii::CommandBuffer & cmdBuf )

inlineoverridevirtual

Indicates that this waveform is going to be used by the CPU in the near future.

This ensures the CPU-side copy of the data is coherent with the most recently modified (CPU or GPU side) copy.

Implements WaveformBase.

◆ PrepareForGpuAccess()

template<class S >

virtual void SparseWaveform< S >::PrepareForGpuAccess ( )

inlineoverridevirtual

Indicates that this waveform is going to be used by the GPU in the near future.

This ensures the GPU-side copy of the data is coherent with the most recently modified (CPU or GPU side) copy.

Implements WaveformBase.

◆ PrepareForGpuAccessNonblocking()

template<class S >

virtual void SparseWaveform< S >::PrepareForGpuAccessNonblocking ( vk::raii::CommandBuffer & cmdBuf )

inlineoverridevirtual

Indicates that this waveform is going to be used by the GPU in the near future.

This ensures the GPU-side copy of the data is coherent with the most recently modified (CPU or GPU side) copy.

Implements WaveformBase.

◆ Rename()

template<class S >

virtual void SparseWaveform< S >::Rename ( const std::string & name = "" )

inlineoverridevirtual

Assigns a human readable name to the waveform for debug purposes.

This value may be printed in internal log messages, by the Vulkan validation layers, displayed in frame debuggers, etc.

Implements WaveformBase.

◆ Reserve()

template<class S >

virtual void SparseWaveform< S >::Reserve ( size_t size )

inlineoverridevirtual

Preallocates buffers without changing the usable size of the waveform.

Implements WaveformBase.

◆ Resize()

template<class S >

virtual void SparseWaveform< S >::Resize ( size_t size )

inlineoverridevirtual

Reallocates buffers so the waveform contains the specified number of samples.

If the waveform shrinks, excess memory is not freed by default. If the waveform grows, new samples are uninitialized.

Parameters

size	New size of the waveform buffer, in samples

Implements WaveformBase.

◆ SetCpuOnlyHint()

template<class S >

virtual void SparseWaveform< S >::SetCpuOnlyHint ( )

inlineoverridevirtual

Helper function to indicate this waveform will only be used on the CPU.

Reimplemented from SparseWaveformBase.

◆ SetGpuAccessHint()

template<class S >

void SparseWaveform< S >::SetGpuAccessHint ( enum AcceleratorBuffer< S >::UsageHint hint )

inline

Passes a hint to the memory allocator about where our sample data is expected to be used.

Parameters

hint	Hint value for expected usage

◆ size()

template<class S >

virtual size_t SparseWaveform< S >::size ( ) const

inlineoverridevirtual

Returns the number of samples in this waveform.

Implements WaveformBase.

The documentation for this class was generated from the following file:

lib/scopehal/Waveform.h
