WindowTrigger Class Reference

Window trigger - detect when the signal leaves a specified range. More...

#include <WindowTrigger.h>

Inheritance diagram for WindowTrigger:

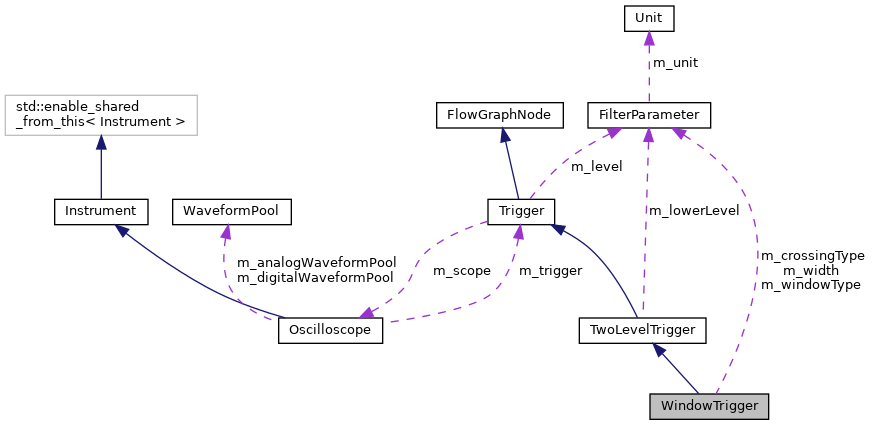

Collaboration diagram for WindowTrigger:

Public Types
enum	Crossing { CROSS_UPPER , CROSS_LOWER , CROSS_EITHER , CROSS_NONE }
	Type of level crossing to detect for "stay inside" and "stay outside" windows. More...
enum	WindowType { WINDOW_ENTER , WINDOW_EXIT , WINDOW_EXIT_TIMED , WINDOW_ENTER_TIMED }
	How to trigger. More...
Public Types inherited from Trigger
enum	Condition {   CONDITION_EQUAL , CONDITION_NOT_EQUAL , CONDITION_LESS , CONDITION_LESS_OR_EQUAL ,   CONDITION_GREATER , CONDITION_GREATER_OR_EQUAL , CONDITION_BETWEEN , CONDITION_NOT_BETWEEN ,   CONDITION_ANY }
	Conditions for triggers that perform logical comparisons of values. More...
typedef Trigger *(*	CreateProcType) (Oscilloscope *)
Public Types inherited from FlowGraphNode
enum class	ExecutionCapabilities {   None = 0 , CommandBufferAppend = 1 , CommandBufferTailCall = 2 , VulkanOnly = 4 ,   DynamicShader = 8 }
typedef std::map< std::string, FilterParameter >	ParameterMapType
	Short name for a map of strings to parameters.

Public Member Functions
	WindowTrigger (Oscilloscope *scope)
	Creates a new window trigger.
virtual bool	ValidateChannel (size_t i, StreamDescriptor stream) override
	Check if a stream is allowed to be connected to the given input.
void	SetCrossingDirection (Crossing dir)
	Sets the crossing direction (only used for "stay inside" and "stay outside" window types)
Crossing	GetCrossingDirection ()
	Gets the selected crossing direction.
void	SetWindowType (WindowType type)
	Sets the type of window.
WindowType	GetWindowType ()
	Gets the type of window.
void	SetWidth (int64_t ps)
	Sets the time the signal needs to stay in/outside the window.
int64_t	GetWidth ()
	Gets the time the signal needs to stay in / outside the winodw.
	TRIGGER_INITPROC (WindowTrigger)
Public Member Functions inherited from TwoLevelTrigger
	TwoLevelTrigger (Oscilloscope *scope)
	Create a two-level trigger.
float	GetUpperBound ()
	Gets the upper of the two trigger levels.
void	SetUpperBound (float level)
	Sets the upper trigger level.
float	GetLowerBound ()
	Gets the lower of the two trigger levels.
void	SetLowerBound (float level)
	Sets the lower trigger level.
Public Member Functions inherited from Trigger
	Trigger (Oscilloscope *scope)
	Initialize a new trigger.
virtual void	Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) override
float	GetLevel ()
	Get the trigger level.
float	GetUpperLevel ()
void	SetLevel (float level)
	Sets the trigger level.
void	SetUpperLevel (float level)
Oscilloscope *	GetScope ()
	Gets the scope this trigger is attached to.
virtual std::string	GetTriggerDisplayName ()=0
virtual YAML::Node	SerializeConfiguration (IDTable &table) override
	Serializes this trigger's configuration to a YAML string.
Public Member Functions inherited from FlowGraphNode
void	DetachInputs ()
	Disconnects all inputs from the node without releasing them.
size_t	GetInputCount ()
	Get the number of input ports.
std::string	GetInputName (size_t i)
void	SetInput (size_t i, StreamDescriptor stream, bool force=false)
	Connects a stream to the input of this node.
void	SetInput (const std::string &name, StreamDescriptor stream, bool force=false)
bool	HasInput (StreamDescriptor desc)
	Checks if the given stream is connected to at least one of our inputs.
StreamDescriptor	GetInput (size_t i)
	Gets the descriptor for one of our inputs.
std::shared_ptr< InputConstraint >	GetInputConstraints (size_t i)
	Get the constraints on one of our inputs.
FilterParameter &	GetParameter (std::string s)
bool	HasParameter (std::string s)
	Checks if we have a parameter with a given name.
ParameterMapType::iterator	GetParamBegin ()
	Returns an iterator to the beginning of our parameter map.
ParameterMapType::iterator	GetParamEnd ()
	Returns an iterator to the end of our parameter map.
size_t	GetParamCount ()
	Returns the number of parameter we have.
virtual void	LoadParameters (const YAML::Node &node, IDTable &table)
	Load configuration from a save file.
virtual void	LoadInputs (const YAML::Node &node, IDTable &table)
bool	IsDownstreamOf (std::set< FlowGraphNode * > nodes)
	Determines if this node is downstream of any of the specified other nodes.
virtual uint32_t	GetExecutionCapabilitiesMask ()
	Returns a bitmask of ExecutionCapabilities fields.
bool	HasMessages () const
	Checks if this graph has any messages.
const std::vector< FlowGraphNodeMessage > &	GetMessages () const
	Walking through any messages.
const FlowGraphNodeMessage *	GetMostSevereMessage () const
void	AddSink (size_t stream, FlowGraphNode *node)
void	RemoveSink (size_t stream, FlowGraphNode *node)
const std::set< FlowGraphNode * > &	GetSinks (size_t stream)
sigc::signal< void()>	signal_parametersChanged ()
sigc::signal< void()>	signal_inputsChanged ()

Static Public Member Functions
static std::string	GetTriggerName ()
	Return the constant trigger name "Window".
Static Public Member Functions inherited from Trigger
static void	DoAddTriggerClass (std::string name, CreateProcType proc)
	Register a new trigger class for dynamic creation.
static void	EnumTriggers (std::vector< std::string > &names)
	Gets a list of all registered trigger types.
static Trigger *	CreateTrigger (std::string name, Oscilloscope *scope)
	Creates a new trigger for an oscilloscope.

Protected Attributes
FilterParameter &	m_width
	Time the signal needs to stay in / outside the window.
FilterParameter &	m_crossingType
	Crossing direction for stay-inside and stay-outside types.
FilterParameter &	m_windowType
	Condition to trigger on.
Protected Attributes inherited from TwoLevelTrigger
FilterParameter &	m_lowerLevel
	Lower voltage threshold.
Protected Attributes inherited from Trigger
Oscilloscope *	m_scope
	The scope this trigger is part of.
FilterParameter &	m_level
	"Trigger level" parameter
FilterParameter &	m_triggerLevel
FilterParameter &	m_upperLevel
Protected Attributes inherited from FlowGraphNode
std::vector< std::shared_ptr< InputDescriptor > >	m_inputs
	Input ports.
std::vector< std::set< FlowGraphNode * > >	m_sinks
	The nodes (if any) that each of our streams drives.
ParameterMapType	m_parameters
sigc::signal< void()>	m_parametersChangedSignal
	Signal emitted when the set of parameters changes.
sigc::signal< void()>	m_inputsChangedSignal
	Signal emitted when the set of inputs changes.
std::vector< FlowGraphNodeMessage >	m_messages

Additional Inherited Members
Protected Types inherited from Trigger
typedef std::map< std::string, CreateProcType >	CreateMapType
	Helper typedef for m_createprocs.
Protected Member Functions inherited from FlowGraphNode
virtual void	OnInputChanged (size_t i)
	Called when a new input is connected to the node.
WaveformBase *	GetInputWaveform (size_t i)
	Gets the waveform attached to the specified input.
SparseAnalogWaveform *	GetSparseAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.
UniformAnalogWaveform *	GetUniformAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.
SparseDigitalWaveform *	GetSparseDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.
UniformDigitalWaveform *	GetUniformDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.
virtual void	CreateInput (const std::string &name)
	Gets the digital bus waveform attached to the specified input.
template<class T , class... Args>
void	CreateInput (const std::string &name, Args &&... args)
std::string	GetInputDisplayName (size_t i)
	Gets the display name for one of our inputs.
void	ClearMessages ()
	Remove any messages left over from the last graph refresh.
void	AddMessage (const FlowGraphNodeMessage &msg)
	Attach a new message to the node.
void	AddMessage (Severity severity, const std::string &title, const std::string &message)
	Attach a new message to the node.
void	AddErrorMessage (const std::string &err)
	Add a new error message.
void	AddErrorMessage (const std::string &title, const std::string &err)
	Add a new error message with a title.
Static Protected Attributes inherited from Trigger
static CreateMapType	m_createprocs
	Map of trigger type names to factory methods.

Detailed Description

Window trigger - detect when the signal leaves a specified range.

Member Enumeration Documentation

Crossing

enum WindowTrigger::Crossing

Type of level crossing to detect for "stay inside" and "stay outside" windows.

Enumerator
CROSS_UPPER	Upper threshold.
CROSS_LOWER	Lower threshold.
CROSS_EITHER	Either threshold.
CROSS_NONE	Nothing.

WindowType

enum WindowTrigger::WindowType

How to trigger.

Enumerator
WINDOW_ENTER	Trigger immediately upon entry to the window.
WINDOW_EXIT	Trigger immediately upon exit from the window.
WINDOW_EXIT_TIMED	Trigger upon exit from the window, if we were in it for at least X time.
WINDOW_ENTER_TIMED	Trigger upon entry to the window, if we were outside it for at least X time.

Constructor & Destructor Documentation

WindowTrigger()

WindowTrigger::WindowTrigger

(

Oscilloscope *

scope

)

Creates a new window trigger.

Parameters

scope

The oscilloscope the trigger is going to be used with

Member Function Documentation

SetWidth()

void WindowTrigger::SetWidth ( int64_t  ps )

inline

Sets the time the signal needs to stay in/outside the window.

Only used for WINDOW_ENTER_TIMED and WINDOW_EXIT_TIMED

ValidateChannel()

bool WindowTrigger::ValidateChannel ( size_t  i, StreamDescriptor  stream  )

overridevirtual

Check if a stream is allowed to be connected to the given input.

Reimplemented from FlowGraphNode.

---

The documentation for this class was generated from the following files:

• lib/scopehal/WindowTrigger.h
• lib/scopehal/WindowTrigger.cpp
