Runt trigger - trigger when a pulse of a given width crosses one threshold but not the second. More...
#include <RuntTrigger.h>
Inheritance diagram for RuntTrigger:

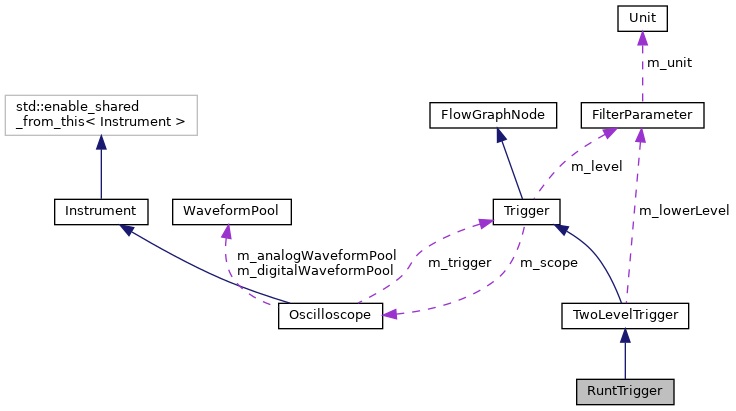

Collaboration diagram for RuntTrigger:
Public Types | |
| enum | EdgeType { EDGE_RISING , EDGE_FALLING , EDGE_ANY } |
 Public Types inherited from Trigger | |
| enum | Condition { CONDITION_EQUAL , CONDITION_NOT_EQUAL , CONDITION_LESS , CONDITION_LESS_OR_EQUAL , CONDITION_GREATER , CONDITION_GREATER_OR_EQUAL , CONDITION_BETWEEN , CONDITION_NOT_BETWEEN , CONDITION_ANY } |
| Conditions for triggers that perform logical comparisons of values. More... | |
| typedef Trigger *(* | CreateProcType) (Oscilloscope *) |
| Public Types inherited from FlowGraphNode | |
| enum | DataLocation { LOC_CPU , LOC_GPU , LOC_DONTCARE } |
| typedef std::map< std::string, FilterParameter > | ParameterMapType |
| Short name for a map of strings to parameters. | |
Public Member Functions | |
| RuntTrigger (Oscilloscope *scope) | |
| virtual bool | ValidateChannel (size_t i, StreamDescriptor stream) override |
| TRIGGER_INITPROC (RuntTrigger) | |
| int64_t | GetUpperInterval () |
| void | SetUpperInterval (int64_t interval) |
| int64_t | GetLowerInterval () |
| void | SetLowerInterval (int64_t interval) |
| void | SetCondition (Condition type) |
| Condition | GetCondition () |
| void | SetSlope (EdgeType type) |
| EdgeType | GetSlope () |
| Public Member Functions inherited from TwoLevelTrigger | |
| TwoLevelTrigger (Oscilloscope *scope) | |
| Create a two-level trigger. More... | |
| float | GetUpperBound () |
| Gets the upper of the two trigger levels. More... | |
| void | SetUpperBound (float level) |
| Sets the upper trigger level. More... | |
| float | GetLowerBound () |
| Gets the lower of the two trigger levels. | |
| void | SetLowerBound (float level) |
| Sets the lower trigger level. More... | |
| Public Member Functions inherited from Trigger | |
| Trigger (Oscilloscope *scope) | |
| Initialize a new trigger. More... | |
| float | GetLevel () |
| Get the trigger level. | |
| void | SetLevel (float level) |
| Sets the trigger level. More... | |
| Oscilloscope * | GetScope () |
| Gets the scope this trigger is attached to. | |
| virtual std::string | GetTriggerDisplayName ()=0 |
| virtual YAML::Node | SerializeConfiguration (IDTable &table) override |
| Serializes this trigger's configuration to a YAML string. More... | |
| Public Member Functions inherited from FlowGraphNode | |
| void | DetachInputs () |
| Disconnects all inputs from the node without releasing them. More... | |
| size_t | GetInputCount () |
| std::string | GetInputName (size_t i) |
| void | SetInput (size_t i, StreamDescriptor stream, bool force=false) |
| Connects a stream to the input of this node. More... | |
| void | SetInput (const std::string &name, StreamDescriptor stream, bool force=false) |
| virtual bool | ValidateChannel (size_t i, StreamDescriptor stream) |
| StreamDescriptor | GetInput (size_t i) |
| Gets the descriptor for one of our inputs. | |
| FilterParameter & | GetParameter (std::string s) |
| bool | HasParameter (std::string s) |
| Checks if we have a parameter with a given name. More... | |
| ParameterMapType::iterator | GetParamBegin () |
| Returns an iterator to the beginning of our parameter map. | |
| ParameterMapType::iterator | GetParamEnd () |
| Returns an iterator to the end of our parameter map. | |
| size_t | GetParamCount () |
| Returns the number of parameter we have. | |
| virtual YAML::Node | SerializeConfiguration (IDTable &table) |
| Serializes this trigger's configuration to a YAML string. More... | |
| virtual void | LoadParameters (const YAML::Node &node, IDTable &table) |
| Load configuration from a save file. More... | |
| virtual void | LoadInputs (const YAML::Node &node, IDTable &table) |
| bool | IsDownstreamOf (std::set< FlowGraphNode * > nodes) |
| Determines if this node is downstream of any of the specified other nodes. More... | |
| virtual DataLocation | GetInputLocation () |
| Gets the desired location of the nodes's input data. More... | |
| virtual void | Refresh () |
| Evaluates a filter graph node. More... | |
| virtual void | Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) |
| sigc::signal< void()> | signal_parametersChanged () |
| sigc::signal< void()> | signal_inputsChanged () |
Static Public Member Functions | |
| static std::string | GetTriggerName () |
| Static Public Member Functions inherited from Trigger | |
| static void | DoAddTriggerClass (std::string name, CreateProcType proc) |
| Register a new trigger class for dynamic creation. More... | |
| static void | EnumTriggers (std::vector< std::string > &names) |
| Gets a list of all registered trigger types. More... | |
| static Trigger * | CreateTrigger (std::string name, Oscilloscope *scope) |
| Creates a new trigger for an oscilloscope. More... | |
Protected Attributes | |
| std::string | m_conditionname |
| std::string | m_lowerintname |
| std::string | m_upperintname |
| std::string | m_slopename |
| Protected Attributes inherited from TwoLevelTrigger | |
| FilterParameter & | m_lowerLevel |
| Lower voltage threshold. | |
| Protected Attributes inherited from Trigger | |
| Oscilloscope * | m_scope |
| The scope this trigger is part of. | |
| FilterParameter & | m_level |
| "Trigger level" parameter | |
| Protected Attributes inherited from FlowGraphNode | |
| std::vector< std::string > | m_signalNames |
| Names of signals we take as input. | |
| std::vector< StreamDescriptor > | m_inputs |
| The channel (if any) connected to each of our inputs. | |
| ParameterMapType | m_parameters |
| sigc::signal< void()> | m_parametersChangedSignal |
| Signal emitted when the set of parameters changes. | |
| sigc::signal< void()> | m_inputsChangedSignal |
| Signal emitted when the set of inputs changes. | |
Additional Inherited Members | |
| Protected Types inherited from Trigger | |
| typedef std::map< std::string, CreateProcType > | CreateMapType |
| Helper typedef for m_createprocs. | |
| Protected Member Functions inherited from FlowGraphNode | |
| virtual void | OnInputChanged (size_t i) |
| Called when a new input is connected to the node. More... | |
| WaveformBase * | GetInputWaveform (size_t i) |
| Gets the waveform attached to the specified input. More... | |
| SparseAnalogWaveform * | GetSparseAnalogInputWaveform (size_t i) |
| Gets the analog waveform attached to the specified input. | |
| UniformAnalogWaveform * | GetUniformAnalogInputWaveform (size_t i) |
| Gets the analog waveform attached to the specified input. | |
| SparseDigitalWaveform * | GetSparseDigitalInputWaveform (size_t i) |
| Gets the digital waveform attached to the specified input. | |
| UniformDigitalWaveform * | GetUniformDigitalInputWaveform (size_t i) |
| Gets the digital waveform attached to the specified input. | |
| SparseDigitalBusWaveform * | GetSparseDigitalBusInputWaveform (size_t i) |
| Gets the digital bus waveform attached to the specified input. | |
| void | CreateInput (const std::string &name) |
| Creates and names an input signal. | |
| std::string | GetInputDisplayName (size_t i) |
| Gets the display name for one of our inputs. More... | |
| Static Protected Attributes inherited from Trigger | |
| static CreateMapType | m_createprocs |
| Map of trigger type names to factory methods. | |
Detailed Description
Runt trigger - trigger when a pulse of a given width crosses one threshold but not the second.
Member Function Documentation
◆ ValidateChannel()
|
overridevirtual |
Reimplemented from FlowGraphNode.
The documentation for this class was generated from the following files:
- lib/scopehal/RuntTrigger.h
- lib/scopehal/RuntTrigger.cpp
