Siglent electronic load. More...

#include <SiglentLoad.h>

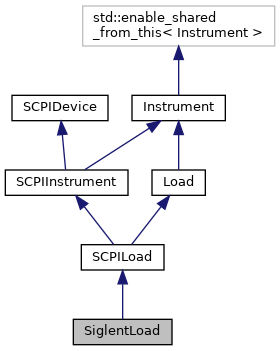

Inheritance diagram for SiglentLoad:

[legend]

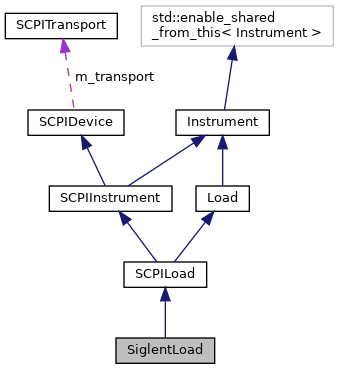

Collaboration diagram for SiglentLoad:

[legend]

Public Member Functions
	SiglentLoad (SCPITransport *transport)

virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const override
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

virtual LoadMode	GetLoadMode (size_t channel) override
	Returns the operating mode of the load. More...

virtual void	SetLoadMode (size_t channel, LoadMode mode) override
	Sets the operating mode of the load. More...

virtual std::vector< float >	GetLoadCurrentRanges (size_t channel) override
	Returns a sorted list of operating ranges for the load's current scale, in amps. More...

virtual size_t	GetLoadCurrentRange (size_t channel) override
	Returns the index of the load's selected current range, as returned by GetLoadCurrentRanges() More...

virtual std::vector< float >	GetLoadVoltageRanges (size_t channel) override
	Returns a sorted list of operating ranges for the load's voltage scale, in volts. More...

virtual size_t	GetLoadVoltageRange (size_t channel) override
	Returns the index of the load's selected voltage range, as returned by GetLoadVoltageRanges() More...

virtual bool	GetLoadActive (size_t channel) override
	Returns true if the load is enabled (sinking power) and false if disabled (no load) More...

virtual void	SetLoadActive (size_t channel, bool active) override
	Turns the load on or off. More...

virtual void	SetLoadVoltageRange (size_t channel, size_t rangeIndex) override
	Select the voltage range to use. More...

virtual void	SetLoadCurrentRange (size_t channel, size_t rangeIndex) override
	Select the current range to use. More...

virtual float	GetLoadSetPoint (size_t channel) override
	Gets the set point for the channel. More...

virtual void	SetLoadSetPoint (size_t channel, float target) override
	Sets the set point for the channel. More...

Public Member Functions inherited from Load
virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual bool	AcquireData () override
	Pulls data from hardware and updates our measurements. More...

virtual LoadMode	GetLoadMode (size_t channel)=0
	Returns the operating mode of the load. More...

virtual void	SetLoadMode (size_t channel, LoadMode mode)=0
	Sets the operating mode of the load. More...

virtual std::vector< float >	GetLoadCurrentRanges (size_t channel)=0
	Returns a sorted list of operating ranges for the load's current scale, in amps. More...

virtual size_t	GetLoadCurrentRange (size_t channel)=0
	Returns the index of the load's selected current range, as returned by GetLoadCurrentRanges() More...

virtual std::vector< float >	GetLoadVoltageRanges (size_t channel)=0
	Returns a sorted list of operating ranges for the load's voltage scale, in volts. More...

virtual size_t	GetLoadVoltageRange (size_t channel)=0
	Returns the index of the load's selected voltage range, as returned by GetLoadVoltageRanges() More...

virtual void	SetLoadVoltageRange (size_t channel, size_t rangeIndex)=0
	Select the voltage range to use. More...

virtual void	SetLoadCurrentRange (size_t channel, size_t rangeIndex)=0
	Select the current range to use. More...

virtual bool	GetLoadActive (size_t channel)=0
	Returns true if the load is enabled (sinking power) and false if disabled (no load) More...

virtual void	SetLoadActive (size_t channel, bool active)=0
	Turns the load on or off. More...

virtual float	GetLoadSetPoint (size_t channel)=0
	Gets the set point for the channel. More...

virtual void	SetLoadSetPoint (size_t channel, float target)=0
	Sets the set point for the channel. More...

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Public Member Functions inherited from SCPIInstrument
	SCPIInstrument (SCPITransport *transport, bool identify=true)

virtual std::string	GetTransportConnectionString ()
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()
	Gets the name of our transport. More...

virtual std::string	GetName () const

virtual std::string	GetVendor () const

virtual std::string	GetSerial () const

virtual std::string	GetDriverName () const =0

Public Member Functions inherited from SCPIDevice
	SCPIDevice (SCPITransport *transport, bool identify=true)

SCPITransport *	GetTransport () const

Static Public Member Functions
static std::string	GetDriverNameInternal ()

Static Public Member Functions inherited from SCPILoad
static void	DoAddDriverClass (std::string name, LoadCreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< SCPILoad >	CreateLoad (std::string driver, SCPITransport *transport)

Static Public Member Functions inherited from Load
static std::string	GetNameOfLoadMode (LoadMode mode)
	Convert a LoadMode to a printable string. More...

static LoadMode	GetLoadModeOfName (const std::string &name)
	Convert a printable string to a LoadMode. More...

Protected Member Functions
LoadMode	GetLoadModeUncached (size_t channel)

virtual float	GetLoadVoltageActual (size_t channel) override
	Get the measured voltage of the load (uncached instantaneous measurement) More...

virtual float	GetLoadCurrentActual (size_t channel) override
	Get the measured current of the load (uncached instantaneous measurement) More...

virtual float	GetLoadSetPointActual (size_t channel)

Protected Member Functions inherited from Load
virtual float	GetLoadVoltageActual (size_t channel)=0
	Get the measured voltage of the load (uncached instantaneous measurement) More...

virtual float	GetLoadCurrentActual (size_t channel)=0
	Get the measured current of the load (uncached instantaneous measurement) More...

void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this multimeter's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

Protected Member Functions inherited from SCPIInstrument
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)

Protected Attributes
LoadMode	m_modeCached

float	m_setPointCached

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Protected Attributes inherited from SCPIDevice
SCPITransport *	m_transport

std::string	m_vendor

std::string	m_model

std::string	m_serial

std::string	m_fwVersion

Additional Inherited Members
Public Types inherited from SCPILoad
typedef std::shared_ptr< SCPILoad >(*	LoadCreateProcType) (SCPITransport *)

Public Types inherited from Load
enum	LoadMode { MODE_CONSTANT_CURRENT , MODE_CONSTANT_VOLTAGE , MODE_CONSTANT_RESISTANCE , MODE_CONSTANT_POWER }
	Operating modes for the load. More...

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Protected Types inherited from SCPILoad
typedef std::map< std::string, LoadCreateProcType >	LoadCreateMapType

Static Protected Attributes inherited from SCPILoad
static LoadCreateMapType	m_loadcreateprocs

Detailed Description

Siglent electronic load.

So far only series available is SDL1000X-E, base X should be the same (just higher resolution).

Member Function Documentation

◆ GetInstrumentTypes()

unsigned int SiglentLoad::GetInstrumentTypes ( ) const

overridevirtual

Returns a bitfield describing the set of instrument types that this instrument supports.

Not all types may be available on a given channel.

Reimplemented from Load.

◆ GetInstrumentTypesForChannel()

uint32_t SiglentLoad::GetInstrumentTypesForChannel ( size_t i ) const

overridevirtual

Returns a bitfield describing the set of instrument types that a given channel supports.

Parameters

i	Channel index

Implements Instrument.

◆ GetLoadActive()

bool SiglentLoad::GetLoadActive ( size_t channel )

overridevirtual

Returns true if the load is enabled (sinking power) and false if disabled (no load)

Parameters

channel Index of the channel to query

Implements Load.

◆ GetLoadCurrentActual()

float SiglentLoad::GetLoadCurrentActual ( size_t channel )

overrideprotectedvirtual

Get the measured current of the load (uncached instantaneous measurement)

Parameters

channel Index of the channel to query

Implements Load.

◆ GetLoadCurrentRange()

size_t SiglentLoad::GetLoadCurrentRange ( size_t channel )

overridevirtual

Returns the index of the load's selected current range, as returned by GetLoadCurrentRanges()

Parameters

channel Index of the channel to query

Implements Load.

◆ GetLoadCurrentRanges()

vector< float > SiglentLoad::GetLoadCurrentRanges ( size_t channel )

overridevirtual

Returns a sorted list of operating ranges for the load's current scale, in amps.

For example, returning [1, 10] means the load supports one mode with 1A full scale range and one with 10A range.

Parameters

channel Index of the channel to query

Implements Load.

◆ GetLoadMode()

Load::LoadMode SiglentLoad::GetLoadMode ( size_t channel )

overridevirtual

Returns the operating mode of the load.

Parameters

channel Index of the channel to query

Implements Load.

◆ GetLoadSetPoint()

float SiglentLoad::GetLoadSetPoint ( size_t channel )

overridevirtual

Gets the set point for the channel.

Units vary depending on operating mode: amps (CC), volts (CV), ohms (CR), watts (CP).

Parameters

channel Index of the channel to query

Implements Load.

◆ GetLoadVoltageActual()

float SiglentLoad::GetLoadVoltageActual ( size_t channel )

overrideprotectedvirtual

Get the measured voltage of the load (uncached instantaneous measurement)

Parameters

channel Index of the channel to query

Implements Load.

◆ GetLoadVoltageRange()

size_t SiglentLoad::GetLoadVoltageRange ( size_t channel )

overridevirtual

Returns the index of the load's selected voltage range, as returned by GetLoadVoltageRanges()

Parameters

channel Index of the channel to query

Implements Load.

◆ GetLoadVoltageRanges()

vector< float > SiglentLoad::GetLoadVoltageRanges ( size_t channel )

overridevirtual

Returns a sorted list of operating ranges for the load's voltage scale, in volts.

For example, returning [10, 250] means the load supports one mode with 10V full scale range and one with 250V range.

Parameters

channel Index of the channel to query

Implements Load.

◆ SetLoadActive()

void SiglentLoad::SetLoadActive	(	size_t	channel,
		bool	active
	)

overridevirtual

Turns the load on or off.

Parameters

channel	Index of the channel to query
active	True to turn the load on, false to turn it off

Implements Load.

◆ SetLoadCurrentRange()

void SiglentLoad::SetLoadCurrentRange	(	size_t	channel,
		size_t	rangeIndex
	)

overridevirtual

Select the current range to use.

Parameters

channel	Channel index
rangeIndex	Index of the range, as returned by GetLoadCurrentRanges()

Implements Load.

◆ SetLoadMode()

void SiglentLoad::SetLoadMode	(	size_t	channel,
		LoadMode	mode
	)

overridevirtual

Sets the operating mode of the load.

Parameters

channel	Channel index
mode	Operating mode

Implements Load.

◆ SetLoadSetPoint()

void SiglentLoad::SetLoadSetPoint	(	size_t	channel,
		float	target
	)

overridevirtual

Sets the set point for the channel.

Units vary depending on operating mode: amps (CC), volts (CV), ohms (CR), watts (CP).

Parameters

channel	Index of the channel to query
target	Desired operating current/voltage/resistance/power depending on the operating mode

Implements Load.

◆ SetLoadVoltageRange()

void SiglentLoad::SetLoadVoltageRange	(	size_t	channel,
		size_t	rangeIndex
	)

overridevirtual

Select the voltage range to use.

Parameters

channel	Channel index
rangeIndex	Index of the range, as returned by GetLoadVoltageRanges()

Implements Load.

The documentation for this class was generated from the following files:

lib/scopehal/SiglentLoad.h
lib/scopehal/SiglentLoad.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ GetInstrumentTypes()

◆ GetInstrumentTypesForChannel()

◆ GetLoadActive()

◆ GetLoadCurrentActual()

◆ GetLoadCurrentRange()

◆ GetLoadCurrentRanges()

◆ GetLoadMode()

◆ GetLoadSetPoint()

◆ GetLoadVoltageActual()

◆ GetLoadVoltageRange()

◆ GetLoadVoltageRanges()

◆ SetLoadActive()

◆ SetLoadCurrentRange()

◆ SetLoadMode()

◆ SetLoadSetPoint()

◆ SetLoadVoltageRange()
