DigilentOscilloscope - driver for talking to the scopehal-waveforms-bridge daemon (wfmserver) More...

#include <DigilentOscilloscope.h>

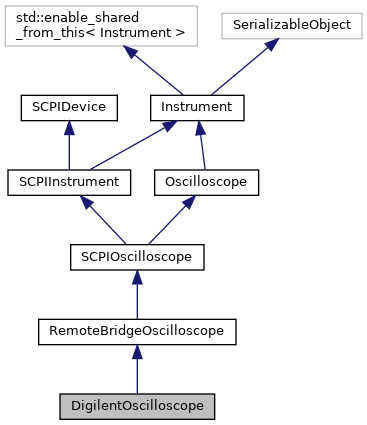

Inheritance diagram for DigilentOscilloscope:

[legend]

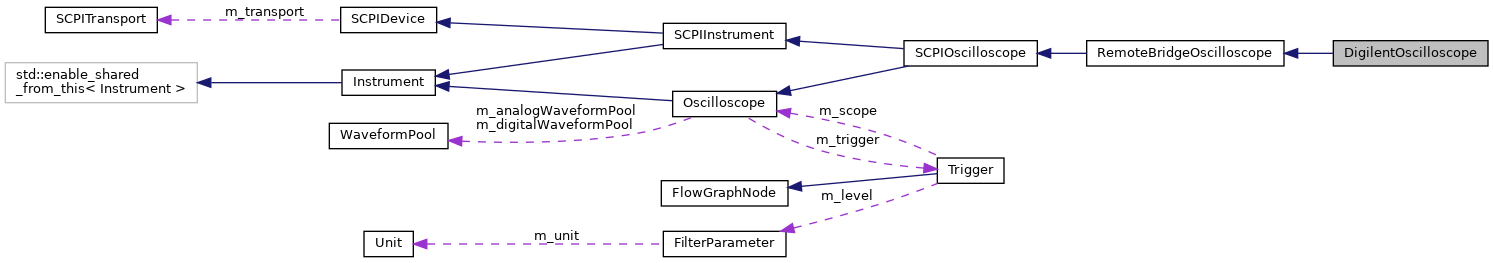

Collaboration diagram for DigilentOscilloscope:

[legend]

Public Types
enum	Series { SERIES_ANALOG_DISCOVERY , SERIES_ANALOG_DISCOVERY_2 , SERIES_DIGITAL_DISCOVERY , SERIES_ANALOG_DISCOVERY_PRO , SERIES_UNKNOWN }

Public Types inherited from Oscilloscope
enum	TriggerMode { TRIGGER_MODE_RUN , TRIGGER_MODE_STOP , TRIGGER_MODE_TRIGGERED , TRIGGER_MODE_WAIT , TRIGGER_MODE_AUTO , TRIGGER_MODE_COUNT }

enum	SamplingMode { REAL_TIME , EQUIVALENT_TIME }

typedef std::pair< OscilloscopeChannel , OscilloscopeChannel >	InterleaveConflict
	Get the set of conflicting channels. More...

typedef std::vector< OscilloscopeChannel * >	AnalogBank

typedef std::vector< OscilloscopeChannel * >	DigitalBank

typedef std::shared_ptr< Oscilloscope >(*	CreateProcType) (SCPITransport *)

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Member Functions
	DigilentOscilloscope (SCPITransport *transport)
	Initialize the driver. More...

	DigilentOscilloscope (const DigilentOscilloscope &rhs)=delete

DigilentOscilloscope &	operator= (const DigilentOscilloscope &rhs)=delete

virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const override
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

virtual void	FlushConfigCache () override
	Instruments are allowed to cache configuration settings to reduce round trip queries to the device. More...

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings (size_t i) override
	Gets the set of legal coupling values for an input channel. More...

virtual double	GetChannelAttenuation (size_t i) override
	Gets the probe attenuation for an input channel. More...

virtual void	SetChannelAttenuation (size_t i, double atten) override
	Sets the probe attenuation used for an input channel. More...

virtual unsigned int	GetChannelBandwidthLimit (size_t i) override
	Gets the bandwidth limit for an input channel. More...

virtual void	SetChannelBandwidthLimit (size_t i, unsigned int limit_mhz) override
	Sets the bandwidth limit for an input channel. More...

virtual OscilloscopeChannel *	GetExternalTrigger () override
	Returns the external trigger input channel, if we have one. More...

virtual bool	CanEnableChannel (size_t i) override
	Determines if a channel can be enabled. More...

virtual Oscilloscope::TriggerMode	PollTrigger () override
	Checks the curent trigger status. More...

virtual bool	AcquireData () override
	Pull data from the instrument. More...

virtual void	PushTrigger () override
	Pushes changes made to m_trigger to the instrument. More...

virtual std::vector< uint64_t >	GetSampleRatesNonInterleaved () override
	Get the legal sampling rates (in Hz) for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleRatesInterleaved () override
	Get the legal sampling rates (in Hz) for this scope in combined-channels mode. More...

virtual std::set< InterleaveConflict >	GetInterleaveConflicts () override

virtual std::vector< uint64_t >	GetSampleDepthsNonInterleaved () override
	Get the legal memory depths for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleDepthsInterleaved () override
	Get the legal memory depths for this scope in combined-channels mode. More...

virtual bool	IsInterleaving () override
	Checks if the scope is currently combining channels. More...

virtual bool	SetInterleaving (bool combine) override
	Configures the scope to combine channels. More...

virtual std::vector< AnalogBank >	GetAnalogBanks () override
	Gets the analog banks for this instrument. More...

virtual AnalogBank	GetAnalogBank (size_t channel) override
	Gets the bank containing a given channel. More...

virtual bool	IsADCModeConfigurable () override
	Returns true if the ADC is configurable, false if it can only run in one mode. More...

virtual std::vector< std::string >	GetADCModeNames (size_t channel) override
	Gets the names of the ADC modes for the bank a given channel is located in. More...

virtual size_t	GetADCMode (size_t channel) override
	Gets the ADC mode for a channel. More...

virtual void	SetADCMode (size_t channel, size_t mode) override
	Sets the ADC mode for a channel. More...

virtual std::vector< DigitalBank >	GetDigitalBanks () override
	Gets the digital channel banks for this instrument. More...

virtual DigitalBank	GetDigitalBank (size_t channel) override
	Gets the bank containing a given channel. More...

virtual bool	IsDigitalHysteresisConfigurable () override
	Checks if digital input hysteresis is configurable or fixed. More...

virtual bool	IsDigitalThresholdConfigurable () override
	Checks if digital input threshold is configurable or fixed. More...

virtual float	GetDigitalHysteresis (size_t channel) override
	Gets the hysteresis for a digital input. More...

virtual float	GetDigitalThreshold (size_t channel) override
	Gets the threshold for a digital input. More...

virtual void	SetDigitalHysteresis (size_t channel, float level) override
	Sets the hysteresis for a digital input. More...

virtual void	SetDigitalThreshold (size_t channel, float level) override
	Gets the threshold for a digital input. More...

Public Member Functions inherited from RemoteBridgeOscilloscope
	RemoteBridgeOscilloscope (SCPITransport *transport, bool identify=true)

virtual bool	IsChannelEnabled (size_t i) override
	Checks if a channel is enabled in hardware. More...

virtual void	EnableChannel (size_t i) override
	Turn a channel on, given the index. More...

virtual void	DisableChannel (size_t i) override
	Turn a channel off, given the index. More...

virtual OscilloscopeChannel::CouplingType	GetChannelCoupling (size_t i) override
	Gets the coupling used for an input channel. More...

virtual void	SetChannelCoupling (size_t i, OscilloscopeChannel::CouplingType type) override
	Sets the coupling used for an input channel. More...

virtual float	GetChannelVoltageRange (size_t i, size_t stream) override
	Gets the range of the current channel configuration. More...

virtual void	SetChannelVoltageRange (size_t i, size_t stream, float range) override
	Sets the range of the current channel configuration. More...

virtual float	GetChannelOffset (size_t i, size_t stream) override
	Gets the offset, in volts, for a given channel. More...

virtual void	SetChannelOffset (size_t i, size_t stream, float offset) override
	Sets the offset for a given channel. More...

virtual void	Start () override
	Starts the instrument in continuous trigger mode. More...

virtual void	StartSingleTrigger () override
	Arms the trigger for a single acquistion. More...

virtual void	ForceTrigger () override
	Forces a single acquisition as soon as possible. More...

virtual void	Stop () override
	Stops triggering. More...

virtual void	PushTrigger () override
	Pushes changes made to m_trigger to the instrument. More...

virtual void	PullTrigger () override
	Updates m_trigger with any changes made from the instrument side. More...

virtual bool	IsTriggerArmed () override
	Checks if the trigger is currently armed. More...

virtual bool	PeekTriggerArmed () override
	Checks if the trigger is armed directly on the instrument, without altering internal state or touching caches. More...

virtual void	SetTriggerOffset (int64_t offset) override
	Sets the trigger offset. More...

virtual int64_t	GetTriggerOffset () override
	Gets the trigger offset. More...

virtual uint64_t	GetSampleRate () override
	Gets the current sampling rate (in Hz) of this scope. More...

virtual uint64_t	GetSampleDepth () override
	Gets the current sample depth of this scope. More...

virtual void	SetSampleDepth (uint64_t depth) override
	Sets the sample depth of the scope. More...

virtual void	SetSampleRate (uint64_t rate) override
	Sets the sample rate of the scope, in Hz. More...

Public Member Functions inherited from SCPIOscilloscope
virtual std::string	IDPing ()
	Returns the instrument's identification string. More...

Public Member Functions inherited from Oscilloscope
virtual std::string	IDPing ()=0
	Returns the instrument's identification string. More...

virtual void	FlushConfigCache ()
	Instruments are allowed to cache configuration settings to reduce round trip queries to the device. More...

virtual bool	IsOffline ()
	Checks if the instrument is currently online. More...

OscilloscopeChannel *	GetOscilloscopeChannel (size_t i)
	Gets a channel by index. More...

virtual bool	IsChannelEnabled (size_t i)=0
	Checks if a channel is enabled in hardware. More...

virtual void	EnableChannel (size_t i)=0
	Turn a channel on, given the index. More...

virtual bool	CanEnableChannel (size_t i)
	Determines if a channel can be enabled. More...

virtual void	DisableChannel (size_t i)=0
	Turn a channel off, given the index. More...

int	GetEnabledChannelCount ()
	Returns the number of enabled channels for this oscilloscope. More...

OscilloscopeChannel *	GetOscilloscopeChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual OscilloscopeChannel::CouplingType	GetChannelCoupling (size_t i)=0
	Gets the coupling used for an input channel. More...

virtual void	SetChannelCoupling (size_t i, OscilloscopeChannel::CouplingType type)=0
	Sets the coupling used for an input channel. More...

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings (size_t i)=0
	Gets the set of legal coupling values for an input channel. More...

virtual double	GetChannelAttenuation (size_t i)=0
	Gets the probe attenuation for an input channel. More...

virtual void	SetChannelAttenuation (size_t i, double atten)=0
	Sets the probe attenuation used for an input channel. More...

virtual std::vector< unsigned int >	GetChannelBandwidthLimiters (size_t i)
	Gets the set of available bandwidth limiters for an input channel. More...

virtual unsigned int	GetChannelBandwidthLimit (size_t i)=0
	Gets the bandwidth limit for an input channel. More...

virtual void	SetChannelBandwidthLimit (size_t i, unsigned int limit_mhz)=0
	Sets the bandwidth limit for an input channel. More...

virtual OscilloscopeChannel *	GetExternalTrigger ()=0
	Returns the external trigger input channel, if we have one. More...

virtual float	GetChannelVoltageRange (size_t i, size_t stream)=0
	Gets the range of the current channel configuration. More...

virtual void	SetChannelVoltageRange (size_t i, size_t stream, float range)=0
	Sets the range of the current channel configuration. More...

virtual bool	CanAutoZero (size_t i)
	Determines if a channel has a probe connected which supports the "auto zero" feature. More...

virtual void	AutoZero (size_t i)
	Performs an "auto zero" cycle on the attached active probe, if supported by the hardware. More...

virtual bool	CanDegauss (size_t i)
	Determines if a channel has a probe connected which supports the "degauss" feature. More...

virtual bool	ShouldDegauss (size_t i)
	Determines if a channel requires a degauss cycle (if supported) More...

virtual void	Degauss (size_t i)
	Performs an "degauss" cycle on the attached active probe, if supported by the hardware. More...

virtual bool	CanAverage (size_t i)
	Determines if the channel supports hardware averaging. More...

virtual size_t	GetNumAverages (size_t i)
	Returns the number of averages the channel is configured for. More...

virtual void	SetNumAverages (size_t i, size_t navg)
	Sets the number of hardware averages to use. More...

virtual std::string	GetProbeName (size_t i)
	Returns the name of the probe connected to the scope, if possible. More...

virtual bool	HasInputMux (size_t i)
	Checks if a channel has an input multiplexer. More...

virtual size_t	GetInputMuxSetting (size_t i)
	Gets the setting for a channel's input mux (if it has one) More...

virtual std::vector< std::string >	GetInputMuxNames (size_t i)
	Gets names for the input mux ports of a channel. More...

virtual void	SetInputMux (size_t i, size_t select)
	Sets the input mux for a channel. More...

virtual float	GetChannelOffset (size_t i, size_t stream)=0
	Gets the offset, in volts, for a given channel. More...

virtual void	SetChannelOffset (size_t i, size_t stream, float offset)=0
	Sets the offset for a given channel. More...

virtual bool	CanInvert (size_t i)
	Checks if a channel is capable of hardware polarity inversion. More...

virtual void	Invert (size_t i, bool invert)
	Enables hardware polarity inversion for a channel, if supported. More...

virtual bool	IsInverted (size_t i)
	Checks if hardware polarity inversion is enabled for a channel. More...

virtual Oscilloscope::TriggerMode	PollTrigger ()=0
	Checks the curent trigger status. More...

virtual bool	PeekTriggerArmed ()
	Checks if the trigger is armed directly on the instrument, without altering internal state or touching caches. More...

bool	WaitForTrigger (int timeout)
	Block until a trigger happens or a timeout elapses. More...

void	SetTrigger (Trigger *trigger)
	Sets a new trigger on the instrument and pushes changes. More...

virtual void	PushTrigger ()=0
	Pushes changes made to m_trigger to the instrument. More...

Trigger *	GetTrigger (bool sync=false)
	Gets the current trigger. More...

virtual std::vector< std::string >	GetTriggerTypes ()
	Gets a list of triggers this instrument supports. More...

virtual void	PullTrigger ()=0
	Updates m_trigger with any changes made from the instrument side. More...

virtual void	Start ()=0
	Starts the instrument in continuous trigger mode. More...

virtual void	StartSingleTrigger ()=0
	Arms the trigger for a single acquistion. More...

virtual void	Stop ()=0
	Stops triggering. More...

virtual void	ForceTrigger ()=0
	Forces a single acquisition as soon as possible. More...

virtual bool	IsTriggerArmed ()=0
	Checks if the trigger is currently armed. More...

virtual void	EnableTriggerOutput ()
	Enables the trigger output, configuring a shared auxiliary port for this purpose if needed. More...

virtual std::vector< uint64_t >	GetSampleRatesNonInterleaved ()=0
	Get the legal sampling rates (in Hz) for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleRatesInterleaved ()=0
	Get the legal sampling rates (in Hz) for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleRate ()=0
	Gets the current sampling rate (in Hz) of this scope. More...

virtual bool	IsInterleaving ()=0
	Checks if the scope is currently combining channels. More...

virtual bool	SetInterleaving (bool combine)=0
	Configures the scope to combine channels. More...

virtual bool	CanInterleave ()
	Returns true if we have no interleave conflicts, false if we have conflicts. More...

virtual std::set< InterleaveConflict >	GetInterleaveConflicts ()=0

virtual std::vector< uint64_t >	GetSampleDepthsNonInterleaved ()=0
	Get the legal memory depths for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleDepthsInterleaved ()=0
	Get the legal memory depths for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleDepth ()=0
	Gets the current sample depth of this scope. More...

virtual void	SetSampleDepth (uint64_t depth)=0
	Sets the sample depth of the scope. More...

virtual void	SetSampleRate (uint64_t rate)=0
	Sets the sample rate of the scope, in Hz. More...

virtual bool	IsSamplingModeAvailable (SamplingMode mode)
	Returns true if the requested sampling mode is available with the current instrument configuration. More...

virtual SamplingMode	GetSamplingMode ()
	Gets the current sampling mode of the instrument. More...

virtual void	SetSamplingMode (SamplingMode mode)
	Sets the current sampling mode of the instrument. More...

virtual void	SetUseExternalRefclk (bool external)
	Configures the instrument's clock source. More...

virtual void	SetTriggerOffset (int64_t offset)=0
	Sets the trigger offset. More...

virtual int64_t	GetTriggerOffset ()=0
	Gets the trigger offset. More...

virtual void	SetDeskewForChannel (size_t channel, int64_t skew)
	Sets the deskew setting for a channel. More...

virtual int64_t	GetDeskewForChannel (size_t channel)
	Gets the deskew setting for a channel. More...

virtual std::vector< AnalogBank >	GetAnalogBanks ()
	Gets the analog banks for this instrument. More...

virtual AnalogBank	GetAnalogBank (size_t channel)
	Gets the bank containing a given channel. More...

virtual bool	IsADCModeConfigurable ()
	Returns true if the ADC is configurable, false if it can only run in one mode. More...

virtual std::vector< std::string >	GetADCModeNames (size_t channel)
	Gets the names of the ADC modes for the bank a given channel is located in. More...

virtual size_t	GetADCMode (size_t channel)
	Gets the ADC mode for a channel. More...

virtual void	SetADCMode (size_t channel, size_t mode)
	Sets the ADC mode for a channel. More...

virtual std::vector< DigitalBank >	GetDigitalBanks ()
	Gets the digital channel banks for this instrument. More...

virtual DigitalBank	GetDigitalBank (size_t channel)
	Gets the bank containing a given channel. More...

virtual bool	IsDigitalHysteresisConfigurable ()
	Checks if digital input hysteresis is configurable or fixed. More...

virtual bool	IsDigitalThresholdConfigurable ()
	Checks if digital input threshold is configurable or fixed. More...

virtual float	GetDigitalHysteresis (size_t channel)
	Gets the hysteresis for a digital input. More...

virtual float	GetDigitalThreshold (size_t channel)
	Gets the threshold for a digital input. More...

virtual void	SetDigitalHysteresis (size_t channel, float level)
	Sets the hysteresis for a digital input. More...

virtual void	SetDigitalThreshold (size_t channel, float level)
	Gets the threshold for a digital input. More...

virtual void	SetSpan (int64_t span)
	Sets the span for frequency-domain channels. More...

virtual int64_t	GetSpan ()
	Gets the span for frequency-domain channels. More...

virtual void	SetCenterFrequency (size_t channel, int64_t freq)
	Sets the center frequency for frequency-domain channels. More...

virtual int64_t	GetCenterFrequency (size_t channel)
	Gets the center frequency for a frequency-domain channel. More...

virtual void	SetResolutionBandwidth (int64_t rbw)
	Gets the resolution bandwidth for frequency-domain channels. More...

virtual int64_t	GetResolutionBandwidth ()
	Gets the resolution bandwidth for frequency-domain channels. More...

virtual bool	HasFrequencyControls ()
	Returns true if the instrument has at least one frequency-domain channel. More...

virtual bool	HasResolutionBandwidth ()
	Returns true if the instrument has a resolution bandwidth setting. More...

virtual bool	HasTimebaseControls ()
	Returns true if the instrument has at least one time-domain channel. More...

bool	HasPendingWaveforms ()

void	ClearPendingWaveforms ()
	Discard any pending waveforms that haven't yet been processed.

size_t	GetPendingWaveformCount ()

virtual bool	PopPendingWaveform ()
	Pops the queue of pending waveforms and updates each channel with a new waveform.

virtual bool	IsAppendingToWaveform ()
	Checks if we are appending to the existing waveform or creating a new one.

bool	HasPendingDiagnosticLogMessages ()

std::string	PopPendingDiagnosticLogMessage ()

std::map< std::string, FilterParameter * > &	GetDiagnosticsValues ()

bool	FreeWaveformPools ()
	Free all waveforms in our pool to reclaim memory. More...

void	AddWaveformToAnalogPool (WaveformBase *w)

void	AddWaveformToDigitalPool (WaveformBase *w)

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Public Member Functions inherited from SCPIInstrument
	SCPIInstrument (SCPITransport *transport, bool identify=true)

virtual std::string	GetTransportConnectionString ()
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()
	Gets the name of our transport. More...

virtual std::string	GetName () const

virtual std::string	GetVendor () const

virtual std::string	GetSerial () const

virtual std::string	GetDriverName () const =0

Public Member Functions inherited from SCPIDevice
	SCPIDevice (SCPITransport *transport, bool identify=true)

SCPITransport *	GetTransport () const

Static Public Member Functions
static std::string	GetDriverNameInternal ()
	Return the constant driver name "digilent".

Static Public Member Functions inherited from Oscilloscope
static void	Convert8BitSamples (float pout, const int8_t pin, float gain, float offset, size_t count)
	Converts 8-bit ADC samples to floating point.

static void	Convert8BitSamplesGeneric (float pout, const int8_t pin, float gain, float offset, size_t count)
	Generic backend for Convert8BitSamples()

static void	ConvertUnsigned8BitSamples (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Converts Unsigned 8-bit ADC samples to floating point.

static void	ConvertUnsigned8BitSamplesGeneric (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Generic backend for ConvertUnsigned8BitSamples()

static void	Convert16BitSamples (float pout, const int16_t pin, float gain, float offset, size_t count)
	Converts 16-bit ADC samples to floating point.

static void	Convert16BitSamplesGeneric (float pout, const int16_t pin, float gain, float offset, size_t count)
	Converts raw ADC samples to floating point.

static void	DoAddDriverClass (std::string name, CreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< Oscilloscope >	CreateOscilloscope (std::string driver, SCPITransport *transport)

Protected Member Functions
void	IdentifyHardware ()
	Parse model name text to figure out what the scope is.

std::string	GetChannelColor (size_t i)
	Color the channels based on Digilent's standard color sequence (yellow-cyan-magenta-green)

Protected Member Functions inherited from RemoteBridgeOscilloscope
void	PushEdgeTrigger (EdgeTrigger *trig)
	Pushes settings for an edge trigger to the instrument.

Protected Member Functions inherited from Oscilloscope
void	ChannelsDownloadStarted ()
	Helper method called by drivers to reset all channels to "waiting to download" state.

void	ChannelsDownloadStatusUpdate (size_t ch, InstrumentChannel::DownloadState state, float progress)
	Helper method called by drivers to set one channel's download status and update its download progress. Be aware that there is a measurement on ngscopeclient UI of the time spent between the download start and the progress of the last enabled channel. This measurement is used to decide whether to display a progress bar or not. This download speed evaluation method only works if enabled channels are download sequencially in increasing numeric order or if all channels are downloaded at the same speed. More...

void	ChannelsDownloadFinished ()
	Helper method called by drivers when waveform download is finished to reset all channels to "no download" state.

void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this oscilloscope's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

void	AddDiagnosticLog (std::string message)

UniformAnalogWaveform *	AllocateAnalogWaveform (const std::string &name)

SparseDigitalWaveform *	AllocateDigitalWaveform (const std::string &name)

Protected Member Functions inherited from SCPIInstrument
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)

Protected Attributes
size_t	m_analogChannelCount

size_t	m_digitalChannelBase

size_t	m_digitalChannelCount

std::map< size_t, double >	m_channelAttenuations

Series	m_series

Protected Attributes inherited from RemoteBridgeOscilloscope
bool	m_triggerArmed

bool	m_triggerOneShot

int64_t	m_triggerOffset

uint64_t	m_srate

uint64_t	m_mdepth

std::map< int, bool >	m_channelsEnabled

std::map< size_t, OscilloscopeChannel::CouplingType >	m_channelCouplings

std::map< size_t, float >	m_channelOffsets

std::map< size_t, float >	m_channelVoltageRanges

Protected Attributes inherited from SCPIOscilloscope
bool	m_triggerArmed

bool	m_triggerOneShot

std::recursive_mutex	m_cacheMutex

Protected Attributes inherited from Oscilloscope
std::list< SequenceSet >	m_pendingWaveforms

std::mutex	m_pendingWaveformsMutex

std::recursive_mutex	m_mutex

std::deque< std::string >	m_diagnosticLogMessages

std::map< std::string, FilterParameter * >	m_diagnosticValues

Trigger *	m_trigger

WaveformPool	m_analogWaveformPool

WaveformPool	m_digitalWaveformPool

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Protected Attributes inherited from SCPIDevice
SCPITransport *	m_transport

std::string	m_vendor

std::string	m_model

std::string	m_serial

std::string	m_fwVersion

Additional Inherited Members
Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Protected Types inherited from Oscilloscope
typedef std::map< StreamDescriptor, WaveformBase * >	SequenceSet

typedef std::map< std::string, CreateProcType >	CreateMapType

Static Protected Attributes inherited from Oscilloscope
static CreateMapType	m_createprocs

Detailed Description

DigilentOscilloscope - driver for talking to the scopehal-waveforms-bridge daemon (wfmserver)

Constructor & Destructor Documentation

◆ DigilentOscilloscope()

DigilentOscilloscope::DigilentOscilloscope ( SCPITransport * transport )

Initialize the driver.

Parameters

transport SCPITwinLanTransport pointing to a scopehal-waveforms-bridge instance

Member Function Documentation

◆ AcquireData()

bool DigilentOscilloscope::AcquireData ( )

overridevirtual

Pull data from the instrument.

Returns: True if waveform was acquired, false if connection lost or other serious error

Implements Instrument.

◆ CanEnableChannel()

bool DigilentOscilloscope::CanEnableChannel ( size_t i )

overridevirtual

Determines if a channel can be enabled.

Returns: False if the channel cannot currently be used (due to interleave conflicts or other hardware limitations).

True if the channel is available or is already enabled.

Parameters

i	Zero-based index of channel

The default implementation always returns true.

Reimplemented from Oscilloscope.

◆ FlushConfigCache()

void DigilentOscilloscope::FlushConfigCache ( )

overridevirtual

Instruments are allowed to cache configuration settings to reduce round trip queries to the device.

In order to see updates made by the user at the front panel, the cache must be flushed.

Cache flushing is recommended to be manually triggered during interactive operation if there is no way to push updates from the scope to the driver.

In scripted/ATE environments where nobody should be touching the instrument, flushing is typically not needed.

The default implementation of this function does nothing since the base class provides no caching. If a derived class caches configuration, it should override this function to clear any cached data.

Reimplemented from Oscilloscope.

◆ GetADCMode()

size_t DigilentOscilloscope::GetADCMode ( size_t channel )

overridevirtual

Gets the ADC mode for a channel.

Reimplemented from Oscilloscope.

◆ GetADCModeNames()

vector< string > DigilentOscilloscope::GetADCModeNames ( size_t channel )

overridevirtual

Gets the names of the ADC modes for the bank a given channel is located in.

ADC mode names are usually descriptive, like "12 bit, 640 Msps max" or "8 bit, 1 Gsps max"; but some instruments may use more generic

Parameters

channel Index of the channel to query modes for

Reimplemented from Oscilloscope.

◆ GetAnalogBank()

Oscilloscope::AnalogBank DigilentOscilloscope::GetAnalogBank ( size_t channel )

overridevirtual

Gets the bank containing a given channel.

Reimplemented from Oscilloscope.

◆ GetAnalogBanks()

vector< Oscilloscope::AnalogBank > DigilentOscilloscope::GetAnalogBanks ( )

overridevirtual

Gets the analog banks for this instrument.

A bank is a set of one or more channels all sharing a common ADC configuration.

Reimplemented from Oscilloscope.

◆ GetAvailableCouplings()

vector< OscilloscopeChannel::CouplingType > DigilentOscilloscope::GetAvailableCouplings ( size_t i )

overridevirtual

Gets the set of legal coupling values for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetChannelAttenuation()

double DigilentOscilloscope::GetChannelAttenuation ( size_t i )

overridevirtual

Gets the probe attenuation for an input channel.

Note that this function returns attenuation, not gain. For example, a 10x probe would return 10 and not 0.1.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetChannelBandwidthLimit()

unsigned int DigilentOscilloscope::GetChannelBandwidthLimit ( size_t i )

overridevirtual

Gets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel

Returns: Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implements Oscilloscope.

◆ GetDigitalBank()

Oscilloscope::DigitalBank DigilentOscilloscope::GetDigitalBank ( size_t channel )

overridevirtual

Gets the bank containing a given channel.

Reimplemented from Oscilloscope.

◆ GetDigitalBanks()

vector< Oscilloscope::DigitalBank > DigilentOscilloscope::GetDigitalBanks ( )

overridevirtual

Gets the digital channel banks for this instrument.

A bank is a set of one or more channels all sharing a common threshold and hysteresis setting.

Reimplemented from Oscilloscope.

◆ GetDigitalHysteresis()

float DigilentOscilloscope::GetDigitalHysteresis ( size_t channel )

overridevirtual

Gets the hysteresis for a digital input.

Reimplemented from Oscilloscope.

uint32_t DigilentOscilloscope::GetInstrumentTypesForChannel ( size_t i ) const

overridevirtual

Returns a bitfield describing the set of instrument types that a given channel supports.

Parameters

i	Channel index

Implements Instrument.

bool DigilentOscilloscope::IsDigitalHysteresisConfigurable ( )

overridevirtual

Checks if digital input hysteresis is configurable or fixed.

Returns: true if configurable, false if fixed

Reimplemented from Oscilloscope.

◆ IsDigitalThresholdConfigurable()

bool DigilentOscilloscope::IsDigitalThresholdConfigurable ( )

overridevirtual

Checks if digital input threshold is configurable or fixed.

Returns: true if configurable, false if fixed

Reimplemented from Oscilloscope.

◆ IsInterleaving()

bool DigilentOscilloscope::IsInterleaving ( )

overridevirtual

Checks if the scope is currently combining channels.

Implements Oscilloscope.

◆ PollTrigger()

Oscilloscope::TriggerMode DigilentOscilloscope::PollTrigger ( )

overridevirtual

Checks the curent trigger status.

Implements Oscilloscope.

◆ PushTrigger()

void DigilentOscilloscope::PushTrigger ( )

overridevirtual

Pushes changes made to m_trigger to the instrument.

Reimplemented from RemoteBridgeOscilloscope.

◆ SetADCMode()

void DigilentOscilloscope::SetADCMode	(	size_t	channel,
		size_t	mode
	)

overridevirtual

Sets the ADC mode for a channel.

Reimplemented from Oscilloscope.

◆ SetChannelAttenuation()

void DigilentOscilloscope::SetChannelAttenuation	(	size_t	i,
		double	atten
	)

overridevirtual

Sets the probe attenuation used for an input channel.

Parameters

i	Zero-based index of channel
atten	Attenuation factor

Implements Oscilloscope.

◆ SetChannelBandwidthLimit()

void DigilentOscilloscope::SetChannelBandwidthLimit	(	size_t	i,
		unsigned int	limit_mhz
	)

overridevirtual

Sets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel
limit_mhz	Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implements Oscilloscope.

◆ SetDigitalHysteresis()

void DigilentOscilloscope::SetDigitalHysteresis	(	size_t	channel,
		float	level
	)

overridevirtual

Sets the hysteresis for a digital input.

Reimplemented from Oscilloscope.

◆ SetDigitalThreshold()

void DigilentOscilloscope::SetDigitalThreshold	(	size_t	channel,
		float	level
	)

overridevirtual

Gets the threshold for a digital input.

Reimplemented from Oscilloscope.

◆ SetInterleaving()

bool DigilentOscilloscope::SetInterleaving ( bool combine )

overridevirtual

Configures the scope to combine channels.

This function may fail to enable channel combining if conflicts are present, check the return value!

Returns: True if channel combining is enabled, false if not

Implements Oscilloscope.

The documentation for this class was generated from the following files:

lib/scopehal/DigilentOscilloscope.h
lib/scopehal/DigilentOscilloscope.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DigilentOscilloscope()

Member Function Documentation

◆ AcquireData()

◆ CanEnableChannel()

◆ FlushConfigCache()

◆ GetADCMode()

◆ GetADCModeNames()

◆ GetAnalogBank()

◆ GetAnalogBanks()

◆ GetAvailableCouplings()

◆ GetChannelAttenuation()

◆ GetChannelBandwidthLimit()

◆ GetDigitalBank()

◆ GetDigitalBanks()

◆ GetDigitalHysteresis()

◆ GetDigitalThreshold()

◆ GetExternalTrigger()

◆ GetInstrumentTypes()

◆ GetInstrumentTypesForChannel()

◆ GetInterleaveConflicts()

◆ GetSampleDepthsInterleaved()

◆ GetSampleDepthsNonInterleaved()

◆ GetSampleRatesInterleaved()

◆ GetSampleRatesNonInterleaved()

◆ IsADCModeConfigurable()

◆ IsDigitalHysteresisConfigurable()

◆ IsDigitalThresholdConfigurable()

◆ IsInterleaving()

◆ PollTrigger()

◆ PushTrigger()

◆ SetADCMode()

◆ SetChannelAttenuation()

◆ SetChannelBandwidthLimit()

◆ SetDigitalHysteresis()

◆ SetDigitalThreshold()

◆ SetInterleaving()
