An AKL-TXB1 trigger crossbar. More...

#include <AntikernelLabsTriggerCrossbar.h>

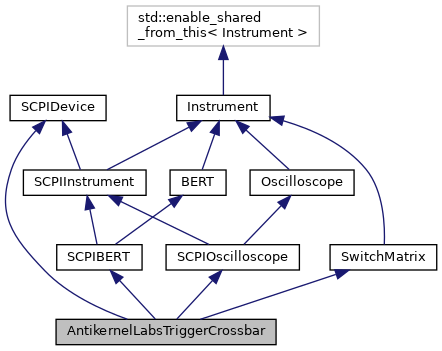

Inheritance diagram for AntikernelLabsTriggerCrossbar:

[legend]

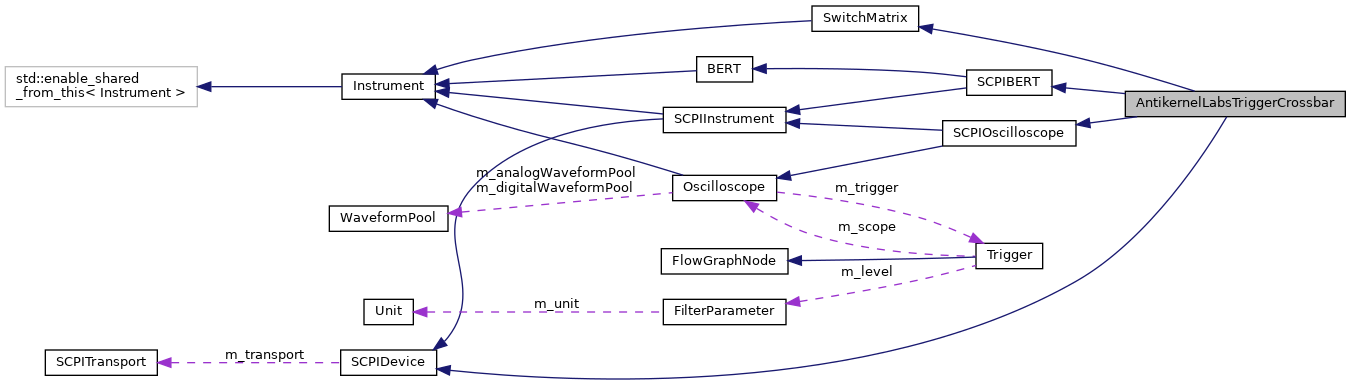

Collaboration diagram for AntikernelLabsTriggerCrossbar:

[legend]

Public Member Functions
	AntikernelLabsTriggerCrossbar (SCPITransport *transport)
	Initialize the driver. More...

virtual void	PostCtorInit () override
	Does any initialization that can't happen during the constructor. More...

virtual bool	AcquireData () override
	Pull data from the instrument. More...

virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const override
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

virtual void	SetChannelDisplayName (size_t i, std::string name) override
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual Pattern	GetTxPattern (size_t i) override
	Gets the currently selected transmit pattern for a channel. More...

virtual void	SetTxPattern (size_t i, Pattern pattern) override
	Sets the transmit pattern for the selected channel. More...

virtual std::vector< Pattern >	GetAvailableTxPatterns (size_t i) override
	Gets the list of available transmit patterns for a channel. More...

virtual bool	IsCustomPatternPerChannel () override
	Determines whether custom patterns are settable per channel, or shared by the whole device. More...

virtual size_t	GetCustomPatternLength () override
	Returns the number of bits in a custom pattern (may change with line rate) More...

virtual void	SetGlobalCustomPattern (uint64_t pattern) override
	Sets the global custom pattern (only valid if IsCustomPatternPerChannel returns false) More...

virtual uint64_t	GetGlobalCustomPattern () override
	Gets the global custom pattern (only valid if IsCustomPatternPerChannel returns false) More...

virtual bool	GetTxInvert (size_t i) override
	Gets the transmit invert flag for a channel. More...

virtual void	SetTxInvert (size_t i, bool invert) override
	Sets the transmit invert flag for a channel. More...

virtual std::vector< float >	GetAvailableTxDriveStrengths (size_t i) override
	Gets the list of available drive strengths (in volts) for a channel. More...

virtual float	GetTxDriveStrength (size_t i) override
	Get the drive strength for a channel. More...

virtual void	SetTxDriveStrength (size_t i, float drive) override
	Set the drive strength for a channel. More...

virtual void	SetTxEnable (size_t i, bool enable) override
	Sets the transmit enable flag for a channel. More...

virtual bool	GetTxEnable (size_t i) override
	Gets the transmit enable flag for a channel. More...

virtual float	GetTxPreCursor (size_t i) override
	Get the pre-cursor equalizer tap for a channel. More...

virtual void	SetTxPreCursor (size_t i, float precursor) override
	Set the pre-cursor equalizer tap for a channel. More...

virtual float	GetTxPostCursor (size_t i) override
	Get the post-cursor equalizer tap for a channel. More...

virtual void	SetTxPostCursor (size_t i, float postcursor) override
	Set the post-cursor equalizer tap for a channel. More...

virtual bool	GetRxInvert (size_t i) override
	Gets the transmit invert flag for a channel. More...

virtual void	SetRxInvert (size_t i, bool invert) override
	Sets the receive invert flag for a channel. More...

virtual bool	HasRxCTLE () override
	Determines whether the input buffer has a continuous-time linear equalizer. More...

virtual std::vector< float >	GetRxCTLEGainSteps () override
	Get the list of available RX CTLE gain values (in dB) More...

virtual size_t	GetRxCTLEGainStep (size_t i) override
	Gets the currently selected RX CTLE gain index. More...

virtual void	SetRxCTLEGainStep (size_t i, size_t step) override
	Sets the RX CTLE gain index. More...

virtual Pattern	GetRxPattern (size_t i) override
	Gets the currently selected receive pattern for a channel. More...

virtual void	SetRxPattern (size_t i, Pattern pattern) override
	Sets the receive pattern for the selected channel. More...

virtual std::vector< Pattern >	GetAvailableRxPatterns (size_t i) override
	Gets the list of available receive patterns for a channel. More...

virtual bool	GetRxCdrLockState (size_t i) override
	Gets the RX CDR lock state (true=lock, false=unlock) More...

virtual void	MeasureHBathtub (size_t i) override
	Acquires a bathtub curve. More...

virtual void	MeasureEye (size_t i) override
	Acquires an eye pattern. More...

virtual void	SetBERIntegrationLength (int64_t uis) override
	Set the integration period for BER measurements. More...

virtual int64_t	GetBERIntegrationLength () override
	Get the integration period for BER measurements. More...

virtual void	SetBERSamplingPoint (size_t i, int64_t dx, float dy) override
	Set the sampling point for BER measurements. More...

virtual void	GetBERSamplingPoint (size_t i, int64_t &dx, float &dy) override
	Get the sampling point for BER measurements. More...

virtual bool	HasConfigurableScanDepth () override
	Determines whether this instrument has configurable integration depth for eye / bathtub scans. More...

virtual std::vector< int64_t >	GetScanDepths (size_t i) override
	Returns the list of integration depths for eye / bathtub scans. More...

virtual int64_t	GetScanDepth (size_t i) override
	Get the configured scan depth for a channel, in UIs per sample/pixel. More...

virtual void	SetScanDepth (size_t i, int64_t depth) override
	Set the configured scan depth for a channel. More...

virtual int64_t	GetExpectedBathtubCaptureTime (size_t i) override
	Returns the expected time, in femtoseconds, to complete a bathtub scan with the current settings. More...

virtual int64_t	GetExpectedEyeCaptureTime (size_t i) override
	Returns the expected time, in femtoseconds, to complete an eye scan with the current settings. More...

virtual bool	IsEyeScanInProgress (size_t i) override
	Returns true if an eye scan is in progress. More...

virtual float	GetScanProgress (size_t i) override
	Gets the estimated completion status (0-1) of the current scan. More...

virtual bool	IsHBathtubScanInProgress (size_t i) override
	Returns true if a horizontal bathtub scan is in progress. More...

virtual size_t	GetRefclkOutMux () override
	Gets the currently selected reference clock output mux setting. More...

virtual void	SetRefclkOutMux (size_t i) override
	Sets the reference clock output mux. More...

virtual std::vector< std::string >	GetRefclkOutMuxNames () override
	Gets the list of available reference clock mux settings. More...

virtual int64_t	GetRefclkOutFrequency () override
	Gets the currently selected refclk out frequency, in Hz. More...

virtual int64_t	GetRefclkInFrequency () override
	Gets the refclk in frequency, in Hz, required to generate the currently selected data rate. More...

virtual bool	IsDataRatePerChannel () override
	Determines whether the TX/RX clock is a per-instrument or per-channel setting. More...

virtual int64_t	GetDataRate (size_t i) override
	Gets the currently selected line rate (in symbols/sec) More...

virtual void	SetDataRate (size_t i, int64_t rate) override
	Sets the data rate (in symbols/sec) More...

virtual std::vector< int64_t >	GetAvailableDataRates () override
	Gets the list of available data rates, in symbols/sec. More...

virtual void	SetUseExternalRefclk (bool external) override
	Sets the reference clock source (internal or external) More...

virtual bool	GetUseExternalRefclk () override
	Sets the reference clock source. More...

virtual bool	HasRefclkIn () override
	Returns true if this instrument has a reference clock input port. More...

virtual bool	HasRefclkOut () override
	Returns true if this instrument has a reference clock output port. More...

virtual void	SetMuxPath (size_t dstchan, size_t srcchan) override
	Sets the mux selector for an output channel. More...

virtual void	SetMuxPathOpen (size_t dstchan) override
	Removes a mux path for an output channel. More...

virtual bool	MuxHasConfigurableDrive (size_t dstchan) override
	Checks if an output channel has configurable voltage level. More...

virtual float	GetMuxOutputDrive (size_t dstchan) override
	Gets the drive level of an output channel. More...

virtual void	SetMuxOutputDrive (size_t dstchan, float v) override
	Sets the drive level of an output channel. More...

virtual bool	MuxHasConfigurableThreshold (size_t dstchan) override
	Checks if an input channel has configurable voltage level. More...

virtual float	GetMuxInputThreshold (size_t dstchan) override
	Gets the threshold level of an input channel. More...

virtual void	SetMuxInputThreshold (size_t dstchan, float v) override
	Sets the threshold level of an input channel. More...

virtual bool	IsChannelEnabled (size_t i) override
	Checks if a channel is enabled in hardware. More...

virtual void	EnableChannel (size_t i) override
	Turn a channel on, given the index. More...

virtual void	DisableChannel (size_t i) override
	Turn a channel off, given the index. More...

virtual OscilloscopeChannel::CouplingType	GetChannelCoupling (size_t i) override
	Gets the coupling used for an input channel. More...

virtual void	SetChannelCoupling (size_t i, OscilloscopeChannel::CouplingType type) override
	Sets the coupling used for an input channel. More...

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings (size_t i) override
	Gets the set of legal coupling values for an input channel. More...

virtual double	GetChannelAttenuation (size_t i) override
	Gets the probe attenuation for an input channel. More...

virtual void	SetChannelAttenuation (size_t i, double atten) override
	Sets the probe attenuation used for an input channel. More...

virtual unsigned int	GetChannelBandwidthLimit (size_t i) override
	Gets the bandwidth limit for an input channel. More...

virtual void	SetChannelBandwidthLimit (size_t i, unsigned int limit_mhz) override
	Sets the bandwidth limit for an input channel. More...

virtual OscilloscopeChannel *	GetExternalTrigger () override
	Returns the external trigger input channel, if we have one. More...

virtual float	GetChannelVoltageRange (size_t i, size_t stream) override
	Gets the range of the current channel configuration. More...

virtual void	SetChannelVoltageRange (size_t i, size_t stream, float range) override
	Sets the range of the current channel configuration. More...

virtual float	GetChannelOffset (size_t i, size_t stream) override
	Gets the offset, in volts, for a given channel. More...

virtual void	SetChannelOffset (size_t i, size_t stream, float offset) override
	Sets the offset for a given channel. More...

virtual Oscilloscope::TriggerMode	PollTrigger () override
	Checks the curent trigger status. More...

virtual void	PushTrigger () override
	Pushes changes made to m_trigger to the instrument. More...

virtual void	PullTrigger () override
	Updates m_trigger with any changes made from the instrument side. More...

virtual void	Start () override
	Starts the instrument in continuous trigger mode. More...

virtual void	StartSingleTrigger () override
	Arms the trigger for a single acquistion. More...

virtual void	Stop () override
	Stops triggering. More...

virtual void	ForceTrigger () override
	Forces a single acquisition as soon as possible. More...

virtual bool	IsTriggerArmed () override
	Checks if the trigger is currently armed. More...

virtual std::vector< uint64_t >	GetSampleRatesNonInterleaved () override
	Get the legal sampling rates (in Hz) for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleRatesInterleaved () override
	Get the legal sampling rates (in Hz) for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleRate () override
	Gets the current sampling rate (in Hz) of this scope. More...

virtual bool	IsInterleaving () override
	Checks if the scope is currently combining channels. More...

virtual bool	SetInterleaving (bool combine) override
	Configures the scope to combine channels. More...

virtual bool	CanInterleave () override
	Returns true if we have no interleave conflicts, false if we have conflicts. More...

virtual std::set< InterleaveConflict >	GetInterleaveConflicts () override

virtual std::vector< uint64_t >	GetSampleDepthsNonInterleaved () override
	Get the legal memory depths for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleDepthsInterleaved () override
	Get the legal memory depths for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleDepth () override
	Gets the current sample depth of this scope. More...

virtual void	SetSampleDepth (uint64_t depth) override
	Sets the sample depth of the scope. More...

virtual void	SetSampleRate (uint64_t rate) override
	Sets the sample rate of the scope, in Hz. More...

virtual void	SetTriggerOffset (int64_t offset) override
	Sets the trigger offset. More...

virtual int64_t	GetTriggerOffset () override
	Gets the trigger offset. More...

virtual void	PostCtorInit ()=0
	Does any initialization that can't happen during the constructor. More...

virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual Pattern	GetTxPattern (size_t i)=0
	Gets the currently selected transmit pattern for a channel. More...

virtual void	SetTxPattern (size_t i, Pattern pattern)=0
	Sets the transmit pattern for the selected channel. More...

virtual std::vector< Pattern >	GetAvailableTxPatterns (size_t i)=0
	Gets the list of available transmit patterns for a channel. More...

virtual bool	IsCustomPatternPerChannel ()=0
	Determines whether custom patterns are settable per channel, or shared by the whole device. More...

virtual size_t	GetCustomPatternLength ()=0
	Returns the number of bits in a custom pattern (may change with line rate) More...

virtual void	SetGlobalCustomPattern (uint64_t pattern)=0
	Sets the global custom pattern (only valid if IsCustomPatternPerChannel returns false) More...

virtual uint64_t	GetGlobalCustomPattern ()=0
	Gets the global custom pattern (only valid if IsCustomPatternPerChannel returns false) More...

virtual bool	GetTxInvert (size_t i)=0
	Gets the transmit invert flag for a channel. More...

virtual void	SetTxInvert (size_t i, bool invert)=0
	Sets the transmit invert flag for a channel. More...

virtual std::vector< float >	GetAvailableTxDriveStrengths (size_t i)=0
	Gets the list of available drive strengths (in volts) for a channel. More...

virtual float	GetTxDriveStrength (size_t i)=0
	Get the drive strength for a channel. More...

virtual void	SetTxDriveStrength (size_t i, float drive)=0
	Set the drive strength for a channel. More...

virtual void	SetTxEnable (size_t i, bool enable)=0
	Sets the transmit enable flag for a channel. More...

virtual bool	GetTxEnable (size_t i)=0
	Gets the transmit enable flag for a channel. More...

virtual float	GetTxPreCursor (size_t i)=0
	Get the pre-cursor equalizer tap for a channel. More...

virtual void	SetTxPreCursor (size_t i, float precursor)=0
	Set the pre-cursor equalizer tap for a channel. More...

virtual float	GetTxPostCursor (size_t i)=0
	Get the post-cursor equalizer tap for a channel. More...

virtual void	SetTxPostCursor (size_t i, float postcursor)=0
	Set the post-cursor equalizer tap for a channel. More...

virtual bool	GetRxInvert (size_t i)=0
	Gets the transmit invert flag for a channel. More...

virtual void	SetRxInvert (size_t i, bool invert)=0
	Sets the receive invert flag for a channel. More...

virtual bool	GetRxCdrLockState (size_t i)=0
	Gets the RX CDR lock state (true=lock, false=unlock) More...

virtual bool	HasRxCTLE ()=0
	Determines whether the input buffer has a continuous-time linear equalizer. More...

virtual std::vector< float >	GetRxCTLEGainSteps ()=0
	Get the list of available RX CTLE gain values (in dB) More...

virtual size_t	GetRxCTLEGainStep (size_t i)=0
	Gets the currently selected RX CTLE gain index. More...

virtual void	SetRxCTLEGainStep (size_t i, size_t step)=0
	Sets the RX CTLE gain index. More...

virtual Pattern	GetRxPattern (size_t i)=0
	Gets the currently selected receive pattern for a channel. More...

virtual void	SetRxPattern (size_t i, Pattern pattern)=0
	Sets the receive pattern for the selected channel. More...

virtual std::vector< Pattern >	GetAvailableRxPatterns (size_t i)=0
	Gets the list of available receive patterns for a channel. More...

virtual int64_t	GetExpectedBathtubCaptureTime (size_t i)
	Returns the expected time, in femtoseconds, to complete a bathtub scan with the current settings. More...

virtual int64_t	GetExpectedEyeCaptureTime (size_t i)
	Returns the expected time, in femtoseconds, to complete an eye scan with the current settings. More...

virtual void	MeasureHBathtub (size_t i)=0
	Acquires a bathtub curve. More...

virtual void	MeasureEye (size_t i)=0
	Acquires an eye pattern. More...

virtual void	SetBERIntegrationLength (int64_t uis)=0
	Set the integration period for BER measurements. More...

virtual int64_t	GetBERIntegrationLength ()=0
	Get the integration period for BER measurements. More...

virtual void	SetBERSamplingPoint (size_t i, int64_t dx, float dy)=0
	Set the sampling point for BER measurements. More...

virtual void	GetBERSamplingPoint (size_t i, int64_t &dx, float &dy)=0
	Get the sampling point for BER measurements. More...

virtual bool	IsHBathtubScanInProgress (size_t i)
	Returns true if a horizontal bathtub scan is in progress. More...

virtual bool	IsEyeScanInProgress (size_t i)
	Returns true if an eye scan is in progress. More...

virtual float	GetScanProgress (size_t i)
	Gets the estimated completion status (0-1) of the current scan. More...

virtual bool	HasConfigurableScanDepth ()
	Determines whether this instrument has configurable integration depth for eye / bathtub scans. More...

virtual std::vector< int64_t >	GetScanDepths (size_t i)
	Returns the list of integration depths for eye / bathtub scans. More...

virtual int64_t	GetScanDepth (size_t i)
	Get the configured scan depth for a channel, in UIs per sample/pixel. More...

virtual void	SetScanDepth (size_t i, int64_t depth)
	Set the configured scan depth for a channel. More...

virtual bool	HasRefclkIn ()=0
	Returns true if this instrument has a reference clock input port. More...

virtual bool	HasRefclkOut ()=0
	Returns true if this instrument has a reference clock output port. More...

virtual size_t	GetRefclkOutMux ()=0
	Gets the currently selected reference clock output mux setting. More...

virtual void	SetRefclkOutMux (size_t i)=0
	Sets the reference clock output mux. More...

virtual std::vector< std::string >	GetRefclkOutMuxNames ()=0
	Gets the list of available reference clock mux settings. More...

virtual int64_t	GetRefclkOutFrequency ()=0
	Gets the currently selected refclk out frequency, in Hz. More...

virtual int64_t	GetRefclkInFrequency ()=0
	Gets the refclk in frequency, in Hz, required to generate the currently selected data rate. More...

virtual bool	IsDataRatePerChannel ()=0
	Determines whether the TX/RX clock is a per-instrument or per-channel setting. More...

virtual int64_t	GetDataRate (size_t i)=0
	Gets the currently selected line rate (in symbols/sec) More...

virtual void	SetDataRate (size_t i, int64_t rate)=0
	Sets the data rate (in symbols/sec) More...

virtual std::vector< int64_t >	GetAvailableDataRates ()=0
	Gets the list of available data rates, in symbols/sec. More...

virtual void	SetUseExternalRefclk (bool external)=0
	Sets the reference clock source (internal or external) More...

virtual bool	GetUseExternalRefclk ()=0
	Sets the reference clock source. More...

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Public Member Functions inherited from SCPIInstrument
	SCPIInstrument (SCPITransport *transport, bool identify=true)

virtual std::string	GetTransportConnectionString ()
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()
	Gets the name of our transport. More...

virtual std::string	GetName () const

virtual std::string	GetVendor () const

virtual std::string	GetSerial () const

virtual std::string	GetDriverName () const =0

Public Member Functions inherited from SCPIDevice
	SCPIDevice (SCPITransport *transport, bool identify=true)

SCPITransport *	GetTransport () const

virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual void	SetMuxPath (size_t dstchan, size_t srcchan)=0
	Sets the mux selector for an output channel. More...

virtual void	SetMuxPathOpen (size_t dstchan)=0
	Removes a mux path for an output channel. More...

virtual bool	MuxHasConfigurableDrive (size_t dstchan)=0
	Checks if an output channel has configurable voltage level. More...

virtual float	GetMuxOutputDrive (size_t dstchan)=0
	Gets the drive level of an output channel. More...

virtual void	SetMuxOutputDrive (size_t dstchan, float v)=0
	Sets the drive level of an output channel. More...

virtual bool	MuxHasConfigurableThreshold (size_t dstchan)=0
	Checks if an input channel has configurable voltage level. More...

virtual float	GetMuxInputThreshold (size_t dstchan)=0
	Gets the threshold level of an input channel. More...

virtual void	SetMuxInputThreshold (size_t dstchan, float v)=0
	Sets the threshold level of an input channel. More...

Public Member Functions inherited from SCPIOscilloscope
virtual std::string	IDPing ()
	Returns the instrument's identification string. More...

Public Member Functions inherited from Oscilloscope
virtual std::string	IDPing ()=0
	Returns the instrument's identification string. More...

virtual void	FlushConfigCache ()
	Instruments are allowed to cache configuration settings to reduce round trip queries to the device. More...

virtual bool	IsOffline ()
	Checks if the instrument is currently online. More...

OscilloscopeChannel *	GetOscilloscopeChannel (size_t i)
	Gets a channel by index. More...

virtual bool	IsChannelEnabled (size_t i)=0
	Checks if a channel is enabled in hardware. More...

virtual void	EnableChannel (size_t i)=0
	Turn a channel on, given the index. More...

virtual bool	CanEnableChannel (size_t i)
	Determines if a channel can be enabled. More...

virtual void	DisableChannel (size_t i)=0
	Turn a channel off, given the index. More...

int	GetEnabledChannelCount ()
	Returns the number of enabled channels for this oscilloscope. More...

OscilloscopeChannel *	GetOscilloscopeChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual OscilloscopeChannel::CouplingType	GetChannelCoupling (size_t i)=0
	Gets the coupling used for an input channel. More...

virtual void	SetChannelCoupling (size_t i, OscilloscopeChannel::CouplingType type)=0
	Sets the coupling used for an input channel. More...

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings (size_t i)=0
	Gets the set of legal coupling values for an input channel. More...

virtual double	GetChannelAttenuation (size_t i)=0
	Gets the probe attenuation for an input channel. More...

virtual void	SetChannelAttenuation (size_t i, double atten)=0
	Sets the probe attenuation used for an input channel. More...

virtual std::vector< unsigned int >	GetChannelBandwidthLimiters (size_t i)
	Gets the set of available bandwidth limiters for an input channel. More...

virtual unsigned int	GetChannelBandwidthLimit (size_t i)=0
	Gets the bandwidth limit for an input channel. More...

virtual void	SetChannelBandwidthLimit (size_t i, unsigned int limit_mhz)=0
	Sets the bandwidth limit for an input channel. More...

virtual OscilloscopeChannel *	GetExternalTrigger ()=0
	Returns the external trigger input channel, if we have one. More...

virtual float	GetChannelVoltageRange (size_t i, size_t stream)=0
	Gets the range of the current channel configuration. More...

virtual void	SetChannelVoltageRange (size_t i, size_t stream, float range)=0
	Sets the range of the current channel configuration. More...

virtual bool	CanAutoZero (size_t i)
	Determines if a channel has a probe connected which supports the "auto zero" feature. More...

virtual void	AutoZero (size_t i)
	Performs an "auto zero" cycle on the attached active probe, if supported by the hardware. More...

virtual bool	CanDegauss (size_t i)
	Determines if a channel has a probe connected which supports the "degauss" feature. More...

virtual bool	ShouldDegauss (size_t i)
	Determines if a channel requires a degauss cycle (if supported) More...

virtual void	Degauss (size_t i)
	Performs an "degauss" cycle on the attached active probe, if supported by the hardware. More...

virtual bool	CanAverage (size_t i)
	Determines if the channel supports hardware averaging. More...

virtual size_t	GetNumAverages (size_t i)
	Returns the number of averages the channel is configured for. More...

virtual void	SetNumAverages (size_t i, size_t navg)
	Sets the number of hardware averages to use. More...

virtual std::string	GetProbeName (size_t i)
	Returns the name of the probe connected to the scope, if possible. More...

virtual bool	HasInputMux (size_t i)
	Checks if a channel has an input multiplexer. More...

virtual size_t	GetInputMuxSetting (size_t i)
	Gets the setting for a channel's input mux (if it has one) More...

virtual std::vector< std::string >	GetInputMuxNames (size_t i)
	Gets names for the input mux ports of a channel. More...

virtual void	SetInputMux (size_t i, size_t select)
	Sets the input mux for a channel. More...

virtual float	GetChannelOffset (size_t i, size_t stream)=0
	Gets the offset, in volts, for a given channel. More...

virtual void	SetChannelOffset (size_t i, size_t stream, float offset)=0
	Sets the offset for a given channel. More...

virtual bool	CanInvert (size_t i)
	Checks if a channel is capable of hardware polarity inversion. More...

virtual void	Invert (size_t i, bool invert)
	Enables hardware polarity inversion for a channel, if supported. More...

virtual bool	IsInverted (size_t i)
	Checks if hardware polarity inversion is enabled for a channel. More...

virtual Oscilloscope::TriggerMode	PollTrigger ()=0
	Checks the curent trigger status. More...

virtual bool	PeekTriggerArmed ()
	Checks if the trigger is armed directly on the instrument, without altering internal state or touching caches. More...

bool	WaitForTrigger (int timeout)
	Block until a trigger happens or a timeout elapses. More...

void	SetTrigger (Trigger *trigger)
	Sets a new trigger on the instrument and pushes changes. More...

virtual void	PushTrigger ()=0
	Pushes changes made to m_trigger to the instrument. More...

Trigger *	GetTrigger (bool sync=false)
	Gets the current trigger. More...

virtual std::vector< std::string >	GetTriggerTypes ()
	Gets a list of triggers this instrument supports. More...

virtual void	PullTrigger ()=0
	Updates m_trigger with any changes made from the instrument side. More...

virtual void	Start ()=0
	Starts the instrument in continuous trigger mode. More...

virtual void	StartSingleTrigger ()=0
	Arms the trigger for a single acquistion. More...

virtual void	Stop ()=0
	Stops triggering. More...

virtual void	ForceTrigger ()=0
	Forces a single acquisition as soon as possible. More...

virtual bool	IsTriggerArmed ()=0
	Checks if the trigger is currently armed. More...

virtual void	EnableTriggerOutput ()
	Enables the trigger output, configuring a shared auxiliary port for this purpose if needed. More...

virtual std::vector< uint64_t >	GetSampleRatesNonInterleaved ()=0
	Get the legal sampling rates (in Hz) for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleRatesInterleaved ()=0
	Get the legal sampling rates (in Hz) for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleRate ()=0
	Gets the current sampling rate (in Hz) of this scope. More...

virtual bool	IsInterleaving ()=0
	Checks if the scope is currently combining channels. More...

virtual bool	SetInterleaving (bool combine)=0
	Configures the scope to combine channels. More...

virtual bool	CanInterleave ()
	Returns true if we have no interleave conflicts, false if we have conflicts. More...

virtual std::set< InterleaveConflict >	GetInterleaveConflicts ()=0

virtual std::vector< uint64_t >	GetSampleDepthsNonInterleaved ()=0
	Get the legal memory depths for this scope in all-channels mode. More...

virtual std::vector< uint64_t >	GetSampleDepthsInterleaved ()=0
	Get the legal memory depths for this scope in combined-channels mode. More...

virtual uint64_t	GetSampleDepth ()=0
	Gets the current sample depth of this scope. More...

virtual void	SetSampleDepth (uint64_t depth)=0
	Sets the sample depth of the scope. More...

virtual void	SetSampleRate (uint64_t rate)=0
	Sets the sample rate of the scope, in Hz. More...

virtual bool	IsSamplingModeAvailable (SamplingMode mode)
	Returns true if the requested sampling mode is available with the current instrument configuration. More...

virtual SamplingMode	GetSamplingMode ()
	Gets the current sampling mode of the instrument. More...

virtual void	SetSamplingMode (SamplingMode mode)
	Sets the current sampling mode of the instrument. More...

virtual void	SetUseExternalRefclk (bool external)
	Configures the instrument's clock source. More...

virtual void	SetTriggerOffset (int64_t offset)=0
	Sets the trigger offset. More...

virtual int64_t	GetTriggerOffset ()=0
	Gets the trigger offset. More...

virtual void	SetDeskewForChannel (size_t channel, int64_t skew)
	Sets the deskew setting for a channel. More...

virtual int64_t	GetDeskewForChannel (size_t channel)
	Gets the deskew setting for a channel. More...

virtual std::vector< AnalogBank >	GetAnalogBanks ()
	Gets the analog banks for this instrument. More...

virtual AnalogBank	GetAnalogBank (size_t channel)
	Gets the bank containing a given channel. More...

virtual bool	IsADCModeConfigurable ()
	Returns true if the ADC is configurable, false if it can only run in one mode. More...

virtual std::vector< std::string >	GetADCModeNames (size_t channel)
	Gets the names of the ADC modes for the bank a given channel is located in. More...

virtual size_t	GetADCMode (size_t channel)
	Gets the ADC mode for a channel. More...

virtual void	SetADCMode (size_t channel, size_t mode)
	Sets the ADC mode for a channel. More...

virtual std::vector< DigitalBank >	GetDigitalBanks ()
	Gets the digital channel banks for this instrument. More...

virtual DigitalBank	GetDigitalBank (size_t channel)
	Gets the bank containing a given channel. More...

virtual bool	IsDigitalHysteresisConfigurable ()
	Checks if digital input hysteresis is configurable or fixed. More...

virtual bool	IsDigitalThresholdConfigurable ()
	Checks if digital input threshold is configurable or fixed. More...

virtual float	GetDigitalHysteresis (size_t channel)
	Gets the hysteresis for a digital input. More...

virtual float	GetDigitalThreshold (size_t channel)
	Gets the threshold for a digital input. More...

virtual void	SetDigitalHysteresis (size_t channel, float level)
	Sets the hysteresis for a digital input. More...

virtual void	SetDigitalThreshold (size_t channel, float level)
	Gets the threshold for a digital input. More...

virtual void	SetSpan (int64_t span)
	Sets the span for frequency-domain channels. More...

virtual int64_t	GetSpan ()
	Gets the span for frequency-domain channels. More...

virtual void	SetCenterFrequency (size_t channel, int64_t freq)
	Sets the center frequency for frequency-domain channels. More...

virtual int64_t	GetCenterFrequency (size_t channel)
	Gets the center frequency for a frequency-domain channel. More...

virtual void	SetResolutionBandwidth (int64_t rbw)
	Gets the resolution bandwidth for frequency-domain channels. More...

virtual int64_t	GetResolutionBandwidth ()
	Gets the resolution bandwidth for frequency-domain channels. More...

virtual bool	HasFrequencyControls ()
	Returns true if the instrument has at least one frequency-domain channel. More...

virtual bool	HasResolutionBandwidth ()
	Returns true if the instrument has a resolution bandwidth setting. More...

virtual bool	HasTimebaseControls ()
	Returns true if the instrument has at least one time-domain channel. More...

bool	HasPendingWaveforms ()

void	ClearPendingWaveforms ()
	Discard any pending waveforms that haven't yet been processed.

size_t	GetPendingWaveformCount ()

virtual bool	PopPendingWaveform ()
	Pops the queue of pending waveforms and updates each channel with a new waveform.

virtual bool	IsAppendingToWaveform ()
	Checks if we are appending to the existing waveform or creating a new one.

bool	HasPendingDiagnosticLogMessages ()

std::string	PopPendingDiagnosticLogMessage ()

std::map< std::string, FilterParameter * > &	GetDiagnosticsValues ()

bool	FreeWaveformPools ()
	Free all waveforms in our pool to reclaim memory. More...

void	AddWaveformToAnalogPool (WaveformBase *w)

void	AddWaveformToDigitalPool (WaveformBase *w)

Static Public Member Functions
static std::string	GetDriverNameInternal ()
	Returns the constant driver name "akl.crossbar".

Static Public Member Functions inherited from SCPIBERT
static void	DoAddDriverClass (std::string name, BERTCreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< SCPIBERT >	CreateBERT (std::string driver, SCPITransport *transport)

Static Public Member Functions inherited from BERT
static std::string	GetPatternName (Pattern pat)
	Converts a Pattern enum into a strnig. More...

static Pattern	GetPatternOfName (std::string name)
	Converts a string name into a Pattern enum. More...

Static Public Member Functions inherited from Oscilloscope
static void	Convert8BitSamples (float pout, const int8_t pin, float gain, float offset, size_t count)
	Converts 8-bit ADC samples to floating point.

static void	Convert8BitSamplesGeneric (float pout, const int8_t pin, float gain, float offset, size_t count)
	Generic backend for Convert8BitSamples()

static void	ConvertUnsigned8BitSamples (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Converts Unsigned 8-bit ADC samples to floating point.

static void	ConvertUnsigned8BitSamplesGeneric (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Generic backend for ConvertUnsigned8BitSamples()

static void	Convert16BitSamples (float pout, const int16_t pin, float gain, float offset, size_t count)
	Converts 16-bit ADC samples to floating point.

static void	Convert16BitSamplesGeneric (float pout, const int16_t pin, float gain, float offset, size_t count)
	Converts raw ADC samples to floating point.

static void	DoAddDriverClass (std::string name, CreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< Oscilloscope >	CreateOscilloscope (std::string driver, SCPITransport *transport)

Protected Member Functions
ssize_t	GetScanHalfWidth (size_t i)
	Returns the number of points on either side of the center for a full eye/bathtub scan. More...

Protected Member Functions inherited from BERT
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this BERT's configuration to a YAML node. More...

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file. More...

Protected Member Functions inherited from SCPIInstrument
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)

Protected Member Functions inherited from SwitchMatrix
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this oscilloscope's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

Protected Member Functions inherited from Oscilloscope
void	ChannelsDownloadStarted ()
	Helper method called by drivers to reset all channels to "waiting to download" state.

void	ChannelsDownloadStatusUpdate (size_t ch, InstrumentChannel::DownloadState state, float progress)
	Helper method called by drivers to set one channel's download status and update its download progress. Be aware that there is a measurement on ngscopeclient UI of the time spent between the download start and the progress of the last enabled channel. This measurement is used to decide whether to display a progress bar or not. This download speed evaluation method only works if enabled channels are download sequencially in increasing numeric order or if all channels are downloaded at the same speed. More...

void	ChannelsDownloadFinished ()
	Helper method called by drivers when waveform download is finished to reset all channels to "no download" state.

void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this oscilloscope's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

void	AddDiagnosticLog (std::string message)

UniformAnalogWaveform *	AllocateAnalogWaveform (const std::string &name)

SparseDigitalWaveform *	AllocateDigitalWaveform (const std::string &name)

Protected Attributes
size_t	m_triggerInChannelBase

size_t	m_triggerBidirChannelBase

size_t	m_triggerOutChannelBase

size_t	m_txChannelBase

size_t	m_rxChannelBase

float	m_trigDrive [12]

float	m_trigThreshold [12]

Pattern	m_txPattern [2]

bool	m_txInvert [2]

bool	m_rxInvert [2]

float	m_txDrive [2]

bool	m_txEnable [2]

float	m_txPreCursor [2]

float	m_txPostCursor [2]

int64_t	m_scanDepth [2]

uint64_t	m_txDataRate [2]

uint64_t	m_rxDataRate [2]

int64_t	m_rxClkDiv [2]

bool	m_loadInProgress
	True if in a constructor or similar initialization path (getting hardware state) More...

std::atomic< bool >	m_bathtubScanInProgress

std::atomic< bool >	m_eyeScanInProgress

std::atomic< size_t >	m_activeScanChannel

std::atomic< float >	m_activeScanProgress

bool	m_laChannelEnabled [2]

size_t	m_maxLogicDepth

bool	m_triggerArmed

bool	m_triggerOneShot

int64_t	m_triggerOffsetSamples

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Protected Attributes inherited from SCPIDevice
SCPITransport *	m_transport

std::string	m_vendor

std::string	m_model

std::string	m_serial

std::string	m_fwVersion

Protected Attributes inherited from SCPIOscilloscope
bool	m_triggerArmed

bool	m_triggerOneShot

std::recursive_mutex	m_cacheMutex

Protected Attributes inherited from Oscilloscope
std::list< SequenceSet >	m_pendingWaveforms

std::mutex	m_pendingWaveformsMutex

std::recursive_mutex	m_mutex

std::deque< std::string >	m_diagnosticLogMessages

std::map< std::string, FilterParameter * >	m_diagnosticValues

Trigger *	m_trigger

WaveformPool	m_analogWaveformPool

WaveformPool	m_digitalWaveformPool

Additional Inherited Members
Public Types inherited from SCPIBERT
typedef std::shared_ptr< SCPIBERT >(*	BERTCreateProcType) (SCPITransport *)

Public Types inherited from BERT
enum	Pattern { PATTERN_PRBS7 , PATTERN_PRBS9 , PATTERN_PRBS11 , PATTERN_PRBS15 , PATTERN_PRBS23 , PATTERN_PRBS31 , PATTERN_CUSTOM , PATTERN_CLOCK_DIV2 , PATTERN_CLOCK_DIV32 , PATTERN_AUTO }
	Set of patterns we can generate or accept. More...

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Types inherited from Oscilloscope
enum	TriggerMode { TRIGGER_MODE_RUN , TRIGGER_MODE_STOP , TRIGGER_MODE_TRIGGERED , TRIGGER_MODE_WAIT , TRIGGER_MODE_AUTO , TRIGGER_MODE_COUNT }

enum	SamplingMode { REAL_TIME , EQUIVALENT_TIME }

typedef std::pair< OscilloscopeChannel , OscilloscopeChannel >	InterleaveConflict
	Get the set of conflicting channels. More...

typedef std::vector< OscilloscopeChannel * >	AnalogBank

typedef std::vector< OscilloscopeChannel * >	DigitalBank

typedef std::shared_ptr< Oscilloscope >(*	CreateProcType) (SCPITransport *)

Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Protected Types inherited from SCPIBERT
typedef std::map< std::string, BERTCreateProcType >	BERTCreateMapType

Protected Types inherited from Oscilloscope
typedef std::map< StreamDescriptor, WaveformBase * >	SequenceSet

typedef std::map< std::string, CreateProcType >	CreateMapType

Static Protected Attributes inherited from SCPIBERT
static BERTCreateMapType	m_bertcreateprocs

Static Protected Attributes inherited from Oscilloscope
static CreateMapType	m_createprocs

Detailed Description

An AKL-TXB1 trigger crossbar.

Constructor & Destructor Documentation

◆ AntikernelLabsTriggerCrossbar()

AntikernelLabsTriggerCrossbar::AntikernelLabsTriggerCrossbar ( SCPITransport * transport )

Initialize the driver.

Parameters

transport SCPI transport connected to the crossbar

Member Function Documentation

◆ AcquireData()

bool AntikernelLabsTriggerCrossbar::AcquireData ( )

overridevirtual

Pull data from the instrument.

Returns: True if waveform was acquired, false if connection lost or other serious error

Implements Instrument.

◆ CanInterleave()

bool AntikernelLabsTriggerCrossbar::CanInterleave ( )

overridevirtual

Returns true if we have no interleave conflicts, false if we have conflicts.

Reimplemented from Oscilloscope.

◆ DisableChannel()

void AntikernelLabsTriggerCrossbar::DisableChannel ( size_t i )

overridevirtual

Turn a channel off, given the index.

This function may optionally configure channel interleaving, if supported in hardware.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ EnableChannel()

void AntikernelLabsTriggerCrossbar::EnableChannel ( size_t i )

overridevirtual

Turn a channel on, given the index.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ ForceTrigger()

void AntikernelLabsTriggerCrossbar::ForceTrigger ( )

overridevirtual

Forces a single acquisition as soon as possible.

Note that PollTrigger() may not return 'triggered' immediately, due to command processing latency.

Implements Oscilloscope.

◆ GetAvailableCouplings()

vector< OscilloscopeChannel::CouplingType > AntikernelLabsTriggerCrossbar::GetAvailableCouplings ( size_t i )

overridevirtual

Gets the set of legal coupling values for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetAvailableDataRates()

vector< int64_t > AntikernelLabsTriggerCrossbar::GetAvailableDataRates ( )

overridevirtual

Gets the list of available data rates, in symbols/sec.

Implements BERT.

◆ GetAvailableRxPatterns()

vector< BERT::Pattern > AntikernelLabsTriggerCrossbar::GetAvailableRxPatterns ( size_t i )

overridevirtual

Gets the list of available receive patterns for a channel.

Parameters

i	Channel index

Implements BERT.

◆ GetAvailableTxDriveStrengths()

vector< float > AntikernelLabsTriggerCrossbar::GetAvailableTxDriveStrengths ( size_t i )

overridevirtual

Gets the list of available drive strengths (in volts) for a channel.

Drive strength is nominal p-p swing with full main cursor tap and pre/post cursors at zero.

Parameters

i	Channel index

Implements BERT.

◆ GetAvailableTxPatterns()

vector< BERT::Pattern > AntikernelLabsTriggerCrossbar::GetAvailableTxPatterns ( size_t i )

overridevirtual

Gets the list of available transmit patterns for a channel.

Parameters

i	Channel index

Implements BERT.

◆ GetBERIntegrationLength()

int64_t AntikernelLabsTriggerCrossbar::GetBERIntegrationLength ( )

overridevirtual

Get the integration period for BER measurements.

Implements BERT.

◆ GetBERSamplingPoint()

void AntikernelLabsTriggerCrossbar::GetBERSamplingPoint	(	size_t	i,
		int64_t &	dx,
		float &	dy
	)

overridevirtual

Get the sampling point for BER measurements.

Parameters

i	Channel index
dx	Horizontal offset of the sampling point from the center of the eye, in femtoseconds
dy	Vertical offset of the sampling point from the center of the eye, in volts

Implements BERT.

◆ GetChannelAttenuation()

double AntikernelLabsTriggerCrossbar::GetChannelAttenuation ( size_t i )

overridevirtual

Gets the probe attenuation for an input channel.

Note that this function returns attenuation, not gain. For example, a 10x probe would return 10 and not 0.1.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetChannelBandwidthLimit()

unsigned int AntikernelLabsTriggerCrossbar::GetChannelBandwidthLimit ( size_t i )

overridevirtual

Gets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel

Returns: Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implements Oscilloscope.

◆ GetChannelCoupling()

OscilloscopeChannel::CouplingType AntikernelLabsTriggerCrossbar::GetChannelCoupling ( size_t i )

overridevirtual

Gets the coupling used for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetChannelOffset()

float AntikernelLabsTriggerCrossbar::GetChannelOffset	(	size_t	i,
		size_t	stream
	)

overridevirtual

Gets the offset, in volts, for a given channel.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)

Implements Oscilloscope.

◆ GetChannelVoltageRange()

float AntikernelLabsTriggerCrossbar::GetChannelVoltageRange	(	size_t	i,
		size_t	stream
	)

overridevirtual

Gets the range of the current channel configuration.

The range is the distance, in volts, between the most negative/smallest and most positive/largest voltage which the ADC can represent using the current vertical gain configuration. This can be calculated as the number of vertical divisions times the number of volts per division.

The range does not depend on the offset.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)

Implements Oscilloscope.

◆ GetCustomPatternLength()

size_t AntikernelLabsTriggerCrossbar::GetCustomPatternLength ( )

overridevirtual

Returns the number of bits in a custom pattern (may change with line rate)

Returns: Length of the custom pattern

Implements BERT.

◆ GetDataRate()

int64_t AntikernelLabsTriggerCrossbar::GetDataRate ( size_t i )

overridevirtual

Gets the currently selected line rate (in symbols/sec)

Parameters

i	Channel index

Implements BERT.

◆ GetExpectedBathtubCaptureTime()

int64_t AntikernelLabsTriggerCrossbar::GetExpectedBathtubCaptureTime ( size_t i )

overridevirtual

Returns the expected time, in femtoseconds, to complete a bathtub scan with the current settings.

The default implementation returns zero.

Parameters

i	Channel index

Reimplemented from BERT.

◆ GetExpectedEyeCaptureTime()

int64_t AntikernelLabsTriggerCrossbar::GetExpectedEyeCaptureTime ( size_t i )

overridevirtual

Returns the expected time, in femtoseconds, to complete an eye scan with the current settings.

The default implementation returns zero.

Parameters

i	Channel index

Reimplemented from BERT.

◆ GetExternalTrigger()

OscilloscopeChannel * AntikernelLabsTriggerCrossbar::GetExternalTrigger ( )

overridevirtual

Returns the external trigger input channel, if we have one.

Note that some very high end oscilloscopes have multiple external trigger inputs. We do not currently support this.

Implements Oscilloscope.

◆ GetGlobalCustomPattern()

uint64_t AntikernelLabsTriggerCrossbar::GetGlobalCustomPattern ( )

overridevirtual

Gets the global custom pattern (only valid if IsCustomPatternPerChannel returns false)

Returns: The bit sequence

Implements BERT.

◆ GetInstrumentTypes()

unsigned int AntikernelLabsTriggerCrossbar::GetInstrumentTypes ( ) const

overridevirtual

Returns a bitfield describing the set of instrument types that this instrument supports.

Not all types may be available on a given channel.

Reimplemented from SwitchMatrix.

◆ GetInstrumentTypesForChannel()

uint32_t AntikernelLabsTriggerCrossbar::GetInstrumentTypesForChannel ( size_t i ) const

overridevirtual

Returns a bitfield describing the set of instrument types that a given channel supports.

Parameters

i	Channel index

Implements Instrument.

◆ GetInterleaveConflicts()

set< Oscilloscope::InterleaveConflict > AntikernelLabsTriggerCrossbar::GetInterleaveConflicts ( )

overridevirtual

Implements Oscilloscope.

◆ GetMuxInputThreshold()

float AntikernelLabsTriggerCrossbar::GetMuxInputThreshold ( size_t dstchan )

overridevirtual

Gets the threshold level of an input channel.

Implements SwitchMatrix.

◆ GetMuxOutputDrive()

float AntikernelLabsTriggerCrossbar::GetMuxOutputDrive ( size_t dstchan )

overridevirtual

Gets the drive level of an output channel.

Implements SwitchMatrix.

◆ GetRefclkInFrequency()

int64_t AntikernelLabsTriggerCrossbar::GetRefclkInFrequency ( )

overridevirtual

Gets the refclk in frequency, in Hz, required to generate the currently selected data rate.

Implements BERT.

◆ GetRefclkOutFrequency()

int64_t AntikernelLabsTriggerCrossbar::GetRefclkOutFrequency ( )

overridevirtual

Gets the currently selected refclk out frequency, in Hz.

Implements BERT.

◆ GetRefclkOutMux()

size_t AntikernelLabsTriggerCrossbar::GetRefclkOutMux ( )

overridevirtual

Gets the currently selected reference clock output mux setting.

Implements BERT.

◆ GetRefclkOutMuxNames()

vector< string > AntikernelLabsTriggerCrossbar::GetRefclkOutMuxNames ( )

overridevirtual

Gets the list of available reference clock mux settings.

Mux selector names are free-form text whose meaning is defined by the instrument.

Implements BERT.

◆ GetRxCdrLockState()

bool AntikernelLabsTriggerCrossbar::GetRxCdrLockState ( size_t i )

overridevirtual

Gets the RX CDR lock state (true=lock, false=unlock)

NOTE: For some instruments this is just CDR lock, for others it indicates both CDR and pattern checker lock

Parameters

i	Channel index

Implements BERT.

◆ GetRxCTLEGainStep()

size_t AntikernelLabsTriggerCrossbar::GetRxCTLEGainStep ( size_t i )

overridevirtual

Gets the currently selected RX CTLE gain index.

To get the actual gain in dB, use this value as the index into the table returned by GetRxCTLEGainSteps()

Parameters

i	Channel index

Implements BERT.

◆ GetRxCTLEGainSteps()

vector< float > AntikernelLabsTriggerCrossbar::GetRxCTLEGainSteps ( )

overridevirtual

Get the list of available RX CTLE gain values (in dB)

Implements BERT.

◆ GetRxInvert()

bool AntikernelLabsTriggerCrossbar::GetRxInvert ( size_t i )

overridevirtual

Gets the transmit invert flag for a channel.

Parameters

i	Channel index

Implements BERT.

◆ GetRxPattern()

BERT::Pattern AntikernelLabsTriggerCrossbar::GetRxPattern ( size_t i )

overridevirtual

Gets the currently selected receive pattern for a channel.

Parameters

i	Channel index

Implements BERT.

◆ GetSampleDepth()

uint64_t AntikernelLabsTriggerCrossbar::GetSampleDepth ( )

overridevirtual

Gets the current sample depth of this scope.

Implements Oscilloscope.

◆ GetSampleDepthsInterleaved()

vector< uint64_t > AntikernelLabsTriggerCrossbar::GetSampleDepthsInterleaved ( )

overridevirtual

Get the legal memory depths for this scope in combined-channels mode.

Implements Oscilloscope.

◆ GetSampleDepthsNonInterleaved()

vector< uint64_t > AntikernelLabsTriggerCrossbar::GetSampleDepthsNonInterleaved ( )

overridevirtual

Get the legal memory depths for this scope in all-channels mode.

Implements Oscilloscope.

◆ GetSampleRate()

uint64_t AntikernelLabsTriggerCrossbar::GetSampleRate ( )

overridevirtual

Gets the current sampling rate (in Hz) of this scope.

Implements Oscilloscope.

◆ GetSampleRatesInterleaved()

vector< uint64_t > AntikernelLabsTriggerCrossbar::GetSampleRatesInterleaved ( )

overridevirtual

Get the legal sampling rates (in Hz) for this scope in combined-channels mode.

Implements Oscilloscope.

◆ GetSampleRatesNonInterleaved()

vector< uint64_t > AntikernelLabsTriggerCrossbar::GetSampleRatesNonInterleaved ( )

overridevirtual

Get the legal sampling rates (in Hz) for this scope in all-channels mode.

Implements Oscilloscope.

◆ GetScanDepth()

int64_t AntikernelLabsTriggerCrossbar::GetScanDepth ( size_t i )

overridevirtual

Get the configured scan depth for a channel, in UIs per sample/pixel.

Parameters

i	Channel index

Reimplemented from BERT.

◆ GetScanDepths()

vector< int64_t > AntikernelLabsTriggerCrossbar::GetScanDepths ( size_t i )

overridevirtual

Returns the list of integration depths for eye / bathtub scans.

Higher depths will give better resolution at low BER values, but increase scan time.

Parameters

i	Channel index

Reimplemented from BERT.

◆ GetScanHalfWidth()

ssize_t AntikernelLabsTriggerCrossbar::GetScanHalfWidth ( size_t i )

inlineprotected

Returns the number of points on either side of the center for a full eye/bathtub scan.

The full scan width is 2*halfwidth + 1.

◆ GetScanProgress()

float AntikernelLabsTriggerCrossbar::GetScanProgress ( size_t i )

overridevirtual

Gets the estimated completion status (0-1) of the current scan.

Parameters

i	Channel index

Reimplemented from BERT.

◆ GetTriggerOffset()

int64_t AntikernelLabsTriggerCrossbar::GetTriggerOffset ( )

overridevirtual

Gets the trigger offset.

Implements Oscilloscope.

◆ GetTxDriveStrength()

float AntikernelLabsTriggerCrossbar::GetTxDriveStrength ( size_t i )

overridevirtual

Get the drive strength for a channel.

Parameters

i	Channel index

Implements BERT.

◆ GetTxEnable()

bool AntikernelLabsTriggerCrossbar::GetTxEnable ( size_t i )

overridevirtual

Gets the transmit enable flag for a channel.

Parameters

i	Channel index

Implements BERT.

◆ GetTxInvert()

bool AntikernelLabsTriggerCrossbar::GetTxInvert ( size_t i )

overridevirtual

Gets the transmit invert flag for a channel.

Parameters

i	Channel index

Implements BERT.

◆ GetTxPattern()

BERT::Pattern AntikernelLabsTriggerCrossbar::GetTxPattern ( size_t i )

overridevirtual

Gets the currently selected transmit pattern for a channel.

Parameters

i	Channel index

Implements BERT.

◆ GetTxPostCursor()

float AntikernelLabsTriggerCrossbar::GetTxPostCursor ( size_t i )

overridevirtual

Get the post-cursor equalizer tap for a channel.

Equalizer coefficients are are normalized so that 0 is the lowest possible tap value and 1 is the highest possible tap value. Some instruments allow negative values (which invert the sign of the tap).

The exact mapping of normalized coefficients to FFE gain steps is instrument specific and may be nonlinear.

Parameters

i	Channel index

Implements BERT.

◆ GetTxPreCursor()

float AntikernelLabsTriggerCrossbar::GetTxPreCursor ( size_t i )

overridevirtual

Get the pre-cursor equalizer tap for a channel.

Equalizer coefficients are are normalized so that 0 is the lowest possible tap value and 1 is the highest possible tap value. Some instruments allow negative values (which invert the sign of the tap).

The exact mapping of normalized coefficients to FFE gain steps is instrument specific and may be nonlinear.

Parameters

i	Channel index

Implements BERT.

◆ GetUseExternalRefclk()

bool AntikernelLabsTriggerCrossbar::GetUseExternalRefclk ( )

overridevirtual

Sets the reference clock source.

Returns: True if external clock is in use, false if internal

Implements BERT.

◆ HasConfigurableScanDepth()

bool AntikernelLabsTriggerCrossbar::HasConfigurableScanDepth ( )

overridevirtual

Determines whether this instrument has configurable integration depth for eye / bathtub scans.

Reimplemented from BERT.

◆ HasRefclkIn()

bool AntikernelLabsTriggerCrossbar::HasRefclkIn ( )

overridevirtual

Returns true if this instrument has a reference clock input port.

Implements BERT.

◆ HasRefclkOut()

bool AntikernelLabsTriggerCrossbar::HasRefclkOut ( )

overridevirtual

Returns true if this instrument has a reference clock output port.

Implements BERT.

◆ HasRxCTLE()

bool AntikernelLabsTriggerCrossbar::HasRxCTLE ( )

overridevirtual

Determines whether the input buffer has a continuous-time linear equalizer.

Implements BERT.

◆ IsChannelEnabled()

bool AntikernelLabsTriggerCrossbar::IsChannelEnabled ( size_t i )

overridevirtual

Checks if a channel is enabled in hardware.

Implements Oscilloscope.

◆ IsCustomPatternPerChannel()

bool AntikernelLabsTriggerCrossbar::IsCustomPatternPerChannel ( )

overridevirtual

Determines whether custom patterns are settable per channel, or shared by the whole device.

Returns: True = per channel, false = global

Implements BERT.

◆ IsDataRatePerChannel()

bool AntikernelLabsTriggerCrossbar::IsDataRatePerChannel ( )

overridevirtual

Determines whether the TX/RX clock is a per-instrument or per-channel setting.

Returns: True if clock is a per-channel setting, false if global

Implements BERT.

◆ IsEyeScanInProgress()

bool AntikernelLabsTriggerCrossbar::IsEyeScanInProgress ( size_t i )

overridevirtual

Returns true if an eye scan is in progress.

Parameters

i	Channel index

Reimplemented from BERT.

◆ IsHBathtubScanInProgress()

bool AntikernelLabsTriggerCrossbar::IsHBathtubScanInProgress ( size_t i )

overridevirtual

Returns true if a horizontal bathtub scan is in progress.

Parameters

i	Channel index

Reimplemented from BERT.

◆ IsInterleaving()

bool AntikernelLabsTriggerCrossbar::IsInterleaving ( )

overridevirtual

Checks if the scope is currently combining channels.

Implements Oscilloscope.

◆ IsTriggerArmed()

bool AntikernelLabsTriggerCrossbar::IsTriggerArmed ( )

overridevirtual

Checks if the trigger is currently armed.

Implements Oscilloscope.

◆ MeasureEye()

void AntikernelLabsTriggerCrossbar::MeasureEye ( size_t i )

overridevirtual

Acquires an eye pattern.

Parameters

i	Channel index

Implements BERT.

◆ MeasureHBathtub()

void AntikernelLabsTriggerCrossbar::MeasureHBathtub ( size_t i )

overridevirtual

Acquires a bathtub curve.

Parameters

i	Channel index

Implements BERT.

◆ MuxHasConfigurableDrive()

bool AntikernelLabsTriggerCrossbar::MuxHasConfigurableDrive ( size_t dstchan )

overridevirtual

Checks if an output channel has configurable voltage level.

Implements SwitchMatrix.

◆ MuxHasConfigurableThreshold()

bool AntikernelLabsTriggerCrossbar::MuxHasConfigurableThreshold ( size_t dstchan )

overridevirtual

Checks if an input channel has configurable voltage level.

Implements SwitchMatrix.

◆ PollTrigger()

Oscilloscope::TriggerMode AntikernelLabsTriggerCrossbar::PollTrigger ( )

overridevirtual

Checks the curent trigger status.

Implements Oscilloscope.

◆ PostCtorInit()

void AntikernelLabsTriggerCrossbar::PostCtorInit ( )

overridevirtual

Does any initialization that can't happen during the constructor.

Implements SCPIBERT.

◆ PullTrigger()

void AntikernelLabsTriggerCrossbar::PullTrigger ( )

overridevirtual

Updates m_trigger with any changes made from the instrument side.

Implements Oscilloscope.

◆ PushTrigger()

void AntikernelLabsTriggerCrossbar::PushTrigger ( )

overridevirtual

Pushes changes made to m_trigger to the instrument.

Implements Oscilloscope.

◆ SetBERIntegrationLength()

void AntikernelLabsTriggerCrossbar::SetBERIntegrationLength ( int64_t uis )

overridevirtual

Set the integration period for BER measurements.

Longer values give better resolution for low BERs but update more slowly

Implements BERT.

◆ SetBERSamplingPoint()

void AntikernelLabsTriggerCrossbar::SetBERSamplingPoint	(	size_t	i,
		int64_t	dx,
		float	dy
	)

overridevirtual

Set the sampling point for BER measurements.

Parameters

i	Channel index
dx	Horizontal offset of the sampling point from the center of the eye, in femtoseconds
dy	Vertical offset of the sampling point from the center of the eye, in volts

Implements BERT.

◆ SetChannelAttenuation()

void AntikernelLabsTriggerCrossbar::SetChannelAttenuation	(	size_t	i,
		double	atten
	)

overridevirtual

Sets the probe attenuation used for an input channel.

Parameters

i	Zero-based index of channel
atten	Attenuation factor

Implements Oscilloscope.

◆ SetChannelBandwidthLimit()

void AntikernelLabsTriggerCrossbar::SetChannelBandwidthLimit	(	size_t	i,
		unsigned int	limit_mhz
	)

overridevirtual

Sets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel
limit_mhz	Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implements Oscilloscope.

◆ SetChannelCoupling()

void AntikernelLabsTriggerCrossbar::SetChannelCoupling	(	size_t	i,
		OscilloscopeChannel::CouplingType	type
	)

overridevirtual

Sets the coupling used for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ SetChannelDisplayName()

void AntikernelLabsTriggerCrossbar::SetChannelDisplayName	(	size_t	i,
		std::string	name
	)

overridevirtual

Sets the hardware display name for a channel. This is an arbitrary user-selected string.

Some instruments allow displaying channel names in the GUI or on probes. If this is supported, the driver should override this function.

This function directly updates hardware without caching. In most cases, you should call InstrumentChannel::SetDisplayName(), which updates the clientside cache and then calls this function.

The default function returns the hardware name.

Parameters

i	Zero-based index of channel
name	Name of the channel

Reimplemented from Instrument.

◆ SetChannelOffset()

void AntikernelLabsTriggerCrossbar::SetChannelOffset	(	size_t	i,
		size_t	stream,
		float	offset
	)

overridevirtual

Sets the offset for a given channel.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)
offset	Offset, in volts

Implements Oscilloscope.

◆ SetChannelVoltageRange()

void AntikernelLabsTriggerCrossbar::SetChannelVoltageRange	(	size_t	i,
		size_t	stream,
		float	range
	)

overridevirtual

Sets the range of the current channel configuration.

The range is the distance, in volts, between the most negative/smallest and most positive/largest voltage which the ADC can represent using the current vertical gain configuration. This can be calculated as the number of vertical divisions times the number of volts per division.

The range does not depend on the offset.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)
range	Voltage range

Implements Oscilloscope.

◆ SetDataRate()

void AntikernelLabsTriggerCrossbar::SetDataRate	(	size_t	i,
		int64_t	rate
	)

overridevirtual

Sets the data rate (in symbols/sec)

Parameters

i	Channel index
rate	Baud rate of the channel

Implements BERT.

◆ SetGlobalCustomPattern()

void AntikernelLabsTriggerCrossbar::SetGlobalCustomPattern ( uint64_t pattern )

overridevirtual

Sets the global custom pattern (only valid if IsCustomPatternPerChannel returns false)

Parameters

pattern The bit sequence (up to 64 bits in length)

Implements BERT.

◆ SetInterleaving()

bool AntikernelLabsTriggerCrossbar::SetInterleaving ( bool combine )

overridevirtual

Configures the scope to combine channels.

This function may fail to enable channel combining if conflicts are present, check the return value!

Returns: True if channel combining is enabled, false if not

Implements Oscilloscope.

◆ SetMuxInputThreshold()

void AntikernelLabsTriggerCrossbar::SetMuxInputThreshold	(	size_t	dstchan,
		float	v
	)

overridevirtual

Sets the threshold level of an input channel.

Implements SwitchMatrix.

◆ SetMuxOutputDrive()

void AntikernelLabsTriggerCrossbar::SetMuxOutputDrive	(	size_t	dstchan,
		float	v
	)

overridevirtual

Sets the drive level of an output channel.

Implements SwitchMatrix.

◆ SetMuxPath()

void AntikernelLabsTriggerCrossbar::SetMuxPath	(	size_t	dstchan,
		size_t	srcchan
	)

overridevirtual

Sets the mux selector for an output channel.

Implements SwitchMatrix.

◆ SetMuxPathOpen()

void AntikernelLabsTriggerCrossbar::SetMuxPathOpen ( size_t dstchan )

overridevirtual

Removes a mux path for an output channel.

Not all switch matrices or ports support this feature.

Implements SwitchMatrix.

◆ SetRefclkOutMux()

void AntikernelLabsTriggerCrossbar::SetRefclkOutMux ( size_t i )

overridevirtual

Sets the reference clock output mux.

Parameters

i	Index of the mux within the table returned by GetRefclkOutMuxNames()

Implements BERT.

◆ SetRxCTLEGainStep()

void AntikernelLabsTriggerCrossbar::SetRxCTLEGainStep	(	size_t	i,
		size_t	step
	)

overridevirtual

Sets the RX CTLE gain index.

Parameters

i	Channel index
step	Index of the gain value within the GetRxCTLEGainSteps() table to use

Implements BERT.

◆ SetRxInvert()

void AntikernelLabsTriggerCrossbar::SetRxInvert	(	size_t	i,
		bool	invert
	)

overridevirtual

Sets the receive invert flag for a channel.

Parameters

i	Channel index
invert	True = inverted, false = inverted

Implements BERT.

◆ SetRxPattern()

void AntikernelLabsTriggerCrossbar::SetRxPattern	(	size_t	i,
		Pattern	pattern
	)

overridevirtual

Sets the receive pattern for the selected channel.

Parameters

i	Channel index
pattern	Desired input pattern

Implements BERT.

◆ SetSampleDepth()

void AntikernelLabsTriggerCrossbar::SetSampleDepth ( uint64_t depth )

overridevirtual

Sets the sample depth of the scope.

Implements Oscilloscope.

◆ SetSampleRate()

void AntikernelLabsTriggerCrossbar::SetSampleRate ( uint64_t rate )

overridevirtual

Sets the sample rate of the scope, in Hz.

Implements Oscilloscope.

◆ SetScanDepth()

void AntikernelLabsTriggerCrossbar::SetScanDepth	(	size_t	i,
		int64_t	depth
	)

overridevirtual

Set the configured scan depth for a channel.

Parameters

i	Channel index
depth	Integration depth, in UIs

Reimplemented from BERT.

◆ SetTriggerOffset()

void AntikernelLabsTriggerCrossbar::SetTriggerOffset ( int64_t offset )

overridevirtual

Sets the trigger offset.

Parameters

offset Femtoseconds from the start of the capture to the trigger point. Positive values mean the trigger is within the waveform. Negative values mean there is a delay from the trigger point to the start of the waveform.

Implements Oscilloscope.

◆ SetTxDriveStrength()

void AntikernelLabsTriggerCrossbar::SetTxDriveStrength	(	size_t	i,
		float	drive
	)

overridevirtual

Set the drive strength for a channel.

Parameters

i	Channel index
drive	Nominal p-p swing

Implements BERT.

◆ SetTxEnable()

void AntikernelLabsTriggerCrossbar::SetTxEnable	(	size_t	i,
		bool	enable
	)

overridevirtual

Sets the transmit enable flag for a channel.

Parameters

i	Channel index
enable	True = enabled, false = disabled

Implements BERT.

◆ SetTxInvert()

void AntikernelLabsTriggerCrossbar::SetTxInvert	(	size_t	i,
		bool	invert
	)

overridevirtual

Sets the transmit invert flag for a channel.

Parameters

i	Channel index
invert	True = inverted, false = normal

Implements BERT.

◆ SetTxPattern()

void AntikernelLabsTriggerCrossbar::SetTxPattern	(	size_t	i,
		Pattern	pattern
	)

overridevirtual

Sets the transmit pattern for the selected channel.

Parameters

i	Channel index
pattern	The selected pattern

Implements BERT.

◆ SetTxPostCursor()

void AntikernelLabsTriggerCrossbar::SetTxPostCursor	(	size_t	i,
		float	postcursor
	)

overridevirtual

Set the post-cursor equalizer tap for a channel.

Equalizer coefficients are are normalized so that 0 is the lowest possible tap value and 1 is the highest possible tap value. Some instruments allow negative values (which invert the sign of the tap).

The exact mapping of normalized coefficients to FFE gain steps is instrument specific and may be nonlinear.

Parameters

i	Channel index
postcursor	Post-cursor tap

Implements BERT.

◆ SetTxPreCursor()

void AntikernelLabsTriggerCrossbar::SetTxPreCursor	(	size_t	i,
		float	precursor
	)

overridevirtual

Set the pre-cursor equalizer tap for a channel.

Equalizer coefficients are are normalized so that 0 is the lowest possible tap value and 1 is the highest possible tap value. Some instruments allow negative values (which invert the sign of the tap).

The exact mapping of normalized coefficients to FFE gain steps is instrument specific and may be nonlinear.

Parameters

i	Channel index
precursor	Pre-cursor tap

Implements BERT.

◆ SetUseExternalRefclk()

void AntikernelLabsTriggerCrossbar::SetUseExternalRefclk ( bool external )

overridevirtual

Sets the reference clock source (internal or external)

Parameters

external True to select external clock, false to select internal

Implements BERT.

◆ Start()

void AntikernelLabsTriggerCrossbar::Start ( )

overridevirtual

Starts the instrument in continuous trigger mode.

Most drivers will implement this as repeated calls to the "single trigger" function to avoid race conditions when the instrument triggers halfway through downloading captured waveforms.

Implements Oscilloscope.

◆ StartSingleTrigger()

void AntikernelLabsTriggerCrossbar::StartSingleTrigger ( )

overridevirtual

Arms the trigger for a single acquistion.

Implements Oscilloscope.

◆ Stop()

void AntikernelLabsTriggerCrossbar::Stop ( )

overridevirtual

Stops triggering.

Implements Oscilloscope.

Member Data Documentation

◆ m_loadInProgress

bool AntikernelLabsTriggerCrossbar::m_loadInProgress

protected

True if in a constructor or similar initialization path (getting hardware state)

This prevents filter graph changes from being pushed to hardware if we've just pulled the same path.

The documentation for this class was generated from the following files:

lib/scopehal/AntikernelLabsTriggerCrossbar.h
lib/scopehal/AntikernelLabsTriggerCrossbar.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AntikernelLabsTriggerCrossbar()

Member Function Documentation

◆ AcquireData()

◆ CanInterleave()

◆ DisableChannel()

◆ EnableChannel()

◆ ForceTrigger()

◆ GetAvailableCouplings()

◆ GetAvailableDataRates()

◆ GetAvailableRxPatterns()

◆ GetAvailableTxDriveStrengths()

◆ GetAvailableTxPatterns()

◆ GetBERIntegrationLength()

◆ GetBERSamplingPoint()

◆ GetChannelAttenuation()

◆ GetChannelBandwidthLimit()

◆ GetChannelCoupling()

◆ GetChannelOffset()

◆ GetChannelVoltageRange()

◆ GetCustomPatternLength()

◆ GetDataRate()

◆ GetExpectedBathtubCaptureTime()

◆ GetExpectedEyeCaptureTime()

◆ GetExternalTrigger()

◆ GetGlobalCustomPattern()

◆ GetInstrumentTypes()

◆ GetInstrumentTypesForChannel()

◆ GetInterleaveConflicts()

◆ GetMuxInputThreshold()

◆ GetMuxOutputDrive()

◆ GetRefclkInFrequency()

◆ GetRefclkOutFrequency()

◆ GetRefclkOutMux()

◆ GetRefclkOutMuxNames()

◆ GetRxCdrLockState()

◆ GetRxCTLEGainStep()

◆ GetRxCTLEGainSteps()

◆ GetRxInvert()

◆ GetRxPattern()

◆ GetSampleDepth()

◆ GetSampleDepthsInterleaved()

◆ GetSampleDepthsNonInterleaved()

◆ GetSampleRate()

◆ GetSampleRatesInterleaved()

◆ GetSampleRatesNonInterleaved()

◆ GetScanDepth()

◆ GetScanDepths()

◆ GetScanHalfWidth()

◆ GetScanProgress()

◆ GetTriggerOffset()

◆ GetTxDriveStrength()

◆ GetTxEnable()

◆ GetTxInvert()

◆ GetTxPattern()

◆ GetTxPostCursor()

◆ GetTxPreCursor()

◆ GetUseExternalRefclk()

◆ HasConfigurableScanDepth()

◆ HasRefclkIn()

◆ HasRefclkOut()

◆ HasRxCTLE()

◆ IsChannelEnabled()

◆ IsCustomPatternPerChannel()

◆ IsDataRatePerChannel()

◆ IsEyeScanInProgress()

◆ IsHBathtubScanInProgress()

◆ IsInterleaving()

◆ IsTriggerArmed()

◆ MeasureEye()

◆ MeasureHBathtub()

◆ MuxHasConfigurableDrive()

◆ MuxHasConfigurableThreshold()

◆ PollTrigger()
