An Alientek DP-100 power supply or other equivalent model. More...

#include <AlientekPowerSupply.h>

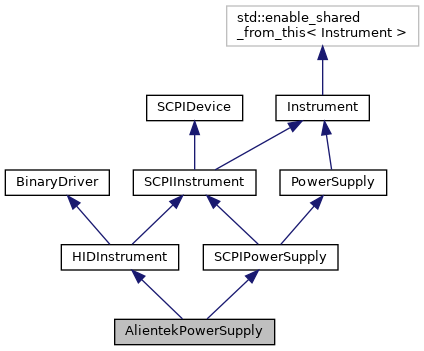

Inheritance diagram for AlientekPowerSupply:

[legend]

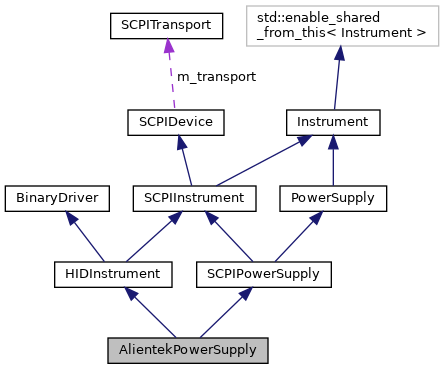

Collaboration diagram for AlientekPowerSupply:

[legend]

Public Member Functions
	AlientekPowerSupply (SCPITransport *transport)

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const override
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

virtual bool	SupportsIndividualOutputSwitching () override
	Determines if the power supply supports switching individual output channels. More...

virtual bool	SupportsVoltageCurrentControl (int chan) override
	Determines if the power supply supports voltage/current control for the given channel. More...

virtual double	GetPowerVoltageActual (int chan) override

virtual double	GetPowerVoltageNominal (int chan) override

virtual double	GetPowerCurrentActual (int chan) override

virtual double	GetPowerCurrentNominal (int chan) override

virtual bool	GetPowerChannelActive (int chan) override

virtual void	SetPowerVoltage (int chan, double volts) override

virtual void	SetPowerCurrent (int chan, double amps) override

virtual void	SetPowerChannelActive (int chan, bool on) override

virtual bool	IsPowerConstantCurrent (int chan) override

	POWER_INITPROC (AlientekPowerSupply)

Public Member Functions inherited from PowerSupply
virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual bool	SupportsSoftStart ()
	Determines if the power supply supports soft start. More...

virtual bool	SupportsIndividualOutputSwitching ()
	Determines if the power supply supports switching individual output channels. More...

virtual bool	SupportsMasterOutputSwitching ()
	Determines if the power supply supports ganged master switching of all outputs. More...

virtual bool	SupportsOvercurrentShutdown ()
	Determines if the power supply supports shutdown rather than constant-current mode on overcurrent. More...

virtual bool	SupportsVoltageCurrentControl (int chan)
	Determines if the power supply supports voltage/current control for the given channel. More...

virtual bool	AcquireData () override
	Pulls data from hardware and updates our measurements. More...

virtual double	GetPowerVoltageActual (int chan)=0

virtual double	GetPowerVoltageNominal (int chan)=0

virtual double	GetPowerCurrentActual (int chan)=0

virtual double	GetPowerCurrentNominal (int chan)=0

virtual bool	GetPowerChannelActive (int chan)

virtual bool	GetPowerOvercurrentShutdownEnabled (int chan)

virtual void	SetPowerOvercurrentShutdownEnabled (int chan, bool enable)

virtual bool	GetPowerOvercurrentShutdownTripped (int chan)

virtual void	SetPowerVoltage (int chan, double volts)=0

virtual void	SetPowerCurrent (int chan, double amps)=0

virtual void	SetPowerChannelActive (int chan, bool on)

virtual bool	IsPowerConstantCurrent (int chan)=0

virtual bool	GetMasterPowerEnable ()

virtual void	SetMasterPowerEnable (bool enable)

virtual bool	IsSoftStartEnabled (int chan)

virtual void	SetSoftStartEnabled (int chan, bool enable)

virtual int64_t	GetSoftStartRampTime (int chan)
	Gets the ramp time for use with soft-start mode. More...

virtual void	SetSoftStartRampTime (int chan, int64_t time)
	Sets the ramp time for use with soft-start mode. More...

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Public Member Functions inherited from SCPIInstrument
	SCPIInstrument (SCPITransport *transport, bool identify=true)

virtual std::string	GetTransportConnectionString ()
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()
	Gets the name of our transport. More...

virtual std::string	GetName () const

virtual std::string	GetVendor () const

virtual std::string	GetSerial () const

virtual std::string	GetDriverName () const =0

Public Member Functions inherited from SCPIDevice
	SCPIDevice (SCPITransport *transport, bool identify=true)

SCPITransport *	GetTransport () const

Public Member Functions inherited from HIDInstrument
	HIDInstrument (SCPITransport *transport)

Static Public Member Functions
static std::string	GetDriverNameInternal ()
	Return the constant driver name "alientek_dp".

Static Public Member Functions inherited from SCPIPowerSupply
static void	DoAddDriverClass (std::string name, PowerCreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< SCPIPowerSupply >	CreatePowerSupply (std::string driver, SCPITransport *transport)

Protected Types
enum	Function : uint8_t { DEVICE_INFO = 0x10 , FIRM_INFO = 0x11 , START_TRANS = 0x12 , DATA_TRANS = 0x13 , END_TRANS = 0x14 , DEV_UPGRADE = 0x15 , BASIC_INFO = 0x30 , BASIC_SET = 0x35 , SYSTEM_INFO = 0x40 , SYSTEM_SET = 0x45 , SCAN_OUT = 0x50 , SERIAL_OUT = 0x55 , DISCONNECT = 0x80 , NONE = 0xFF }

enum	Operation : uint8_t { OUTPUT = 0x20 , SETTING = 0x40 , READ = 0x80 }

Protected Types inherited from SCPIPowerSupply
typedef std::map< std::string, PowerCreateProcType >	PowerCreateMapType

Protected Member Functions
void	SendReceiveReport (Function function, int sequence=-1, std::vector< uint8_t > *data=nullptr)

void	SendGetBasicSetReport ()

void	SendSetBasicSetReport ()

Protected Member Functions inherited from PowerSupply
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this oscilloscope's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

Protected Member Functions inherited from SCPIInstrument
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)

Protected Member Functions inherited from HIDInstrument
size_t	Converse (uint8_t reportNumber, size_t responseReportSize, const std::vector< uint8_t > &sendData, std::vector< uint8_t > *receiveData)

void	SendReport (uint8_t reportNumber, const std::vector< uint8_t > &data)
	Send a HID report. More...

size_t	ReadReport (size_t reportSize, std::vector< uint8_t > *data)

Protected Member Functions inherited from BinaryDriver
void	PushUint16 (std::vector< uint8_t > *data, uint16_t value, bool littleEndian=true)
	Helper function to push a uint16 to a std::vector of bytes, as two consecutive bytes (either little-endian or big-endian according to littleEndian parameter) More...

uint16_t	ReadUint16 (const std::vector< uint8_t > &data, uint8_t index, bool littleEndian=true)
	Bounds-checked read of a 16-bit value from a byte vector. More...

uint8_t	ReadUint8 (const std::vector< uint8_t > &data, uint8_t index)
	Bounds-checked read of an 8-bit value from a byte vector. More...

uint16_t	CalculateCRC (const uint8_t *buff, size_t len)

Protected Attributes
uint8_t	m_deviceAdress = 0xFB

std::chrono::system_clock::time_point	m_nextBasicInfoUpdate

std::chrono::milliseconds	m_basicInfoCacheDuration = std::chrono::milliseconds(10)

std::chrono::system_clock::time_point	m_nextBasicSetUpdate

std::chrono::milliseconds	m_basicSetCacheDuration = std::chrono::milliseconds(1000)

double	m_vIn
	Input voltage in V.

double	m_vOut
	Actual output voltage in V.

double	m_vOutSet
	Set output voltage in V.

double	m_iOut
	Actual output current in A.

double	m_iOutSet
	Set output current in A.

double	m_vOutMax
	Max output voltage in V.

double	m_temp1
	Temperature 1 in °C.

double	m_temp2
	Temperature 2 in °C.

double	m_dc5V
	5V rail in V.

uint8_t	m_outMode
	Output mode => 0 = CC, 1 = CV, 2 = OVP/OCP (according to workState)

uint8_t	m_workState
	Work state => 1 = OVP, 2 = OCP.

double	m_ovpSet
	Over-voltage protection setting in V.

double	m_ocpSet
	Over-current protection setting in A.

bool	m_powerState
	Power state.

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Protected Attributes inherited from SCPIDevice
SCPITransport *	m_transport

std::string	m_vendor

std::string	m_model

std::string	m_serial

std::string	m_fwVersion

Protected Attributes inherited from HIDInstrument
std::recursive_mutex	m_hidMutex
	Mutex to make sure several requests don't collide before we received the corresponding response.

Additional Inherited Members
Public Types inherited from SCPIPowerSupply
typedef std::shared_ptr< SCPIPowerSupply >(*	PowerCreateProcType) (SCPITransport *)

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Static Protected Attributes inherited from SCPIPowerSupply
static PowerCreateMapType	m_powercreateprocs

Detailed Description

An Alientek DP-100 power supply or other equivalent model.

Member Function Documentation

◆ GetInstrumentTypesForChannel()

uint32_t AlientekPowerSupply::GetInstrumentTypesForChannel ( size_t i ) const

overridevirtual

Returns a bitfield describing the set of instrument types that a given channel supports.

Parameters

i	Channel index

Implements Instrument.

◆ GetPowerChannelActive()

bool AlientekPowerSupply::GetPowerChannelActive ( int chan )

overridevirtual

Reimplemented from PowerSupply.

◆ GetPowerCurrentActual()

double AlientekPowerSupply::GetPowerCurrentActual ( int chan )

overridevirtual

Implements PowerSupply.

◆ GetPowerCurrentNominal()

double AlientekPowerSupply::GetPowerCurrentNominal ( int chan )

overridevirtual

Implements PowerSupply.

◆ GetPowerVoltageActual()

double AlientekPowerSupply::GetPowerVoltageActual ( int chan )

overridevirtual

Implements PowerSupply.

◆ GetPowerVoltageNominal()

double AlientekPowerSupply::GetPowerVoltageNominal ( int chan )

overridevirtual

Implements PowerSupply.

◆ IsPowerConstantCurrent()

bool AlientekPowerSupply::IsPowerConstantCurrent ( int chan )

overridevirtual

Implements PowerSupply.

◆ SetPowerChannelActive()

void AlientekPowerSupply::SetPowerChannelActive	(	int	chan,
		bool	on
	)

overridevirtual

Reimplemented from PowerSupply.

◆ SetPowerCurrent()

void AlientekPowerSupply::SetPowerCurrent	(	int	chan,
		double	amps
	)

overridevirtual

Implements PowerSupply.

◆ SetPowerVoltage()

void AlientekPowerSupply::SetPowerVoltage	(	int	chan,
		double	volts
	)

overridevirtual

Implements PowerSupply.

◆ SupportsIndividualOutputSwitching()

bool AlientekPowerSupply::SupportsIndividualOutputSwitching ( )

overridevirtual

Determines if the power supply supports switching individual output channels.

If this function returns false, GetPowerChannelActive() will always return true, and SetPowerChannelActive() is a no-op.

Reimplemented from PowerSupply.

◆ SupportsVoltageCurrentControl()

bool AlientekPowerSupply::SupportsVoltageCurrentControl ( int chan )

overridevirtual

Determines if the power supply supports voltage/current control for the given channel.

If this function returns false, GetPowerVoltage* and GetPowerCurrent* will always return zero, and SetPowerCurrent*, and SetPowerVoltage* are no-ops.

Reimplemented from PowerSupply.

The documentation for this class was generated from the following files:

lib/scopehal/AlientekPowerSupply.h
lib/scopehal/AlientekPowerSupply.cpp

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ GetInstrumentTypesForChannel()

◆ GetPowerChannelActive()

◆ GetPowerCurrentActual()

◆ GetPowerCurrentNominal()

◆ GetPowerVoltageActual()

◆ GetPowerVoltageNominal()

◆ IsPowerConstantCurrent()

◆ SetPowerChannelActive()

◆ SetPowerCurrent()

◆ SetPowerVoltage()

◆ SupportsIndividualOutputSwitching()

◆ SupportsVoltageCurrentControl()
