A miscellaneous instrument which streams scalar data over CSV. More...

#include <CSVStreamInstrument.h>

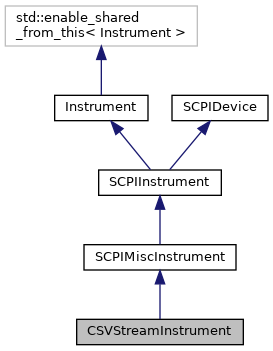

Inheritance diagram for CSVStreamInstrument:

[legend]

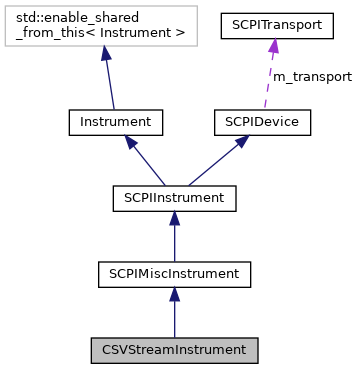

Collaboration diagram for CSVStreamInstrument:

[legend]

Public Member Functions
	CSVStreamInstrument (SCPITransport *transport)
	Initialize the driver. More...

virtual uint32_t	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const override
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

virtual bool	AcquireData () override
	Pull data from the instrument. More...

	MISC_INITPROC (CSVStreamInstrument)

Public Member Functions inherited from SCPIInstrument
	SCPIInstrument (SCPITransport *transport, bool identify=true)

virtual std::string	GetTransportConnectionString ()
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()
	Gets the name of our transport. More...

virtual std::string	GetName () const

virtual std::string	GetVendor () const

virtual std::string	GetSerial () const

virtual std::string	GetDriverName () const =0

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Public Member Functions inherited from SCPIDevice
	SCPIDevice (SCPITransport *transport, bool identify=true)

SCPITransport *	GetTransport () const

Static Public Member Functions
static std::string	GetDriverNameInternal ()
	Returns the constant driver name "csvstream".

Static Public Member Functions inherited from SCPIMiscInstrument
static void	DoAddDriverClass (std::string name, MiscCreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< SCPIMiscInstrument >	CreateInstrument (std::string driver, SCPITransport *transport)

Protected Member Functions
void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

Protected Member Functions inherited from SCPIInstrument
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)

Additional Inherited Members
Public Types inherited from SCPIMiscInstrument
typedef std::shared_ptr< SCPIMiscInstrument >(*	MiscCreateProcType) (SCPITransport *)

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Protected Types inherited from SCPIMiscInstrument
typedef std::map< std::string, MiscCreateProcType >	MiscCreateMapType

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Protected Attributes inherited from SCPIDevice
SCPITransport *	m_transport

std::string	m_vendor

std::string	m_model

std::string	m_serial

std::string	m_fwVersion

Static Protected Attributes inherited from SCPIMiscInstrument
static MiscCreateMapType	m_misccreateprocs

Detailed Description

A miscellaneous instrument which streams scalar data over CSV.

Typically used to plot real time system state (voltages, temperatures, ADC values, etc) from a microcontroller over a UART or SWO trace interface.

The instrument protocol is a unidirectional stream of line oriented comma-separated-value (CSV) rather than SCPI.

At any time, the instrument may send lines with one or more of the following formats, separated by
characters. Lines not starting with these magic keywords are ignored.

CSV-NAME,ch1name,ch2name, ... : assign human readable names to channels CSV-UNIT,V,A, ... : specify unit associated with each channel CSV-DATA,1.23,3.14, ... : specify latest measurement value for each channel. It is not possible to perform partial updates of a single channel without updating the others.

Constructor & Destructor Documentation

◆ CSVStreamInstrument()

CSVStreamInstrument::CSVStreamInstrument ( SCPITransport * transport )

Initialize the driver.

Parameters

transport SCPITransport pointing at the instrument

Member Function Documentation

◆ AcquireData()

bool CSVStreamInstrument::AcquireData ( )

overridevirtual

Pull data from the instrument.

Returns: True if waveform was acquired, false if connection lost or other serious error

Implements Instrument.

◆ GetInstrumentTypes()

uint32_t CSVStreamInstrument::GetInstrumentTypes ( ) const

overridevirtual

Returns a bitfield describing the set of instrument types that this instrument supports.

Not all types may be available on a given channel.

Implements Instrument.

◆ GetInstrumentTypesForChannel()

uint32_t CSVStreamInstrument::GetInstrumentTypesForChannel ( size_t i ) const

overridevirtual

Returns a bitfield describing the set of instrument types that a given channel supports.

Parameters

i	Channel index

Implements Instrument.

The documentation for this class was generated from the following files:

lib/scopehal/CSVStreamInstrument.h
lib/scopehal/CSVStreamInstrument.cpp
