An RF waveform generator which creates a carrier and optionally modulates it. More...

#include <RFSignalGenerator.h>

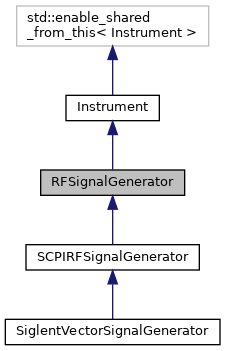

Inheritance diagram for RFSignalGenerator:

[legend]

Collaboration diagram for RFSignalGenerator:

[legend]

Public Types
enum	SweepType { SWEEP_TYPE_NONE , SWEEP_TYPE_FREQ , SWEEP_TYPE_LEVEL , SWEEP_TYPE_FREQ_LEVEL }

enum	SweepShape { SWEEP_SHAPE_TRIANGLE , SWEEP_SHAPE_SAWTOOTH }

enum	SweepSpacing { SWEEP_SPACING_LINEAR , SWEEP_SPACING_LOG }

enum	SweepDirection { SWEEP_DIR_FWD , SWEEP_DIR_REV }

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Member Functions
virtual bool	GetChannelOutputEnable (int chan)=0
	Check if a channel is currently enabled. More...

virtual void	SetChannelOutputEnable (int chan, bool on)=0
	Enable or disable a channel output. More...

virtual float	GetChannelOutputPower (int chan)=0
	Gets the power level of a channel. More...

virtual void	SetChannelOutputPower (int chan, float power)=0
	Sets the power level of a channel. More...

virtual double	GetChannelCenterFrequency (int chan)=0
	Gets the center frequency of a channel. More...

virtual void	SetChannelCenterFrequency (int chan, double freq)=0
	Sets the power level of a channel. More...

virtual bool	IsAnalogModulationAvailable (int chan)=0
	Checks if an instrument is analog modulation capable. More...

virtual void	SetAnalogModulationEnable (int chan, bool on)=0
	Enable or disable analog modulation. More...

virtual bool	GetAnalogModulationEnable (int chan)=0
	Enable or disable analog modulation. More...

virtual void	SetAnalogFMEnable (int chan, bool on)=0
	Enable or disable analog frequency modulation (also requires modulation to be turned on) More...

virtual bool	GetAnalogFMEnable (int chan)=0
	Enable or disable analog frequency modulation. More...

virtual std::vector< FunctionGenerator::WaveShape >	GetAnalogFMWaveShapes ()=0
	Get the set of waveforms available for analog FM. More...

virtual FunctionGenerator::WaveShape	GetAnalogFMWaveShape (int chan)=0
	Get the current waveform selected for analog FM. More...

virtual void	SetAnalogFMWaveShape (int chan, FunctionGenerator::WaveShape shape)=0
	Sets the analog FM modulation shape for a channel. More...

virtual void	SetAnalogFMDeviation (int chan, int64_t deviation)=0
	Sets the analog FM deviation for a channel (in Hz) More...

virtual int64_t	GetAnalogFMDeviation (int chan)=0
	Gets the analog FM deviation for a channel. More...

virtual void	SetAnalogFMFrequency (int chan, int64_t frequency)=0
	Sets the analog FM frequency for a channel (in Hz) More...

virtual int64_t	GetAnalogFMFrequency (int chan)=0
	Gets the analog FM frequency for a channel. More...

virtual bool	IsVectorModulationAvailable (int chan)=0
	Checks if an instrument is vector modulation capable. More...

virtual bool	IsSweepAvailable (int chan)=0
	Checks if an instrument supports sweeping the center frequency. More...

virtual SweepType	GetSweepType (int chan)
	Gets the type of a sweep. More...

virtual void	SetSweepType (int chan, SweepType type)
	Sets the type of a sweep. More...

virtual float	GetSweepStartFrequency (int chan)
	Gets the start of a frequency sweep, in Hz. More...

virtual float	GetSweepStopFrequency (int chan)
	Gets the end of a frequency sweep, in Hz. More...

virtual void	SetSweepStartFrequency (int chan, float freq)
	Sets the start of a frequency sweep. More...

virtual void	SetSweepStopFrequency (int chan, float freq)
	Sets the stop of a frequency sweep. More...

virtual float	GetSweepStartLevel (int chan)
	Gets the start of a power sweep, in dBm. More...

virtual float	GetSweepStopLevel (int chan)
	Gets the end of a power sweep, in dBm. More...

virtual void	SetSweepStartLevel (int chan, float level)
	Sets the start of a power sweep. More...

virtual void	SetSweepStopLevel (int chan, float level)
	Sets the stop of a power sweep. More...

virtual void	SetSweepDwellTime (int chan, float fs)
	Sets the dwell time for each step in a sweep. More...

virtual float	GetSweepDwellTime (int chan)
	Gets the dwell time for each step in a sweep, in femtoseconds. More...

virtual void	SetSweepPoints (int chan, int npoints)
	Sets the number of frequency points in a sweep. More...

virtual int	GetSweepPoints (int chan)
	Gets the number of frequency points in a sweep. More...

virtual SweepShape	GetSweepShape (int chan)
	Gets the shape of a sweep. More...

virtual void	SetSweepShape (int chan, SweepShape shape)
	Sets the shape of a sweep. More...

virtual SweepSpacing	GetSweepSpacing (int chan)
	Gets the spacing of a sweep (log or linear) More...

virtual void	SetSweepSpacing (int chan, SweepSpacing shape)
	Sets the spacing of a sweep (log or linear) More...

virtual SweepDirection	GetSweepDirection (int chan)
	Gets the direction of a sweep. More...

virtual void	SetSweepDirection (int chan, SweepDirection dir)
	Sets the direction of a sweep. More...

virtual bool	AcquireData () override
	Pull data from the instrument. More...

Public Member Functions inherited from Instrument
virtual unsigned int	GetInstrumentTypes () const =0
	Returns a bitfield describing the set of instrument types that this instrument supports. More...

virtual std::string	GetName () const =0

virtual std::string	GetVendor () const =0

virtual std::string	GetSerial () const =0

virtual std::string	GetTransportConnectionString ()=0
	Gets the connection string for our transport. More...

virtual std::string	GetTransportName ()=0
	Gets the name of our transport. More...

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const =0
	Returns a bitfield describing the set of instrument types that a given channel supports. More...

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument. More...

virtual std::string	GetChannelDisplayName (size_t i)
	Gets the hardware display name for a channel. This is an arbitrary user-selected string. More...

virtual void	SetChannelDisplayName (size_t i, std::string name)
	Sets the hardware display name for a channel. This is an arbitrary user-selected string. More...

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	AcquireData ()=0
	Pull data from the instrument. More...

virtual void	FlushConfigCache ()
	Instruments are allowed to cache configuration settings to reduce round trip queries to the device. More...

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node. More...

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file. More...

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it. More...

Static Public Member Functions
static std::string	GetNameOfSweepType (SweepType type)
	Converts a SweepType to a human-readable name.

static SweepType	GetSweepTypeOfName (const std::string &name)
	Converts a human-readable name to a SweepType.

static std::string	GetNameOfSweepShape (SweepShape shape)
	Converts a SweepShape to a human-readable name.

static SweepShape	GetSweepShapeOfName (const std::string &name)
	Converts a human-readable name to a SweepShape.

static std::string	GetNameOfSweepSpacing (SweepSpacing spacing)
	Converts a SweepSpacing to a human-readable name.

static SweepSpacing	GetSweepSpacingOfName (const std::string &name)
	Converts a human-readable name to a SweepSpacing.

static std::string	GetNameOfSweepDirection (SweepDirection dir)
	Converts a SweepDirection to a human-readable name.

static SweepDirection	GetSweepDirectionOfName (const std::string &name)
	Converts a human-readable name to a SweepDirection.

Protected Member Functions
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this oscilloscope's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

Additional Inherited Members
Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument. More...

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Detailed Description

An RF waveform generator which creates a carrier and optionally modulates it.

Member Function Documentation

◆ AcquireData()

bool RFSignalGenerator::AcquireData ( )

overridevirtual

Pull data from the instrument.

Returns: True if waveform was acquired, false if connection lost or other serious error

Implements Instrument.

Reimplemented in SiglentVectorSignalGenerator.

◆ GetAnalogFMDeviation()

virtual int64_t RFSignalGenerator::GetAnalogFMDeviation ( int chan )

pure virtual

Gets the analog FM deviation for a channel.

Implemented in SiglentVectorSignalGenerator.

◆ GetAnalogFMEnable()

virtual bool RFSignalGenerator::GetAnalogFMEnable ( int chan )

pure virtual

Enable or disable analog frequency modulation.

Implemented in SiglentVectorSignalGenerator.

◆ GetAnalogFMFrequency()

virtual int64_t RFSignalGenerator::GetAnalogFMFrequency ( int chan )

pure virtual

Gets the analog FM frequency for a channel.

Implemented in SiglentVectorSignalGenerator.

◆ GetAnalogFMWaveShape()

virtual FunctionGenerator::WaveShape RFSignalGenerator::GetAnalogFMWaveShape ( int chan )

pure virtual

Get the current waveform selected for analog FM.

Implemented in SiglentVectorSignalGenerator.

◆ GetAnalogFMWaveShapes()

virtual std::vector< FunctionGenerator::WaveShape > RFSignalGenerator::GetAnalogFMWaveShapes ( )

pure virtual

Get the set of waveforms available for analog FM.

Implemented in SiglentVectorSignalGenerator.

◆ GetAnalogModulationEnable()

virtual bool RFSignalGenerator::GetAnalogModulationEnable ( int chan )

pure virtual

Enable or disable analog modulation.

Implemented in SiglentVectorSignalGenerator.

◆ GetChannelCenterFrequency()

virtual double RFSignalGenerator::GetChannelCenterFrequency ( int chan )

pure virtual

Gets the center frequency of a channel.

Parameters

chan	Zero-based channel index

Returns: Center frequency, in Hz

Implemented in SiglentVectorSignalGenerator.

◆ GetChannelOutputEnable()

virtual bool RFSignalGenerator::GetChannelOutputEnable ( int chan )

pure virtual

Check if a channel is currently enabled.

Parameters

chan	Zero-based channel index

Returns: True if output is enabled, false if disabled

Implemented in SiglentVectorSignalGenerator.

◆ GetChannelOutputPower()

virtual float RFSignalGenerator::GetChannelOutputPower ( int chan )

pure virtual

Gets the power level of a channel.

Parameters

chan	Zero-based channel index

Returns: Power level (in dBm)

Implemented in SiglentVectorSignalGenerator.

◆ GetSweepDirection()

RFSignalGenerator::SweepDirection RFSignalGenerator::GetSweepDirection ( int chan )

virtual

Gets the direction of a sweep.

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ GetSweepDwellTime()

float RFSignalGenerator::GetSweepDwellTime ( int chan )

virtual

Gets the dwell time for each step in a sweep, in femtoseconds.

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ GetSweepPoints()

int RFSignalGenerator::GetSweepPoints ( int chan )

virtual

Gets the number of frequency points in a sweep.

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ GetSweepShape()

RFSignalGenerator::SweepShape RFSignalGenerator::GetSweepShape ( int chan )

virtual

Gets the shape of a sweep.

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ GetSweepSpacing()

RFSignalGenerator::SweepSpacing RFSignalGenerator::GetSweepSpacing ( int chan )

virtual

Gets the spacing of a sweep (log or linear)

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ GetSweepStartFrequency()

float RFSignalGenerator::GetSweepStartFrequency ( int chan )

virtual

Gets the start of a frequency sweep, in Hz.

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ GetSweepStartLevel()

float RFSignalGenerator::GetSweepStartLevel ( int chan )

virtual

Gets the start of a power sweep, in dBm.

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ GetSweepStopFrequency()

float RFSignalGenerator::GetSweepStopFrequency ( int chan )

virtual

Gets the end of a frequency sweep, in Hz.

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ GetSweepStopLevel()

float RFSignalGenerator::GetSweepStopLevel ( int chan )

virtual

Gets the end of a power sweep, in dBm.

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ GetSweepType()

RFSignalGenerator::SweepType RFSignalGenerator::GetSweepType ( int chan )

virtual

Gets the type of a sweep.

Parameters

chan	Zero-based channel index

Reimplemented in SiglentVectorSignalGenerator.

◆ IsAnalogModulationAvailable()

virtual bool RFSignalGenerator::IsAnalogModulationAvailable ( int chan )

pure virtual

Checks if an instrument is analog modulation capable.

Parameters

chan	Zero-based channel index

Implemented in SiglentVectorSignalGenerator.

◆ IsSweepAvailable()

virtual bool RFSignalGenerator::IsSweepAvailable ( int chan )

pure virtual

Checks if an instrument supports sweeping the center frequency.

Implemented in SiglentVectorSignalGenerator.

◆ IsVectorModulationAvailable()

virtual bool RFSignalGenerator::IsVectorModulationAvailable ( int chan )

pure virtual

Checks if an instrument is vector modulation capable.

Parameters

chan	Zero-based channel index

Implemented in SiglentVectorSignalGenerator.

◆ SetAnalogFMDeviation()

virtual void RFSignalGenerator::SetAnalogFMDeviation	(	int	chan,
		int64_t	deviation
	)

pure virtual

Sets the analog FM deviation for a channel (in Hz)

Implemented in SiglentVectorSignalGenerator.

◆ SetAnalogFMEnable()

virtual void RFSignalGenerator::SetAnalogFMEnable	(	int	chan,
		bool	on
	)

pure virtual

Enable or disable analog frequency modulation (also requires modulation to be turned on)

Implemented in SiglentVectorSignalGenerator.

◆ SetAnalogFMFrequency()

virtual void RFSignalGenerator::SetAnalogFMFrequency	(	int	chan,
		int64_t	frequency
	)

pure virtual

Sets the analog FM frequency for a channel (in Hz)

Implemented in SiglentVectorSignalGenerator.

◆ SetAnalogFMWaveShape()

virtual void RFSignalGenerator::SetAnalogFMWaveShape	(	int	chan,
		FunctionGenerator::WaveShape	shape
	)

pure virtual

Sets the analog FM modulation shape for a channel.

Implemented in SiglentVectorSignalGenerator.

◆ SetAnalogModulationEnable()

virtual void RFSignalGenerator::SetAnalogModulationEnable	(	int	chan,
		bool	on
	)

pure virtual

Enable or disable analog modulation.

Implemented in SiglentVectorSignalGenerator.

◆ SetChannelCenterFrequency()

virtual void RFSignalGenerator::SetChannelCenterFrequency	(	int	chan,
		double	freq
	)

pure virtual

Sets the power level of a channel.

Parameters

chan	Zero-based channel index
freq	Center frequency, in Hz

Implemented in SiglentVectorSignalGenerator.

◆ SetChannelOutputEnable()

virtual void RFSignalGenerator::SetChannelOutputEnable	(	int	chan,
		bool	on
	)

pure virtual

Enable or disable a channel output.

Parameters

chan	Zero-based channel index
on	True to enable the output, false to disable

Implemented in SiglentVectorSignalGenerator.

◆ SetChannelOutputPower()

virtual void RFSignalGenerator::SetChannelOutputPower	(	int	chan,
		float	power
	)

pure virtual

Sets the power level of a channel.

Parameters

chan	Zero-based channel index
power	Power level (in dBm)

Implemented in SiglentVectorSignalGenerator.

◆ SetSweepDirection()

void RFSignalGenerator::SetSweepDirection	(	int	chan,
		SweepDirection	dir
	)

virtual

Sets the direction of a sweep.

Parameters

chan	Zero-based channel index
dir	Direction of the sweep curve to use

Reimplemented in SiglentVectorSignalGenerator.

◆ SetSweepDwellTime()

void RFSignalGenerator::SetSweepDwellTime	(	int	chan,
		float	fs
	)

virtual

Sets the dwell time for each step in a sweep.

Parameters

chan	Zero-based channel index
step	Step, in femtoseconds

Reimplemented in SiglentVectorSignalGenerator.

◆ SetSweepPoints()

void RFSignalGenerator::SetSweepPoints	(	int	chan,
		int	npoints
	)

virtual

Sets the number of frequency points in a sweep.

Parameters

chan	Zero-based channel index
npoints	Number of points

Reimplemented in SiglentVectorSignalGenerator.

◆ SetSweepShape()

void RFSignalGenerator::SetSweepShape	(	int	chan,
		SweepShape	shape
	)

virtual

Sets the shape of a sweep.

Parameters

chan	Zero-based channel index
shape	Shape of the sweep curve to use

Reimplemented in SiglentVectorSignalGenerator.

◆ SetSweepSpacing()

void RFSignalGenerator::SetSweepSpacing	(	int	chan,
		SweepSpacing	shape
	)

virtual

Sets the spacing of a sweep (log or linear)

Parameters

chan	Zero-based channel index
shape	Spacing of the sweep curve to use

Reimplemented in SiglentVectorSignalGenerator.

◆ SetSweepStartFrequency()

void RFSignalGenerator::SetSweepStartFrequency	(	int	chan,
		float	freq
	)

virtual

Sets the start of a frequency sweep.

Parameters

chan	Zero-based channel index
freq	Start frequency, in Hz

Reimplemented in SiglentVectorSignalGenerator.

◆ SetSweepStartLevel()

void RFSignalGenerator::SetSweepStartLevel	(	int	chan,
		float	level
	)

virtual

Sets the start of a power sweep.

Parameters

chan	Zero-based channel index
level	Start power, in dBm

Reimplemented in SiglentVectorSignalGenerator.

◆ SetSweepStopFrequency()

void RFSignalGenerator::SetSweepStopFrequency	(	int	chan,
		float	freq
	)

virtual

Sets the stop of a frequency sweep.

Parameters

chan	Zero-based channel index
freq	Stop frequency, in Hz

Reimplemented in SiglentVectorSignalGenerator.

◆ SetSweepStopLevel()

void RFSignalGenerator::SetSweepStopLevel	(	int	chan,
		float	level
	)

virtual

Sets the stop of a power sweep.

Parameters

chan	Zero-based channel index
level	Stop power, in dBm

Reimplemented in SiglentVectorSignalGenerator.

◆ SetSweepType()

void RFSignalGenerator::SetSweepType	(	int	chan,
		SweepType	type
	)

virtual

Sets the type of a sweep.

Parameters

chan	Zero-based channel index
type	Sweep type

Reimplemented in SiglentVectorSignalGenerator.

The documentation for this class was generated from the following files:

lib/scopehal/RFSignalGenerator.h
lib/scopehal/RFSignalGenerator.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ AcquireData()

◆ GetAnalogFMDeviation()

◆ GetAnalogFMEnable()

◆ GetAnalogFMFrequency()

◆ GetAnalogFMWaveShape()

◆ GetAnalogFMWaveShapes()

◆ GetAnalogModulationEnable()

◆ GetChannelCenterFrequency()

◆ GetChannelOutputEnable()

◆ GetChannelOutputPower()

◆ GetSweepDirection()

◆ GetSweepDwellTime()

◆ GetSweepPoints()

◆ GetSweepShape()

◆ GetSweepSpacing()

◆ GetSweepStartFrequency()

◆ GetSweepStartLevel()

◆ GetSweepStopFrequency()

◆ GetSweepStopLevel()

◆ GetSweepType()

◆ IsAnalogModulationAvailable()

◆ IsSweepAvailable()

◆ IsVectorModulationAvailable()

◆ SetAnalogFMDeviation()

◆ SetAnalogFMEnable()

◆ SetAnalogFMFrequency()

◆ SetAnalogFMWaveShape()

◆ SetAnalogModulationEnable()

◆ SetChannelCenterFrequency()

◆ SetChannelOutputEnable()

◆ SetChannelOutputPower()

◆ SetSweepDirection()

◆ SetSweepDwellTime()

◆ SetSweepPoints()

◆ SetSweepShape()

◆ SetSweepSpacing()

◆ SetSweepStartFrequency()

◆ SetSweepStartLevel()

◆ SetSweepStopFrequency()

◆ SetSweepStopLevel()

◆ SetSweepType()
