Input channel for a BERT that also supports CDR logic analyzer (raw serial bitstream capture) mode. More...
#include <BERTInputChannelWithDataCapture.h>

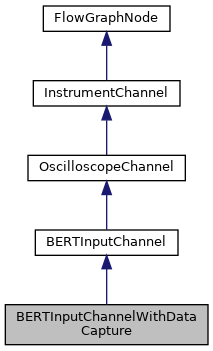

Inheritance diagram for BERTInputChannelWithDataCapture:

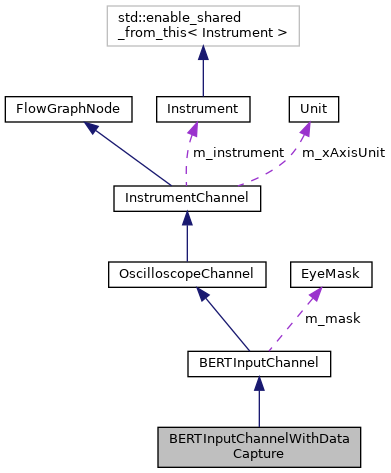

Collaboration diagram for BERTInputChannelWithDataCapture:
Public Types | |
| enum | DataStreamIDs { STREAM_CDR_CAPTURE = 4 , STREAM_CDR_RECCLK = 5 } |
| Stream IDs for waveform capture. More... | |
 Public Types inherited from BERTInputChannel | |
| enum | StreamIDs { STREAM_HBATHTUB = 0 , STREAM_EYE = 1 , STREAM_BER = 2 , STREAM_MASKHITRATE = 3 } |
| Well known indexes of output streams. More... | |
| Public Types inherited from OscilloscopeChannel | |
| enum | CouplingType { COUPLE_DC_1M , COUPLE_AC_1M , COUPLE_DC_50 , COUPLE_AC_50 , COUPLE_GND , COUPLE_SYNTHETIC } |
| Public Types inherited from InstrumentChannel | |
| enum | PhysicalConnector { CONNECTOR_BANANA_DUAL , CONNECTOR_BMA , CONNECTOR_BNC , CONNECTOR_K , CONNECTOR_K_DUAL , CONNECTOR_N , CONNECTOR_SMA } |
| enum | VisibilityMode { VIS_HIDE , VIS_AUTO , VIS_SHOW } |
| Selects how the channel should be displayed in e.g. the ngscopeclient filter graph editor. | |
| enum | DownloadState { DOWNLOAD_UNKNOWN , DOWNLOAD_NONE , DOWNLOAD_WAITING , DOWNLOAD_IN_PROGRESS , DOWNLOAD_FINISHED } |
| Enum values to be mapped to GetDownloadState() int result value for specific channel download states. More... | |
| Public Types inherited from FlowGraphNode | |
| enum | DataLocation { LOC_CPU , LOC_GPU , LOC_DONTCARE } |
| typedef std::map< std::string, FilterParameter > | ParameterMapType |
| Short name for a map of strings to parameters. | |
Public Member Functions | |
| BERTInputChannelWithDataCapture (const std::string &hwname, std::weak_ptr< BERT > bert, const std::string &color="#808080", size_t index=0) | |
| Initialize the channel. More... | |
| Public Member Functions inherited from BERTInputChannel | |
| BERTInputChannel (const std::string &hwname, std::weak_ptr< BERT > bert, const std::string &color="#808080", size_t index=0) | |
| Initialize the channel. More... | |
| virtual void | Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) override |
| virtual bool | ValidateChannel (size_t i, StreamDescriptor stream) override |
| std::weak_ptr< BERT > | GetBERT () const |
| Get the BERT we're part of. | |
| bool | GetInvert () |
| Get the polarity inversion state. | |
| void | SetInvert (bool invert) |
| Set the polarity inversion state. More... | |
| bool | GetCdrLockState () |
| Check if the CDR is currently locked. | |
| void | SetPattern (BERT::Pattern pattern) |
| Set the pattern this channel is expecting to see. More... | |
| BERT::Pattern | GetPattern () |
| Get the pattern this channel is expecting to see. | |
| std::vector< BERT::Pattern > | GetAvailablePatterns () |
| Get a list of all patterns this channel knows how to match. | |
| int64_t | GetScanDepth () |
| Gets the currently selected integration depth for eye / bathtub scans. More... | |
| std::vector< int64_t > | GetScanDepths () |
| Gets the available integration depths for eye / bathtub scans. | |
| void | SetScanDepth (int64_t depth) |
| Sets the currently selected integration depth for eye / bathtub scans. More... | |
| StreamDescriptor | GetHBathtubStream () |
| Gets the stream for the horizontal bathtub output. | |
| StreamDescriptor | GetEyeStream () |
| Gets the stream for the eye pattern output. | |
| StreamDescriptor | GetBERStream () |
| Gets the stream for the realtime BER output. | |
| bool | HasCTLE () |
| Returns true if the channel has a CTLE on the input. | |
| std::vector< float > | GetCTLEGainSteps () |
| Get the set of available gain steps for the CTLE, in dB. | |
| size_t | GetCTLEGainStep () |
| Gets the currently selected CTLE gain step. More... | |
| void | SetCTLEGainStep (size_t step) |
| Sets the gain for the CTLE. More... | |
| void | SetBERSamplingPoint (int64_t dx, float dy) |
| Sets the sampling location for real time offset BER measurements. More... | |
| void | GetBERSamplingPoint (int64_t &dx, float &dy) |
| Gets the sampling location for real time offset BER measurements. More... | |
| int64_t | GetDataRate () |
| Gets the data rate of this channel, in symbols per second. | |
| void | SetDataRate (int64_t rate) |
| Sets the data rate of this channel, in symbols per second. More... | |
| std::string | GetMaskFile () |
| Gets the path of the mask file for pass/fail testing (if any) | |
| void | SetMaskFile (const std::string &fname) |
| Sets the path of the mask file for pass/fail testing. More... | |
| EyeMask & | GetMask () |
| Gets the EyeMask being used for pass/fail testing (may be blank) | |
| virtual PhysicalConnector | GetPhysicalConnector () override |
| int64_t | GetExpectedBathtubCaptureTime () |
| Estimate the time needed to capture a bathtub curve with the current settings. More... | |
| int64_t | GetExpectedEyeCaptureTime () |
| Estimate the time needed to capture an eye pattern with the current settings. More... | |
| bool | IsEyeScanInProgress () |
| Check if an eye scan is currently executing. More... | |
| float | GetScanProgress () |
| Returns an estimate of the current scan progress (if an eye or bathtub scan is executing) More... | |
| bool | IsHBathtubScanInProgress () |
| Check if a bathtub scan is currently executing. More... | |
| virtual void | ClearStreams () override |
| Clears out any existing streams. More... | |
| virtual size_t | AddStream (Unit yunit, const std::string &name, Stream::StreamType stype, uint8_t flags=0) override |
| Adds a new data stream to the channel. More... | |
| virtual float | GetVoltageRange (size_t stream) override |
| virtual void | SetVoltageRange (float range, size_t stream) override |
| virtual float | GetOffset (size_t stream) override |
| virtual void | SetOffset (float offset, size_t stream) override |
| Public Member Functions inherited from OscilloscopeChannel | |
| OscilloscopeChannel (Oscilloscope *scope, const std::string &hwname, const std::string &color, Unit xunit=Unit(Unit::UNIT_FS), size_t index=0) | |
| OscilloscopeChannel (Oscilloscope *scope, const std::string &hwname, const std::string &color, Unit xunit=Unit(Unit::UNIT_FS), Unit yunit=Unit(Unit::UNIT_VOLTS), Stream::StreamType stype=Stream::STREAM_TYPE_ANALOG, size_t index=0) | |
| Oscilloscope * | GetScope () |
| size_t | GetRefCount () |
| virtual void | SetDisplayName (std::string name) override |
| Sets the human-readable nickname for this channel, as displayed in the GUI. More... | |
| virtual std::string | GetDisplayName () override |
| Gets the human-readable nickname for this channel, as displayed in the GUI. More... | |
| bool | IsEnabled () |
| void | Enable () |
| void | Disable () |
| virtual void | AddRef () |
| virtual void | Release () |
| virtual CouplingType | GetCoupling () |
| virtual void | SetCoupling (CouplingType type) |
| virtual std::vector< OscilloscopeChannel::CouplingType > | GetAvailableCouplings () |
| virtual double | GetAttenuation () |
| virtual void | SetAttenuation (double atten) |
| virtual int | GetBandwidthLimit () |
| virtual void | SetBandwidthLimit (int mhz) |
| virtual void | SetDeskew (int64_t skew) |
| virtual int64_t | GetDeskew () |
| bool | IsPhysicalChannel () |
| virtual float | GetVoltageRange (size_t stream) |
| virtual void | SetVoltageRange (float range, size_t stream) |
| virtual float | GetOffset (size_t stream) |
| virtual void | SetOffset (float offset, size_t stream) |
| void | SetDigitalHysteresis (float level) |
| void | SetDigitalThreshold (float level) |
| void | SetCenterFrequency (int64_t freq) |
| bool | CanAutoZero () |
| void | AutoZero () |
| bool | CanDegauss () |
| void | Degauss () |
| std::string | GetProbeName () |
| virtual bool | CanInvert () |
| virtual void | Invert (bool invert) |
| virtual bool | IsInverted () |
| virtual bool | HasInputMux () |
| virtual size_t | GetInputMuxSetting () |
| virtual void | SetInputMux (size_t select) |
| void | SetDefaultDisplayName () |
| Gives a channel a default display name if there's not one already. More... | |
| virtual DownloadState | GetDownloadState () override |
| Returns the current download state of this channel. More... | |
| virtual float | GetDownloadProgress () override |
| returns the current completion of the download (on the range [0, 1]), if not DOWNLOAD_UNKNOWN More... | |
| virtual double | GetDownloadStartTime () override |
| returns the start time of a download, if we are DOWNLOAD_IN_PROGRESS; undefined, otherwise More... | |
| Public Member Functions inherited from InstrumentChannel | |
| InstrumentChannel (Instrument *inst, const std::string &hwname, const std::string &color="#808080", Unit xunit=Unit(Unit::UNIT_FS), size_t index=0) | |
| InstrumentChannel (Instrument *inst, const std::string &hwname, const std::string &color="#808080", Unit xunit=Unit(Unit::UNIT_FS), Unit yunit=Unit(Unit::UNIT_VOLTS), Stream::StreamType stype=Stream::STREAM_TYPE_ANALOG, size_t index=0) | |
| virtual void | SetDisplayName (std::string name) |
| Sets the human-readable nickname for this channel, as displayed in the GUI. More... | |
| virtual std::string | GetDisplayName () |
| Gets the human-readable nickname for this channel, as displayed in the GUI. More... | |
| std::string | GetHwname () |
| Gets the hardware name of the channel (m_hwname) | |
| size_t | GetIndex () |
| Gets the (zero based) index of the channel. | |
| Instrument * | GetInstrument () |
| Gets the instrument this channel is part of (if any) | |
| void | ClearCachedDisplayName () |
| Sets the display name to an empty string, causing a fetch from hardware. More... | |
| virtual PhysicalConnector | GetPhysicalConnector () |
| void | SetData (WaveformBase *pNew, size_t stream) |
| Sets the waveform data for a given stream, replacing any previous waveform. More... | |
| virtual Unit | GetXAxisUnits () |
| Returns the X axis unit for this channel. | |
| virtual Unit | GetYAxisUnits (size_t stream) |
| Returns the Y axis unit for a specified stream. | |
| virtual void | SetXAxisUnits (const Unit &rhs) |
| Changes the X axis unit for this channel. More... | |
| virtual void | SetYAxisUnits (const Unit &rhs, size_t stream) |
| Changes the X axis unit for a specified stream. More... | |
| Stream::StreamType | GetType (size_t stream) |
| Returns the type of a specified stream. | |
| size_t | GetStreamCount () |
| Get the number of data streams. | |
| std::string | GetStreamName (size_t stream) |
| Gets the name of a stream (for display in the UI) | |
| WaveformBase * | GetData (size_t stream) |
| Get the contents of a data stream. | |
| uint8_t | GetStreamFlags (size_t stream) |
| Get the flags of a data stream. | |
| float | GetScalarValue (size_t stream) |
| Gets the value of a scalar data stream. | |
| void | SetScalarValue (size_t stream, float value) |
| Sets the value of a scalar data stream. | |
| WaveformBase * | Detach (size_t stream) |
| Detach the capture data from this channel. More... | |
| virtual bool | ShouldPersistWaveform () |
| Determine whether the channel's waveform(s) should be persisted to a session file. More... | |
| virtual DownloadState | GetDownloadState () |
| Returns the current download state of this channel. More... | |
| virtual float | GetDownloadProgress () |
| returns the current completion of the download (on the range [0, 1]), if not DOWNLOAD_UNKNOWN More... | |
| virtual double | GetDownloadStartTime () |
| returns the start time of a download, if we are DOWNLOAD_IN_PROGRESS; undefined, otherwise More... | |
| Public Member Functions inherited from FlowGraphNode | |
| void | DetachInputs () |
| Disconnects all inputs from the node without releasing them. More... | |
| size_t | GetInputCount () |
| std::string | GetInputName (size_t i) |
| void | SetInput (size_t i, StreamDescriptor stream, bool force=false) |
| Connects a stream to the input of this node. More... | |
| void | SetInput (const std::string &name, StreamDescriptor stream, bool force=false) |
| virtual bool | ValidateChannel (size_t i, StreamDescriptor stream) |
| StreamDescriptor | GetInput (size_t i) |
| Gets the descriptor for one of our inputs. | |
| FilterParameter & | GetParameter (std::string s) |
| bool | HasParameter (std::string s) |
| Checks if we have a parameter with a given name. More... | |
| ParameterMapType::iterator | GetParamBegin () |
| Returns an iterator to the beginning of our parameter map. | |
| ParameterMapType::iterator | GetParamEnd () |
| Returns an iterator to the end of our parameter map. | |
| size_t | GetParamCount () |
| Returns the number of parameter we have. | |
| virtual YAML::Node | SerializeConfiguration (IDTable &table) |
| Serializes this trigger's configuration to a YAML string. More... | |
| virtual void | LoadParameters (const YAML::Node &node, IDTable &table) |
| Load configuration from a save file. More... | |
| virtual void | LoadInputs (const YAML::Node &node, IDTable &table) |
| bool | IsDownstreamOf (std::set< FlowGraphNode * > nodes) |
| Determines if this node is downstream of any of the specified other nodes. More... | |
| virtual DataLocation | GetInputLocation () |
| Gets the desired location of the nodes's input data. More... | |
| virtual void | Refresh () |
| Evaluates a filter graph node. More... | |
| virtual void | Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) |
| sigc::signal< void()> | signal_parametersChanged () |
| sigc::signal< void()> | signal_inputsChanged () |
Additional Inherited Members | |
| Public Attributes inherited from InstrumentChannel | |
| std::string | m_displaycolor |
| Display color (HTML hex notation with optional alpha channel: #RRGGBB or ##RRGGBBAA) | |
| enum InstrumentChannel::VisibilityMode | m_visibilityMode |
| Protected Member Functions inherited from OscilloscopeChannel | |
| void | SharedCtorInit (Unit unit) |
| virtual void | ClearStreams () |
| Clears out any existing streams. More... | |
| virtual size_t | AddStream (Unit yunit, const std::string &name, Stream::StreamType stype, uint8_t flags=0) |
| Adds a new data stream to the channel. More... | |
| Protected Member Functions inherited from FlowGraphNode | |
| virtual void | OnInputChanged (size_t i) |
| Called when a new input is connected to the node. More... | |
| WaveformBase * | GetInputWaveform (size_t i) |
| Gets the waveform attached to the specified input. More... | |
| SparseAnalogWaveform * | GetSparseAnalogInputWaveform (size_t i) |
| Gets the analog waveform attached to the specified input. | |
| UniformAnalogWaveform * | GetUniformAnalogInputWaveform (size_t i) |
| Gets the analog waveform attached to the specified input. | |
| SparseDigitalWaveform * | GetSparseDigitalInputWaveform (size_t i) |
| Gets the digital waveform attached to the specified input. | |
| UniformDigitalWaveform * | GetUniformDigitalInputWaveform (size_t i) |
| Gets the digital waveform attached to the specified input. | |
| SparseDigitalBusWaveform * | GetSparseDigitalBusInputWaveform (size_t i) |
| Gets the digital bus waveform attached to the specified input. | |
| void | CreateInput (const std::string &name) |
| Creates and names an input signal. | |
| std::string | GetInputDisplayName (size_t i) |
| Gets the display name for one of our inputs. More... | |
| Protected Attributes inherited from BERTInputChannel | |
| std::vector< float > | m_ranges |
| Voltage range of each stream. | |
| std::vector< float > | m_offsets |
| Vertical offset of each stream. | |
| std::string | m_maskFile |
| Path to the YAML file, if any, that m_mask was loaded from. | |
| EyeMask | m_mask |
| Eye mask used for pass/fail testing. | |
| std::weak_ptr< BERT > | m_bert |
| Pointer to the parent instrument. More... | |
| Protected Attributes inherited from OscilloscopeChannel | |
| size_t | m_refcount |
| Number of references (channel is disabled when last ref is released) | |
| Protected Attributes inherited from InstrumentChannel | |
| Instrument * | m_instrument |
| The instrument we're part of (may be null in the case of filters etc) | |
| std::string | m_hwname |
| Hardware name of the channel. More... | |
| std::string | m_displayname |
| Display name (user defined, defaults to m_hwname). More... | |
| size_t | m_index |
| Zero based index of the channel within the instrument. | |
| Unit | m_xAxisUnit |
| Unit of measurement for our horizontal axis (common to all streams) | |
| std::vector< Stream > | m_streams |
| Configuration data for each of our output streams. | |
| Protected Attributes inherited from FlowGraphNode | |
| std::vector< std::string > | m_signalNames |
| Names of signals we take as input. | |
| std::vector< StreamDescriptor > | m_inputs |
| The channel (if any) connected to each of our inputs. | |
| ParameterMapType | m_parameters |
| sigc::signal< void()> | m_parametersChangedSignal |
| Signal emitted when the set of parameters changes. | |
| sigc::signal< void()> | m_inputsChangedSignal |
| Signal emitted when the set of inputs changes. | |
Detailed Description
Input channel for a BERT that also supports CDR logic analyzer (raw serial bitstream capture) mode.
Member Enumeration Documentation
◆ DataStreamIDs
Stream IDs for waveform capture.
| Enumerator | |
|---|---|
| STREAM_CDR_CAPTURE | Data capture waveform. |
| STREAM_CDR_RECCLK | Recovered clock waveform. |
Constructor & Destructor Documentation
◆ BERTInputChannelWithDataCapture()
| BERTInputChannelWithDataCapture::BERTInputChannelWithDataCapture | ( | const std::string & | hwname, |
| std::weak_ptr< BERT > | bert, | ||
| const std::string & | color = "#808080", |
||
| size_t | index = 0 |
||
| ) |
Initialize the channel.
- Parameters
-
hwname Hardware name of the channel bert BERT the channel is part of color Initial display color of the channel index Number of the channel
The documentation for this class was generated from the following files:
- lib/scopehal/BERTInputChannelWithDataCapture.h
- lib/scopehal/BERTInputChannelWithDataCapture.cpp
