Abstract base class for a node in the signal flow graph. More...

#include <FlowGraphNode.h>

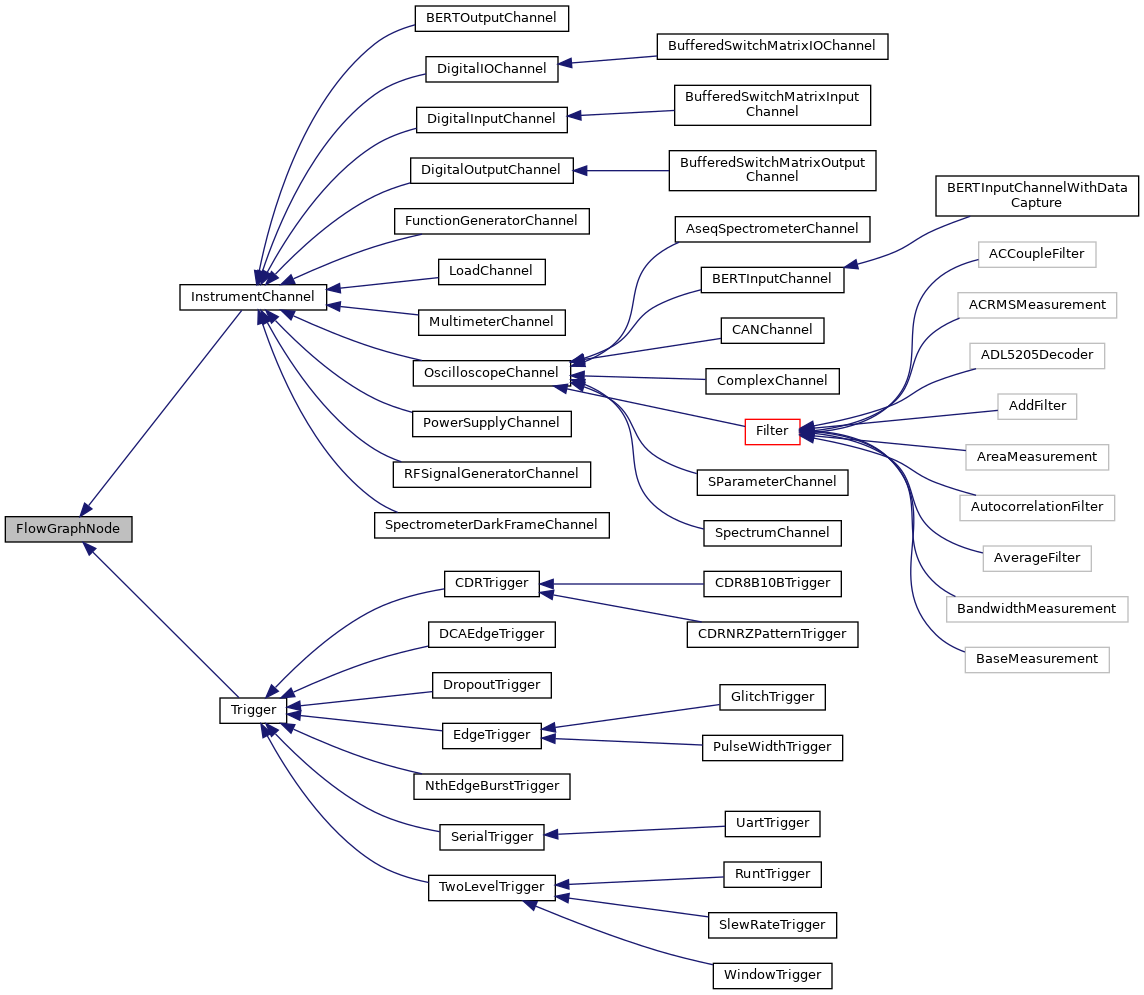

Inheritance diagram for FlowGraphNode:

[legend]

Public Types
enum	DataLocation { LOC_CPU , LOC_GPU , LOC_DONTCARE }

typedef std::map< std::string, FilterParameter >	ParameterMapType
	Short name for a map of strings to parameters.

Public Member Functions
void	DetachInputs ()
	Disconnects all inputs from the node without releasing them. More...

size_t	GetInputCount ()

std::string	GetInputName (size_t i)

void	SetInput (size_t i, StreamDescriptor stream, bool force=false)
	Connects a stream to the input of this node. More...

void	SetInput (const std::string &name, StreamDescriptor stream, bool force=false)

virtual bool	ValidateChannel (size_t i, StreamDescriptor stream)

StreamDescriptor	GetInput (size_t i)
	Gets the descriptor for one of our inputs.

FilterParameter &	GetParameter (std::string s)

bool	HasParameter (std::string s)
	Checks if we have a parameter with a given name. More...

ParameterMapType::iterator	GetParamBegin ()
	Returns an iterator to the beginning of our parameter map.

ParameterMapType::iterator	GetParamEnd ()
	Returns an iterator to the end of our parameter map.

size_t	GetParamCount ()
	Returns the number of parameter we have.

virtual YAML::Node	SerializeConfiguration (IDTable &table)
	Serializes this trigger's configuration to a YAML string. More...

virtual void	LoadParameters (const YAML::Node &node, IDTable &table)
	Load configuration from a save file. More...

virtual void	LoadInputs (const YAML::Node &node, IDTable &table)

bool	IsDownstreamOf (std::set< FlowGraphNode * > nodes)
	Determines if this node is downstream of any of the specified other nodes. More...

virtual DataLocation	GetInputLocation ()
	Gets the desired location of the nodes's input data. More...

virtual void	Refresh ()
	Evaluates a filter graph node. More...

virtual void	Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue)

sigc::signal< void()>	signal_parametersChanged ()

sigc::signal< void()>	signal_inputsChanged ()

Protected Member Functions
virtual void	OnInputChanged (size_t i)
	Called when a new input is connected to the node. More...

WaveformBase *	GetInputWaveform (size_t i)
	Gets the waveform attached to the specified input. More...

SparseAnalogWaveform *	GetSparseAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

UniformAnalogWaveform *	GetUniformAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

SparseDigitalWaveform *	GetSparseDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

UniformDigitalWaveform *	GetUniformDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

SparseDigitalBusWaveform *	GetSparseDigitalBusInputWaveform (size_t i)
	Gets the digital bus waveform attached to the specified input.

void	CreateInput (const std::string &name)
	Creates and names an input signal.

std::string	GetInputDisplayName (size_t i)
	Gets the display name for one of our inputs. More...

Protected Attributes
std::vector< std::string >	m_signalNames
	Names of signals we take as input.

std::vector< StreamDescriptor >	m_inputs
	The channel (if any) connected to each of our inputs.

ParameterMapType	m_parameters

sigc::signal< void()>	m_parametersChangedSignal
	Signal emitted when the set of parameters changes.

sigc::signal< void()>	m_inputsChangedSignal
	Signal emitted when the set of inputs changes.

Detailed Description

Abstract base class for a node in the signal flow graph.

A FlowGraphNode has one or more channel inputs, zero or more configuration parameters.

Member Function Documentation

◆ DetachInputs()

void FlowGraphNode::DetachInputs ( )

Disconnects all inputs from the node without releasing them.

This function is intended for use in Oscilloscope::~Oscilloscope() only. Using it carelessly is likely to lead to memory leaks.

◆ GetInputDisplayName()

string FlowGraphNode::GetInputDisplayName ( size_t i )

protected

Gets the display name for one of our inputs.

This includes the stream name iff the input comes from a multi-stream source.

◆ GetInputLocation()

FlowGraphNode::DataLocation FlowGraphNode::GetInputLocation ( )

virtual

Gets the desired location of the nodes's input data.

The default implementation returns CPU.

Returns: LOC_CPU: if the filter assumes input waveforms are readable from the CPU LOC_GPU: if the filter assumes input waveforms are readable from the GPU LOC_DONTCARE: if the filter manages its own input memory, or can work with either CPU or GPU input

Reimplemented in AddFilter, AverageFilter, BusHeatmapFilter, CouplerDeEmbedFilter, DeEmbedFilter, ExponentialMovingAverageFilter, FFTFilter, FIRFilter, JitterSpectrumFilter, MaximumFilter, MinimumFilter, RISFilter, SpectrogramFilter, SubtractFilter, and UpsampleFilter.

◆ GetInputWaveform()

WaveformBase * FlowGraphNode::GetInputWaveform ( size_t i )

inlineprotected

Gets the waveform attached to the specified input.

This function is safe to call on a NULL input and will return NULL in that case.

This function is safe to call on a null input and will return null in that case.

Parameters

i	Input index

Returns: Data from the channel if applicable, null if no data or no input connected

◆ HasParameter()

bool FlowGraphNode::HasParameter ( std::string s )

inline

Checks if we have a parameter with a given name.

Parameters

s	Name of the parameter

Returns: True if found, false if not found

◆ IsDownstreamOf()

bool FlowGraphNode::IsDownstreamOf ( std::set< FlowGraphNode * > nodes )

Determines if this node is downstream of any of the specified other nodes.

Returns true if any of this node's inputs, or their inputs, etc. eventually chain back to an element in the set.

◆ LoadParameters()

void FlowGraphNode::LoadParameters	(	const YAML::Node &	node,
		IDTable &	table
	)

virtual

Load configuration from a save file.

Reimplemented in Filter, IBISDriverFilter, and ScalarStairstepFilter.

◆ OnInputChanged()

void FlowGraphNode::OnInputChanged ( size_t i )

protectedvirtual

Called when a new input is connected to the node.

The default implementation does nothing, but some special cases may find this hook useful.

For example, instrument channels may make hardware changes as soon as a new input is connected.

Reimplemented in BufferedSwitchMatrixInputChannel, BufferedSwitchMatrixIOChannel, and BufferedSwitchMatrixOutputChannel.

◆ Refresh()

void FlowGraphNode::Refresh ( )

virtual

Evaluates a filter graph node.

This version does not support using Vulkan acceleration and should be considered deprecated. It will be removed in the indefinite future once all filters have been converted to the new API.

Reimplemented in Filter, ImportFilter, ACCoupleFilter, ACRMSMeasurement, ADL5205Decoder, AreaMeasurement, AutocorrelationFilter, BandwidthMeasurement, BaseMeasurement, BurstWidthMeasurement, CANBitmaskFilter, CANDecoder, ClipFilter, ClockRecoveryFilter, CurrentShuntFilter, DCDMeasurement, DDJMeasurement, DDR1Decoder, DDR3Decoder, DeskewFilter, DownconvertFilter, DownsampleFilter, DPAuxChannelDecoder, DPhyDataDecoder, DPhyEscapeModeDecoder, DPhyHSClockRecoveryFilter, DPhySymbolDecoder, DramClockFilter, DramRefreshActivateMeasurement, DramRowColumnLatencyMeasurement, DSIFrameDecoder, DSIPacketDecoder, DutyCycleMeasurement, DVIDecoder, EmphasisFilter, EmphasisRemovalFilter, EnvelopeFilter, ESPIDecoder, Ethernet1000BaseXDecoder, Ethernet100BaseTXDecoder, Ethernet10BaseTDecoder, Ethernet10GBaseRDecoder, Ethernet64b66bDecoder, EthernetAutonegotiationDecoder, EthernetAutonegotiationPageDecoder, EthernetBaseXAutonegotiationDecoder, EthernetGMIIDecoder, EthernetRGMIIDecoder, EthernetRMIIDecoder, EthernetSGMIIDecoder, ExportFilter, EyeBitRateMeasurement, EyeHeightMeasurement, EyeJitterMeasurement, EyePeriodMeasurement, EyeWidthMeasurement, FallMeasurement, FrequencyMeasurement, FSKDecoder, FullWidthHalfMax, GlitchRemovalFilter, GroupDelayFilter, HistogramFilter, HorizontalBathtub, HyperRAMDecoder, I2CDecoder, I2CEepromDecoder, I2CRegisterDecoder, IBISDriverFilter, IBM8b10bDecoder, InvertFilter, IPv4Decoder, IQSquelchFilter, ISIMeasurement, J1939AnalogDecoder, J1939BitmaskDecoder, J1939PDUDecoder, J1939SourceMatchFilter, J1939TransportDecoder, JitterFilter, JtagDecoder, MagnitudeFilter, MDIODecoder, MemoryFilter, MilStd1553Decoder, MovingAverageFilter, MultiplyFilter, NCOFilter, NoiseFilter, OneWireDecoder, OvershootMeasurement, PAM4DemodulatorFilter, ParallelBus, PCIe128b130bDecoder, PCIeDataLinkDecoder, PCIeGen2LogicalDecoder, PCIeGen3LogicalDecoder, PCIeLinkTrainingDecoder, PCIeTransportDecoder, PeakHoldFilter, PeriodMeasurement, PhaseMeasurement, PhaseNonlinearityFilter, PkPkMeasurement, PRBSCheckerFilter, PRBSGeneratorFilter, PulseWidthMeasurement, QSGMIIDecoder, QSPIDecoder, QuadratureDecoder, ReferencePlaneExtensionFilter, RiseMeasurement, RjBUjFilter, RMSMeasurement, SawtoothGeneratorFilter, SDCmdDecoder, SDDataDecoder, SetupHoldMeasurement, SNRFilter, SParameterCascadeFilter, SParameterDeEmbedFilter, SPIDecoder, SPIFlashDecoder, SquelchFilter, StepGeneratorFilter, SWDDecoder, SWDMemAPDecoder, TachometerFilter, TappedDelayLineFilter, TCPDecoder, TDRFilter, ThresholdFilter, TIEMeasurement, TimeOutsideLevelMeasurement, TMDSDecoder, ToneGeneratorFilter, TopMeasurement, TouchstoneImportFilter, TwoPortShuntThroughFilter, UartClockRecoveryFilter, UARTDecoder, UndershootMeasurement, UnwrappedPhaseFilter, USB2ActivityDecoder, USB2PacketDecoder, USB2PCSDecoder, USB2PMADecoder, VectorFrequencyFilter, VectorPhaseFilter, VerticalBathtub, VICPDecoder, WaveformGenerationFilter, WindowedAutocorrelationFilter, and WindowFilter.

◆ SerializeConfiguration()

YAML::Node FlowGraphNode::SerializeConfiguration ( IDTable & table )

virtual

Serializes this trigger's configuration to a YAML string.

Returns: YAML block with this trigger's configuration

Reimplemented in Filter, and Trigger.

◆ SetInput()

void FlowGraphNode::SetInput	(	size_t	i,
		StreamDescriptor	stream,
		bool	force = `false`
	)

Connects a stream to the input of this node.

Parameters

i	Index of the input port to connect
stream	Input data stream
force	Forcibly connect this stream without checking to make sure it's the right type. Should only be set true by by Filter::LoadInputs() or in similar specialized situations.

The documentation for this class was generated from the following files:

lib/scopehal/FlowGraphNode.h
lib/scopehal/FlowGraphNode.cpp
lib/scopehal/FlowGraphNode_inlines.h
