A pattern checker channel of a BERT. More...

#include <BERTInputChannel.h>

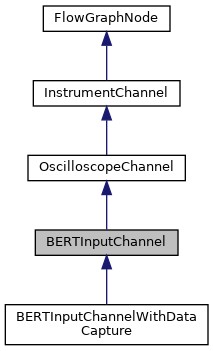

Inheritance diagram for BERTInputChannel:

[legend]

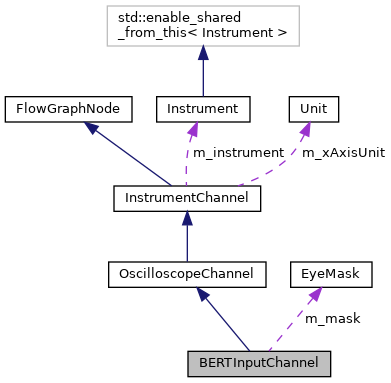

Collaboration diagram for BERTInputChannel:

[legend]

Public Types
enum	StreamIDs { STREAM_HBATHTUB = 0 , STREAM_EYE = 1 , STREAM_BER = 2 , STREAM_MASKHITRATE = 3 }
	Well known indexes of output streams. More...

Public Types inherited from OscilloscopeChannel
enum	CouplingType { COUPLE_DC_1M , COUPLE_AC_1M , COUPLE_DC_50 , COUPLE_AC_50 , COUPLE_GND , COUPLE_SYNTHETIC }

Public Types inherited from InstrumentChannel
enum	PhysicalConnector { CONNECTOR_BANANA_DUAL , CONNECTOR_BMA , CONNECTOR_BNC , CONNECTOR_K , CONNECTOR_K_DUAL , CONNECTOR_N , CONNECTOR_SMA }

enum	VisibilityMode { VIS_HIDE , VIS_AUTO , VIS_SHOW }
	Selects how the channel should be displayed in e.g. the ngscopeclient filter graph editor.

enum	DownloadState { DOWNLOAD_UNKNOWN , DOWNLOAD_NONE , DOWNLOAD_WAITING , DOWNLOAD_IN_PROGRESS , DOWNLOAD_FINISHED }
	Enum values to be mapped to GetDownloadState() int result value for specific channel download states. More...

Public Types inherited from FlowGraphNode
enum class	ExecutionCapabilities { None = 0 , CommandBufferAppend = 1 , CommandBufferTailCall = 2 , VulkanOnly = 4 , DynamicShader = 8 }

typedef std::map< std::string, FilterParameter >	ParameterMapType
	Short name for a map of strings to parameters.

Public Member Functions
	BERTInputChannel (const std::string &hwname, std::weak_ptr< BERT > bert, const std::string &color="#808080", size_t index=0)
	Initialize the channel.

virtual void	Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) override

virtual bool	ValidateChannel (size_t i, StreamDescriptor stream) override
	Check if a stream is allowed to be connected to the given input.

std::weak_ptr< BERT >	GetBERT () const
	Get the BERT we're part of.

bool	GetInvert ()
	Get the polarity inversion state.

void	SetInvert (bool invert)
	Set the polarity inversion state.

bool	GetCdrLockState ()
	Check if the CDR is currently locked.

void	SetPattern (BERT::Pattern pattern)
	Set the pattern this channel is expecting to see.

BERT::Pattern	GetPattern ()
	Get the pattern this channel is expecting to see.

std::vector< BERT::Pattern >	GetAvailablePatterns ()
	Get a list of all patterns this channel knows how to match.

int64_t	GetScanDepth ()
	Gets the currently selected integration depth for eye / bathtub scans.

std::vector< int64_t >	GetScanDepths ()
	Gets the available integration depths for eye / bathtub scans.

void	SetScanDepth (int64_t depth)
	Sets the currently selected integration depth for eye / bathtub scans.

StreamDescriptor	GetHBathtubStream ()
	Gets the stream for the horizontal bathtub output.

StreamDescriptor	GetEyeStream ()
	Gets the stream for the eye pattern output.

StreamDescriptor	GetBERStream ()
	Gets the stream for the realtime BER output.

bool	HasCTLE ()
	Returns true if the channel has a CTLE on the input.

std::vector< float >	GetCTLEGainSteps ()
	Get the set of available gain steps for the CTLE, in dB.

size_t	GetCTLEGainStep ()
	Gets the currently selected CTLE gain step.

void	SetCTLEGainStep (size_t step)
	Sets the gain for the CTLE.

void	SetBERSamplingPoint (int64_t dx, float dy)
	Sets the sampling location for real time offset BER measurements.

void	GetBERSamplingPoint (int64_t &dx, float &dy)
	Gets the sampling location for real time offset BER measurements.

int64_t	GetDataRate ()
	Gets the data rate of this channel, in symbols per second.

void	SetDataRate (int64_t rate)
	Sets the data rate of this channel, in symbols per second.

const std::string &	GetMaskFile ()
	Gets the path of the mask file for pass/fail testing (if any)

void	SetMaskFile (const std::string &fname)
	Sets the path of the mask file for pass/fail testing.

EyeMask &	GetMask ()
	Gets the EyeMask being used for pass/fail testing (may be blank)

virtual PhysicalConnector	GetPhysicalConnector () override

int64_t	GetExpectedBathtubCaptureTime ()
	Estimate the time needed to capture a bathtub curve with the current settings.

int64_t	GetExpectedEyeCaptureTime ()
	Estimate the time needed to capture an eye pattern with the current settings.

bool	IsEyeScanInProgress ()
	Check if an eye scan is currently executing.

float	GetScanProgress ()
	Returns an estimate of the current scan progress (if an eye or bathtub scan is executing)

bool	IsHBathtubScanInProgress ()
	Check if a bathtub scan is currently executing.

virtual void	ClearStreams () override
	Clears out any existing streams.

virtual size_t	AddStream (Unit yunit, const std::string &name, Stream::StreamType stype, uint8_t flags=0) override
	Adds a new data stream to the channel.

virtual float	GetVoltageRange (size_t stream) override

virtual void	SetVoltageRange (float range, size_t stream) override

virtual float	GetOffset (size_t stream) override

virtual void	SetOffset (float offset, size_t stream) override

Public Member Functions inherited from OscilloscopeChannel
	OscilloscopeChannel (Oscilloscope *scope, const std::string &hwname, const std::string &color, Unit xunit=Unit(Unit::UNIT_FS), size_t index=0)

	OscilloscopeChannel (Oscilloscope *scope, const std::string &hwname, const std::string &color, Unit xunit=Unit(Unit::UNIT_FS), Unit yunit=Unit(Unit::UNIT_VOLTS), Stream::StreamType stype=Stream::STREAM_TYPE_ANALOG, size_t index=0)

Oscilloscope *	GetScope ()

size_t	GetRefCount ()

virtual void	SetDisplayName (std::string name) override
	Sets the human-readable nickname for this channel, as displayed in the GUI.

virtual std::string	GetDisplayName () override
	Gets the human-readable nickname for this channel, as displayed in the GUI.

bool	IsEnabled ()

void	Enable ()

void	Disable ()

virtual void	AddRef ()

virtual void	Release ()

virtual CouplingType	GetCoupling ()

virtual void	SetCoupling (CouplingType type)

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings ()

virtual double	GetAttenuation ()

virtual void	SetAttenuation (double atten)

virtual int	GetBandwidthLimit ()

virtual void	SetBandwidthLimit (int mhz)

virtual void	SetDeskew (int64_t skew)

virtual int64_t	GetDeskew ()

bool	IsPhysicalChannel ()

virtual bool	IsInverted (size_t stream)

virtual bool	IsHighRateOffsetCapable ()
	Check if this channel is able to handle high rate (e.g. every mouse movement) offset changes.

void	SetDigitalHysteresis (float level)

void	SetDigitalThreshold (float level)

void	SetCenterFrequency (int64_t freq)

bool	CanAutoZero ()

void	AutoZero ()

bool	CanDegauss ()

void	Degauss ()

std::string	GetProbeName ()

virtual bool	CanInvert ()

virtual void	Invert (bool invert)

virtual bool	IsInverted ()

virtual bool	HasInputMux ()

virtual size_t	GetInputMuxSetting ()

virtual void	SetInputMux (size_t select)

void	SetDefaultDisplayName ()
	Gives a channel a default display name if there's not one already.

virtual DownloadState	GetDownloadState () override
	Returns the current download state of this channel.

virtual float	GetDownloadProgress () override
	returns the current completion of the download (on the range [0, 1]), if not DOWNLOAD_UNKNOWN

virtual double	GetDownloadStartTime () override
	returns the start time of a download, if we are DOWNLOAD_IN_PROGRESS; undefined, otherwise

Public Member Functions inherited from InstrumentChannel
	InstrumentChannel (Instrument *inst, const std::string &hwname, const std::string &color="#808080", Unit xunit=Unit(Unit::UNIT_FS), size_t index=0)

	InstrumentChannel (Instrument *inst, const std::string &hwname, const std::string &color="#808080", Unit xunit=Unit(Unit::UNIT_FS), Unit yunit=Unit(Unit::UNIT_VOLTS), Stream::StreamType stype=Stream::STREAM_TYPE_ANALOG, size_t index=0)

const std::string &	GetHwname () const
	Gets the hardware name of the channel (m_hwname)

size_t	GetIndex () const
	Gets the (zero based) index of the channel.

Instrument *	GetInstrument () const
	Gets the instrument this channel is part of (if any)

void	ClearCachedDisplayName ()
	Sets the display name to an empty string, causing a fetch from hardware.

void	SetData (WaveformBase *pNew, size_t stream)
	Sets the waveform data for a given stream, replacing any previous waveform.

virtual Unit	GetXAxisUnits ()
	Returns the X axis unit for this channel.

virtual Unit	GetYAxisUnits (size_t stream)
	Returns the Y axis unit for a specified stream.

virtual void	SetXAxisUnits (const Unit &rhs)
	Changes the X axis unit for this channel.

virtual void	SetYAxisUnits (const Unit &rhs, size_t stream)
	Changes the X axis unit for a specified stream.

Stream::StreamType	GetType (size_t stream)
	Returns the type of a specified stream.

size_t	GetStreamCount ()
	Get the number of data streams.

std::string	GetStreamName (size_t stream)
	Gets the name of a stream (for display in the UI)

WaveformBase *	GetData (size_t stream)
	Get the contents of a data stream.

uint8_t	GetStreamFlags (size_t stream)
	Get the flags of a data stream.

float	GetScalarValue (size_t stream)
	Gets the value of a scalar data stream.

void	SetScalarValue (size_t stream, float value)
	Sets the value of a scalar data stream.

uint64_t	GetDigitalScalarValue (size_t stream)
	Gets the value of a scalar data stream.

uint64_t	GetDigitalWidth (size_t stream)
	Gets the width of a digital data stream.

void	SetDigitalWidth (size_t stream, uint64_t width)
	Set the width of a digital data stream.

void	SetDigitalScalarValue (size_t stream, uint64_t value)
	Sets the value of a scalar data stream.

WaveformBase *	Detach (size_t stream)
	Detach the capture data from this channel.

virtual bool	ShouldPersistWaveform ()
	Determine whether the channel's waveform(s) should be persisted to a session file.

Public Member Functions inherited from FlowGraphNode
void	DetachInputs ()
	Disconnects all inputs from the node without releasing them.

size_t	GetInputCount ()
	Get the number of input ports.

std::string	GetInputName (size_t i)

void	SetInput (size_t i, StreamDescriptor stream, bool force=false)
	Connects a stream to the input of this node.

void	SetInput (const std::string &name, StreamDescriptor stream, bool force=false)

bool	HasInput (StreamDescriptor desc)
	Checks if the given stream is connected to at least one of our inputs.

StreamDescriptor	GetInput (size_t i)
	Gets the descriptor for one of our inputs.

std::shared_ptr< InputConstraint >	GetInputConstraints (size_t i)
	Get the constraints on one of our inputs.

FilterParameter &	GetParameter (std::string s)

bool	HasParameter (std::string s)
	Checks if we have a parameter with a given name.

ParameterMapType::iterator	GetParamBegin ()
	Returns an iterator to the beginning of our parameter map.

ParameterMapType::iterator	GetParamEnd ()
	Returns an iterator to the end of our parameter map.

size_t	GetParamCount ()
	Returns the number of parameter we have.

virtual YAML::Node	SerializeConfiguration (IDTable &table)
	Serializes this trigger's configuration to a YAML string.

virtual void	LoadParameters (const YAML::Node &node, IDTable &table)
	Load configuration from a save file.

virtual void	LoadInputs (const YAML::Node &node, IDTable &table)

bool	IsDownstreamOf (std::set< FlowGraphNode * > nodes)
	Determines if this node is downstream of any of the specified other nodes.

virtual uint32_t	GetExecutionCapabilitiesMask ()
	Returns a bitmask of ExecutionCapabilities fields.

bool	HasMessages () const
	Checks if this graph has any messages.

const std::vector< FlowGraphNodeMessage > &	GetMessages () const
	Walking through any messages.

const FlowGraphNodeMessage *	GetMostSevereMessage () const

void	AddSink (size_t stream, FlowGraphNode *node)

void	RemoveSink (size_t stream, FlowGraphNode *node)

const std::set< FlowGraphNode * > &	GetSinks (size_t stream)

sigc::signal< void()>	signal_parametersChanged ()

sigc::signal< void()>	signal_inputsChanged ()

Protected Attributes
std::vector< float >	m_ranges
	Voltage range of each stream.

std::vector< float >	m_offsets
	Vertical offset of each stream.

std::string	m_maskFile
	Path to the YAML file, if any, that m_mask was loaded from.

EyeMask	m_mask
	Eye mask used for pass/fail testing.

std::weak_ptr< BERT >	m_bert
	Pointer to the parent instrument.

Protected Attributes inherited from OscilloscopeChannel
size_t	m_refcount
	Number of references (channel is disabled when last ref is released)

Protected Attributes inherited from InstrumentChannel
Instrument *	m_instrument
	The instrument we're part of (may be null in the case of filters etc)

std::string	m_hwname
	Hardware name of the channel.

std::string	m_displayname
	Display name (user defined, defaults to m_hwname).

size_t	m_index
	Zero based index of the channel within the instrument.

Unit	m_xAxisUnit
	Unit of measurement for our horizontal axis (common to all streams)

std::vector< Stream >	m_streams
	Configuration data for each of our output streams.

Protected Attributes inherited from FlowGraphNode
std::vector< std::shared_ptr< InputDescriptor > >	m_inputs
	Input ports.

std::vector< std::set< FlowGraphNode * > >	m_sinks
	The nodes (if any) that each of our streams drives.

ParameterMapType	m_parameters

sigc::signal< void()>	m_parametersChangedSignal
	Signal emitted when the set of parameters changes.

sigc::signal< void()>	m_inputsChangedSignal
	Signal emitted when the set of inputs changes.

std::vector< FlowGraphNodeMessage >	m_messages

Additional Inherited Members
Public Attributes inherited from InstrumentChannel
std::string	m_displaycolor
	Display color (HTML hex notation with optional alpha channel: #RRGGBB or ##RRGGBBAA)

enum InstrumentChannel::VisibilityMode	m_visibilityMode

Protected Member Functions inherited from OscilloscopeChannel
void	SharedCtorInit (Unit unit)

Protected Member Functions inherited from FlowGraphNode
virtual void	OnInputChanged (size_t i)
	Called when a new input is connected to the node.

WaveformBase *	GetInputWaveform (size_t i)
	Gets the waveform attached to the specified input.

SparseAnalogWaveform *	GetSparseAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

UniformAnalogWaveform *	GetUniformAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

SparseDigitalWaveform *	GetSparseDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

UniformDigitalWaveform *	GetUniformDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

virtual void	CreateInput (const std::string &name)
	Gets the digital bus waveform attached to the specified input.

template<class T , class... Args>
void	CreateInput (const std::string &name, Args &&... args)

std::string	GetInputDisplayName (size_t i)
	Gets the display name for one of our inputs.

void	ClearMessages ()
	Remove any messages left over from the last graph refresh.

void	AddMessage (const FlowGraphNodeMessage &msg)
	Attach a new message to the node.

void	AddMessage (Severity severity, const std::string &title, const std::string &message)
	Attach a new message to the node.

void	AddErrorMessage (const std::string &err)
	Add a new error message.

void	AddErrorMessage (const std::string &title, const std::string &err)
	Add a new error message with a title.

Detailed Description

A pattern checker channel of a BERT.

Derived from OscilloscopeChannel because we can output time domain bathtub curves etc

Member Enumeration Documentation

◆ StreamIDs

enum BERTInputChannel::StreamIDs

Well known indexes of output streams.

Enumerator

STREAM_HBATHTUB

Horizontal bathtub.

STREAM_EYE

Parameters

Eye pattern

STREAM_BER

Parameters

Realtime bit error rate

STREAM_MASKHITRATE

Parameters

Mask hit rate

Constructor & Destructor Documentation

◆ BERTInputChannel()

BERTInputChannel::BERTInputChannel	(	const std::string &	hwname,
		std::weak_ptr< BERT >	bert,
		const std::string &	color = `"#808080"`,
		size_t	index = `0`
	)

Initialize the channel.

Parameters

hwname	Hardware name of the channel
bert	BERT the channel is part of
color	Initial display color of the channel
index	Number of the channel

Member Function Documentation

◆ AddStream()

size_t BERTInputChannel::AddStream	(	Unit	yunit,
		const std::string &	name,
		Stream::StreamType	stype,
		uint8_t	flags = `0`
	)

overridevirtual

Adds a new data stream to the channel.

Returns: Index of the new stream

Reimplemented from InstrumentChannel.

◆ ClearStreams()

void BERTInputChannel::ClearStreams ( )

overridevirtual

Clears out any existing streams.

Reimplemented from InstrumentChannel.

◆ GetBERSamplingPoint()

void BERTInputChannel::GetBERSamplingPoint	(	int64_t &	dx,
		float &	dy
	)

inline

Gets the sampling location for real time offset BER measurements.

Parameters

dx	Horizontal offset of the sampling point from the center of the eye, in femtoseconds
dy	Vertical offset of the sampling point from the center of the eye, in volts

◆ GetCTLEGainStep()

size_t BERTInputChannel::GetCTLEGainStep ( )

inline

Gets the currently selected CTLE gain step.

The actual gain value can be looked up in the table returned by GetCTLEGainSteps().

◆ GetExpectedBathtubCaptureTime()

int64_t BERTInputChannel::GetExpectedBathtubCaptureTime ( )

inline

Estimate the time needed to capture a bathtub curve with the current settings.

This can be used for displaying progress bars, hints in the GUI, etc.

Returns: Expected capture time, in femtoseconds

◆ GetExpectedEyeCaptureTime()

int64_t BERTInputChannel::GetExpectedEyeCaptureTime ( )

inline

Estimate the time needed to capture an eye pattern with the current settings.

This can be used for displaying progress bars, hints in the GUI, etc.

Returns: Expected capture time, in femtoseconds

◆ GetOffset()

float BERTInputChannel::GetOffset ( size_t stream )

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ GetPhysicalConnector()

InstrumentChannel::PhysicalConnector BERTInputChannel::GetPhysicalConnector ( )

overridevirtual

Reimplemented from InstrumentChannel.

◆ GetScanDepth()

int64_t BERTInputChannel::GetScanDepth ( )

inline

Gets the currently selected integration depth for eye / bathtub scans.

Returns: Integration depth, in UIs per pixel or point

◆ GetScanProgress()

float BERTInputChannel::GetScanProgress ( )

inline

Returns an estimate of the current scan progress (if an eye or bathtub scan is executing)

Returns: Estimated progress in the range [0, 1]

◆ GetVoltageRange()

float BERTInputChannel::GetVoltageRange ( size_t stream )

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ IsEyeScanInProgress()

bool BERTInputChannel::IsEyeScanInProgress ( )

inline

Check if an eye scan is currently executing.

Returns: True if scan is in progress, false if not

◆ IsHBathtubScanInProgress()

bool BERTInputChannel::IsHBathtubScanInProgress ( )

inline

Check if a bathtub scan is currently executing.

Returns: True if scan is in progress, false if not

◆ Refresh()

void BERTInputChannel::Refresh	(	vk::raii::CommandBuffer &	cmdBuf,
		std::shared_ptr< QueueHandle >	queue
	)

overridevirtual

Reimplemented from InstrumentChannel.

◆ SetBERSamplingPoint()

void BERTInputChannel::SetBERSamplingPoint	(	int64_t	dx,
		float	dy
	)

inline

Sets the sampling location for real time offset BER measurements.

Parameters

dx	Horizontal offset of the sampling point from the center of the eye, in femtoseconds
dy	Vertical offset of the sampling point from the center of the eye, in volts

◆ SetCTLEGainStep()

void BERTInputChannel::SetCTLEGainStep ( size_t step )

inline

Sets the gain for the CTLE.

The actual gain value can be looked up in the table returned by GetCTLEGainSteps().

Parameters

step	Step index

◆ SetDataRate()

void BERTInputChannel::SetDataRate ( int64_t rate )

inline

Sets the data rate of this channel, in symbols per second.

Depending on the clocking architecture of the instrument, this may affect other channels.

For example, on MultiLane BERTs all channels share a single timebase. Antikernel Labs BERTs are based on Xilinx FPGAs and channels are divided into quads which each share some clocking resources.

Parameters

rate	Desired data rate

◆ SetInvert()

void BERTInputChannel::SetInvert ( bool invert )

inline

Set the polarity inversion state.

Parameters

invert True for inverted polarity, false for normal

◆ SetMaskFile()

void BERTInputChannel::SetMaskFile ( const std::string & fname )

Sets the path of the mask file for pass/fail testing.

Parameters

fname Path of the YAML mask file

◆ SetOffset()

void BERTInputChannel::SetOffset	(	float	offset,
		size_t	stream
	)

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ SetPattern()

void BERTInputChannel::SetPattern ( BERT::Pattern pattern )

inline

Set the pattern this channel is expecting to see.

Parameters

pattern Expected pattern

◆ SetScanDepth()

void BERTInputChannel::SetScanDepth ( int64_t depth )

inline

Sets the currently selected integration depth for eye / bathtub scans.

Parameters

depth Integration depth, in UIs per pixel or point

◆ SetVoltageRange()

void BERTInputChannel::SetVoltageRange	(	float	range,
		size_t	stream
	)

overridevirtual

Reimplemented from OscilloscopeChannel.

◆ ValidateChannel()

bool BERTInputChannel::ValidateChannel	(	size_t	i,
		StreamDescriptor	stream
	)

overridevirtual

Check if a stream is allowed to be connected to the given input.

Reimplemented from FlowGraphNode.

Member Data Documentation

◆ m_bert

std::weak_ptr<BERT> BERTInputChannel::m_bert

protected

Pointer to the parent instrument.

TODO: this needs to get refactored away so we can just use InstrumentChannel::m_instrument

The documentation for this class was generated from the following files:

lib/scopehal/BERTInputChannel.h
lib/scopehal/BERTInputChannel.cpp

Public Types

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ StreamIDs

Constructor & Destructor Documentation

◆ BERTInputChannel()

Member Function Documentation

◆ AddStream()

◆ ClearStreams()

◆ GetBERSamplingPoint()

◆ GetCTLEGainStep()

◆ GetExpectedBathtubCaptureTime()

◆ GetExpectedEyeCaptureTime()

◆ GetOffset()

◆ GetPhysicalConnector()

◆ GetScanDepth()

◆ GetScanProgress()

◆ GetVoltageRange()

◆ IsEyeScanInProgress()

◆ IsHBathtubScanInProgress()

◆ Refresh()

◆ SetBERSamplingPoint()

◆ SetCTLEGainStep()

◆ SetDataRate()

◆ SetInvert()

◆ SetMaskFile()

◆ SetOffset()

◆ SetPattern()

◆ SetScanDepth()

◆ SetVoltageRange()

◆ ValidateChannel()

Member Data Documentation

◆ m_bert
