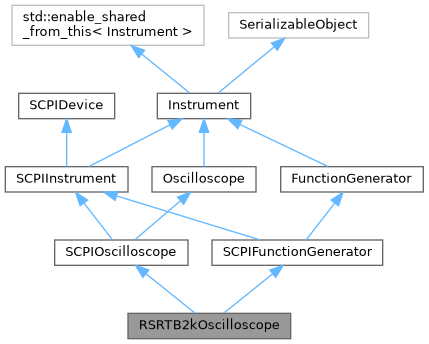

Inheritance diagram for RSRTB2kOscilloscope:

[legend]

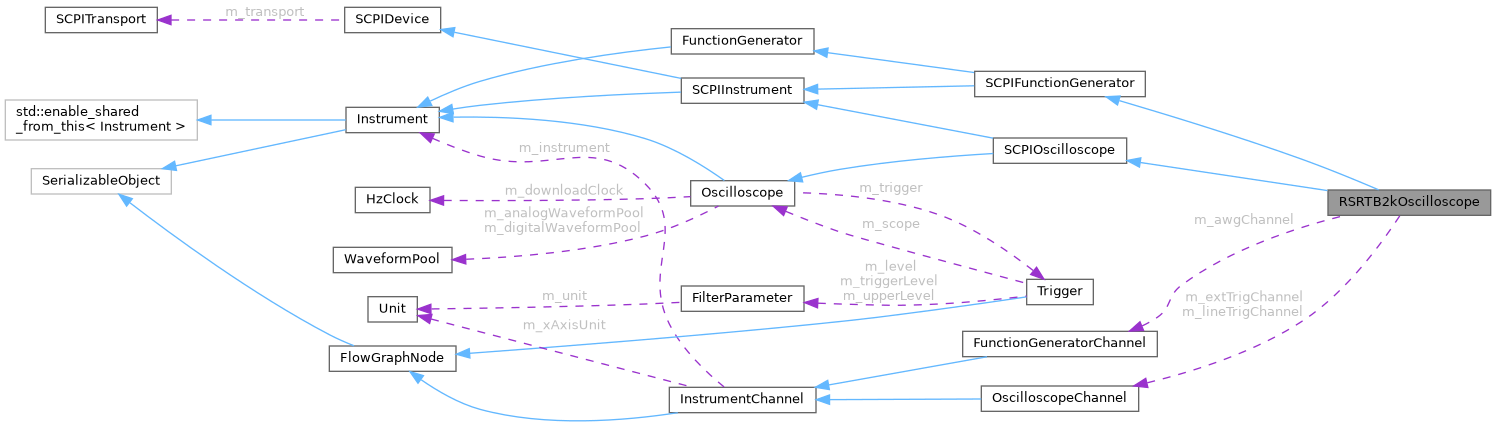

Collaboration diagram for RSRTB2kOscilloscope:

[legend]

Classes
struct	Logicpod

struct	Metadata

Public Member Functions
	RSRTB2kOscilloscope (SCPITransport *transport)

	RSRTB2kOscilloscope (const RSRTB2kOscilloscope &rhs)=delete

RSRTB2kOscilloscope &	operator= (const RSRTB2kOscilloscope &rhs)=delete

virtual unsigned int	GetInstrumentTypes () const override
	Returns a bitfield describing the set of instrument types that this instrument supports.

virtual uint32_t	GetInstrumentTypesForChannel (size_t i) const override
	Returns a bitfield describing the set of instrument types that a given channel supports.

virtual void	FlushConfigCache () override
	Instruments are allowed to cache configuration settings to reduce round trip queries to the device.

void	ForceHDMode (bool mode)
	Forces 16-bit transfer mode on/off when for HD models.

virtual bool	IsChannelEnabled (size_t i) override
	Checks if a channel is enabled in hardware.

virtual void	EnableChannel (size_t i) override
	Turn a channel on, given the index.

virtual bool	CanEnableChannel (size_t i) override
	Determines if a channel can be enabled.

virtual void	DisableChannel (size_t i) override
	Turn a channel off, given the index.

virtual OscilloscopeChannel::CouplingType	GetChannelCoupling (size_t i) override
	Gets the coupling used for an input channel.

virtual void	SetChannelCoupling (size_t i, OscilloscopeChannel::CouplingType type) override
	Sets the coupling used for an input channel.

virtual std::vector< OscilloscopeChannel::CouplingType >	GetAvailableCouplings (size_t i) override
	Gets the set of legal coupling values for an input channel.

virtual double	GetChannelAttenuation (size_t i) override
	Gets the probe attenuation for an input channel.

virtual void	SetChannelAttenuation (size_t i, double atten) override
	Sets the probe attenuation used for an input channel.

virtual unsigned int	GetChannelBandwidthLimit (size_t i) override
	Gets the bandwidth limit for an input channel.

virtual void	SetChannelBandwidthLimit (size_t i, unsigned int limit_mhz) override
	Sets the bandwidth limit for an input channel.

virtual float	GetChannelVoltageRange (size_t i, size_t stream) override
	Gets the range of the current channel configuration.

virtual void	SetChannelVoltageRange (size_t i, size_t stream, float range) override
	Sets the range of the current channel configuration.

virtual OscilloscopeChannel *	GetExternalTrigger () override
	Returns the external trigger input channel, if we have one.

virtual float	GetChannelOffset (size_t i, size_t stream) override
	Gets the offset, in volts, for a given channel.

virtual void	SetChannelOffset (size_t i, size_t stream, float offset) override
	Sets the offset for a given channel.

virtual std::string	GetChannelDisplayName (size_t i) override
	Gets the hardware display name for a channel. This is an arbitrary user-selected string.

virtual void	SetChannelDisplayName (size_t i, std::string name) override
	Sets the hardware display name for a channel. This is an arbitrary user-selected string.

virtual std::vector< unsigned int >	GetChannelBandwidthLimiters (size_t i) override
	Gets the set of available bandwidth limiters for an input channel.

virtual bool	CanInvert (size_t i) override
	Checks if a channel is capable of hardware polarity inversion.

virtual void	Invert (size_t i, bool invert) override
	Enables hardware polarity inversion for a channel, if supported.

virtual bool	IsInverted (size_t i) override
	Checks if hardware polarity inversion is enabled for a channel.

virtual Oscilloscope::TriggerMode	PollTrigger () override
	Checks the curent trigger status.

virtual bool	AcquireData () override
	Pull data from the instrument.

virtual void	Start () override
	Starts the instrument in continuous trigger mode.

virtual void	StartSingleTrigger () override
	Arms the trigger for a single acquistion.

virtual void	Stop () override
	Stops triggering.

virtual void	ForceTrigger () override
	Forces a single acquisition as soon as possible.

virtual bool	IsTriggerArmed () override
	Checks if the trigger is currently armed.

virtual void	PushTrigger () override
	Pushes changes made to m_trigger to the instrument.

virtual void	PullTrigger () override
	Updates m_trigger with any changes made from the instrument side.

virtual void	EnableTriggerOutput () override
	Enables the trigger output, configuring a shared auxiliary port for this purpose if needed.

virtual std::vector< std::string >	GetTriggerTypes () override
	Gets a list of triggers this instrument supports.

virtual std::vector< uint64_t >	GetSampleRatesNonInterleaved () override
	Get the legal sampling rates (in Hz) for this scope in all-channels mode.

virtual std::vector< uint64_t >	GetSampleRatesInterleaved () override
	Get the legal sampling rates (in Hz) for this scope in combined-channels mode.

virtual std::set< InterleaveConflict >	GetInterleaveConflicts () override

virtual std::vector< uint64_t >	GetSampleDepthsNonInterleaved () override
	Get the legal memory depths for this scope in all-channels mode.

virtual std::vector< uint64_t >	GetSampleDepthsInterleaved () override
	Get the legal memory depths for this scope in combined-channels mode.

virtual uint64_t	GetSampleRate () override
	Gets the current sampling rate (in Hz) of this scope.

virtual uint64_t	GetSampleDepth () override
	Gets the current sample depth of this scope.

virtual void	SetSampleDepth (uint64_t depth) override
	Sets the sample depth of the scope.

virtual void	SetSampleRate (uint64_t rate) override
	Sets the sample rate of the scope, in Hz.

virtual bool	IsInterleaving () override
	Checks if the scope is currently combining channels.

virtual bool	SetInterleaving (bool combine) override
	Configures the scope to combine channels.

virtual void	SetTriggerOffset (int64_t offset) override
	Sets the trigger offset.

virtual int64_t	GetTriggerOffset () override
	Gets the trigger offset.

virtual std::vector< WaveShape >	GetAvailableWaveformShapes (int chan) override
	Query the set of available pre-defined waveforms for this generator.

virtual bool	GetFunctionChannelActive (int chan) override
	Returns true if the function generator channel's output is enabled.

virtual void	SetFunctionChannelActive (int chan, bool on) override
	Turns a function generator channel on or off.

virtual float	GetFunctionChannelDutyCycle (int chan) override
	Gets the duty cycle for a function generator output.

virtual void	SetFunctionChannelDutyCycle (int chan, float duty) override
	Sets the duty cycle for a function generator output.

virtual float	GetFunctionChannelAmplitude (int chan) override
	Gets the amplitude for a function generator output.

virtual void	SetFunctionChannelAmplitude (int chan, float amplitude) override
	Sets the amplitude for a function generator output.

virtual float	GetFunctionChannelOffset (int chan) override
	Gets the DC offset for a function generator output.

virtual void	SetFunctionChannelOffset (int chan, float offset) override
	Sets the DC offset for a function generator output.

virtual float	GetFunctionChannelFrequency (int chan) override
	Gets the frequency for a function generator output.

virtual void	SetFunctionChannelFrequency (int chan, float hz) override
	Sets the frequency for a function generator output.

virtual WaveShape	GetFunctionChannelShape (int chan) override
	Gets the waveform shape for a function generator output.

virtual void	SetFunctionChannelShape (int chan, WaveShape shape) override
	Sets the waveform shape for a function generator output.

virtual bool	HasFunctionRiseFallTimeControls (int chan) override
	Determines if the function generator allows control over rise/fall times.

virtual OutputImpedance	GetFunctionChannelOutputImpedance (int chan) override
	Gets the currently selected output impedance for a function generator output (if supported)

virtual void	SetFunctionChannelOutputImpedance (int chan, OutputImpedance z) override
	Sets the currently selected output impedance for a function generator output (if supported)

virtual float	GetFunctionChannelRiseTime (int) override
	Gets the rise time for a function generator output (if supported)

virtual void	SetFunctionChannelRiseTime (int, float) override
	Sets the rise time for a function generator output (if supported)

virtual void	SetFunctionChannelFallTime (int, float) override
	Sets the fall time for a function generator output (if supported)

virtual float	GetFunctionChannelFallTime (int chan) override
	Gets the fall time for a function generator output (if supported)

virtual std::vector< DigitalBank >	GetDigitalBanks () override
	Gets the digital channel banks for this instrument.

virtual DigitalBank	GetDigitalBank (size_t channel) override
	Gets the bank containing a given channel.

virtual bool	IsDigitalHysteresisConfigurable () override
	Checks if digital input hysteresis is configurable or fixed.

virtual bool	IsDigitalThresholdConfigurable () override
	Checks if digital input threshold is configurable or fixed.

virtual float	GetDigitalHysteresis (size_t channel) override
	Gets the hysteresis for a digital input.

virtual float	GetDigitalThreshold (size_t channel) override
	Gets the threshold for a digital input.

virtual void	SetDigitalHysteresis (size_t channel, float level) override
	Sets the hysteresis for a digital input.

virtual void	SetDigitalThreshold (size_t channel, float level) override
	Gets the threshold for a digital input.

Public Member Functions inherited from SCPIOscilloscope
virtual std::string	IDPing ()
	Returns the instrument's identification string.

Public Member Functions inherited from Oscilloscope
OscilloscopeChannel *	GetOscilloscopeChannel (size_t i)
	Gets a channel by index.

int	GetEnabledChannelCount ()
	Returns the number of enabled channels for this oscilloscope.

OscilloscopeChannel *	GetOscilloscopeChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual bool	CanAutoZero (size_t i)
	Determines if a channel has a probe connected which supports the "auto zero" feature.

virtual void	AutoZero (size_t i)
	Performs an "auto zero" cycle on the attached active probe, if supported by the hardware.

virtual bool	CanDegauss (size_t i)
	Determines if a channel has a probe connected which supports the "degauss" feature.

virtual bool	ShouldDegauss (size_t i)
	Determines if a channel requires a degauss cycle (if supported)

virtual void	Degauss (size_t i)
	Performs an "degauss" cycle on the attached active probe, if supported by the hardware.

virtual bool	CanAverage (size_t i)
	Determines if the channel supports hardware averaging.

virtual size_t	GetNumAverages (size_t i)
	Returns the number of averages the channel is configured for.

virtual void	SetNumAverages (size_t i, size_t navg)
	Sets the number of hardware averages to use.

virtual std::string	GetProbeName (size_t i)
	Returns the name of the probe connected to the scope, if possible.

virtual bool	HasInputMux (size_t i)
	Checks if a channel has an input multiplexer.

virtual size_t	GetInputMuxSetting (size_t i)
	Gets the setting for a channel's input mux (if it has one)

virtual std::vector< std::string >	GetInputMuxNames (size_t i)
	Gets names for the input mux ports of a channel.

virtual void	SetInputMux (size_t i, size_t select)
	Sets the input mux for a channel.

virtual bool	IsHighRateOffsetCapable (size_t i)
	Checks if the channel supports high rate offset changes, or if the GUI should rate-limit.

virtual bool	PeekTriggerArmed ()
	Checks if the trigger is armed directly on the instrument, without altering internal state or touching caches.

bool	WaitForTrigger (int timeout)
	Block until a trigger happens or a timeout elapses.

void	SetTrigger (Trigger *trigger)
	Sets a new trigger on the instrument and pushes changes.

Trigger *	GetTrigger (bool sync=false)
	Gets the current trigger.

virtual bool	HasInterleavingControls ()
	Returns true if the scope has a user controllable interleaving feature, false if not.

virtual bool	CanInterleave ()
	Returns true if we have no interleave conflicts, false if we have conflicts.

virtual bool	IsSamplingModeAvailable (SamplingMode mode)
	Returns true if the requested sampling mode is available with the current instrument configuration.

virtual SamplingMode	GetSamplingMode ()
	Gets the current sampling mode of the instrument.

virtual void	SetSamplingMode (SamplingMode mode)
	Sets the current sampling mode of the instrument.

virtual void	SetUseExternalRefclk (bool external)
	Configures the instrument's clock source.

virtual void	SetDeskewForChannel (size_t channel, int64_t skew)
	Sets the deskew setting for a channel.

virtual int64_t	GetDeskewForChannel (size_t channel)
	Gets the deskew setting for a channel.

virtual std::vector< AnalogBank >	GetAnalogBanks ()
	Gets the analog banks for this instrument.

virtual AnalogBank	GetAnalogBank (size_t channel)
	Gets the bank containing a given channel.

virtual bool	IsADCModePerChannel ()
	Returns true if the ADC is a per-channel setting, false if global for the entire instrument.

virtual bool	IsADCModeConfigurable ()
	Returns true if the ADC is configurable, false if it can only run in one mode.

virtual std::vector< std::string >	GetADCModeNames (size_t channel)
	Gets the names of the ADC modes for the bank a given channel is located in.

virtual size_t	GetADCMode (size_t channel)
	Gets the ADC mode for a channel.

virtual void	SetADCMode (size_t channel, size_t mode)
	Sets the ADC mode for a channel.

virtual void	SetSpan (int64_t span)
	Sets the span for frequency-domain channels.

virtual int64_t	GetSpan ()
	Gets the span for frequency-domain channels.

virtual void	SetCenterFrequency (size_t channel, int64_t freq)
	Sets the center frequency for frequency-domain channels.

virtual int64_t	GetCenterFrequency (size_t channel)
	Gets the center frequency for a frequency-domain channel.

virtual void	SetResolutionBandwidth (int64_t rbw)
	Gets the resolution bandwidth for frequency-domain channels.

virtual int64_t	GetResolutionBandwidth ()
	Gets the resolution bandwidth for frequency-domain channels.

virtual bool	HasFrequencyControls ()
	Returns true if the instrument has at least one frequency-domain channel.

virtual bool	HasResolutionBandwidth ()
	Returns true if the instrument has a resolution bandwidth setting.

virtual bool	HasTimebaseControls ()
	Returns true if the instrument has at least one time-domain channel.

bool	HasPendingWaveforms ()

void	ClearPendingWaveforms ()
	Discard any pending waveforms that haven't yet been processed.

size_t	GetPendingWaveformCount ()

virtual bool	PopPendingWaveform ()
	Pops the queue of pending waveforms and updates each channel with a new waveform.

virtual bool	IsAppendingToWaveform ()
	Checks if we are appending to the existing waveform or creating a new one.

double	GetWaveformDownloadRate ()

bool	HasPendingDiagnosticLogMessages ()

std::string	PopPendingDiagnosticLogMessage ()

std::map< std::string, FilterParameter * > &	GetDiagnosticsValues ()

bool	FreeWaveformPools ()
	Free all waveforms in our pool to reclaim memory.

void	AddWaveformToAnalogPool (WaveformBase *w)

void	AddWaveformToDigitalPool (WaveformBase *w)

Public Member Functions inherited from Instrument
virtual bool	IsOffline ()
	Checks if the instrument is currently online.

size_t	GetChannelCount () const
	Gets the number of channels (of any type) this instrument has.

InstrumentChannel *	GetChannel (size_t i) const
	Gets a given channel on the instrument.

InstrumentChannel *	GetChannelByDisplayName (const std::string &name)
	Gets a channel given the display name.

InstrumentChannel *	GetChannelByHwName (const std::string &name)
	Gets a channel given the hardware name.

virtual YAML::Node	SerializeConfiguration (IDTable &table) const
	Serializes this instrument's configuration to a YAML node.

virtual void	LoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

virtual void	PreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &warnings)
	Parse a limited subset of instrument configuration but do not apply it.

Public Member Functions inherited from SCPIInstrument
	SCPIInstrument (SCPITransport *transport, bool identify=true)

virtual std::string	GetTransportConnectionString () override
	Gets the connection string for our transport.

virtual std::string	GetTransportName () override
	Gets the name of our transport.

virtual std::string	GetName () const override

virtual std::string	GetVendor () const override

virtual std::string	GetSerial () const override

virtual std::string	GetDriverName () const =0

virtual void	BackgroundProcessing () override
	Run various background processing typically done by a second thread (e.g. InstrumentThread)

Public Member Functions inherited from SCPIDevice
	SCPIDevice (SCPITransport *transport, bool identify=true, unsigned int identify_timeout_us=5000000)

	SCPIDevice (const SCPIDevice &rhs)=delete

SCPIDevice &	operator= (const SCPIDevice &rhs)=delete

SCPITransport *	GetTransport () const

Public Member Functions inherited from FunctionGenerator
virtual bool	HasFunctionDutyCycleControls (int chan)
	Determines if the function generator allows control over duty cycles.

virtual bool	HasFunctionImpedanceControls (int chan)
	Determines if the function generator allows control over rise/fall times.

Static Public Member Functions
static void	Convert16BitSamples (float pout, const uint16_t pin, float gain, float offset, size_t count)
	Converts 16-bit ADC samples to floating point.

static void	Convert16BitSamplesGeneric (float pout, const uint16_t pin, float gain, float offset, size_t count)
	Converts raw ADC samples to floating point.

static void	Convert8BitSamples (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Converts 8-bit ADC samples to floating point.

static void	Convert8BitSamplesGeneric (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Generic backend for Convert8BitSamples()

static std::string	GetDriverNameInternal ()

Static Public Member Functions inherited from Oscilloscope
static void	Convert8BitSamples (float pout, const int8_t pin, float gain, float offset, size_t count)
	Converts 8-bit ADC samples to floating point.

static void	Convert8BitSamplesGeneric (float pout, const int8_t pin, float gain, float offset, size_t count)
	Generic backend for Convert8BitSamples()

static void	ConvertUnsigned8BitSamples (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Converts Unsigned 8-bit ADC samples to floating point.

static void	ConvertUnsigned8BitSamplesGeneric (float pout, const uint8_t pin, float gain, float offset, size_t count)
	Generic backend for ConvertUnsigned8BitSamples()

static void	DoAddDriverClass (const std::string &name, CreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< Oscilloscope >	CreateOscilloscope (const std::string &driver, SCPITransport *transport)

Static Public Member Functions inherited from SCPIInstrument
static void	DoAddDriverClass (const std::string &name, GetTransportsProcType proc)

static std::vector< SCPIInstrumentModel >	GetSupportedModels (const std::string &driver)

static std::vector< SCPIInstrumentModel >	GetDriverSupportedModels ()

Static Public Member Functions inherited from SCPIFunctionGenerator
static void	DoAddDriverClass (const std::string &name, GeneratorCreateProcType proc)

static void	EnumDrivers (std::vector< std::string > &names)

static std::shared_ptr< SCPIFunctionGenerator >	CreateFunctionGenerator (const std::string &driver, SCPITransport *transport)

Static Public Member Functions inherited from FunctionGenerator
static std::string	GetNameOfShape (WaveShape shape)
	Converts a WaveShape enum to a human readable name.

static WaveShape	GetShapeOfName (const std::string &name)
	Converts a human readable name to a WaveShape.

static std::string	GetNameOfImpedance (OutputImpedance imp)
	Converts an OutputImpedance enum to a human readable name.

static OutputImpedance	GetImpedanceOfName (const std::string &name)
	Converts a human readable name to an OutputImpedance.

Protected Member Functions
void	IdentifyHardware ()

void	DetectOptions ()

virtual void	AddAnalogChannels ()

void	AddDigitalChannels ()

void	AddExternalTriggerChannel ()

void	AddLineTriggerChannel ()

void	AddAwgChannel ()

std::string	PullTriggerSourceNumber (bool noDigital)

void	PullTriggerSource (Trigger *trig, std::string triggerModeName, bool isUart)
	Reads the source of a trigger from the instrument.

void	PullEdgeTrigger ()
	Reads settings for an edge trigger from the instrument.

void	PullLineTrigger ()
	Reads settings for a line trigger from the instrument.

void	PullRiseTimeTrigger ()
	Reads settings for a rise time trigger from the instrument.

void	PullRuntTrigger ()
	Reads settings for a runt-pulse trigger from the instrument.

void	PullTimeoutTrigger ()
	Reads settings for a timeout trigger from the instrument.

void	PullVideoTrigger ()
	Reads settings for a video trigger from the instrument.

void	PullWidthTrigger ()
	Reads settings for an edge trigger from the instrument.

void	GetTriggerHysteresis (Trigger *trig, std::string reply)
	Processes the channel hystersis for an trigger.

void	GetTriggerSlope (Trigger *trig, std::string reply)
	Processes the slope for an edge or edge-derived trigger.

void	GetTriggerCoupling (Trigger *trig, std::string reply)
	Processes the coupling for an edge or edge-derived trigger.

Trigger::Condition	GetCondition (std::string reply)
	Parses a trigger condition.

void	PushCondition (const std::string &path, Trigger::Condition cond)
	Pushes settings for a trigger condition under a .Condition field.

void	PushFloat (const std::string &path, float f)

void	PushEdgeTrigger (EdgeTrigger *trig, const std::string &trigType)
	Pushes settings for an edge trigger to the instrument.

void	PushLineTrigger (LineTrigger *trig)
	Pushes settings for a line trigger to the instrument.

void	PushRiseTimeTrigger (RSRTB2kRiseTimeTrigger *trig)
	Pushes settings for a slew rate trigger to the instrument.

void	PushRuntTrigger (RSRTB2kRuntTrigger *trig)
	Pushes settings for a runt trigger to the instrument.

void	PushTimeoutTrigger (RSRTB2kTimeoutTrigger *trig)
	Pushes settings for a timeout trigger to the instrument.

void	PushVideoTrigger (RSRTB2kVideoTrigger *trig)
	Pushes settings for a video trigger to the instrument.

void	PushWidthTrigger (RSRTB2kWidthTrigger *trig)
	Pushes settings for a pulse width trigger to the instrument.

void	BulkCheckChannelEnableState ()
	Optimized function for checking channel enable status en masse with less round trips to the scope.

void	PrepareAcquisition ()

void	SetupForAcquisition ()

std::string	GetDigitalChannelBankName (size_t channel)

std::string	GetChannelName (size_t channel)

bool	GetActiveChannels (bool pod1, bool pod2, bool chan1, bool chan2, bool chan3, bool chan4)

size_t	ReadWaveformBlock (std::vector< uint8_t > data, Metadata metadata, std::function< void(float)> progress=nullptr)

std::vector< WaveformBase * >	ProcessAnalogWaveform (const std::vector< uint8_t > &data, size_t dataLen, time_t ttime, uint32_t sampleCount, uint32_t bytePerSample, float verticalStep, float verticalStart, float interval, int i)

Protected Member Functions inherited from Oscilloscope
void	ChannelsDownloadStarted ()
	Helper method called by drivers to reset all channels to "waiting to download" state.

void	ChannelsDownloadStatusUpdate (size_t ch, InstrumentChannel::DownloadState state, float progress)
	Helper method called by drivers to set one channel's download status and update its download progress. Be aware that there is a measurement on ngscopeclient UI of the time spent between the download start and the progress of the last enabled channel. This measurement is used to decide whether to display a progress bar or not. This download speed evaluation method only works if enabled channels are download sequencially in increasing numeric order or if all channels are downloaded at the same speed.

void	ChannelsDownloadFinished ()
	Helper method called by drivers when waveform download is finished to reset all channels to "no download" state.

void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this oscilloscope's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

void	InitVulkanQueue (const char *debugName)
	Initializes the Vulkan queue and command buffer.

void	AddDiagnosticLog (const std::string &message)

UniformAnalogWaveform *	AllocateAnalogWaveform (const std::string &name)

SparseDigitalWaveform *	AllocateDigitalWaveform (const std::string &name)

Protected Member Functions inherited from SCPIInstrument
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)

Protected Member Functions inherited from FunctionGenerator
void	DoSerializeConfiguration (YAML::Node &node, IDTable &table)
	Serializes this instrument's configuration to a YAML node.

void	DoLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap)
	Load instrument and channel configuration from a save file.

void	DoPreLoadConfiguration (int version, const YAML::Node &node, IDTable &idmap, ConfigWarningList &list)
	Validate instrument and channel configuration from a save file.

Protected Attributes
unsigned int	m_analogChannelCount

unsigned int	m_digitalChannelCount

unsigned int	m_analogAndDigitalChannelCount

size_t	m_digitalChannelBase

bool	m_hasLA

bool	m_hasDVM

bool	m_hasFunctionGen

bool	m_hasI2cTrigger

bool	m_hasSpiTrigger

bool	m_hasUartTrigger

bool	m_hasCanTrigger

bool	m_hasLinTrigger

unsigned int	m_maxBandwidth

bool	m_triggerForced

std::map< size_t, float >	m_channelVoltageRanges

std::map< size_t, float >	m_channelOffsets

std::map< std::string, float >	m_channelDigitalHysteresis

std::map< std::string, float >	m_channelDigitalThresholds

std::map< int, bool >	m_channelsEnabled

bool	m_sampleRateValid

int64_t	m_sampleRate

bool	m_memoryDepthValid

int64_t	m_memoryDepth

bool	m_memoryDepthAuto

bool	m_triggerOffsetValid

int64_t	m_triggerOffset

int64_t	m_triggerReference

std::map< size_t, bool >	m_awgEnabled

std::map< size_t, float >	m_awgDutyCycle

std::map< size_t, float >	m_awgRange

std::map< size_t, float >	m_awgOffset

std::map< size_t, float >	m_awgFrequency

std::map< size_t, float >	m_awgRiseTime

std::map< size_t, float >	m_awgFallTime

std::map< size_t, FunctionGenerator::WaveShape >	m_awgShape

std::map< size_t, FunctionGenerator::OutputImpedance >	m_awgImpedance

bool	m_highDefinition

OscilloscopeChannel *	m_extTrigChannel

OscilloscopeChannel *	m_lineTrigChannel

FunctionGeneratorChannel *	m_awgChannel

std::vector< OscilloscopeChannel * >	m_digitalChannels

Protected Attributes inherited from SCPIOscilloscope
bool	m_triggerArmed

bool	m_triggerOneShot

std::recursive_mutex	m_cacheMutex

Protected Attributes inherited from Oscilloscope
std::shared_ptr< QueueHandle >	m_queue
	Vulkan queue for GPU waveform processing.

std::unique_ptr< vk::raii::CommandPool >	m_pool
	Vulkan command pool for GPU waveform processing.

std::unique_ptr< vk::raii::CommandBuffer >	m_cmdBuf
	Vulkan command buffer for GPU waveform processing.

std::list< SequenceSet >	m_pendingWaveforms

std::mutex	m_pendingWaveformsMutex

std::recursive_mutex	m_mutex

HzClock	m_downloadClock

std::deque< std::string >	m_diagnosticLogMessages

std::map< std::string, FilterParameter * >	m_diagnosticValues

Trigger *	m_trigger

WaveformPool	m_analogWaveformPool

WaveformPool	m_digitalWaveformPool

Protected Attributes inherited from Instrument
std::list< sigc::slot< void(YAML::Node &, IDTable &)> >	m_serializers
	List of methods which need to be called to serialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &)> >	m_loaders
	List of methods which need to be called to deserialize this node's configuration.

std::list< sigc::slot< void(int, const YAML::Node &, IDTable &, ConfigWarningList &)> >	m_preloaders
	List of methods which need to be called to pre-load this node's configuration.

std::vector< InstrumentChannel * >	m_channels
	Set of all channels on this instrument.

Protected Attributes inherited from SCPIDevice
SCPITransport *	m_transport

std::string	m_vendor

std::string	m_model

std::string	m_serial

std::string	m_fwVersion

Additional Inherited Members
Public Types inherited from Oscilloscope
enum	TriggerMode { TRIGGER_MODE_RUN , TRIGGER_MODE_STOP , TRIGGER_MODE_TRIGGERED , TRIGGER_MODE_WAIT , TRIGGER_MODE_AUTO , TRIGGER_MODE_COUNT }

enum	SamplingMode { REAL_TIME , EQUIVALENT_TIME }

typedef std::pair< OscilloscopeChannel , OscilloscopeChannel >	InterleaveConflict
	Get the set of conflicting channels.

typedef std::vector< OscilloscopeChannel * >	AnalogBank

typedef std::vector< OscilloscopeChannel * >	DigitalBank

typedef std::shared_ptr< Oscilloscope >(*	CreateProcType) (SCPITransport *)

Public Types inherited from Instrument
enum	InstrumentTypes { INST_OSCILLOSCOPE = 0x01 , INST_DMM = 0x02 , INST_PSU = 0x04 , INST_FUNCTION = 0x08 , INST_RF_GEN = 0x10 , INST_LOAD = 0x20 , INST_BERT = 0x40 , INST_MISC = 0x80 , INST_SWITCH_MATRIX = 0x100 }

Public Types inherited from SCPIInstrument
typedef std::vector< SCPIInstrumentModel >(*	GetTransportsProcType) ()

Public Types inherited from SCPIFunctionGenerator
typedef std::shared_ptr< SCPIFunctionGenerator >(*	GeneratorCreateProcType) (SCPITransport *)

Public Types inherited from FunctionGenerator
enum	WaveShape { SHAPE_SINE , SHAPE_SQUARE , SHAPE_TRIANGLE , SHAPE_PULSE , SHAPE_DC , SHAPE_NOISE , SHAPE_SAWTOOTH_UP , SHAPE_SAWTOOTH_DOWN , SHAPE_SINC , SHAPE_GAUSSIAN , SHAPE_LORENTZ , SHAPE_HALF_SINE , SHAPE_PRBS_NONSTANDARD , SHAPE_EXPONENTIAL_RISE , SHAPE_EXPONENTIAL_DECAY , SHAPE_HAVERSINE , SHAPE_CARDIAC , SHAPE_STAIRCASE_UP , SHAPE_STAIRCASE_DOWN , SHAPE_STAIRCASE_UP_DOWN , SHAPE_NEGATIVE_PULSE , SHAPE_LOG_RISE , SHAPE_LOG_DECAY , SHAPE_SQUARE_ROOT , SHAPE_CUBE_ROOT , SHAPE_QUADRATIC , SHAPE_CUBIC , SHAPE_DLORENTZ , SHAPE_GAUSSIAN_PULSE , SHAPE_HAMMING , SHAPE_HANNING , SHAPE_KAISER , SHAPE_BLACKMAN , SHAPE_GAUSSIAN_WINDOW , SHAPE_HARRIS , SHAPE_BARTLETT , SHAPE_TAN , SHAPE_COT , SHAPE_SEC , SHAPE_CSC , SHAPE_ASIN , SHAPE_ACOS , SHAPE_ATAN , SHAPE_ACOT , SHAPE_ARB }
	Predefined waveform shapes.

enum	OutputImpedance { IMPEDANCE_HIGH_Z , IMPEDANCE_50_OHM }
	Nominal output impedance for a function generator channel. More...

Public Attributes inherited from Instrument
std::string	m_nickname
	Optional user-selected nickname of the instrument.

Protected Types inherited from Oscilloscope
typedef std::map< StreamDescriptor, WaveformBase * >	SequenceSet

typedef std::map< std::string, CreateProcType >	CreateMapType

Protected Types inherited from SCPIInstrument
typedef std::map< std::string, GetTransportsProcType >	GetTransportMapType

Protected Types inherited from SCPIFunctionGenerator
typedef std::map< std::string, GeneratorCreateProcType >	GeneratorCreateMapType

Static Protected Attributes inherited from Oscilloscope
static CreateMapType	m_createprocs

Static Protected Attributes inherited from SCPIInstrument
static GetTransportMapType	m_getTransportProcs

Static Protected Attributes inherited from SCPIFunctionGenerator
static GeneratorCreateMapType	m_gencreateprocs

Member Function Documentation

◆ AcquireData()

bool RSRTB2kOscilloscope::AcquireData ( )

overridevirtual

Pull data from the instrument.

Returns: True if waveform was acquired, false if connection lost or other serious error

Implements Instrument.

◆ CanEnableChannel()

bool RSRTB2kOscilloscope::CanEnableChannel ( size_t i )

overridevirtual

Determines if a channel can be enabled.

Returns: False if the channel cannot currently be used (due to interleave conflicts or other hardware limitations).

True if the channel is available or is already enabled.

Parameters

i	Zero-based index of channel

The default implementation always returns true.

Reimplemented from Oscilloscope.

◆ CanInvert()

bool RSRTB2kOscilloscope::CanInvert ( size_t i )

overridevirtual

Checks if a channel is capable of hardware polarity inversion.

Parameters

i	Zero-based index of channel

Reimplemented from Oscilloscope.

◆ DisableChannel()

void RSRTB2kOscilloscope::DisableChannel ( size_t i )

overridevirtual

Turn a channel off, given the index.

This function may optionally configure channel interleaving, if supported in hardware.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ EnableChannel()

void RSRTB2kOscilloscope::EnableChannel ( size_t i )

overridevirtual

Turn a channel on, given the index.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ EnableTriggerOutput()

void RSRTB2kOscilloscope::EnableTriggerOutput ( )

overridevirtual

Enables the trigger output, configuring a shared auxiliary port for this purpose if needed.

The default implementation does nothing, and is intended for instruments where the trigger output is always enabled.

Reimplemented from Oscilloscope.

◆ FlushConfigCache()

void RSRTB2kOscilloscope::FlushConfigCache ( )

overridevirtual

Instruments are allowed to cache configuration settings to reduce round trip queries to the device.

In order to see updates made by the user at the front panel, the cache must be flushed.

Cache flushing is recommended to be manually triggered during interactive operation if there is no way to push updates from the scope to the driver.

In scripted/ATE environments where nobody should be touching the instrument, flushing is typically not needed.

The default implementation of this function does nothing since the base class provides no caching. If a derived class caches configuration, it should override this function to clear any cached data.

Reimplemented from Instrument.

◆ ForceTrigger()

void RSRTB2kOscilloscope::ForceTrigger ( )

overridevirtual

Forces a single acquisition as soon as possible.

Note that PollTrigger() may not return 'triggered' immediately, due to command processing latency.

Implements Oscilloscope.

◆ GetAvailableCouplings()

vector< OscilloscopeChannel::CouplingType > RSRTB2kOscilloscope::GetAvailableCouplings ( size_t i )

overridevirtual

Gets the set of legal coupling values for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetAvailableWaveformShapes()

vector< FunctionGenerator::WaveShape > RSRTB2kOscilloscope::GetAvailableWaveformShapes ( int chan )

overridevirtual

Query the set of available pre-defined waveforms for this generator.

Parameters

chan	Channel index

Returns: Vector of supported WaveShape's

Implements FunctionGenerator.

◆ GetChannelAttenuation()

double RSRTB2kOscilloscope::GetChannelAttenuation ( size_t i )

overridevirtual

Gets the probe attenuation for an input channel.

Note that this function returns attenuation, not gain. For example, a 10x probe would return 10 and not 0.1.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetChannelBandwidthLimit()

unsigned int RSRTB2kOscilloscope::GetChannelBandwidthLimit ( size_t i )

overridevirtual

Gets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel

Returns: Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implements Oscilloscope.

◆ GetChannelBandwidthLimiters()

vector< unsigned int > RSRTB2kOscilloscope::GetChannelBandwidthLimiters ( size_t i )

overridevirtual

Gets the set of available bandwidth limiters for an input channel.

Parameters

i	Zero-based index of channel

Reimplemented from Oscilloscope.

◆ GetChannelCoupling()

OscilloscopeChannel::CouplingType RSRTB2kOscilloscope::GetChannelCoupling ( size_t i )

overridevirtual

Gets the coupling used for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ GetChannelDisplayName()

string RSRTB2kOscilloscope::GetChannelDisplayName ( size_t i )

overridevirtual

Gets the hardware display name for a channel. This is an arbitrary user-selected string.

Some instruments allow displaying channel names in the GUI or on probes. If this is supported, the driver should override this function.

This function does not implement any caching, so calling it directly in performance critical code is not advisable. Instead, call InstrumentChannel::GetDisplayName(), which caches clientside and calls this function only on a cache miss.

The default implementation is a no-op.

Parameters

i	Zero-based index of channel

Reimplemented from Instrument.

◆ GetChannelOffset()

float RSRTB2kOscilloscope::GetChannelOffset	(	size_t	i,
		size_t	stream
	)

overridevirtual

Gets the offset, in volts, for a given channel.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)

Implements Oscilloscope.

◆ GetChannelVoltageRange()

float RSRTB2kOscilloscope::GetChannelVoltageRange	(	size_t	i,
		size_t	stream
	)

overridevirtual

Gets the range of the current channel configuration.

The range is the distance, in volts, between the most negative/smallest and most positive/largest voltage which the ADC can represent using the current vertical gain configuration. This can be calculated as the number of vertical divisions times the number of volts per division.

The range does not depend on the offset.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)

Implements Oscilloscope.

◆ GetDigitalBank()

Oscilloscope::DigitalBank RSRTB2kOscilloscope::GetDigitalBank ( size_t channel )

overridevirtual

Gets the bank containing a given channel.

Reimplemented from Oscilloscope.

◆ GetDigitalBanks()

vector< Oscilloscope::DigitalBank > RSRTB2kOscilloscope::GetDigitalBanks ( )

overridevirtual

Gets the digital channel banks for this instrument.

A bank is a set of one or more channels all sharing a common threshold and hysteresis setting.

Reimplemented from Oscilloscope.

◆ GetDigitalHysteresis()

float RSRTB2kOscilloscope::GetDigitalHysteresis ( size_t channel )

overridevirtual

Gets the hysteresis for a digital input.

Reimplemented from Oscilloscope.

◆ GetDigitalThreshold()

float RSRTB2kOscilloscope::GetDigitalThreshold ( size_t channel )

overridevirtual

Gets the threshold for a digital input.

Reimplemented from Oscilloscope.

◆ GetExternalTrigger()

OscilloscopeChannel * RSRTB2kOscilloscope::GetExternalTrigger ( )

overridevirtual

Returns the external trigger input channel, if we have one.

Note that some very high end oscilloscopes have multiple external trigger inputs. We do not currently support this.

Implements Oscilloscope.

◆ GetFunctionChannelActive()

bool RSRTB2kOscilloscope::GetFunctionChannelActive ( int chan )

overridevirtual

Returns true if the function generator channel's output is enabled.

Parameters

chan	Channel index

Implements FunctionGenerator.

◆ GetFunctionChannelAmplitude()

float RSRTB2kOscilloscope::GetFunctionChannelAmplitude ( int chan )

overridevirtual

Gets the amplitude for a function generator output.

Parameters

chan	Channel index

Returns: Amplitude, in Vpp

Implements FunctionGenerator.

◆ GetFunctionChannelDutyCycle()

float RSRTB2kOscilloscope::GetFunctionChannelDutyCycle ( int chan )

overridevirtual

Gets the duty cycle for a function generator output.

Parameters

chan	Channel index

Returns: Duty cycle, in range [0, 1]

Reimplemented from FunctionGenerator.

◆ GetFunctionChannelFallTime()

float RSRTB2kOscilloscope::GetFunctionChannelFallTime ( int chan )

overridevirtual

Gets the fall time for a function generator output (if supported)

Parameters

chan	Channel index

Returns: Fall time, in fs

Reimplemented from FunctionGenerator.

◆ GetFunctionChannelFrequency()

float RSRTB2kOscilloscope::GetFunctionChannelFrequency ( int chan )

overridevirtual

Gets the frequency for a function generator output.

Parameters

chan	Channel index

Returns: Frequency, in Hz

Implements FunctionGenerator.

◆ GetFunctionChannelOffset()

float RSRTB2kOscilloscope::GetFunctionChannelOffset ( int chan )

overridevirtual

Gets the DC offset for a function generator output.

Parameters

chan	Channel index

Returns: Offset, in volts

Implements FunctionGenerator.

◆ GetFunctionChannelOutputImpedance()

FunctionGenerator::OutputImpedance RSRTB2kOscilloscope::GetFunctionChannelOutputImpedance ( int chan )

overridevirtual

Gets the currently selected output impedance for a function generator output (if supported)

Parameters

chan	Channel index

Returns: Output impedance

Reimplemented from FunctionGenerator.

◆ GetFunctionChannelRiseTime()

float RSRTB2kOscilloscope::GetFunctionChannelRiseTime ( int chan )

overridevirtual

Gets the rise time for a function generator output (if supported)

Parameters

chan	Channel index

Returns: Rise time, in fs

Reimplemented from FunctionGenerator.

◆ GetFunctionChannelShape()

FunctionGenerator::WaveShape RSRTB2kOscilloscope::GetFunctionChannelShape ( int chan )

overridevirtual

Gets the waveform shape for a function generator output.

Parameters

chan	Channel index

Returns: Waveform shape

Implements FunctionGenerator.

◆ GetInstrumentTypes()

unsigned int RSRTB2kOscilloscope::GetInstrumentTypes ( ) const

overridevirtual

Returns a bitfield describing the set of instrument types that this instrument supports.

Not all types may be available on a given channel.

Implements Instrument.

◆ GetInstrumentTypesForChannel()

uint32_t RSRTB2kOscilloscope::GetInstrumentTypesForChannel ( size_t i ) const

overridevirtual

Returns a bitfield describing the set of instrument types that a given channel supports.

Parameters

i	Channel index

Implements Instrument.

bool RSRTB2kOscilloscope::HasFunctionRiseFallTimeControls ( int chan )

overridevirtual

Determines if the function generator allows control over rise/fall times.

If this function returns false, GetFunctionChannelRiseTime() and GetFunctionChannelFallTime() will always return 0, and SetFunctionChannelRiseTime() and SetFunctionChannelFallTime() are no-ops.

Parameters

chan	Channel index

Returns: True if rise/fall time control is available, false if unavailable

Implements FunctionGenerator.

◆ Invert()

void RSRTB2kOscilloscope::Invert	(	size_t	i,
		bool	invert
	)

overridevirtual

Enables hardware polarity inversion for a channel, if supported.

Parameters

i	Zero-based index of channel
invert	True to invert, false for normal operation

Reimplemented from Oscilloscope.

◆ IsChannelEnabled()

bool RSRTB2kOscilloscope::IsChannelEnabled ( size_t i )

overridevirtual

Checks if a channel is enabled in hardware.

Implements Oscilloscope.

◆ IsDigitalHysteresisConfigurable()

bool RSRTB2kOscilloscope::IsDigitalHysteresisConfigurable ( )

overridevirtual

Checks if digital input hysteresis is configurable or fixed.

Returns: true if configurable, false if fixed

Reimplemented from Oscilloscope.

◆ IsDigitalThresholdConfigurable()

bool RSRTB2kOscilloscope::IsDigitalThresholdConfigurable ( )

overridevirtual

Checks if digital input threshold is configurable or fixed.

Returns: true if configurable, false if fixed

Reimplemented from Oscilloscope.

◆ IsInterleaving()

bool RSRTB2kOscilloscope::IsInterleaving ( )

overridevirtual

Checks if the scope is currently combining channels.

Implements Oscilloscope.

◆ IsInverted()

bool RSRTB2kOscilloscope::IsInverted ( size_t i )

overridevirtual

Checks if hardware polarity inversion is enabled for a channel.

Parameters

i	Zero-based index of channel

Reimplemented from Oscilloscope.

◆ IsTriggerArmed()

bool RSRTB2kOscilloscope::IsTriggerArmed ( )

overridevirtual

Checks if the trigger is currently armed.

Implements Oscilloscope.

◆ PollTrigger()

Oscilloscope::TriggerMode RSRTB2kOscilloscope::PollTrigger ( )

overridevirtual

Checks the curent trigger status.

Implements Oscilloscope.

◆ PullTrigger()

void RSRTB2kOscilloscope::PullTrigger ( )

overridevirtual

Updates m_trigger with any changes made from the instrument side.

Implements Oscilloscope.

◆ PushTrigger()

void RSRTB2kOscilloscope::PushTrigger ( )

overridevirtual

Pushes changes made to m_trigger to the instrument.

Implements Oscilloscope.

◆ SetChannelAttenuation()

void RSRTB2kOscilloscope::SetChannelAttenuation	(	size_t	i,
		double	atten
	)

overridevirtual

Sets the probe attenuation used for an input channel.

Parameters

i	Zero-based index of channel
atten	Attenuation factor

Implements Oscilloscope.

◆ SetChannelBandwidthLimit()

void RSRTB2kOscilloscope::SetChannelBandwidthLimit	(	size_t	i,
		unsigned int	limit_mhz
	)

overridevirtual

Sets the bandwidth limit for an input channel.

Parameters

i	Zero-based index of channel
limit_mhz	Bandwidth limit, in MHz. Zero means "no bandwidth limit".

Implements Oscilloscope.

◆ SetChannelCoupling()

void RSRTB2kOscilloscope::SetChannelCoupling	(	size_t	i,
		OscilloscopeChannel::CouplingType	type
	)

overridevirtual

Sets the coupling used for an input channel.

Parameters

i	Zero-based index of channel

Implements Oscilloscope.

◆ SetChannelDisplayName()

void RSRTB2kOscilloscope::SetChannelDisplayName	(	size_t	i,
		std::string	name
	)

overridevirtual

Sets the hardware display name for a channel. This is an arbitrary user-selected string.

Some instruments allow displaying channel names in the GUI or on probes. If this is supported, the driver should override this function.

This function directly updates hardware without caching. In most cases, you should call InstrumentChannel::SetDisplayName(), which updates the clientside cache and then calls this function.

The default function returns the hardware name.

Parameters

i	Zero-based index of channel
name	Name of the channel

Reimplemented from Instrument.

◆ SetChannelOffset()

void RSRTB2kOscilloscope::SetChannelOffset	(	size_t	i,
		size_t	stream,
		float	offset
	)

overridevirtual

Sets the offset for a given channel.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)
offset	Offset, in volts

Implements Oscilloscope.

◆ SetChannelVoltageRange()

void RSRTB2kOscilloscope::SetChannelVoltageRange	(	size_t	i,
		size_t	stream,
		float	range
	)

overridevirtual

Sets the range of the current channel configuration.

The range is the distance, in volts, between the most negative/smallest and most positive/largest voltage which the ADC can represent using the current vertical gain configuration. This can be calculated as the number of vertical divisions times the number of volts per division.

The range does not depend on the offset.

Parameters

i	Zero-based index of channel
stream	Zero-based index of stream within channel (0 if only one stream, as is normally the case)
range	Voltage range

Implements Oscilloscope.

◆ SetDigitalHysteresis()

void RSRTB2kOscilloscope::SetDigitalHysteresis	(	size_t	channel,
		float	level
	)

overridevirtual

Sets the hysteresis for a digital input.

Reimplemented from Oscilloscope.

◆ SetDigitalThreshold()

void RSRTB2kOscilloscope::SetDigitalThreshold	(	size_t	channel,
		float	level
	)

overridevirtual

Gets the threshold for a digital input.

Reimplemented from Oscilloscope.

◆ SetFunctionChannelActive()

void RSRTB2kOscilloscope::SetFunctionChannelActive	(	int	chan,
		bool	on
	)

overridevirtual

Turns a function generator channel on or off.

Parameters

chan	Channel index
on	True to enable output, false to disable

Implements FunctionGenerator.

◆ SetFunctionChannelAmplitude()

void RSRTB2kOscilloscope::SetFunctionChannelAmplitude	(	int	chan,
		float	amplitude
	)

overridevirtual

Sets the amplitude for a function generator output.

Parameters

chan	Channel index
amplitude	Output amplitude, in Vpp

Implements FunctionGenerator.

◆ SetFunctionChannelDutyCycle()

void RSRTB2kOscilloscope::SetFunctionChannelDutyCycle	(	int	chan,
		float	duty
	)

overridevirtual

Sets the duty cycle for a function generator output.

Parameters

chan	Channel index
duty	Duty cycle, in range [0, 1]

Reimplemented from FunctionGenerator.

◆ SetFunctionChannelFallTime()

void RSRTB2kOscilloscope::SetFunctionChannelFallTime	(	int	chan,
		float	fs
	)

overridevirtual

Sets the fall time for a function generator output (if supported)

Parameters

chan	Channel index
fs	Fall time, in fs

Reimplemented from FunctionGenerator.

◆ SetFunctionChannelFrequency()

void RSRTB2kOscilloscope::SetFunctionChannelFrequency	(	int	chan,
		float	hz
	)

overridevirtual

Sets the frequency for a function generator output.

Parameters

chan	Channel index
hz	Frequency, in Hz

Implements FunctionGenerator.

◆ SetFunctionChannelOffset()

void RSRTB2kOscilloscope::SetFunctionChannelOffset	(	int	chan,
		float	offset
	)

overridevirtual

Sets the DC offset for a function generator output.

Parameters

chan	Channel index
amplitude	Offset, in volts

Implements FunctionGenerator.

◆ SetFunctionChannelOutputImpedance()

void RSRTB2kOscilloscope::SetFunctionChannelOutputImpedance	(	int	chan,
		FunctionGenerator::OutputImpedance	z
	)

overridevirtual

Sets the currently selected output impedance for a function generator output (if supported)

Parameters

chan	Channel index
z	Output impedance

Reimplemented from FunctionGenerator.

◆ SetFunctionChannelRiseTime()

void RSRTB2kOscilloscope::SetFunctionChannelRiseTime	(	int	chan,
		float	fs
	)

overridevirtual

Sets the rise time for a function generator output (if supported)

Parameters

chan	Channel index
fs	Rise time, in fs

Reimplemented from FunctionGenerator.

◆ SetFunctionChannelShape()

void RSRTB2kOscilloscope::SetFunctionChannelShape	(	int	chan,
		WaveShape	shape
	)

overridevirtual

Sets the waveform shape for a function generator output.

Parameters

chan	Channel index
shape	Desired output waveform

Implements FunctionGenerator.

◆ SetInterleaving()

bool RSRTB2kOscilloscope::SetInterleaving ( bool combine )

overridevirtual

Configures the scope to combine channels.

This function may fail to enable channel combining if conflicts are present, check the return value!

Returns: True if channel combining is enabled, false if not

Implements Oscilloscope.

◆ SetSampleDepth()

void RSRTB2kOscilloscope::SetSampleDepth ( uint64_t depth )

overridevirtual

Sets the sample depth of the scope.

Implements Oscilloscope.

◆ SetSampleRate()

void RSRTB2kOscilloscope::SetSampleRate ( uint64_t rate )

overridevirtual

Sets the sample rate of the scope, in Hz.

Implements Oscilloscope.

◆ SetTriggerOffset()

void RSRTB2kOscilloscope::SetTriggerOffset ( int64_t offset )

overridevirtual

Sets the trigger offset.

Parameters

offset Femtoseconds from the start of the capture to the trigger point. Positive values mean the trigger is within the waveform. Negative values mean there is a delay from the trigger point to the start of the waveform.

Implements Oscilloscope.

◆ Start()

void RSRTB2kOscilloscope::Start ( )

overridevirtual

Starts the instrument in continuous trigger mode.

Most drivers will implement this as repeated calls to the "single trigger" function to avoid race conditions when the instrument triggers halfway through downloading captured waveforms.

Implements Oscilloscope.

◆ StartSingleTrigger()

void RSRTB2kOscilloscope::StartSingleTrigger ( )

overridevirtual

Arms the trigger for a single acquistion.

Implements Oscilloscope.

◆ Stop()

void RSRTB2kOscilloscope::Stop ( )

overridevirtual

Stops triggering.

Implements Oscilloscope.

The documentation for this class was generated from the following files:

lib/scopehal/RSRTB2kOscilloscope.h
lib/scopehal/RSRTB2kOscilloscope.cpp

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation

◆ AcquireData()

◆ CanEnableChannel()

◆ CanInvert()

◆ DisableChannel()

◆ EnableChannel()

◆ EnableTriggerOutput()

◆ FlushConfigCache()

◆ ForceTrigger()

◆ GetAvailableCouplings()

◆ GetAvailableWaveformShapes()

◆ GetChannelAttenuation()

◆ GetChannelBandwidthLimit()

◆ GetChannelBandwidthLimiters()

◆ GetChannelCoupling()

◆ GetChannelDisplayName()

◆ GetChannelOffset()

◆ GetChannelVoltageRange()

◆ GetDigitalBank()

◆ GetDigitalBanks()

◆ GetDigitalHysteresis()

◆ GetDigitalThreshold()

◆ GetExternalTrigger()

◆ GetFunctionChannelActive()

◆ GetFunctionChannelAmplitude()

◆ GetFunctionChannelDutyCycle()

◆ GetFunctionChannelFallTime()

◆ GetFunctionChannelFrequency()

◆ GetFunctionChannelOffset()

◆ GetFunctionChannelOutputImpedance()

◆ GetFunctionChannelRiseTime()

◆ GetFunctionChannelShape()

◆ GetInstrumentTypes()

◆ GetInstrumentTypesForChannel()

◆ GetInterleaveConflicts()

◆ GetSampleDepth()

◆ GetSampleDepthsInterleaved()

◆ GetSampleDepthsNonInterleaved()

◆ GetSampleRate()

◆ GetSampleRatesInterleaved()

◆ GetSampleRatesNonInterleaved()

◆ GetTriggerOffset()

◆ GetTriggerTypes()

◆ HasFunctionRiseFallTimeControls()

◆ Invert()

◆ IsChannelEnabled()

◆ IsDigitalHysteresisConfigurable()

◆ IsDigitalThresholdConfigurable()

◆ IsInterleaving()

◆ IsInverted()

◆ IsTriggerArmed()

◆ PollTrigger()

◆ PullTrigger()

◆ PushTrigger()

◆ SetChannelAttenuation()

◆ SetChannelBandwidthLimit()

◆ SetChannelCoupling()

◆ SetChannelDisplayName()

◆ SetChannelOffset()

◆ SetChannelVoltageRange()

◆ SetDigitalHysteresis()

◆ SetDigitalThreshold()

◆ SetFunctionChannelActive()

◆ SetFunctionChannelAmplitude()

◆ SetFunctionChannelDutyCycle()

◆ SetFunctionChannelFallTime()

◆ SetFunctionChannelFrequency()

◆ SetFunctionChannelOffset()

◆ SetFunctionChannelOutputImpedance()

◆ SetFunctionChannelRiseTime()

◆ SetFunctionChannelShape()

◆ SetInterleaving()

◆ SetSampleDepth()

◆ SetSampleRate()
