Base class for waveforms with data sampled at uniform intervals. More...
#include <Waveform.h>
Inheritance diagram for UniformWaveformBase:

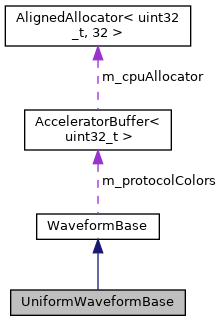

Collaboration diagram for UniformWaveformBase:
Public Member Functions | |
| UniformWaveformBase (const SparseWaveformBase &rhs) | |
| Creates a uniform waveform as a copy of a sparse one. More... | |
 Public Member Functions inherited from WaveformBase | |
| WaveformBase () | |
| Creates an empty waveform. | |
| WaveformBase (const WaveformBase &rhs) | |
| Creates a waveform, copying metadata from another. | |
| virtual void | Rename (const std::string &name="")=0 |
| Assings a human readable name to the waveform for debug purposes. More... | |
| virtual void | clear ()=0 |
| Remove all samples from this waveform. More... | |
| virtual void | Resize (size_t size)=0 |
| Reallocates buffers so the waveform contains the specified number of samples. More... | |
| virtual size_t | size () const =0 |
| Returns the number of samples in this waveform. More... | |
| virtual bool | empty () |
| Returns true if this waveform contains no samples, false otherwise. | |
| virtual std::string | GetText (size_t i) |
| Returns the text representation of a given protocol sample. More... | |
| virtual std::string | GetColor (size_t) |
| Returns the displayed color (in HTML #rrggbb or #rrggbbaa notation) of a given protocol sample. More... | |
| virtual uint32_t | GetColorCached (size_t i) |
| Returns the packed RGBA32 color of a given protocol sample calculated by CacheColors() More... | |
| virtual void | PrepareForCpuAccess ()=0 |
| Indicates that this waveform is going to be used by the CPU in the near future. More... | |
| virtual void | PrepareForGpuAccess ()=0 |
| Indicates that this waveform is going to be used by the CPU in the near future. More... | |
| virtual void | MarkSamplesModifiedFromCpu ()=0 |
| Indicates that this waveform's sample data has been modified on the CPU and the GPU-side copy is no longer coherent. More... | |
| virtual void | MarkSamplesModifiedFromGpu ()=0 |
| Indicates that this waveform's sample data has been modified on the GPU and the CPU-side copy is no longer coherent. More... | |
| virtual void | MarkModifiedFromCpu ()=0 |
| Indicates that this waveform's sample data and timestamps have been modified on the CPU and the GPU-side copy is no longer coherent. More... | |
| virtual void | MarkModifiedFromGpu ()=0 |
| Indicates that this waveform's sample data and timestamps have been modified on the GPU and the CPU-side copy is no longer coherent. More... | |
| virtual void | CacheColors () |
| Updates the cache of packed colors to avoid string parsing every frame. | |
| virtual void | FreeGpuMemory ()=0 |
| Free GPU-side memory if we are short on VRAM or do not anticipate using this waveform for a while. More... | |
| virtual bool | HasGpuBuffer ()=0 |
| Returns true if we have at least one buffer resident on the GPU. More... | |
Additional Inherited Members | |
| Public Types inherited from WaveformBase | |
| enum | WaveformFlags_t { WAVEFORM_CLIPPING = 1 } |
| Flags which may apply to m_flags. More... | |
| Public Attributes inherited from WaveformBase | |
| int64_t | m_timescale |
| The time scale, in X axis units (usually femtoseconds) per timestep, used by this channel. More... | |
| time_t | m_startTimestamp |
| Start time of the acquisition, integer part. | |
| int64_t | m_startFemtoseconds |
| Start time of the acquisition, fractional part (femtoseconds since since the UTC second) | |
| int64_t | m_triggerPhase |
| Offset, in X axis units (usually femtoseconds), from the trigger to the sampling clock. More... | |
| uint8_t | m_flags |
| Flags that apply to this waveform. Bitfield containing zero or more WaveformFlags_t values. | |
| uint64_t | m_revision |
| Revision number. More... | |
| Protected Attributes inherited from WaveformBase | |
| AcceleratorBuffer< uint32_t > | m_protocolColors |
| Cache of packed RGBA32 data with colors for each protocol decode event. Empty for non-protocol waveforms. | |
| uint64_t | m_cachedColorRevision |
| Revision we last cached colors of. | |
Detailed Description
Base class for waveforms with data sampled at uniform intervals.
Constructor & Destructor Documentation
◆ UniformWaveformBase()
|
inline |
Creates a uniform waveform as a copy of a sparse one.
It is assumed that the sparse waveform is actually sampled at regular intervals (i.e. m_durations={1, 1, ...1} and m_offsets = {0, 1, 2... N} ). If this is not the case, sample data is copied verbatim but timestamps of the resulting waveform will be incorrect. No validation of timestamps are performed.
The documentation for this class was generated from the following file:
- lib/scopehal/Waveform.h
