A SCPISocketTransport plus a second socket for waveform data. More...

#include <SCPITwinLanTransport.h>

Inheritance diagram for SCPITwinLanTransport:

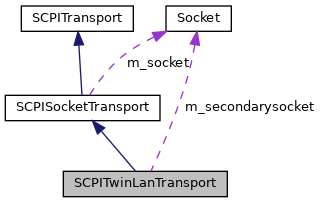

Collaboration diagram for SCPITwinLanTransport:

[legend]

Public Member Functions
	SCPITwinLanTransport (const std::string &args)

virtual std::string	GetConnectionString () override

unsigned short	GetDataPort ()

virtual size_t	ReadRawData (size_t len, unsigned char *buf, std::function< void(float)> progress=nullptr) override

virtual void	SendRawData (size_t len, const unsigned char *buf) override

const Socket &	GetSecondarySocket ()

Public Member Functions inherited from SCPISocketTransport
	SCPISocketTransport (const std::string &args)

	SCPISocketTransport (const std::string &hostname, unsigned short port)

virtual std::string	GetConnectionString () override

virtual void	FlushRXBuffer (void) override

virtual bool	SendCommand (const std::string &cmd) override

virtual std::string	ReadReply (bool endOnSemicolon=true, std::function< void(float)> progress=nullptr) override

virtual size_t	ReadRawData (size_t len, unsigned char *buf, std::function< void(float)> progress=nullptr) override

virtual void	SendRawData (size_t len, const unsigned char *buf) override

virtual bool	IsCommandBatchingSupported () override

virtual bool	IsConnected () override

const std::string &	GetHostname ()
	Returns the hostname of the connected instrument.

unsigned short	GetPort ()
	Returns the port number of the connected instrument.

void	SetTimeouts (unsigned int txUs, unsigned int rxUs)
	Sets timeouts for the connection. More...

Public Member Functions inherited from SCPITransport
virtual std::string	GetConnectionString ()=0

virtual std::string	GetName ()=0

void	SendCommandQueued (const std::string &cmd)
	Pushes a command into the transmit FIFO then returns immediately. More...

std::string	SendCommandQueuedWithReply (std::string cmd, bool endOnSemicolon=true)
	Sends a command (flushing any pending/queued commands first), then returns the response. More...

void	SendCommandImmediate (std::string cmd)
	Sends a command (jumping ahead of the queue) which does not require a response.

std::string	SendCommandImmediateWithReply (std::string cmd, bool endOnSemicolon=true)
	Sends a command (jumping ahead of the queue), then returns the response. More...

void *	SendCommandImmediateWithRawBlockReply (std::string cmd, size_t &len)
	Sends a command (jumping ahead of the queue) which reads a binary block response.

bool	FlushCommandQueue ()
	Pushes all pending commands from SendCommandQueued() calls and blocks until they are all sent.

std::recursive_mutex &	GetMutex ()

virtual void	FlushRXBuffer (void)

virtual bool	SendCommand (const std::string &cmd)=0

virtual std::string	ReadReply (bool endOnSemicolon=true, std::function< void(float)> progress=nullptr)=0

virtual size_t	ReadRawData (size_t len, unsigned char *buf, std::function< void(float)> progress=nullptr)=0

virtual void	SendRawData (size_t len, const unsigned char *buf)=0

virtual bool	IsCommandBatchingSupported ()=0

virtual bool	IsConnected ()=0

void	EnableRateLimiting (std::chrono::milliseconds interval)
	Enables rate limiting. Rate limiting is only applied to the queued command API. More...

void	DeduplicateCommand (const std::string &cmd)
	Adds a command to the set of commands which may be deduplicated in the queue. More...

Static Public Member Functions
static std::string	GetTransportName ()

Static Public Member Functions inherited from SCPISocketTransport
static std::string	GetTransportName ()
	Returns the constant transport name "lan".

Static Public Member Functions inherited from SCPITransport
static void	DoAddTransportClass (std::string name, CreateProcType proc)

static void	EnumTransports (std::vector< std::string > &names)

static SCPITransport *	CreateTransport (const std::string &transport, const std::string &args)

Protected Attributes
unsigned short	m_dataport

Socket	m_secondarysocket

Protected Attributes inherited from SCPISocketTransport
Socket	m_socket
	The socket for commands.

std::string	m_hostname
	IP or hostname of the instrument.

unsigned short	m_port
	TCP port number of the instrument.

Protected Attributes inherited from SCPITransport
std::mutex	m_queueMutex

std::recursive_mutex	m_netMutex

std::list< std::string >	m_txQueue

std::set< std::string >	m_dedupCommands

bool	m_rateLimitingEnabled

std::chrono::system_clock::time_point	m_nextCommandReady

std::chrono::milliseconds	m_rateLimitingInterval

Additional Inherited Members
Public Types inherited from SCPITransport
typedef SCPITransport (	CreateProcType) (const std::string &args)

Protected Types inherited from SCPITransport
typedef std::map< std::string, CreateProcType >	CreateMapType

Protected Member Functions inherited from SCPISocketTransport
void	SharedCtorInit ()
	Helper function that actually opens the socket connection.

Protected Member Functions inherited from SCPITransport
void	RateLimitingWait ()
	Block until it's time to send the next command when rate limiting.

Static Protected Attributes inherited from SCPITransport
static CreateMapType	m_createprocs

Detailed Description

A SCPISocketTransport plus a second socket for waveform data.

Read/WriteRawData methods are directed at the secondary stream, rather than the SCPI socket.

Member Function Documentation

◆ GetConnectionString()

string SCPITwinLanTransport::GetConnectionString ( )

overridevirtual

Reimplemented from SCPISocketTransport.

◆ ReadRawData()

size_t SCPITwinLanTransport::ReadRawData	(	size_t	len,
		unsigned char *	buf,
		std::function< void(float)>	progress = `nullptr`
	)

overridevirtual

Reimplemented from SCPISocketTransport.

◆ SendRawData()

void SCPITwinLanTransport::SendRawData	(	size_t	len,
		const unsigned char *	buf
	)

overridevirtual

Reimplemented from SCPISocketTransport.

The documentation for this class was generated from the following files:

lib/scopehal/SCPITwinLanTransport.h
lib/scopehal/SCPITwinLanTransport.cpp
