GlitchTrigger Class Reference

Trigger on a glitch meeting certain width criteria. More...

#include <GlitchTrigger.h>

Inheritance diagram for GlitchTrigger:

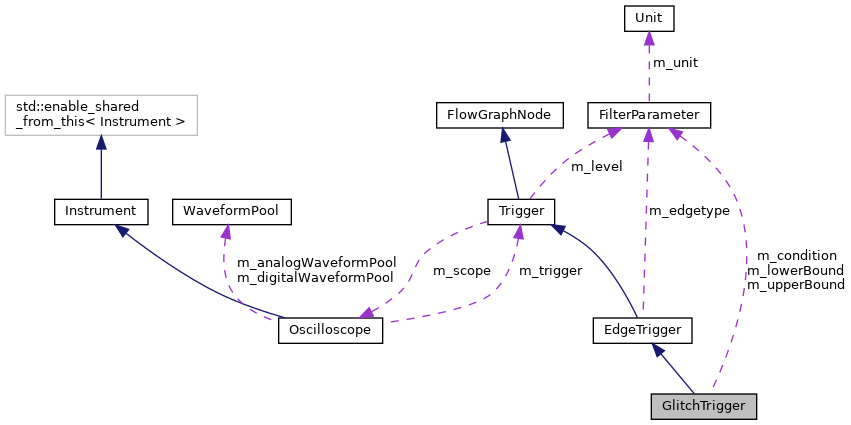

Collaboration diagram for GlitchTrigger:

Public Member Functions
	GlitchTrigger (Oscilloscope *scope)
	Initialize the trigger.
	TRIGGER_INITPROC (GlitchTrigger)
void	SetCondition (Condition type)
	Set the condition for the glitch.
Condition	GetCondition ()
	Get the desired glitch condition.
int64_t	GetLowerBound ()
	Get the lower bound, in fs, for a pulse to be considered a glitch.
void	SetLowerBound (int64_t bound)
	Set the duration of the shortest pulse that will be considered a glitch.
int64_t	GetUpperBound ()
	Get the upper bound, in fs, for a pulse to be considered a glitch.
void	SetUpperBound (int64_t bound)
	Set the duration of the longest pulse that will be considered a glitch.
Public Member Functions inherited from EdgeTrigger
	EdgeTrigger (Oscilloscope *scope)
	Initialize a new edge trigger.
void	SetType (EdgeType type)
	Set the type of the edge to trigger on.
EdgeType	GetType ()
	Gets the currently selected edge type.
virtual bool	ValidateChannel (size_t i, StreamDescriptor stream) override
	Check if a stream is allowed to be connected to the given input.
	TRIGGER_INITPROC (EdgeTrigger)
void	SetCouplingType (CouplingType type)
CouplingType	GetCouplingType ()
void	SetHfRejectState (bool state)
void	SetNoiseRejectState (bool state)
bool	GetHfRejectState ()
bool	GetNoiseRejectState ()
void	SetHoldoffTimeState (bool state)
bool	GetHoldoffTimeState ()
void	SetHoldoffTime (uint64_t bound)
uint64_t	GetHoldoffTime ()
Public Member Functions inherited from Trigger
	Trigger (Oscilloscope *scope)
	Initialize a new trigger.
virtual void	Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) override
float	GetLevel ()
	Get the trigger level.
float	GetUpperLevel ()
void	SetLevel (float level)
	Sets the trigger level.
void	SetUpperLevel (float level)
Oscilloscope *	GetScope ()
	Gets the scope this trigger is attached to.
virtual std::string	GetTriggerDisplayName ()=0
virtual YAML::Node	SerializeConfiguration (IDTable &table) override
	Serializes this trigger's configuration to a YAML string.
Public Member Functions inherited from FlowGraphNode
void	DetachInputs ()
	Disconnects all inputs from the node without releasing them.
size_t	GetInputCount ()
	Get the number of input ports.
std::string	GetInputName (size_t i)
void	SetInput (size_t i, StreamDescriptor stream, bool force=false)
	Connects a stream to the input of this node.
void	SetInput (const std::string &name, StreamDescriptor stream, bool force=false)
bool	HasInput (StreamDescriptor desc)
	Checks if the given stream is connected to at least one of our inputs.
StreamDescriptor	GetInput (size_t i)
	Gets the descriptor for one of our inputs.
std::shared_ptr< InputConstraint >	GetInputConstraints (size_t i)
	Get the constraints on one of our inputs.
FilterParameter &	GetParameter (std::string s)
bool	HasParameter (std::string s)
	Checks if we have a parameter with a given name.
ParameterMapType::iterator	GetParamBegin ()
	Returns an iterator to the beginning of our parameter map.
ParameterMapType::iterator	GetParamEnd ()
	Returns an iterator to the end of our parameter map.
size_t	GetParamCount ()
	Returns the number of parameter we have.
virtual void	LoadParameters (const YAML::Node &node, IDTable &table)
	Load configuration from a save file.
virtual void	LoadInputs (const YAML::Node &node, IDTable &table)
bool	IsDownstreamOf (std::set< FlowGraphNode * > nodes)
	Determines if this node is downstream of any of the specified other nodes.
virtual uint32_t	GetExecutionCapabilitiesMask ()
	Returns a bitmask of ExecutionCapabilities fields.
bool	HasMessages () const
	Checks if this graph has any messages.
const std::vector< FlowGraphNodeMessage > &	GetMessages () const
	Walking through any messages.
const FlowGraphNodeMessage *	GetMostSevereMessage () const
void	AddSink (size_t stream, FlowGraphNode *node)
void	RemoveSink (size_t stream, FlowGraphNode *node)
const std::set< FlowGraphNode * > &	GetSinks (size_t stream)
sigc::signal< void()>	signal_parametersChanged ()
sigc::signal< void()>	signal_inputsChanged ()

Static Public Member Functions
static std::string	GetTriggerName ()
	Return the constant trigger type name "Glitch".
Static Public Member Functions inherited from EdgeTrigger
static std::string	GetTriggerName ()
	Return the constant trigger name "edge".
Static Public Member Functions inherited from Trigger
static void	DoAddTriggerClass (std::string name, CreateProcType proc)
	Register a new trigger class for dynamic creation.
static void	EnumTriggers (std::vector< std::string > &names)
	Gets a list of all registered trigger types.
static Trigger *	CreateTrigger (std::string name, Oscilloscope *scope)
	Creates a new trigger for an oscilloscope.

Protected Attributes
FilterParameter &	m_condition
	Condition to look for.
FilterParameter &	m_lowerBound
	Lower voltage level for glitch detector.
FilterParameter &	m_upperBound
	Upper voltage level for glitch detector.
Protected Attributes inherited from EdgeTrigger
FilterParameter &	m_edgetype
	Type of edge to trigger on.
FilterParameter &	m_couplingtype
FilterParameter &	m_hfrejectstate
FilterParameter &	m_noiserejectstate
FilterParameter &	m_holdofftimestate
FilterParameter &	m_holdofftime
Protected Attributes inherited from Trigger
Oscilloscope *	m_scope
	The scope this trigger is part of.
FilterParameter &	m_level
	"Trigger level" parameter
FilterParameter &	m_triggerLevel
FilterParameter &	m_upperLevel
Protected Attributes inherited from FlowGraphNode
std::vector< std::shared_ptr< InputDescriptor > >	m_inputs
	Input ports.
std::vector< std::set< FlowGraphNode * > >	m_sinks
	The nodes (if any) that each of our streams drives.
ParameterMapType	m_parameters
sigc::signal< void()>	m_parametersChangedSignal
	Signal emitted when the set of parameters changes.
sigc::signal< void()>	m_inputsChangedSignal
	Signal emitted when the set of inputs changes.
std::vector< FlowGraphNodeMessage >	m_messages

Additional Inherited Members
Public Types inherited from EdgeTrigger
enum	EdgeType { EDGE_RISING , EDGE_FALLING , EDGE_ANY , EDGE_ALTERNATING }
	Types of edges to trigger on. More...
enum	CouplingType { COUPLING_DC , COUPLING_AC , COUPLING_LFREJECT }
Public Types inherited from Trigger
enum	Condition {   CONDITION_EQUAL , CONDITION_NOT_EQUAL , CONDITION_LESS , CONDITION_LESS_OR_EQUAL ,   CONDITION_GREATER , CONDITION_GREATER_OR_EQUAL , CONDITION_BETWEEN , CONDITION_NOT_BETWEEN ,   CONDITION_ANY }
	Conditions for triggers that perform logical comparisons of values. More...
typedef Trigger *(*	CreateProcType) (Oscilloscope *)
Public Types inherited from FlowGraphNode
enum class	ExecutionCapabilities { None = 0 , CommandBufferAppend = 1 , CommandBufferTailCall = 2 , VulkanOnly = 4 }
typedef std::map< std::string, FilterParameter >	ParameterMapType
	Short name for a map of strings to parameters.
Protected Types inherited from Trigger
typedef std::map< std::string, CreateProcType >	CreateMapType
	Helper typedef for m_createprocs.
Protected Member Functions inherited from FlowGraphNode
virtual void	OnInputChanged (size_t i)
	Called when a new input is connected to the node.
WaveformBase *	GetInputWaveform (size_t i)
	Gets the waveform attached to the specified input.
SparseAnalogWaveform *	GetSparseAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.
UniformAnalogWaveform *	GetUniformAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.
SparseDigitalWaveform *	GetSparseDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.
UniformDigitalWaveform *	GetUniformDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.
virtual void	CreateInput (const std::string &name)
	Gets the digital bus waveform attached to the specified input.
template<class T , class... Args>
void	CreateInput (const std::string &name, Args &&... args)
std::string	GetInputDisplayName (size_t i)
	Gets the display name for one of our inputs.
void	ClearMessages ()
	Remove any messages left over from the last graph refresh.
void	AddMessage (const FlowGraphNodeMessage &msg)
	Attach a new message to the node.
void	AddMessage (Severity severity, const std::string &title, const std::string &message)
	Attach a new message to the node.
void	AddErrorMessage (const std::string &err)
	Add a new error message.
void	AddErrorMessage (const std::string &title, const std::string &err)
	Add a new error message with a title.
Static Protected Attributes inherited from Trigger
static CreateMapType	m_createprocs
	Map of trigger type names to factory methods.

Detailed Description

Trigger on a glitch meeting certain width criteria.

Constructor & Destructor Documentation

GlitchTrigger()

GlitchTrigger::GlitchTrigger

(

Oscilloscope *

scope

)

Initialize the trigger.

Parameters

scope

The instrument this trigger is to be used with

Member Function Documentation

SetCondition()

void GlitchTrigger::SetCondition ( Condition  type )

inline

Set the condition for the glitch.

Parameters

type	Search condition May be CONDITION_LESS to only trigger on glitches shorter than the upper bound, or CONDITION_BETWEEN to trigger on glitches between upper and lower bounds in length

SetLowerBound()

void GlitchTrigger::SetLowerBound ( int64_t  bound )

inline

Set the duration of the shortest pulse that will be considered a glitch.

Parameters

bound

Lower bound, in fs

SetUpperBound()

void GlitchTrigger::SetUpperBound ( int64_t  bound )

inline

Set the duration of the longest pulse that will be considered a glitch.

Parameters

bound

Upper bound, in fs

---

The documentation for this class was generated from the following files:

• lib/scopehal/GlitchTrigger.h
• lib/scopehal/GlitchTrigger.cpp
