A single channel of a power supply. More...
#include <PowerSupplyChannel.h>
Inheritance diagram for PowerSupplyChannel:

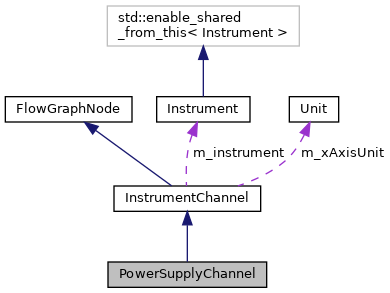

Collaboration diagram for PowerSupplyChannel:
Public Types | |
| enum | StreamIndexes { STREAM_VOLTAGE_MEASURED , STREAM_VOLTAGE_SET_POINT , STREAM_CURRENT_MEASURED , STREAM_CURRENT_SET_POINT } |
 Public Types inherited from InstrumentChannel | |
| enum | PhysicalConnector { CONNECTOR_BANANA_DUAL , CONNECTOR_BMA , CONNECTOR_BNC , CONNECTOR_K , CONNECTOR_K_DUAL , CONNECTOR_N , CONNECTOR_SMA } |
| enum | VisibilityMode { VIS_HIDE , VIS_AUTO , VIS_SHOW } |
| Selects how the channel should be displayed in e.g. the ngscopeclient filter graph editor. | |
| enum | DownloadState { DOWNLOAD_UNKNOWN , DOWNLOAD_NONE , DOWNLOAD_WAITING , DOWNLOAD_IN_PROGRESS , DOWNLOAD_FINISHED } |
| Enum values to be mapped to GetDownloadState() int result value for specific channel download states. More... | |
| Public Types inherited from FlowGraphNode | |
| enum class | ExecutionCapabilities { None = 0 , CommandBufferAppend = 1 , CommandBufferTailCall = 2 , VulkanOnly = 4 , DynamicShader = 8 } |
| typedef std::map< std::string, FilterParameter > | ParameterMapType |
| Short name for a map of strings to parameters. | |
Public Member Functions | |
| PowerSupplyChannel (const std::string &hwname, PowerSupply *powerSupply, const std::string &color="#808080", size_t index=0) | |
| PowerSupply * | GetPowerSupply () |
| float | GetVoltageMeasured () |
| float | GetVoltageSetPoint () |
| float | GetCurrentMeasured () |
| float | GetCurrentSetPoint () |
| virtual void | Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) override |
| virtual bool | ValidateChannel (size_t i, StreamDescriptor stream) override |
| Check if a stream is allowed to be connected to the given input. | |
| virtual PhysicalConnector | GetPhysicalConnector () override |
| Public Member Functions inherited from InstrumentChannel | |
| InstrumentChannel (Instrument *inst, const std::string &hwname, const std::string &color="#808080", Unit xunit=Unit(Unit::UNIT_FS), size_t index=0) | |
| InstrumentChannel (Instrument *inst, const std::string &hwname, const std::string &color="#808080", Unit xunit=Unit(Unit::UNIT_FS), Unit yunit=Unit(Unit::UNIT_VOLTS), Stream::StreamType stype=Stream::STREAM_TYPE_ANALOG, size_t index=0) | |
| virtual void | SetDisplayName (std::string name) |
| Sets the human-readable nickname for this channel, as displayed in the GUI. | |
| virtual std::string | GetDisplayName () |
| Gets the human-readable nickname for this channel, as displayed in the GUI. | |
| const std::string & | GetHwname () const |
| Gets the hardware name of the channel (m_hwname) | |
| size_t | GetIndex () const |
| Gets the (zero based) index of the channel. | |
| Instrument * | GetInstrument () const |
| Gets the instrument this channel is part of (if any) | |
| void | ClearCachedDisplayName () |
| Sets the display name to an empty string, causing a fetch from hardware. | |
| void | SetData (WaveformBase *pNew, size_t stream) |
| Sets the waveform data for a given stream, replacing any previous waveform. | |
| virtual Unit | GetXAxisUnits () |
| Returns the X axis unit for this channel. | |
| virtual Unit | GetYAxisUnits (size_t stream) |
| Returns the Y axis unit for a specified stream. | |
| virtual void | SetXAxisUnits (const Unit &rhs) |
| Changes the X axis unit for this channel. | |
| virtual void | SetYAxisUnits (const Unit &rhs, size_t stream) |
| Changes the X axis unit for a specified stream. | |
| Stream::StreamType | GetType (size_t stream) |
| Returns the type of a specified stream. | |
| size_t | GetStreamCount () |
| Get the number of data streams. | |
| std::string | GetStreamName (size_t stream) |
| Gets the name of a stream (for display in the UI) | |
| WaveformBase * | GetData (size_t stream) |
| Get the contents of a data stream. | |
| uint8_t | GetStreamFlags (size_t stream) |
| Get the flags of a data stream. | |
| float | GetScalarValue (size_t stream) |
| Gets the value of a scalar data stream. | |
| void | SetScalarValue (size_t stream, float value) |
| Sets the value of a scalar data stream. | |
| uint64_t | GetDigitalScalarValue (size_t stream) |
| Gets the value of a scalar data stream. | |
| uint64_t | GetDigitalWidth (size_t stream) |
| Gets the width of a digital data stream. | |
| void | SetDigitalWidth (size_t stream, uint64_t width) |
| Set the width of a digital data stream. | |
| void | SetDigitalScalarValue (size_t stream, uint64_t value) |
| Sets the value of a scalar data stream. | |
| WaveformBase * | Detach (size_t stream) |
| Detach the capture data from this channel. | |
| virtual bool | ShouldPersistWaveform () |
| Determine whether the channel's waveform(s) should be persisted to a session file. | |
| virtual DownloadState | GetDownloadState () |
| Returns the current download state of this channel. | |
| virtual float | GetDownloadProgress () |
| returns the current completion of the download (on the range [0, 1]), if not DOWNLOAD_UNKNOWN | |
| virtual double | GetDownloadStartTime () |
| returns the start time of a download, if we are DOWNLOAD_IN_PROGRESS; undefined, otherwise | |
| Public Member Functions inherited from FlowGraphNode | |
| void | DetachInputs () |
| Disconnects all inputs from the node without releasing them. | |
| size_t | GetInputCount () |
| Get the number of input ports. | |
| std::string | GetInputName (size_t i) |
| void | SetInput (size_t i, StreamDescriptor stream, bool force=false) |
| Connects a stream to the input of this node. | |
| void | SetInput (const std::string &name, StreamDescriptor stream, bool force=false) |
| bool | HasInput (StreamDescriptor desc) |
| Checks if the given stream is connected to at least one of our inputs. | |
| StreamDescriptor | GetInput (size_t i) |
| Gets the descriptor for one of our inputs. | |
| std::shared_ptr< InputConstraint > | GetInputConstraints (size_t i) |
| Get the constraints on one of our inputs. | |
| FilterParameter & | GetParameter (std::string s) |
| bool | HasParameter (std::string s) |
| Checks if we have a parameter with a given name. | |
| ParameterMapType::iterator | GetParamBegin () |
| Returns an iterator to the beginning of our parameter map. | |
| ParameterMapType::iterator | GetParamEnd () |
| Returns an iterator to the end of our parameter map. | |
| size_t | GetParamCount () |
| Returns the number of parameter we have. | |
| virtual YAML::Node | SerializeConfiguration (IDTable &table) |
| Serializes this trigger's configuration to a YAML string. | |
| virtual void | LoadParameters (const YAML::Node &node, IDTable &table) |
| Load configuration from a save file. | |
| virtual void | LoadInputs (const YAML::Node &node, IDTable &table) |
| bool | IsDownstreamOf (std::set< FlowGraphNode * > nodes) |
| Determines if this node is downstream of any of the specified other nodes. | |
| virtual uint32_t | GetExecutionCapabilitiesMask () |
| Returns a bitmask of ExecutionCapabilities fields. | |
| bool | HasMessages () const |
| Checks if this graph has any messages. | |
| const std::vector< FlowGraphNodeMessage > & | GetMessages () const |
| Walking through any messages. | |
| const FlowGraphNodeMessage * | GetMostSevereMessage () const |
| void | AddSink (size_t stream, FlowGraphNode *node) |
| void | RemoveSink (size_t stream, FlowGraphNode *node) |
| const std::set< FlowGraphNode * > & | GetSinks (size_t stream) |
| sigc::signal< void()> | signal_parametersChanged () |
| sigc::signal< void()> | signal_inputsChanged () |
Additional Inherited Members | |
| Public Attributes inherited from InstrumentChannel | |
| std::string | m_displaycolor |
| Display color (HTML hex notation with optional alpha channel: #RRGGBB or ##RRGGBBAA) | |
| enum InstrumentChannel::VisibilityMode | m_visibilityMode |
| Protected Member Functions inherited from InstrumentChannel | |
| virtual void | ClearStreams () |
| Clears out any existing streams. | |
| virtual size_t | AddStream (Unit yunit, const std::string &name, Stream::StreamType stype, uint8_t flags=0) |
| Adds a new data stream to the channel. | |
| Protected Member Functions inherited from FlowGraphNode | |
| virtual void | OnInputChanged (size_t i) |
| Called when a new input is connected to the node. | |
| WaveformBase * | GetInputWaveform (size_t i) |
| Gets the waveform attached to the specified input. | |
| SparseAnalogWaveform * | GetSparseAnalogInputWaveform (size_t i) |
| Gets the analog waveform attached to the specified input. | |
| UniformAnalogWaveform * | GetUniformAnalogInputWaveform (size_t i) |
| Gets the analog waveform attached to the specified input. | |
| SparseDigitalWaveform * | GetSparseDigitalInputWaveform (size_t i) |
| Gets the digital waveform attached to the specified input. | |
| UniformDigitalWaveform * | GetUniformDigitalInputWaveform (size_t i) |
| Gets the digital waveform attached to the specified input. | |
| virtual void | CreateInput (const std::string &name) |
| Gets the digital bus waveform attached to the specified input. | |
| template<class T , class... Args> | |
| void | CreateInput (const std::string &name, Args &&... args) |
| std::string | GetInputDisplayName (size_t i) |
| Gets the display name for one of our inputs. | |
| void | ClearMessages () |
| Remove any messages left over from the last graph refresh. | |
| void | AddMessage (const FlowGraphNodeMessage &msg) |
| Attach a new message to the node. | |
| void | AddMessage (Severity severity, const std::string &title, const std::string &message) |
| Attach a new message to the node. | |
| void | AddErrorMessage (const std::string &err) |
| Add a new error message. | |
| void | AddErrorMessage (const std::string &title, const std::string &err) |
| Add a new error message with a title. | |
| Protected Attributes inherited from InstrumentChannel | |
| Instrument * | m_instrument |
| The instrument we're part of (may be null in the case of filters etc) | |
| std::string | m_hwname |
| Hardware name of the channel. | |
| std::string | m_displayname |
| Display name (user defined, defaults to m_hwname). | |
| size_t | m_index |
| Zero based index of the channel within the instrument. | |
| Unit | m_xAxisUnit |
| Unit of measurement for our horizontal axis (common to all streams) | |
| std::vector< Stream > | m_streams |
| Configuration data for each of our output streams. | |
| Protected Attributes inherited from FlowGraphNode | |
| std::vector< std::shared_ptr< InputDescriptor > > | m_inputs |
| Input ports. | |
| std::vector< std::set< FlowGraphNode * > > | m_sinks |
| The nodes (if any) that each of our streams drives. | |
| ParameterMapType | m_parameters |
| sigc::signal< void()> | m_parametersChangedSignal |
| Signal emitted when the set of parameters changes. | |
| sigc::signal< void()> | m_inputsChangedSignal |
| Signal emitted when the set of inputs changes. | |
| std::vector< FlowGraphNodeMessage > | m_messages |
Detailed Description
A single channel of a power supply.
Member Function Documentation
◆ GetPhysicalConnector()
|
overridevirtual |
Reimplemented from InstrumentChannel.
◆ Refresh()
|
overridevirtual |
Reimplemented from InstrumentChannel.
◆ ValidateChannel()
|
overridevirtual |
Check if a stream is allowed to be connected to the given input.
Reimplemented from FlowGraphNode.
The documentation for this class was generated from the following files:
- lib/scopehal/PowerSupplyChannel.h
- lib/scopehal/PowerSupplyChannel.cpp
