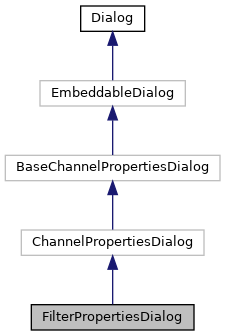

Inheritance diagram for FilterPropertiesDialog:

[legend]

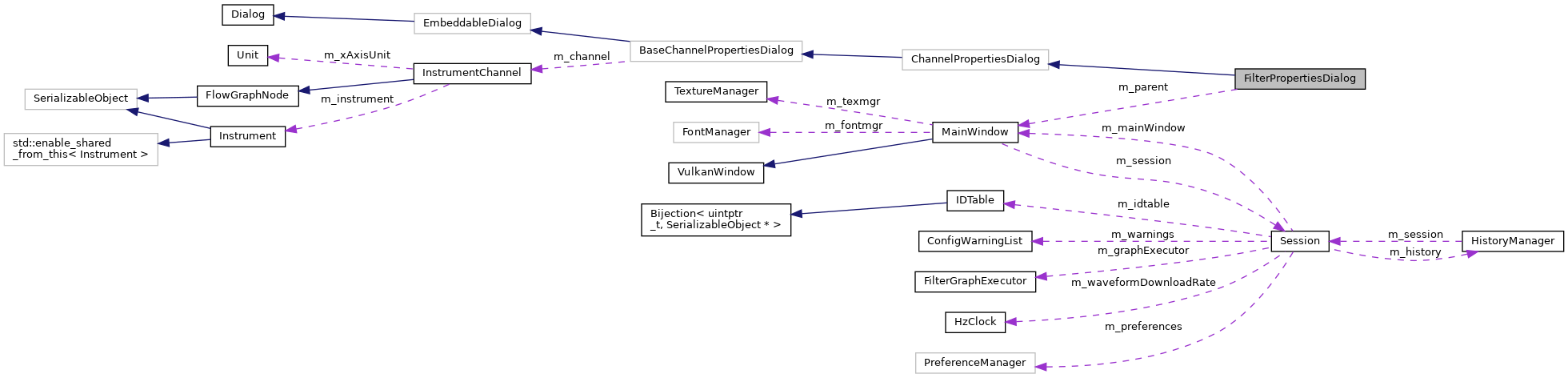

Collaboration diagram for FilterPropertiesDialog:

[legend]

Public Member Functions
	FilterPropertiesDialog (Filter f, MainWindow parent, bool graphEditorMode=false)

virtual bool	Render ()
	Renders the dialog and handles UI events.

virtual bool	DoRender ()
	Renders the dialog and handles UI events.

void	RunFileDialog ()

void	SpawnFileDialogForImportFilter ()
	Spawns the file dialog if it's an import filter.

Public Member Functions inherited from ChannelPropertiesDialog
	ChannelPropertiesDialog (InstrumentChannel chan, MainWindow parent, bool graphEditorMode=false)

Public Member Functions inherited from BaseChannelPropertiesDialog
	BaseChannelPropertiesDialog (InstrumentChannel chan, MainWindow parent, bool graphEditorMode=false)

InstrumentChannel *	GetChannel ()

Public Member Functions inherited from EmbeddableDialog
	EmbeddableDialog (const std::string &name, const std::string &id, ImVec2 size, MainWindow *parent, bool graphEditorMode=false)

Public Member Functions inherited from Dialog
	Dialog (const std::string &title, const std::string &id, ImVec2 defaultSize=ImVec2(300, 100), Session session=nullptr, MainWindow parent=nullptr)

void	RenderAsChild ()
	Runs the dialog's contents directly into a parent window.

const std::string &	GetID ()

std::string	GetTitleAndID ()

template<typename T >
bool	renderEditableProperty (float width, const string &label, string &currentValue, T &committedValue, Unit unit, const char *tooltip, optional< ImVec4 > optcolor, bool allow7SegmentDisplay, bool explicitApply)
	Render an editable numeric value.

Public Member Functions inherited from SinkNode
virtual void	Refresh (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< QueueHandle > queue) override

Public Member Functions inherited from FlowGraphNode
void	DetachInputs ()
	Disconnects all inputs from the node without releasing them.

size_t	GetInputCount ()
	Get the number of input ports.

std::string	GetInputName (size_t i)

void	SetInput (size_t i, StreamDescriptor stream, bool force=false)
	Connects a stream to the input of this node.

void	SetInput (const std::string &name, StreamDescriptor stream, bool force=false)

virtual bool	ValidateChannel (size_t i, StreamDescriptor stream)
	Check if a stream is allowed to be connected to the given input.

bool	HasInput (StreamDescriptor desc)
	Checks if the given stream is connected to at least one of our inputs.

StreamDescriptor	GetInput (size_t i)
	Gets the descriptor for one of our inputs.

std::shared_ptr< InputConstraint >	GetInputConstraints (size_t i)
	Get the constraints on one of our inputs.

FilterParameter &	GetParameter (std::string s)

bool	HasParameter (std::string s)
	Checks if we have a parameter with a given name.

ParameterMapType::iterator	GetParamBegin ()
	Returns an iterator to the beginning of our parameter map.

ParameterMapType::iterator	GetParamEnd ()
	Returns an iterator to the end of our parameter map.

size_t	GetParamCount ()
	Returns the number of parameter we have.

virtual YAML::Node	SerializeConfiguration (IDTable &table)
	Serializes this trigger's configuration to a YAML string.

virtual void	LoadParameters (const YAML::Node &node, IDTable &table)
	Load configuration from a save file.

virtual void	LoadInputs (const YAML::Node &node, IDTable &table)

bool	IsDownstreamOf (std::set< FlowGraphNode * > nodes)
	Determines if this node is downstream of any of the specified other nodes.

virtual uint32_t	GetExecutionCapabilitiesMask ()
	Returns a bitmask of ExecutionCapabilities fields.

bool	HasMessages () const
	Checks if this graph has any messages.

const std::vector< FlowGraphNodeMessage > &	GetMessages () const
	Walking through any messages.

const FlowGraphNodeMessage *	GetMostSevereMessage () const

void	AddSink (size_t stream, FlowGraphNode *node)

void	RemoveSink (size_t stream, FlowGraphNode *node)

const std::set< FlowGraphNode * > &	GetSinks (size_t stream)

sigc::signal< void()>	signal_parametersChanged ()

sigc::signal< void()>	signal_inputsChanged ()

Static Public Member Functions
static bool	DoParameter (FilterParameter &param, std::string name, std::map< std::string, std::string > &tempValues)
	Handle a single parameter row in the filter (or trigger) properties dialog.

Static Public Member Functions inherited from Dialog
static bool	Combo (const std::string &label, const std::vector< std::string > &items, int &selection, bool *open=nullptr)
	Displays a combo box from a vector<string>

static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit.

static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, double &committedValue, Unit unit)
	Input box for a double precision floating point value with an associated unit.

static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, int64_t &committedValue, Unit unit)
	Input box for an integer value with an associated unit.

static bool	TextInputWithImplicitApply (const std::string &label, std::string &currentValue, std::string &committedValue)

static void	Tooltip (const std::string &str, bool allowDisabled=false)
	Helper based on imgui demo for displaying tooltip text over the previously rendered widget.

static void	HelpMarker (const std::string &str)

static void	HelpMarker (const std::string &header, const std::vector< std::string > &bullets)

Protected Member Functions
void	FindAllStreams (std::vector< StreamDescriptor > &streams)
	Get every stream that might be usable as an input to a filter.

void	OnReconfigured (Filter *f, size_t oldStreamCount)
	Handle a filter being reconfigured.

Protected Member Functions inherited from ChannelPropertiesDialog
void	RefreshInputSettings (Oscilloscope *scope, size_t nchan)
	Update input configuration values.

Protected Member Functions inherited from Dialog
bool	TextInputWithExplicitApply (const std::string &label, std::string &currentValue, std::string &committedValue)

bool	IntInputWithImplicitApply (const std::string &label, int &currentValue, int &committedValue)

bool	UnitInputWithExplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit and an "apply" button.

void	renderNumericValue (const std::string &value, bool &clicked, bool &hovered, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false, float digitHeight=0, bool clickable=true)
	Render a numeric value.

void	renderReadOnlyProperty (float width, const std::string &label, const std::string &value, const char *tooltip=nullptr)
	Render a read-only instrument property value.

template<typename T >
bool	renderEditableProperty (float width, const std::string &label, std::string &currentValue, T &committedValue, Unit unit, const char *tooltip=nullptr, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false, bool explicitApply=false)

template<typename T >
bool	renderEditablePropertyWithExplicitApply (float width, const std::string &label, std::string &currentValue, T &committedValue, Unit unit, const char *tooltip=nullptr, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false)
	Render an editable numeric value with explicit apply (if the input value needs to explicitly be applied by clicking the apply button)

void	renderBadge (float width, ImVec4 color, const std::string &label)
	Render a badge with text inside.

void	RenderErrorPopup ()
	Popup message when we fail to connect.

void	ShowErrorPopup (const std::string &title, const std::string &msg)
	Opens the error popup.

void	Render7SegmentDigit (ImDrawList *drawList, uint8_t digit, ImVec2 size, ImVec2 position, float thikness, ImU32 colorOn, ImU32 colorOff)
	Render a single digit in 7 segment display style.

void	Render7SegmentValue (const std::string &value, ImVec4 color, float digitHeight)
	Render a numeric value with a 7 segment display style.

void	Render7SegmentValue (const std::string &value, ImVec4 color, float digitHeight, bool &clicked, bool &hovered, bool clickable=true)
	Render a numeric value with a 7 segment display style.

Protected Member Functions inherited from SinkNode
void	RefreshInputNames ()
	Regenerate the list of inputs so that each port has a unique, monotonic name.

virtual void	RemoveStream (size_t i)
	Remove a stream connected to one of our inputs but DOES NOT free the reference.

void	ClearEmptyInputs ()
	Removes any empty spaces from m_inputs.

size_t	GetStreamPosition (StreamDescriptor desc)
	Get the position of the provided Stream in this SinkNode.

void	MoveStream (StreamDescriptor desc, size_t newPosition)
	Move a stream to another position in this plot.

Protected Member Functions inherited from FlowGraphNode
virtual void	OnInputChanged (size_t i)
	Called when a new input is connected to the node.

WaveformBase *	GetInputWaveform (size_t i)
	Gets the waveform attached to the specified input.

SparseAnalogWaveform *	GetSparseAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

UniformAnalogWaveform *	GetUniformAnalogInputWaveform (size_t i)
	Gets the analog waveform attached to the specified input.

SparseDigitalWaveform *	GetSparseDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

UniformDigitalWaveform *	GetUniformDigitalInputWaveform (size_t i)
	Gets the digital waveform attached to the specified input.

virtual void	CreateInput (const std::string &name)
	Gets the digital bus waveform attached to the specified input.

template<class T , class... Args>
void	CreateInput (const std::string &name, Args &&... args)

std::string	GetInputDisplayName (size_t i)
	Gets the display name for one of our inputs.

void	ClearMessages ()
	Remove any messages left over from the last graph refresh.

void	AddMessage (const FlowGraphNodeMessage &msg)
	Attach a new message to the node.

void	AddMessage (Severity severity, const std::string &title, const std::string &message)
	Attach a new message to the node.

void	AddErrorMessage (const std::string &err)
	Add a new error message.

void	AddErrorMessage (const std::string &title, const std::string &err)
	Add a new error message with a title.

Protected Attributes
std::map< std::string, std::string >	m_paramTempValues

std::shared_ptr< FileBrowser >	m_fileDialog
	File dialog (can only ever have one at a time)

std::string	m_fileParamName

Protected Attributes inherited from ChannelPropertiesDialog
std::shared_ptr< OscilloscopeState >	m_state
	Current channel stats, live updated.

std::string	m_displayName

std::string	m_committedDisplayName

std::vector< std::string >	m_offset

std::vector< float >	m_committedOffset

std::vector< std::string >	m_range

std::vector< float >	m_committedRange

std::string	m_threshold

float	m_committedThreshold

std::string	m_hysteresis

float	m_committedHysteresis

std::string	m_attenuation

float	m_committedAttenuation

std::vector< std::string >	m_couplingNames

std::vector< OscilloscopeChannel::CouplingType >	m_couplings

int	m_coupling

std::vector< std::string >	m_bwlNames

std::vector< unsigned int >	m_bwlValues

int	m_bwl

std::vector< std::string >	m_imuxNames

int	m_imux

std::vector< std::string >	m_modeNames

int	m_mode

int	m_navg

float	m_color [3]

bool	m_inverted

std::string	m_probe

bool	m_canAutoZero

bool	m_canDegauss

bool	m_shouldDegauss

bool	m_canAverage

Protected Attributes inherited from EmbeddableDialog
bool	m_graphEditorMode
	If true, we're a sub-window of a filter graph editor node.

Protected Attributes inherited from Dialog
bool	m_open

std::string	m_id

std::string	m_title

ImVec2	m_defaultSize

std::string	m_errorPopupTitle

std::string	m_errorPopupMessage

Session *	m_session
	optional reference to session

MainWindow *	m_parent
	optional reference to parent MainWindow

ImGuiID	m_editedItemId = 0
	Id of the item currently beeing edited.

ImGuiID	m_lastEditedItemId = 0
	Id of the last edited item.

Protected Attributes inherited from FlowGraphNode
std::vector< std::shared_ptr< InputDescriptor > >	m_inputs
	Input ports.

std::vector< std::set< FlowGraphNode * > >	m_sinks
	The nodes (if any) that each of our streams drives.

ParameterMapType	m_parameters

sigc::signal< void()>	m_parametersChangedSignal
	Signal emitted when the set of parameters changes.

sigc::signal< void()>	m_inputsChangedSignal
	Signal emitted when the set of inputs changes.

std::vector< FlowGraphNodeMessage >	m_messages

Additional Inherited Members
Public Types inherited from FlowGraphNode
enum class	ExecutionCapabilities { None = 0 , CommandBufferAppend = 1 , CommandBufferTailCall = 2 , VulkanOnly = 4 , DynamicShader = 8 }

typedef std::map< std::string, FilterParameter >	ParameterMapType
	Short name for a map of strings to parameters.

Member Function Documentation

◆ DoParameter()

bool FilterPropertiesDialog::DoParameter	(	FilterParameter &	param,
		std::string	name,
		std::map< std::string, std::string > &	tempValues
	)

static

Handle a single parameter row in the filter (or trigger) properties dialog.

Returns: True if a change was made

◆ DoRender()

bool FilterPropertiesDialog::DoRender ( )

virtual

Renders the dialog and handles UI events.

Returns: True if we should continue showing the dialog False if it's been closed

Reimplemented from ChannelPropertiesDialog.

◆ Render()

bool FilterPropertiesDialog::Render ( )

virtual

Renders the dialog and handles UI events.

Returns: True if we should continue showing the dialog False if it's been closed

Reimplemented from Dialog.

The documentation for this class was generated from the following files:

src/ngscopeclient/FilterPropertiesDialog.h
src/ngscopeclient/FilterPropertiesDialog.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation

◆ DoParameter()

◆ DoRender()

◆ Render()
