BinaryDriver Class Reference

Helper class for binary driver: provides methods for handling binary data. More...

#include <BinaryDriver.h>

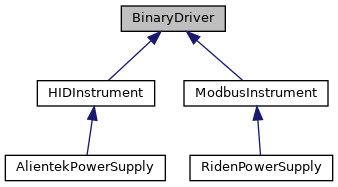

Inheritance diagram for BinaryDriver:

Protected Member Functions
void	PushUint16 (std::vector< uint8_t > *data, uint16_t value, bool littleEndian=true)
	Helper function to push a uint16 to a std::vector of bytes, as two consecutive bytes (either little-endian or big-endian according to littleEndian parameter) More...
uint16_t	ReadUint16 (const std::vector< uint8_t > &data, uint8_t index, bool littleEndian=true)
	Bounds-checked read of a 16-bit value from a byte vector. More...
uint8_t	ReadUint8 (const std::vector< uint8_t > &data, uint8_t index)
	Bounds-checked read of an 8-bit value from a byte vector. More...
uint16_t	CalculateCRC (const uint8_t *buff, size_t len)

Detailed Description

Helper class for binary driver: provides methods for handling binary data.

Member Function Documentation

PushUint16()

void BinaryDriver::PushUint16 ( std::vector< uint8_t > *  data, uint16_t  value, bool  littleEndian = true  )

inlineprotected

Helper function to push a uint16 to a std::vector of bytes, as two consecutive bytes (either little-endian or big-endian according to littleEndian parameter)

Parameters

data	the vector to push data to
value	the value to push
littleEndian	push data in little-endian format if true (default), big-endian otherwise

ReadUint16()

uint16_t BinaryDriver::ReadUint16 ( const std::vector< uint8_t > &  data, uint8_t  index, bool  littleEndian = true  )

inlineprotected

Bounds-checked read of a 16-bit value from a byte vector.

Parameters

data	Input vector
index	Byte index to read
littleEndian	push data in little-endian format if true (default), big-endian otherwise

Returns

data[index] if in bounds, or 0 if out of bounds

ReadUint8()

uint8_t BinaryDriver::ReadUint8 ( const std::vector< uint8_t > &  data, uint8_t  index  )

inlineprotected

Bounds-checked read of an 8-bit value from a byte vector.

Parameters

data	Input vector
index	Byte index to read

Returns

data[index] if in bounds, or 0 if out of bounds

---

The documentation for this class was generated from the following files:

• lib/scopehal/BinaryDriver.h
• lib/scopehal/BinaryDriver.cpp
