RFGeneratorDialog Class Reference

Inheritance diagram for RFGeneratorDialog:

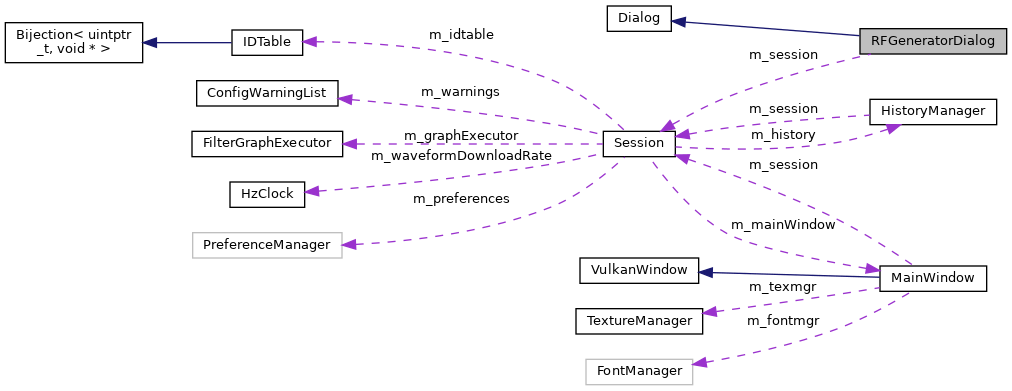

Collaboration diagram for RFGeneratorDialog:

Public Member Functions
	RFGeneratorDialog (std::shared_ptr< SCPIRFSignalGenerator > generator, Session *session)
virtual bool	DoRender ()
void	RefreshFromHardware ()
std::shared_ptr< SCPIRFSignalGenerator >	GetGenerator ()
Public Member Functions inherited from Dialog
	Dialog (const std::string &title, const std::string &id, ImVec2 defaultSize=ImVec2(300, 100), Session *session=nullptr, MainWindow *parent=nullptr)
virtual bool	Render ()
	Renders the dialog and handles UI events.
void	RenderAsChild ()
	Runs the dialog's contents directly into a parent window.
const std::string &	GetID ()
std::string	GetTitleAndID ()
template<typename T >
bool	renderEditableProperty (float width, const string &label, string &currentValue, T &committedValue, Unit unit, const char *tooltip, optional< ImVec4 > optcolor, bool allow7SegmentDisplay, bool explicitApply)
	Render an editable numeric value.

Protected Member Functions
void	DoChannel (size_t i)
	Run the UI for a single channel.
Protected Member Functions inherited from Dialog
bool	TextInputWithExplicitApply (const std::string &label, std::string &currentValue, std::string &committedValue)
bool	IntInputWithImplicitApply (const std::string &label, int &currentValue, int &committedValue)
bool	UnitInputWithExplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit and an "apply" button.
void	renderNumericValue (const std::string &value, bool &clicked, bool &hovered, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false, float digitHeight=0, bool clickable=true)
	Render a numeric value.
void	renderReadOnlyProperty (float width, const std::string &label, const std::string &value, const char *tooltip=nullptr)
	Render a read-only instrument property value.
template<typename T >
bool	renderEditableProperty (float width, const std::string &label, std::string &currentValue, T &committedValue, Unit unit, const char *tooltip=nullptr, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false, bool explicitApply=false)
template<typename T >
bool	renderEditablePropertyWithExplicitApply (float width, const std::string &label, std::string &currentValue, T &committedValue, Unit unit, const char *tooltip=nullptr, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false)
	Render an editable numeric value with explicit apply (if the input value needs to explicitly be applied by clicking the apply button)
void	renderBadge (float width, ImVec4 color, const std::string &label)
	Render a badge with text inside.
void	RenderErrorPopup ()
	Popup message when we fail to connect.
void	ShowErrorPopup (const std::string &title, const std::string &msg)
	Opens the error popup.
void	Render7SegmentDigit (ImDrawList *drawList, uint8_t digit, ImVec2 size, ImVec2 position, float thikness, ImU32 colorOn, ImU32 colorOff)
	Render a single digit in 7 segment display style.
void	Render7SegmentValue (const std::string &value, ImVec4 color, float digitHeight)
	Render a numeric value with a 7 segment display style.
void	Render7SegmentValue (const std::string &value, ImVec4 color, float digitHeight, bool &clicked, bool &hovered, bool clickable=true)
	Render a numeric value with a 7 segment display style.

Protected Attributes
std::shared_ptr< SCPIRFSignalGenerator >	m_generator
	The generator we're controlling.
std::vector< RFGeneratorChannelUIState >	m_uiState
	UI state for each channel.
Protected Attributes inherited from Dialog
bool	m_open
std::string	m_id
std::string	m_title
ImVec2	m_defaultSize
std::string	m_errorPopupTitle
std::string	m_errorPopupMessage
Session *	m_session
	optional reference to session
MainWindow *	m_parent
	optional reference to parent MainWindow
ImGuiID	m_editedItemId = 0
	Id of the item currently beeing edited.
ImGuiID	m_lastEditedItemId = 0
	Id of the last edited item.

Additional Inherited Members
Static Public Member Functions inherited from Dialog
static bool	Combo (const std::string &label, const std::vector< std::string > &items, int &selection, bool *open=nullptr)
	Displays a combo box from a vector<string>
static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit.
static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, double &committedValue, Unit unit)
	Input box for a double precision floating point value with an associated unit.
static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, int64_t &committedValue, Unit unit)
	Input box for an integer value with an associated unit.
static bool	TextInputWithImplicitApply (const std::string &label, std::string &currentValue, std::string &committedValue)
static void	Tooltip (const std::string &str, bool allowDisabled=false)
	Helper based on imgui demo for displaying tooltip text over the previously rendered widget.
static void	HelpMarker (const std::string &str)
static void	HelpMarker (const std::string &header, const std::vector< std::string > &bullets)

Member Function Documentation

DoRender()

bool RFGeneratorDialog::DoRender ( )

virtual

Implements Dialog.

---

The documentation for this class was generated from the following files:

• src/ngscopeclient/RFGeneratorDialog.h
• src/ngscopeclient/RFGeneratorDialog.cpp
