Inheritance diagram for FunctionGeneratorDialog:

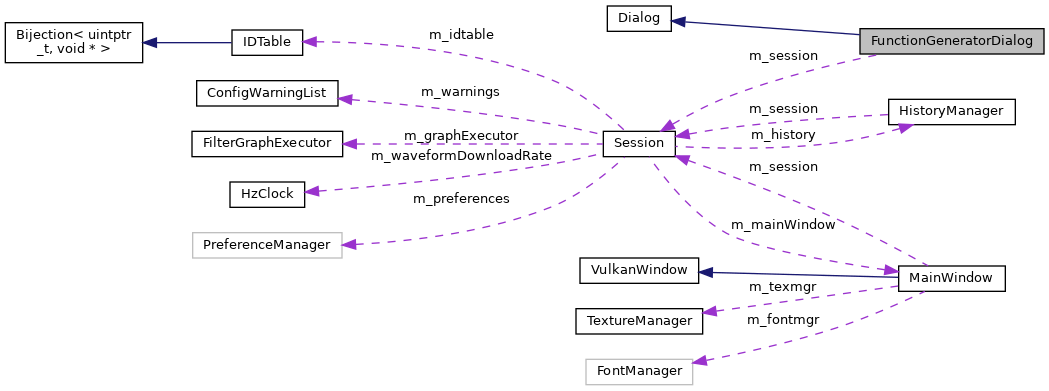

Collaboration diagram for FunctionGeneratorDialog:

[legend]

Public Member Functions
	FunctionGeneratorDialog (std::shared_ptr< SCPIFunctionGenerator > gen, std::shared_ptr< FunctionGeneratorState > sessionState, Session *session)

virtual bool	DoRender ()

std::shared_ptr< SCPIFunctionGenerator >	GetGenerator ()

Public Member Functions inherited from Dialog
	Dialog (const std::string &title, const std::string &id, ImVec2 defaultSize=ImVec2(300, 100))

virtual bool	Render ()
	Renders the dialog and handles UI events. More...

void	RenderAsChild ()
	Runs the dialog's contents directly into a parent window.

virtual bool	DoRender ()=0

const std::string &	GetID ()

std::string	GetTitleAndID ()

Protected Member Functions
void	DoChannel (size_t i)
	Run the UI for a single channel.

Protected Member Functions inherited from Dialog
bool	FloatInputWithApplyButton (const std::string &label, float &currentValue, float &committedValue)
	Helper for displaying a floating-point input box with an "apply" button.

bool	TextInputWithApplyButton (const std::string &label, std::string &currentValue, std::string &committedValue)

bool	IntInputWithImplicitApply (const std::string &label, int &currentValue, int &committedValue)

bool	UnitInputWithExplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit and an "apply" button. More...

void	RenderErrorPopup ()
	Popup message when we fail to connect.

void	ShowErrorPopup (const std::string &title, const std::string &msg)
	Opens the error popup.

Protected Attributes
Session *	m_session
	Session handle so we can remove the PSU when closed.

std::shared_ptr< SCPIFunctionGenerator >	m_generator
	The generator we're controlling.

std::shared_ptr< FunctionGeneratorState >	m_state
	Current channel stats, live updated.

std::vector< FunctionGeneratorChannelUIState >	m_uiState
	UI state for each channel.

std::vector< FunctionGenerator::OutputImpedance >	m_impedances
	Output impedances.

std::vector< std::string >	m_impedanceNames
	Human readable description of each element in m_impedances.

Protected Attributes inherited from Dialog
bool	m_open

std::string	m_id

std::string	m_title

ImVec2	m_defaultSize

std::string	m_errorPopupTitle

std::string	m_errorPopupMessage

Additional Inherited Members
Static Public Member Functions inherited from Dialog
static bool	Combo (const std::string &label, const std::vector< std::string > &items, int &selection)
	Displays a combo box from a vector<string>

static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit. More...

static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, double &committedValue, Unit unit)
	Input box for a double precision floating point value with an associated unit. More...

static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, int64_t &committedValue, Unit unit)
	Input box for an integer value with an associated unit. More...

static bool	TextInputWithImplicitApply (const std::string &label, std::string &currentValue, std::string &committedValue)

static void	Tooltip (const std::string &str, bool allowDisabled=false)
	Helper based on imgui demo for displaying tooltip text over the previously rendered widget.

static void	HelpMarker (const std::string &str)

static void	HelpMarker (const std::string &header, const std::vector< std::string > &bullets)

Member Function Documentation

◆ DoRender()

bool FunctionGeneratorDialog::DoRender ( )

virtual

Implements Dialog.

The documentation for this class was generated from the following files:
