FilterGraphErrorWindow Class Reference

Inheritance diagram for FilterGraphErrorWindow:

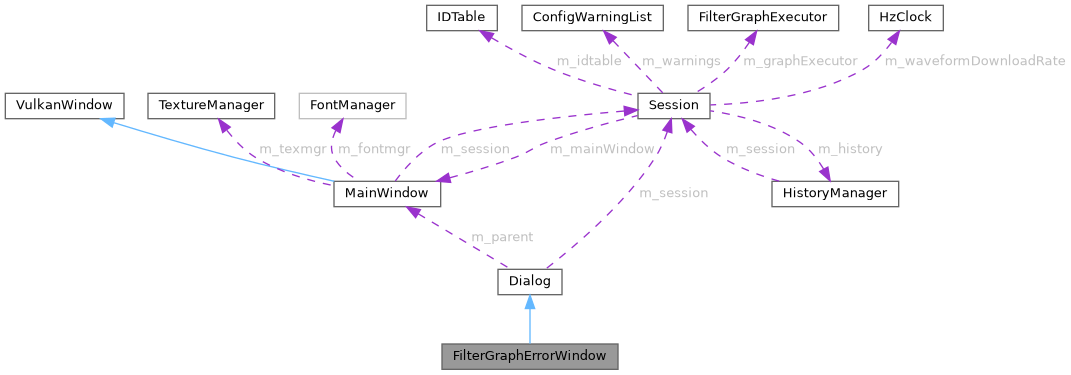

Collaboration diagram for FilterGraphErrorWindow:

Public Member Functions
	FilterGraphErrorWindow (Session *session)
virtual bool	Render ()
	Renders the dialog and handles UI events.
virtual bool	DoRender ()
	Renders the dialog and handles UI events.
Public Member Functions inherited from Dialog
	Dialog (const std::string &title, const std::string &id, ImVec2 defaultSize=ImVec2(300, 100), Session *session=nullptr, MainWindow *parent=nullptr)
void	RenderAsChild ()
	Runs the dialog's contents directly into a parent window.
const std::string &	GetID ()
std::string	GetTitleAndID ()
template<typename T >
bool	renderEditableProperty (float width, const string &label, string &currentValue, T &committedValue, Unit unit, const char *tooltip, optional< ImVec4 > optcolor, bool allow7SegmentDisplay, bool explicitApply)
	Render an editable numeric value.

Protected Attributes
std::set< InstrumentChannel * >	m_nodesWithMessages
bool	m_firstRun
Protected Attributes inherited from Dialog
bool	m_open
std::string	m_id
std::string	m_title
ImVec2	m_defaultSize
std::string	m_errorPopupTitle
std::string	m_errorPopupMessage
Session *	m_session
	optional reference to session
MainWindow *	m_parent
	optional reference to parent MainWindow
ImGuiID	m_editedItemId = 0
	Id of the item currently beeing edited.
ImGuiID	m_lastEditedItemId = 0
	Id of the last edited item.

Additional Inherited Members
Static Public Member Functions inherited from Dialog
static bool	Combo (const std::string &label, const std::vector< std::string > &items, int &selection, bool *open=nullptr)
	Displays a combo box from a vector<string>
static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit.
static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, double &committedValue, Unit unit)
	Input box for a double precision floating point value with an associated unit.
static bool	UnitInputWithImplicitApply (const std::string &label, std::string &currentValue, int64_t &committedValue, Unit unit)
	Input box for an integer value with an associated unit.
static bool	TextInputWithImplicitApply (const std::string &label, std::string &currentValue, std::string &committedValue)
static void	Tooltip (const std::string &str, bool allowDisabled=false)
	Helper based on imgui demo for displaying tooltip text over the previously rendered widget.
static void	HelpMarker (const std::string &str)
static void	HelpMarker (const std::string &header, const std::vector< std::string > &bullets)
Protected Member Functions inherited from Dialog
bool	TextInputWithExplicitApply (const std::string &label, std::string &currentValue, std::string &committedValue)
bool	IntInputWithImplicitApply (const std::string &label, int &currentValue, int &committedValue)
bool	UnitInputWithExplicitApply (const std::string &label, std::string &currentValue, float &committedValue, Unit unit)
	Input box for a floating point value with an associated unit and an "apply" button.
void	renderNumericValue (const std::string &value, bool &clicked, bool &hovered, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false, float digitHeight=0, bool clickable=true)
	Render a numeric value.
void	renderReadOnlyProperty (float width, const std::string &label, const std::string &value, const char *tooltip=nullptr)
	Render a read-only instrument property value.
template<typename T >
bool	renderEditableProperty (float width, const std::string &label, std::string &currentValue, T &committedValue, Unit unit, const char *tooltip=nullptr, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false, bool explicitApply=false)
template<typename T >
bool	renderEditablePropertyWithExplicitApply (float width, const std::string &label, std::string &currentValue, T &committedValue, Unit unit, const char *tooltip=nullptr, std::optional< ImVec4 > optcolor=std::nullopt, bool allow7SegmentDisplay=false)
	Render an editable numeric value with explicit apply (if the input value needs to explicitly be applied by clicking the apply button)
void	renderBadge (float width, ImVec4 color, const std::string &label)
	Render a badge with text inside.
void	RenderErrorPopup ()
	Popup message when we fail to connect.
void	ShowErrorPopup (const std::string &title, const std::string &msg)
	Opens the error popup.
void	Render7SegmentDigit (ImDrawList *drawList, uint8_t digit, ImVec2 size, ImVec2 position, float thikness, ImU32 colorOn, ImU32 colorOff)
	Render a single digit in 7 segment display style.
void	Render7SegmentValue (const std::string &value, ImVec4 color, float digitHeight)
	Render a numeric value with a 7 segment display style.
void	Render7SegmentValue (const std::string &value, ImVec4 color, float digitHeight, bool &clicked, bool &hovered, bool clickable=true)
	Render a numeric value with a 7 segment display style.

Member Function Documentation

DoRender()

bool FilterGraphErrorWindow::DoRender ( )

virtual

Renders the dialog and handles UI events.

Returns

True if we should continue showing the dialog False if it's been closed

Implements Dialog.

Render()

bool FilterGraphErrorWindow::Render ( )

virtual

Renders the dialog and handles UI events.

Returns

True if we should continue showing the dialog False if it's been closed

Reimplemented from Dialog.

---

The documentation for this class was generated from the following files:

• src/ngscopeclient/FilterGraphErrorWindow.h
• src/ngscopeclient/FilterGraphErrorWindow.cpp
