Declaration of WaveformBase, SparseWaveformBase, UniformWaveformBase. More...
#include <vector>#include <optional>#include <AlignedAllocator.h>#include "StandardColors.h"#include "AcceleratorBuffer.h"
Include dependency graph for Waveform.h:

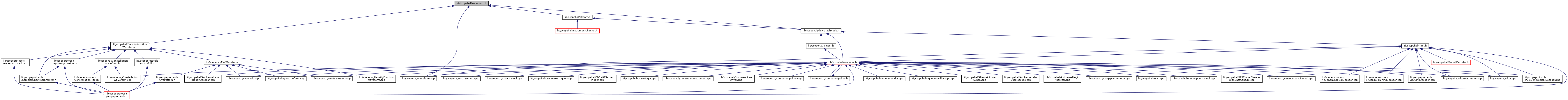

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | WaveformBase |
| Base class for all Waveform specializations. More... | |
| class | SparseWaveformBase |
| Base class for waveforms with nonuniform sample rate. More... | |
| class | UniformWaveformBase |
| Base class for waveforms with data sampled at uniform intervals. More... | |
| class | UniformWaveform< S > |
| A waveform sampled at uniform intervals. More... | |
| class | SparseWaveform< S > |
| A waveform sampled at irregular intervals. More... | |
Typedefs | |
| typedef SparseWaveform< bool > | SparseDigitalWaveform |
| typedef UniformWaveform< bool > | UniformDigitalWaveform |
| typedef SparseWaveform< float > | SparseAnalogWaveform |
| typedef UniformWaveform< float > | UniformAnalogWaveform |
| typedef SparseWaveform< std::vector< bool > > | SparseDigitalBusWaveform |
Functions | |
| template<class T > | |
| int64_t | GetOffsetScaled (T *wfm, size_t i) |
| Returns the offset of a sample from the start of the waveform, in X axis units. More... | |
| template<class T > | |
| int64_t | GetDurationScaled (T *wfm, size_t i) |
| Returns the duration of a sample, in X axis units. More... | |
| template<class T > | |
| void | AssertSampleTypesAreSame (const SparseWaveform< T > *, const SparseWaveform< T > *) |
| template<class T > | |
| void | AssertSampleTypesAreSame (const SparseWaveform< T > *, const UniformWaveform< T > *) |
| template<class T > | |
| void | AssertSampleTypesAreSame (const UniformWaveform< T > *, const SparseWaveform< T > *) |
| template<class T > | |
| void | AssertSampleTypesAreSame (const UniformWaveform< T > *, const UniformWaveform< T > *) |
| template<class T > | |
| size_t | BinarySearchForGequal (T *buf, size_t len, T value) |
| Look for a value greater than or equal to "value" in buf and return the index. | |
| size_t | GetIndexNearestAtOrBeforeTimestamp (WaveformBase *wfm, int64_t time_fs, bool &out_of_bounds) |
| Find the index of the sample in a (possibly sparse) waveform that COULD include the time time_fs. More... | |
| std::optional< float > | GetValueAtTime (WaveformBase *waveform, int64_t time_fs, bool zero_hold_behavior) |
| Gets the value of our channel at the specified timestamp (absolute, not waveform ticks) and interpolates if possible. | |
| std::optional< bool > | GetDigitalValueAtTime (WaveformBase *waveform, int64_t time_fs) |
| Gets the value of our channel at the specified timestamp (absolute, not waveform ticks). | |
| std::optional< std::string > | GetProtocolValueAtTime (WaveformBase *waveform, int64_t time_fs) |
| Gets the value of our channel at the specified timestamp (absolute, not waveform ticks). | |
Detailed Description
Declaration of WaveformBase, SparseWaveformBase, UniformWaveformBase.
