A constellation diagram. More...

#include <ConstellationWaveform.h>

Inheritance diagram for ConstellationWaveform:

[legend]

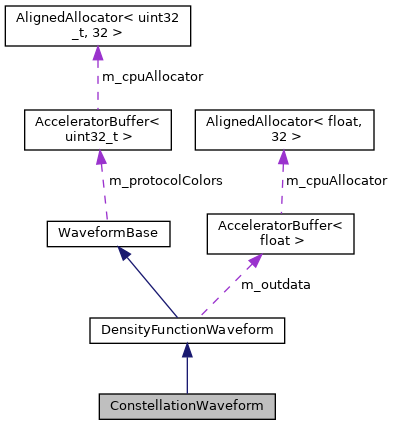

Collaboration diagram for ConstellationWaveform:

[legend]

Public Member Functions
	ConstellationWaveform (size_t width, size_t height)

	ConstellationWaveform (const ConstellationWaveform &)=delete

ConstellationWaveform &	operator= (const ConstellationWaveform &)=delete

int64_t *	GetAccumData ()
	Returns the raw accumulator sample data.

AcceleratorBuffer< int64_t > &	GetAccumBuffer ()
	Returns the raw accumulator sample data's buffer object.

void	Normalize ()
	Normalizes the waveform so that the output buffer has values in the range [0, 1].

void	Normalize (vk::raii::CommandBuffer &cmdBuf, std::shared_ptr< ComputePipeline > normalizeReducePipe, std::shared_ptr< ComputePipeline > normalizeScalePipe, AcceleratorBuffer< int64_t > &nmaxBuf)

size_t	GetTotalSymbols ()
	Returns the number of integrated symbols in the constellation.

void	IntegrateSymbols (size_t symbols)
	Marks the waveform as having integrated another batch of symbols.

virtual void	FreeGpuMemory () override
	Free GPU-side memory if we are short on VRAM or do not anticipate using this waveform for a while.

virtual bool	HasGpuBuffer () override
	Returns true if we have at least one buffer resident on the GPU.

virtual void	PrepareForCpuAccessNonblocking (vk::raii::CommandBuffer &cmdBuf) override
	Indicates that this waveform is going to be used by the CPU in the near future.

virtual void	PrepareForCpuAccess () override
	Indicates that this waveform is going to be used by the CPU in the near future.

virtual void	PrepareForGpuAccess () override
	Indicates that this waveform is going to be used by the GPU in the near future.

virtual void	MarkSamplesModifiedFromCpu () override
	Indicates that this waveform's sample data has been modified on the CPU and the GPU-side copy is no longer coherent.

virtual void	MarkSamplesModifiedFromGpu () override
	Indicates that this waveform's sample data has been modified on the GPU and the CPU-side copy is no longer coherent.

virtual void	MarkModifiedFromCpu () override
	Indicates that this waveform's sample data and timestamps have been modified on the CPU and the GPU-side copy is no longer coherent.

virtual void	MarkModifiedFromGpu () override
	Indicates that this waveform's sample data and timestamps have been modified on the GPU and the CPU-side copy is no longer coherent.

Public Member Functions inherited from DensityFunctionWaveform
	DensityFunctionWaveform (size_t width, size_t height)
	Initialize a new density function waveform of a given size.

	DensityFunctionWaveform (const DensityFunctionWaveform &)=delete

DensityFunctionWaveform &	operator= (const DensityFunctionWaveform &)=delete

virtual void	Rename (const std::string &name="") override
	Assigns a human readable name to the waveform for debug purposes.

float *	GetData ()
	Returns a pointer to the CPU-side sample data buffer.

AcceleratorBuffer< float > &	GetOutData ()
	Returns a reference to the output data buffer object.

size_t	GetHeight ()
	Returns the height of the bitmap in pixels.

size_t	GetWidth ()
	Returns the width of the bitmap in pixels.

virtual void	clear () override
	Remove all samples from this waveform.

virtual void	Resize (size_t unused) override
	Reallocates buffers so the waveform contains the specified number of samples.

virtual void	Reserve (size_t unused) override
	Preallocates buffers without changing the usable size of the waveform.

virtual void	PrepareForGpuAccessNonblocking (vk::raii::CommandBuffer &cmdBuf) override
	Indicates that this waveform is going to be used by the GPU in the near future.

virtual size_t	size () const override
	Returns the number of samples in this waveform.

virtual size_t	capacity () const override
	Returns the number of samples allocated in this waveform.

virtual size_t	GetMemoryBytes () const override
	Gets the amount of memory consumed by the waveform (may be CPU, GPU, or mirrored)

Public Member Functions inherited from WaveformBase
	WaveformBase ()
	Creates an empty waveform.

	WaveformBase (const WaveformBase &rhs)
	Creates a waveform, copying metadata from another.

virtual bool	empty ()
	Returns true if this waveform contains no samples, false otherwise.

virtual std::string	GetText (size_t i)
	Returns the text representation of a given protocol sample.

virtual std::string	GetColor (size_t)
	Returns the displayed color (in HTML #rrggbb or #rrggbbaa notation) of a given protocol sample.

virtual uint32_t	GetColorCached (size_t i)
	Returns the packed RGBA32 color of a given protocol sample calculated by CacheColors()

virtual void	CacheColors ()
	Updates the cache of packed colors to avoid string parsing every frame.

Public Attributes
float	m_saturationLevel
	Value to pre-normalize the waveform to before clipping to the range [0, 1]. Must be non-negative.

Public Attributes inherited from WaveformBase
int64_t	m_timescale
	The time scale, in X axis units (usually femtoseconds) per timestep, used by this channel.

time_t	m_startTimestamp
	Start time of the acquisition, integer part.

int64_t	m_startFemtoseconds
	Start time of the acquisition, fractional part (femtoseconds since since the UTC second)

int64_t	m_triggerPhase
	Offset, in X axis units (usually femtoseconds), from the trigger to the sampling clock.

uint8_t	m_flags
	Flags that apply to this waveform. Bitfield containing zero or more WaveformFlags_t values.

uint64_t	m_revision
	Revision number.

Protected Attributes
AcceleratorBuffer< int64_t >	m_accumdata
	Raw accumulator buffer, not normalized.

size_t	m_totalSymbols
	The number of symbols which have been integrated so far.

Protected Attributes inherited from DensityFunctionWaveform
size_t	m_width
	Buffer width, in pixels.

size_t	m_height
	Buffer height, in pixels.

AcceleratorBuffer< float >	m_outdata
	Pixel buffer.

Protected Attributes inherited from WaveformBase
AcceleratorBuffer< uint32_t >	m_protocolColors
	Cache of packed RGBA32 data with colors for each protocol decode event. Empty for non-protocol waveforms.

uint64_t	m_cachedColorRevision
	Revision we last cached colors of.

Additional Inherited Members
Public Types inherited from WaveformBase
enum	WaveformFlags_t { WAVEFORM_CLIPPING = 1 }
	Flags which may apply to m_flags. More...

Detailed Description

A constellation diagram.

Member Function Documentation

◆ FreeGpuMemory()

virtual void ConstellationWaveform::FreeGpuMemory ( )

inlineoverridevirtual

Free GPU-side memory if we are short on VRAM or do not anticipate using this waveform for a while.

Implements WaveformBase.

◆ HasGpuBuffer()

virtual bool ConstellationWaveform::HasGpuBuffer ( )

inlineoverridevirtual

Returns true if we have at least one buffer resident on the GPU.

Implements WaveformBase.

◆ IntegrateSymbols()

void ConstellationWaveform::IntegrateSymbols ( size_t symbols )

inline

Marks the waveform as having integrated another batch of symbols.

Parameters

symbols Number of symbols integrated

◆ MarkModifiedFromCpu()

virtual void ConstellationWaveform::MarkModifiedFromCpu ( )

inlineoverridevirtual

Indicates that this waveform's sample data and timestamps have been modified on the CPU and the GPU-side copy is no longer coherent.

Reimplemented from DensityFunctionWaveform.

◆ MarkModifiedFromGpu()

virtual void ConstellationWaveform::MarkModifiedFromGpu ( )

inlineoverridevirtual

Indicates that this waveform's sample data and timestamps have been modified on the GPU and the CPU-side copy is no longer coherent.

Reimplemented from DensityFunctionWaveform.

◆ MarkSamplesModifiedFromCpu()

virtual void ConstellationWaveform::MarkSamplesModifiedFromCpu ( )

inlineoverridevirtual

Indicates that this waveform's sample data has been modified on the CPU and the GPU-side copy is no longer coherent.

Reimplemented from DensityFunctionWaveform.

◆ MarkSamplesModifiedFromGpu()

virtual void ConstellationWaveform::MarkSamplesModifiedFromGpu ( )

inlineoverridevirtual

Indicates that this waveform's sample data has been modified on the GPU and the CPU-side copy is no longer coherent.

Reimplemented from DensityFunctionWaveform.

◆ Normalize()

void ConstellationWaveform::Normalize ( )

Normalizes the waveform so that the output buffer has values in the range [0, 1].

The normalization process can saturate, see m_saturationLevel for detailed discussion of this behavior

◆ PrepareForCpuAccess()

virtual void ConstellationWaveform::PrepareForCpuAccess ( )

inlineoverridevirtual

Indicates that this waveform is going to be used by the CPU in the near future.

This ensures the CPU-side copy of the data is coherent with the most recently modified (CPU or GPU side) copy.

Reimplemented from DensityFunctionWaveform.

◆ PrepareForCpuAccessNonblocking()

virtual void ConstellationWaveform::PrepareForCpuAccessNonblocking ( vk::raii::CommandBuffer & cmdBuf )

inlineoverridevirtual

Indicates that this waveform is going to be used by the CPU in the near future.

This ensures the CPU-side copy of the data is coherent with the most recently modified (CPU or GPU side) copy.

Reimplemented from DensityFunctionWaveform.

◆ PrepareForGpuAccess()

virtual void ConstellationWaveform::PrepareForGpuAccess ( )

inlineoverridevirtual

Indicates that this waveform is going to be used by the GPU in the near future.

This ensures the GPU-side copy of the data is coherent with the most recently modified (CPU or GPU side) copy.

Reimplemented from DensityFunctionWaveform.

Member Data Documentation

◆ m_accumdata

AcceleratorBuffer<int64_t> ConstellationWaveform::m_accumdata

protected

Raw accumulator buffer, not normalized.

2D array of width*height values, each counting the number of hits at that pixel location

◆ m_saturationLevel

float ConstellationWaveform::m_saturationLevel

Value to pre-normalize the waveform to before clipping to the range [0, 1]. Must be non-negative.

The default of 1.0 means the input range is mapped losslessly to [0, 1].

Values less than 1.0 result in the output never reaching full scale.

Values greater than 1.0 allow clipping; for example a saturation level of 2.0 means the input is mapped to [0, 2] then clipped to [0, 1]. This is equivalent to mapping the low half of the input values to [0, 1] and saturating beyond that point.

The documentation for this class was generated from the following files:

lib/scopehal/ConstellationWaveform.h
lib/scopehal/ConstellationWaveform.cpp
